Description

Brief Product Description

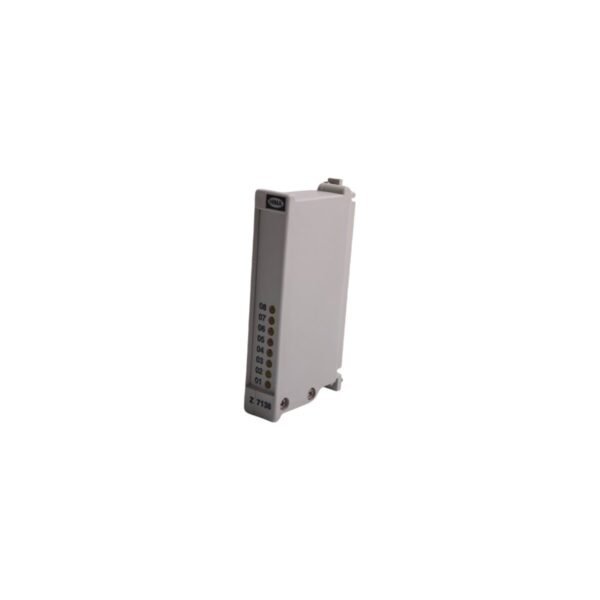

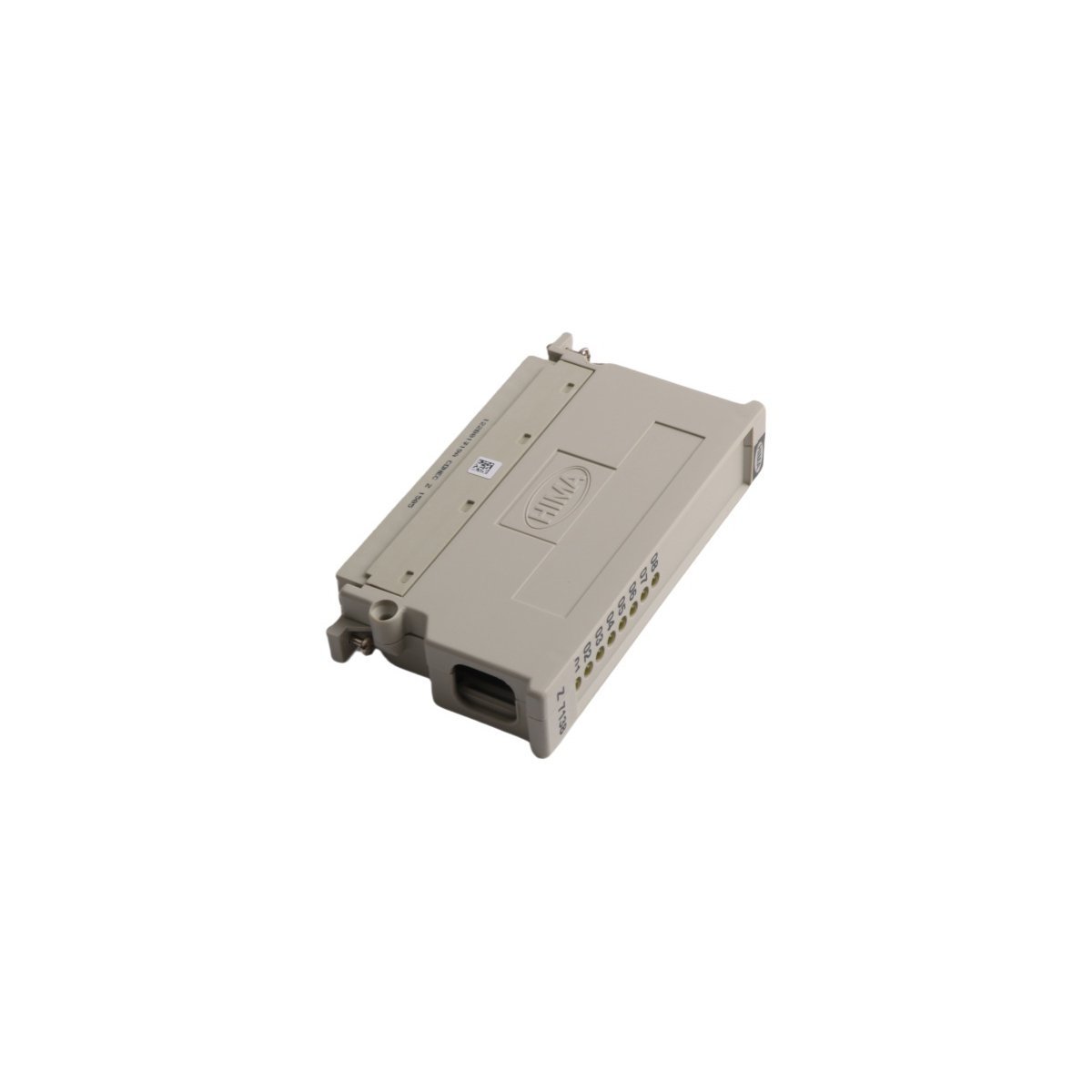

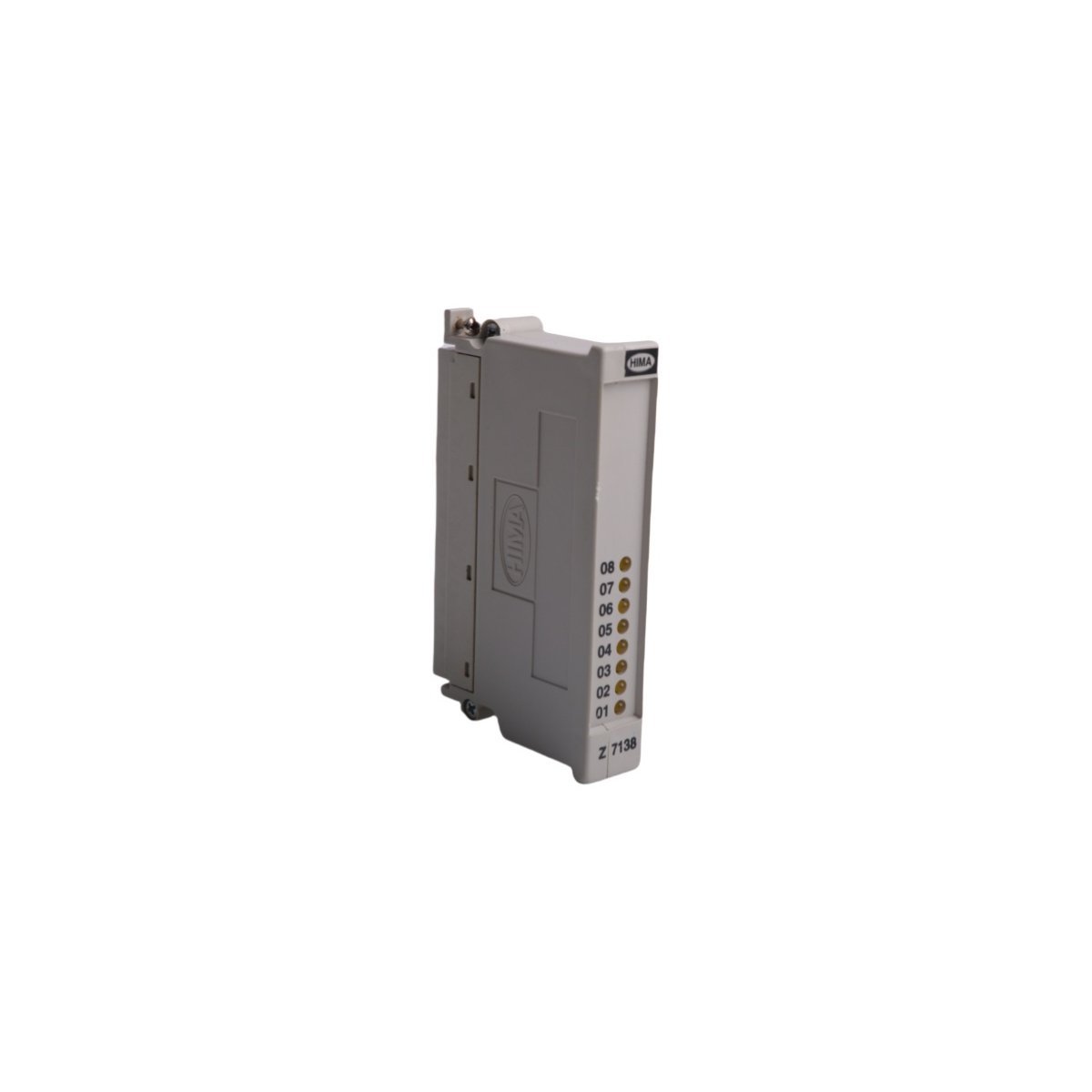

The HIMA Z7138 is a high-speed communication cable plug engineered for the HIQuad X safety system, facilitating reliable 100 Mbps Ethernet connectivity. This compact interface ensures secure data transmission and power stability for critical industrial automation networks.

High-Performance Communication Interface

The HIMA Z7138 functions as a specialized communication plug-in designed specifically for the HIQuad X safety system architecture. It enables seamless connectivity within Distributed Control Systems (DCS) by providing a high-bandwidth Ethernet interface capable of reaching transfer speeds up to 100 Mbps. This rapid throughput supports the real-time data requirements of modern industrial environments, where low latency and high synchronization are vital. By facilitating efficient data exchange between controllers and peripheral devices, the Z7138 optimizes the overall response time of complex automation sequences.

Robust Engineering and Power Stability

To maintain operational integrity in demanding sectors, the Z7138 operates on a standard 24 V DC industrial power supply. The module features an advanced filtering mechanism that protects against electromagnetic interference, ensuring signal clarity even in high-noise environments. Furthermore, its ultra-compact form factor and lightweight construction allow technicians to install the plug in confined cabinet spaces without requiring significant system restructuring. This streamlined design reduces the mechanical stress on connection ports, thereby extending the service life of both the cable and the mating system components.

Compliance and Safety Integration

HIMA manufactured the Z7138 in Germany to meet rigorous international safety and quality benchmarks, including CE and UL certifications. These endorsements verify that the plug meets strict electrical safety and environmental standards, making it a dependable choice for mission-critical infrastructure. Because it integrates directly into the HIQuad X framework, the Z7138 supports the system’s broader safety objectives by maintaining stable communication links during emergency shutdown procedures. Consequently, this module represents a cornerstone for engineers seeking to build secure, scalable, and high-performance safety networks.

Key Technical Characteristics

• HIQuad X Optimization: Tailored for perfect integration with HIMA HIQuad X safety platforms.
• Fast Ethernet Support: Enables 100 Mbps data rates for real-time process monitoring and control.
• Advanced Signal Filtering: Minimizes data corruption and interference through integrated noise suppression.
• Industrial Power Compatibility: Optimized for 24 V DC environments with high voltage tolerance.
• Durable Architecture: Built with high-quality materials to withstand vibration and thermal fluctuations.
• Certified Reliability: Carries CE and UL marks for guaranteed compliance in global industrial markets.

Technical Specifications
