Description

Product Overview

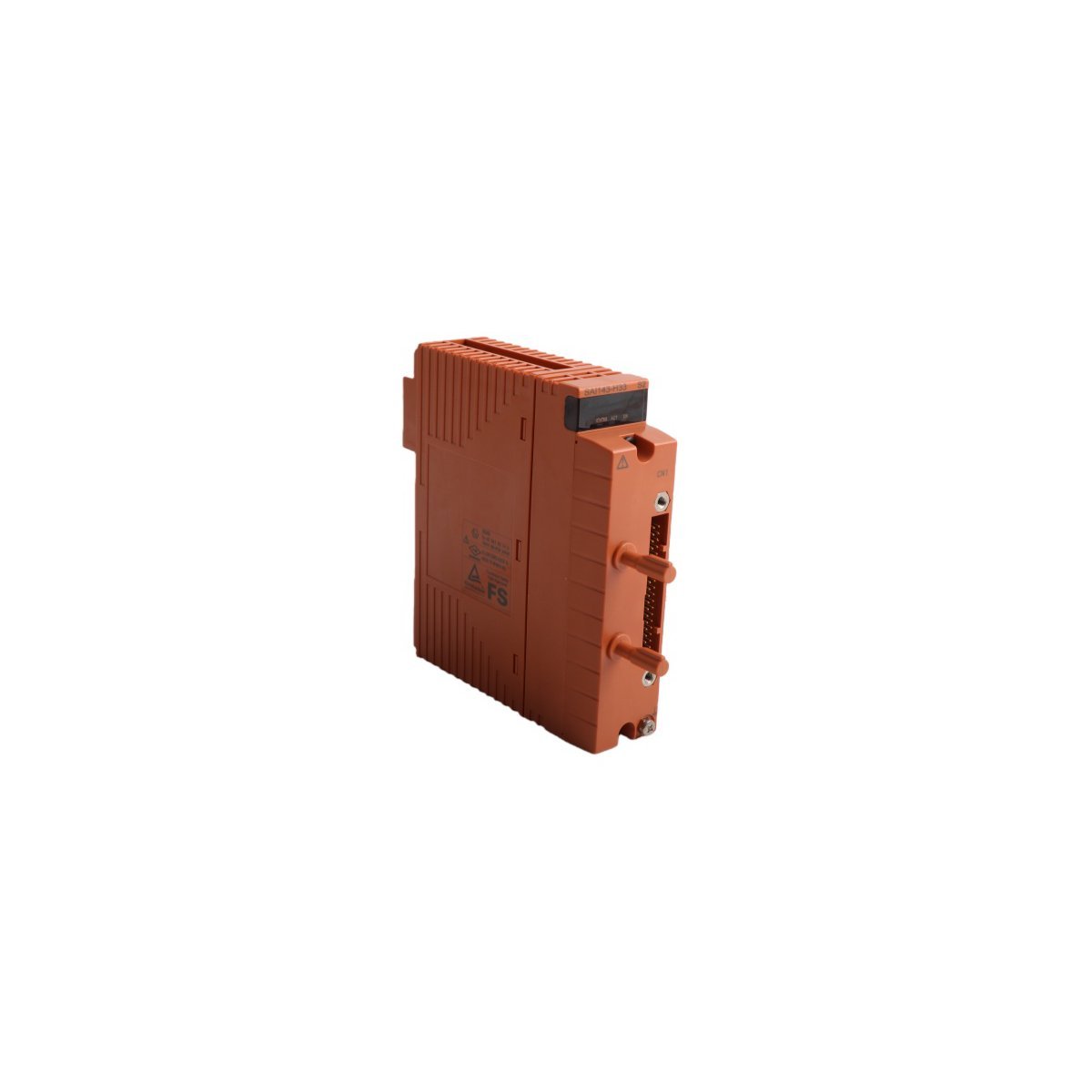

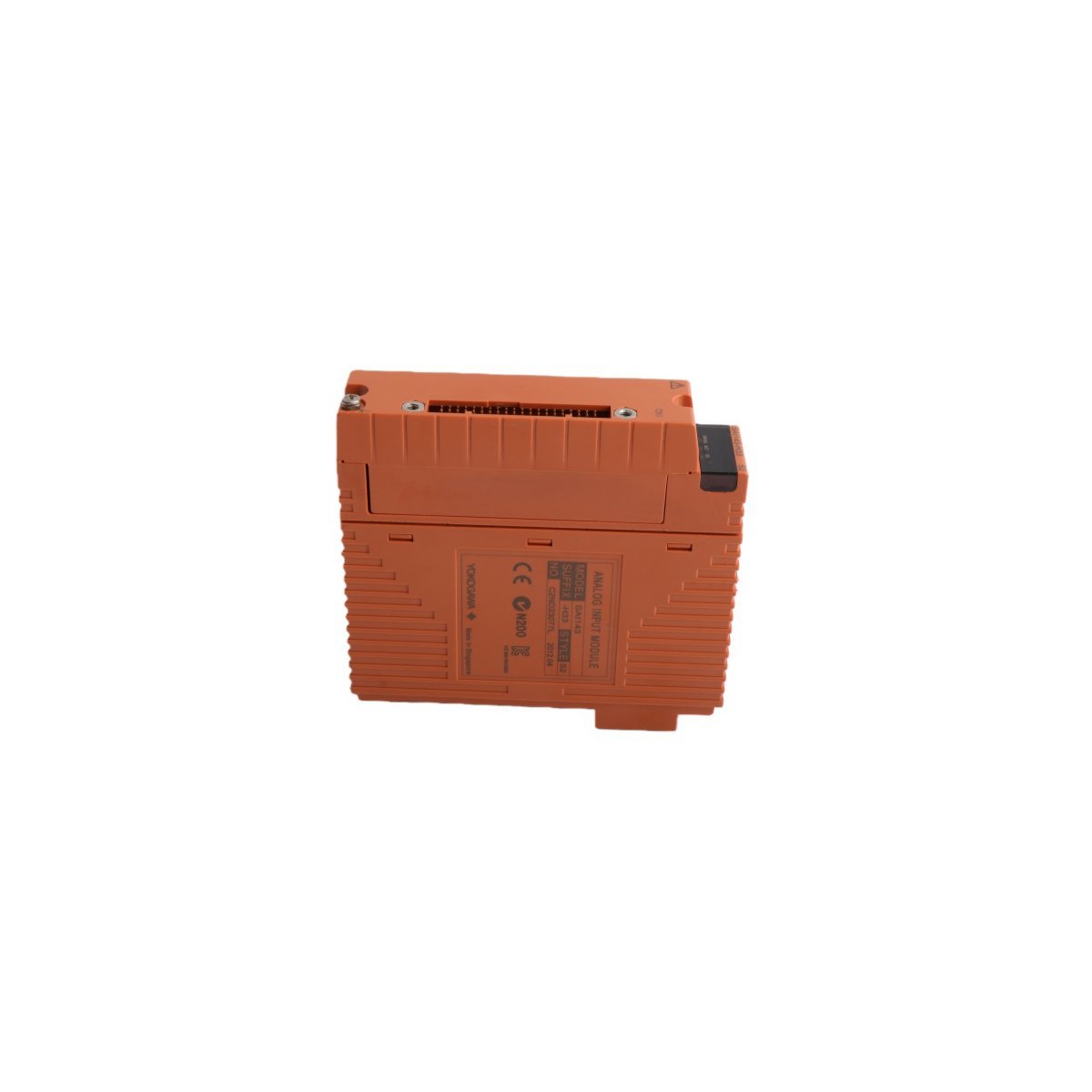

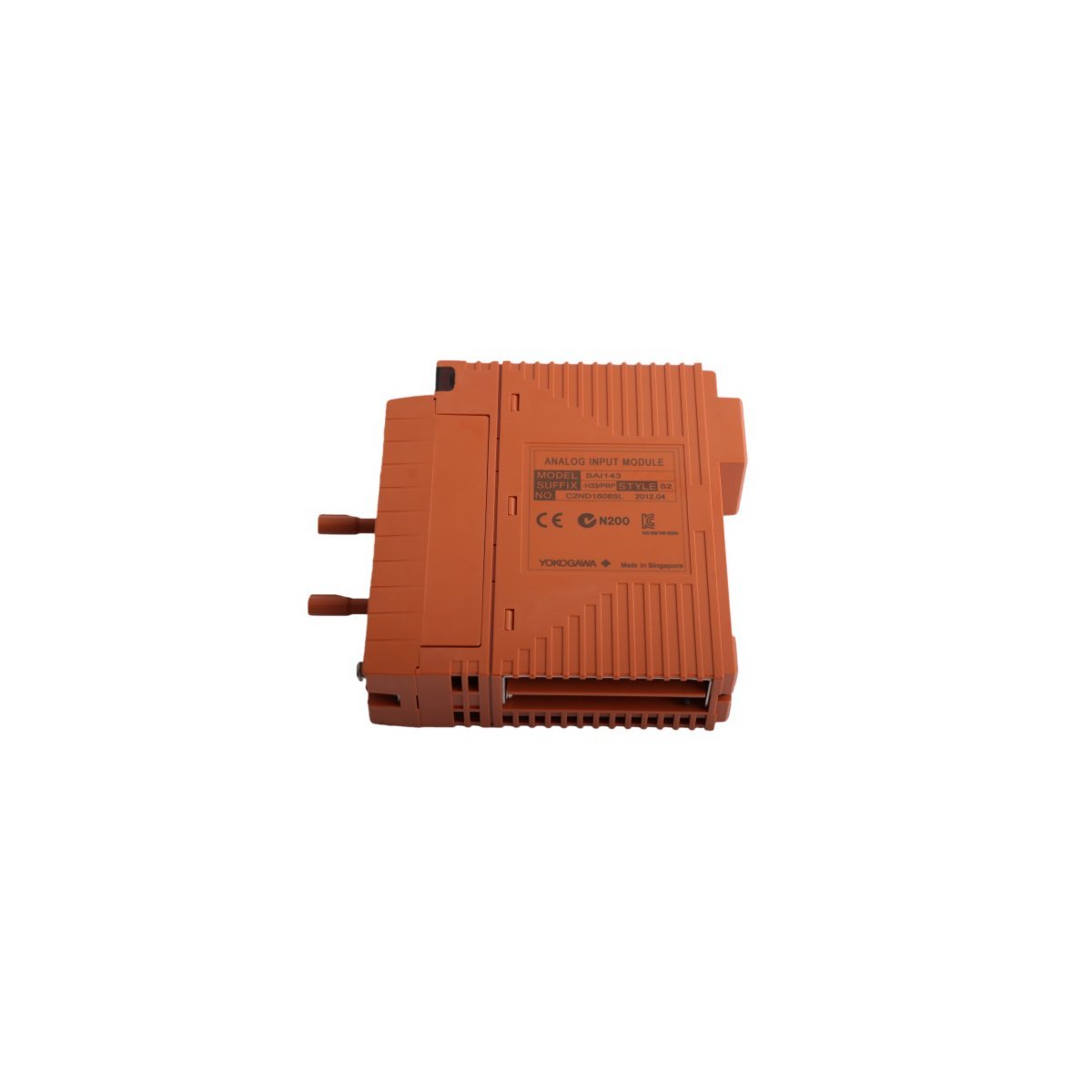

The Yokogawa SAI143-H33 S2 is a high-density, 16-channel analog input module designed for precision data acquisition within the CENTUM VP and ProSafe-RS control architectures. This unit converts field signals from transmitters into digital data, supporting critical process monitoring and safety functions in high-risk industrial environments.

Advanced Signal Isolation and Integrity

The SAI143-H33 S2 prioritizes signal purity by employing rigorous channel-to-channel and channel-to-ground isolation. Because electrical noise and ground loops often plague industrial sites, this isolation architecture prevents cross-channel interference and ensures that each measurement remains accurate. The module typically processes standard 4-20 mA current signals or 1-5 V DC voltage inputs, providing the flexibility needed to interface with various pressure, temperature, and flow transmitters. Furthermore, dedicated LED diagnostics for every channel allow technicians to identify signal faults or wiring issues at a glance, significantly reducing mean time to repair (MTTR).

Seamless Integration and Environmental Resilience

Yokogawa engineered the SAI143-H33 S2 for direct compatibility with standardized I/O racks, facilitating effortless installation in existing cabinet layouts. The module operates reliably across a temperature range of 0 to 60 degrees Celsius, which makes it suitable for control rooms located near heavy processing equipment. Additionally, the unit’s high channel density allows for a smaller physical footprint in the control cabinet, optimizing space without sacrificing performance. Consequently, this module serves as a cornerstone for large-scale automation projects in the petrochemical, power generation, and offshore oil and gas industries.

Reliable Data Acquisition for Safety Systems

Beyond basic process control, the SAI143-H33 S2 plays a vital role in Safety Instrumented Systems (SIS). By providing stable and fast signal conditioning, the module ensures that the safety logic solver receives the real-time data necessary to initiate emergency shutdowns or protective actions. The “S2” suffix denotes an enhanced version of the module, reflecting Yokogawa’s iterative improvements in hardware reliability and longevity. This commitment to quality ensures that the SAI143-H33 S2 maintains the high uptime requirements of modern, safety-conscious manufacturing facilities.

Technical Characteristics
