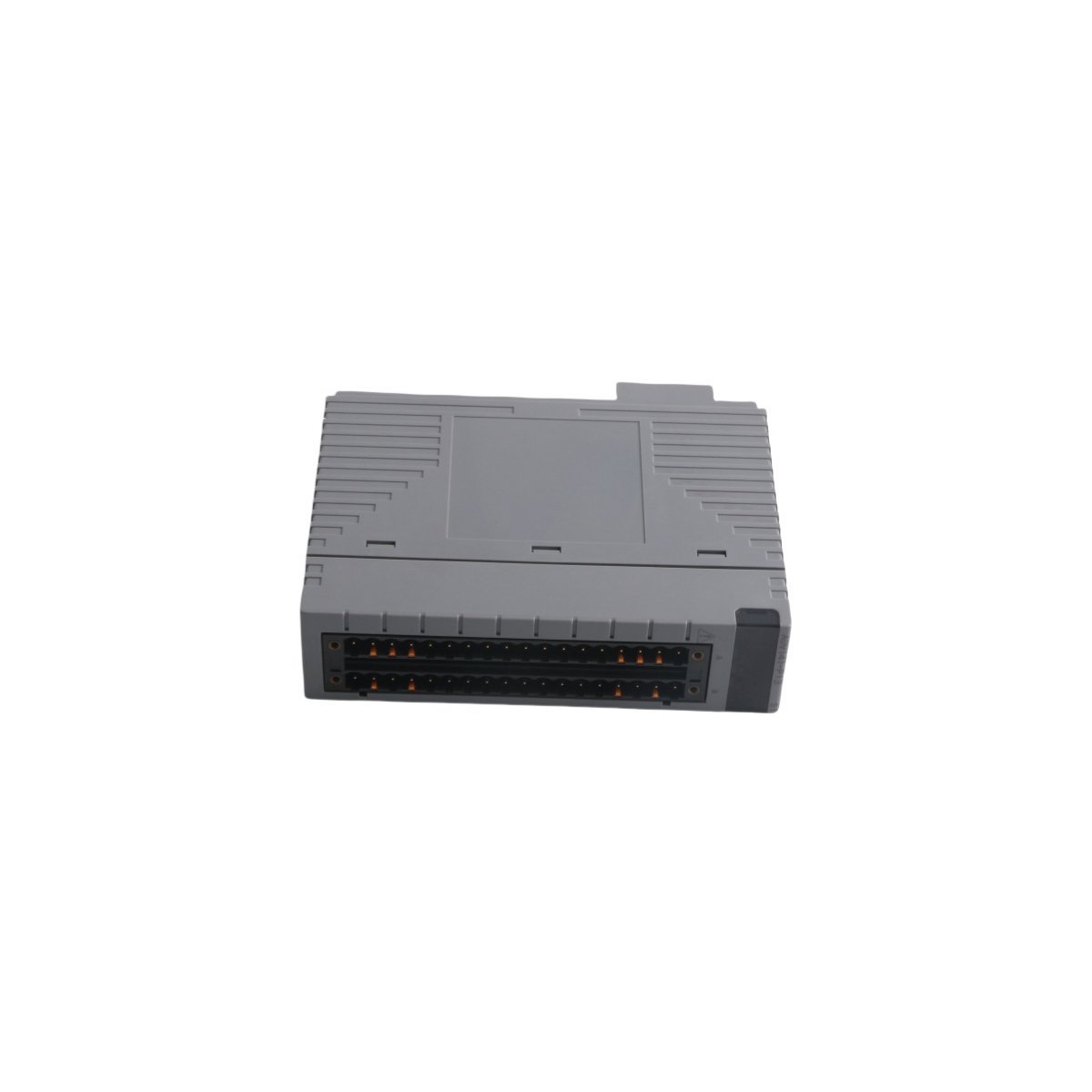

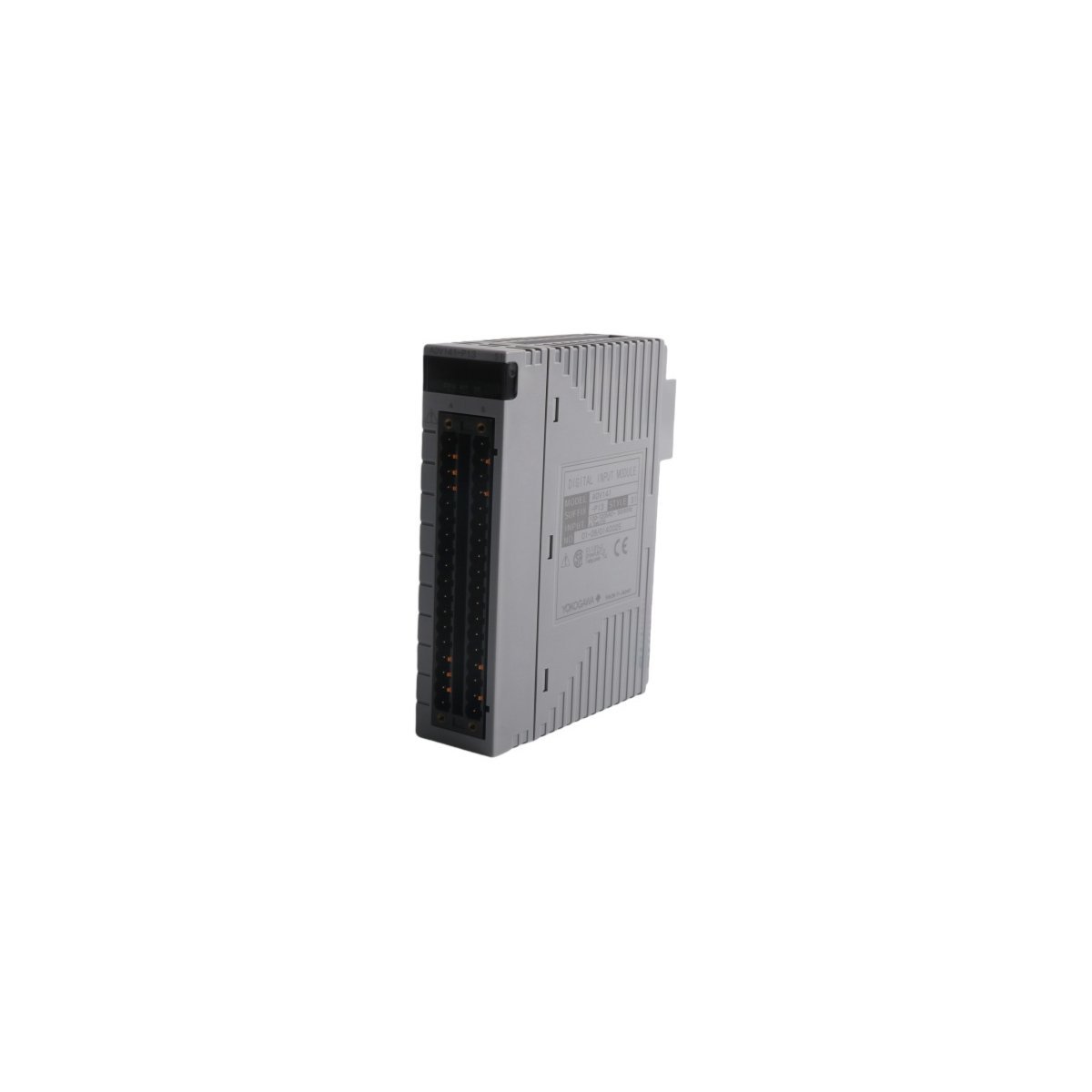

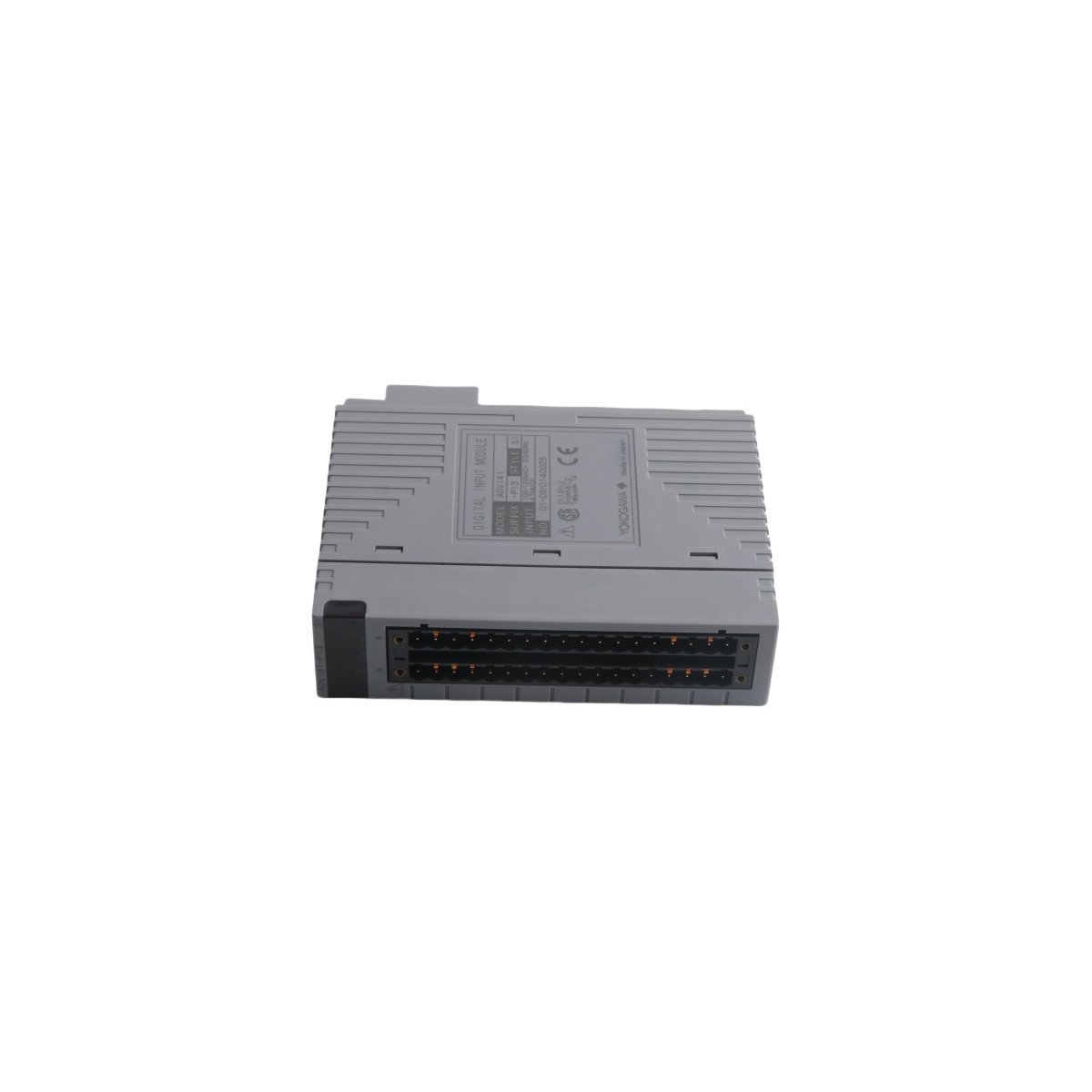

The Yokogawa ADV141-P13 S1 is a high-reliability 16-channel digital input module designed for the Centum VP Distributed Control System. It provides isolated monitoring of field contact states, ensuring precise status detection for mission-critical automation and process control.

High-Integrity Discrete Signal Acquisition

The Yokogawa ADV141-P13 S1 Digital Input Module serves as a primary interface for capturing binary states from industrial field equipment. By utilizing 16 independent channels, this module accurately monitors the status of limit switches, push buttons, and relay contacts. It integrates seamlessly into the Yokogawa Centum VP “FIO” (Field network I/O) architecture, converting physical field signals into digital data for processing by the control station. Consequently, this module enables precise real-time monitoring of plant operations, which is essential for maintaining strict process synchronization and safety interlocking.

Advanced Electrical Protection and Isolation

Reliability remains a core feature of the ADV141-P13 S1, particularly through its advanced galvanic isolation. This technology effectively shields the internal system logic from field-side electrical noise, voltage spikes, and ground loops. By maintaining separate electrical paths, the module prevents external interference from compromising the integrity of the Distributed Control System (DCS). Furthermore, the robust circuit design supports stable performance across a wide ambient temperature range, spanning from -20°C to 70°C. This thermal resilience allows the module to function reliably in diverse geographic climates and unconditioned equipment rooms without degradation.

Streamlined System Integration and Maintenance

Yokogawa engineered the ADV141-P13 S1 with a focus on ease of deployment and long-term serviceability. The compact form factor maximizes cabinet space, while the hot-swappable design allows for module replacement without interrupting the power to the rest of the I/O node. This feature significantly reduces potential maintenance downtime during hardware upgrades or repairs. Additionally, the S1 revision ensures compatibility with modern pressure-clamp terminal blocks and standard MIL-connector cabling. Transitioning to this module provides industrial facilities with a durable, long-lifecycle solution that balances high-performance signal detection with simplified installation requirements.

Key Technical Characteristics

• 16 Isolated Channels: Provides dedicated monitoring for up to 16 discrete field devices.

• Enhanced Signal Integrity: Employs optical isolation to protect the DCS backbone from field-side surges.

• Wide Thermal Tolerance: Guaranteed operation in environments ranging from -20°C up to 70°C.

• High Availability Design: Supports hot-swapping for continuous plant operation during maintenance.

• FIO Architecture Compatibility: Optimized for the Centum VP and Centum CS 3000 control platforms.

• Compact Footprint: Lightweight 0.28kg design minimizes rack space requirements and heat generation.
