Description

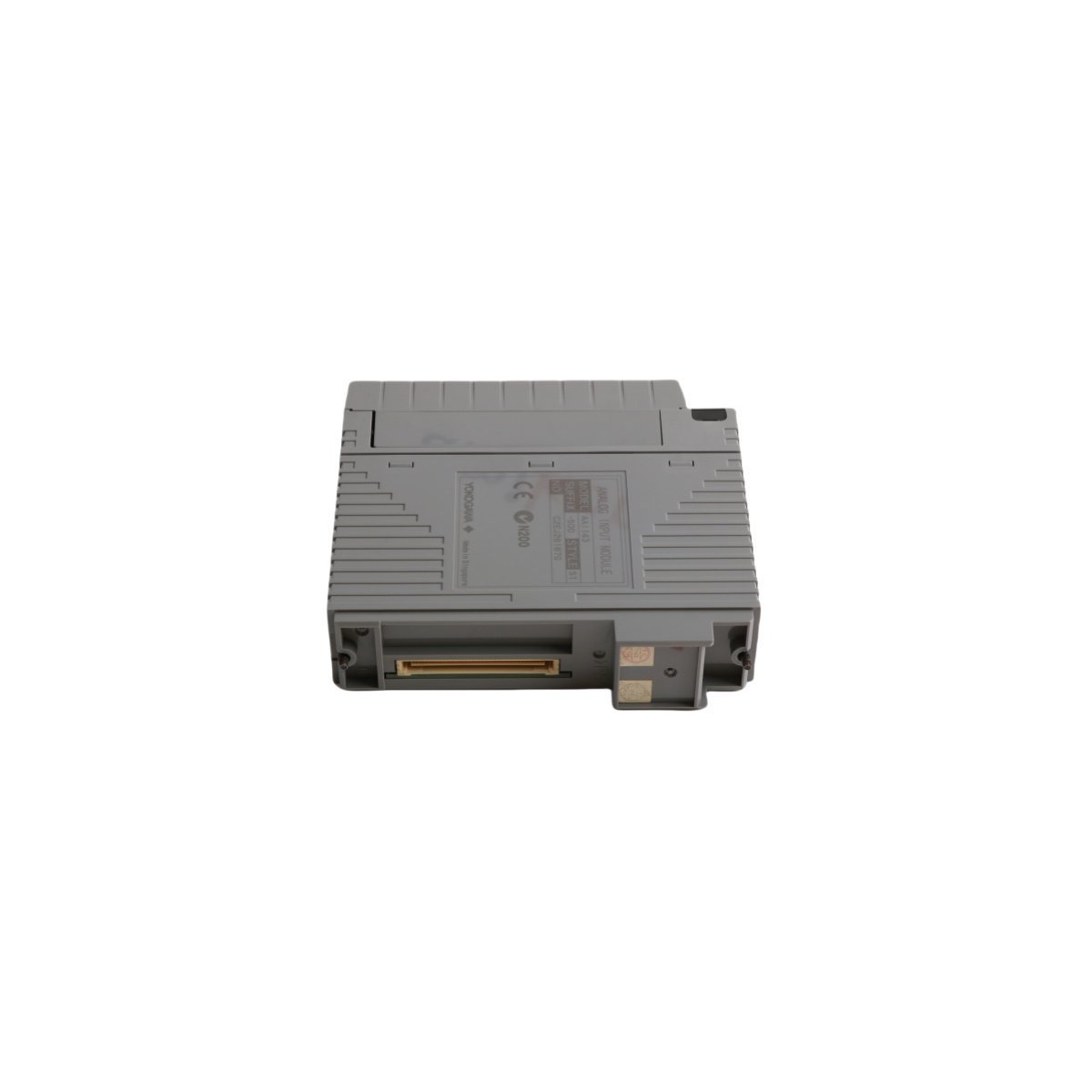

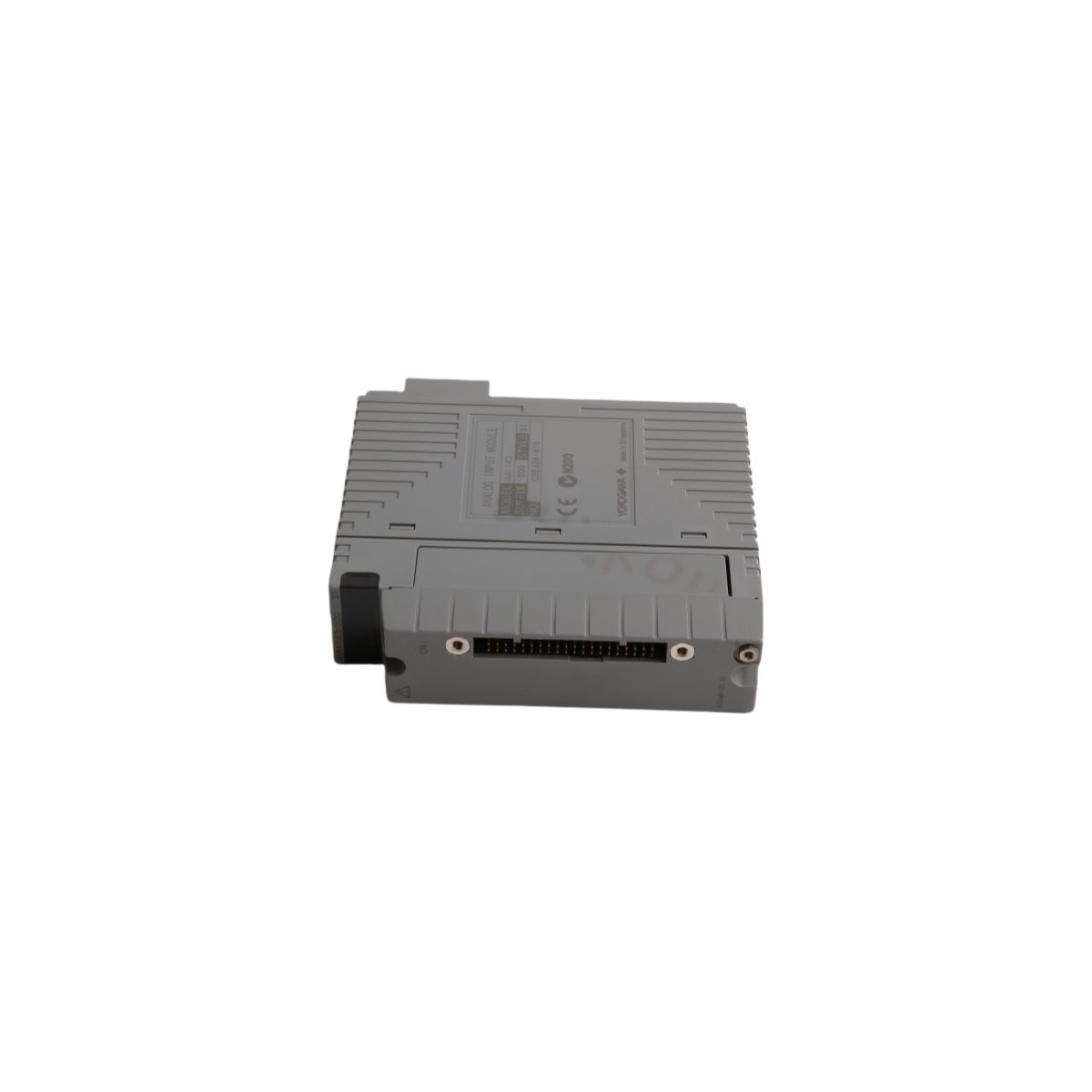

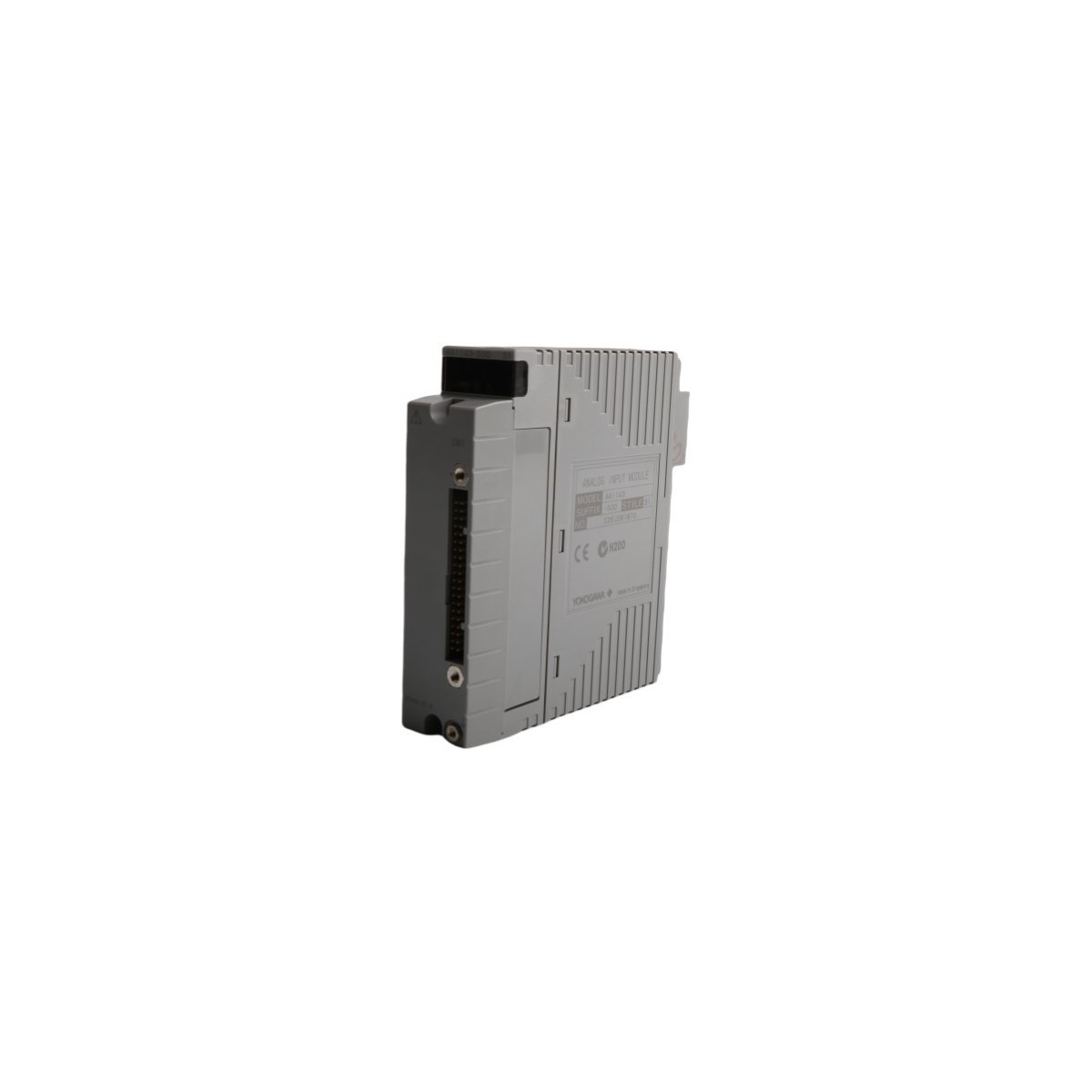

The AAI143-S00 S1 serves as a high-precision analog signal interface for Yokogawa FIO systems. This module processes 16 channels of current input for Distributed Control System applications. It converts standard 4 to 20 mA field signals into digital data for process monitoring. Engineers deploy this unit to manage critical sensor data in power plants and chemical facilities.

Reliability remains a core advantage of this specific hardware revision. The module features 16-bit resolution to ensure fine-grain control of industrial variables. Furthermore, the internal circuitry provides robust protection against common-mode noise. This ensures data stability even in electrically turbulent plant environments.

Essential Technical Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Number: AAI143-S00 S1
• Product Series: FIO (Field network I/O)
• Input Type: 16-Channel Isolated Current Input
• Signal Range: 4 to 20 mA DC
• A/D Conversion Resolution: 16 bits
• Withstand Voltage: 1500 V AC between input and system
• Physical Weight: 0.28 kg
• Dimensions: 3.2 x 12.3 x 13 cm
• Origin: Made in Japan
• Service Life Status: Discontinued (Legacy Support Available)

Professional Performance and Integration

This analog input module facilitates seamless communication within the CENTUM VP architecture. It utilizes advanced signal conditioning to maintain high accuracy across all channels. Additionally, the unit supports dual-redundant configurations for mission-critical operations. This redundancy minimizes the risk of total signal loss during a hardware fault.

Installation is straightforward due to the modular design of the FIO system. The AAI143-S00 S1 uses a durable outer casing to resist harsh environmental conditions. Moreover, the module supports fast data update cycles for real-time process control. Operators benefit from the clear status indicators located on the front panel.

Sustaining Legacy Infrastructure

Although official production ended in late 2018, this module remains vital for existing plant maintenance. We supply these hard-to-find components to keep legacy systems operational. Our inventory supports users who wish to avoid expensive full-scale system upgrades. Each unit undergoes rigorous testing to meet original factory performance standards.
