Description

Brief Product Description

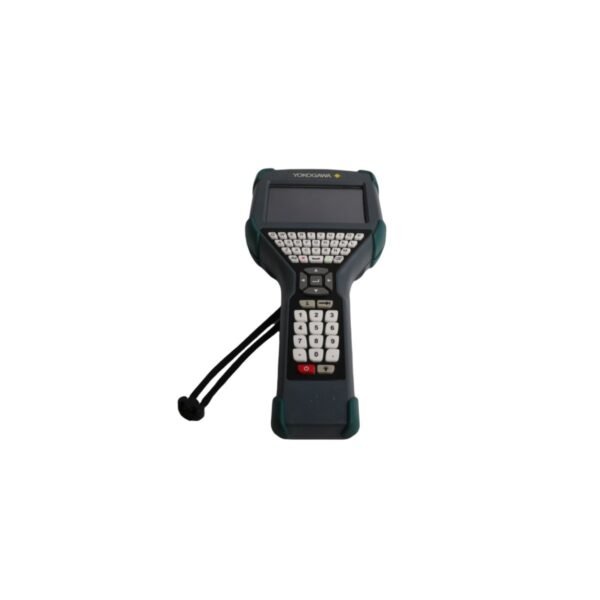

The Yokogawa YHC-5150X-1/Z9A879-D is a premium handheld HART communicator designed for comprehensive field device configuration and maintenance. It features an intrinsically safe design and a high-resolution touchscreen, enabling technicians to manage complex instrumentation across hazardous process environments.

Advanced Field Device Management

The Yokogawa YHC-5150X-1 serves as a versatile interface for commissioning, configuring, and troubleshooting HART-enabled field instruments. Equipped with a 4.3-inch anti-glare touchscreen and a tactile QWERTY keyboard, this communicator allows for effortless navigation of device descriptors (DDs). By utilizing this handheld terminal, maintenance teams can interface directly with pressure transmitters, flowmeters, and valves to modify parameters or view real-time process variables. Consequently, the device eliminates the need for bulky laptops in the field, streamlining the workflow for instrumentation engineers.

Intuitive User Interface and Navigation

Yokogawa prioritizes ease of use through a structured display architecture that organizes critical data into four distinct functional zones. The screen provides immediate visibility of device status, HART hierarchical menus, active function keys, and the current menu path. Because the unit supports the ISO Latin-1 character set, it accurately renders complex technical data and multilingual instructions. Furthermore, on-demand help menus provide context-sensitive guidance, which reduces the learning curve for new operators and ensures that device calibrations remain consistent and accurate across the facility.

Rugged Reliability for Hazardous Locations

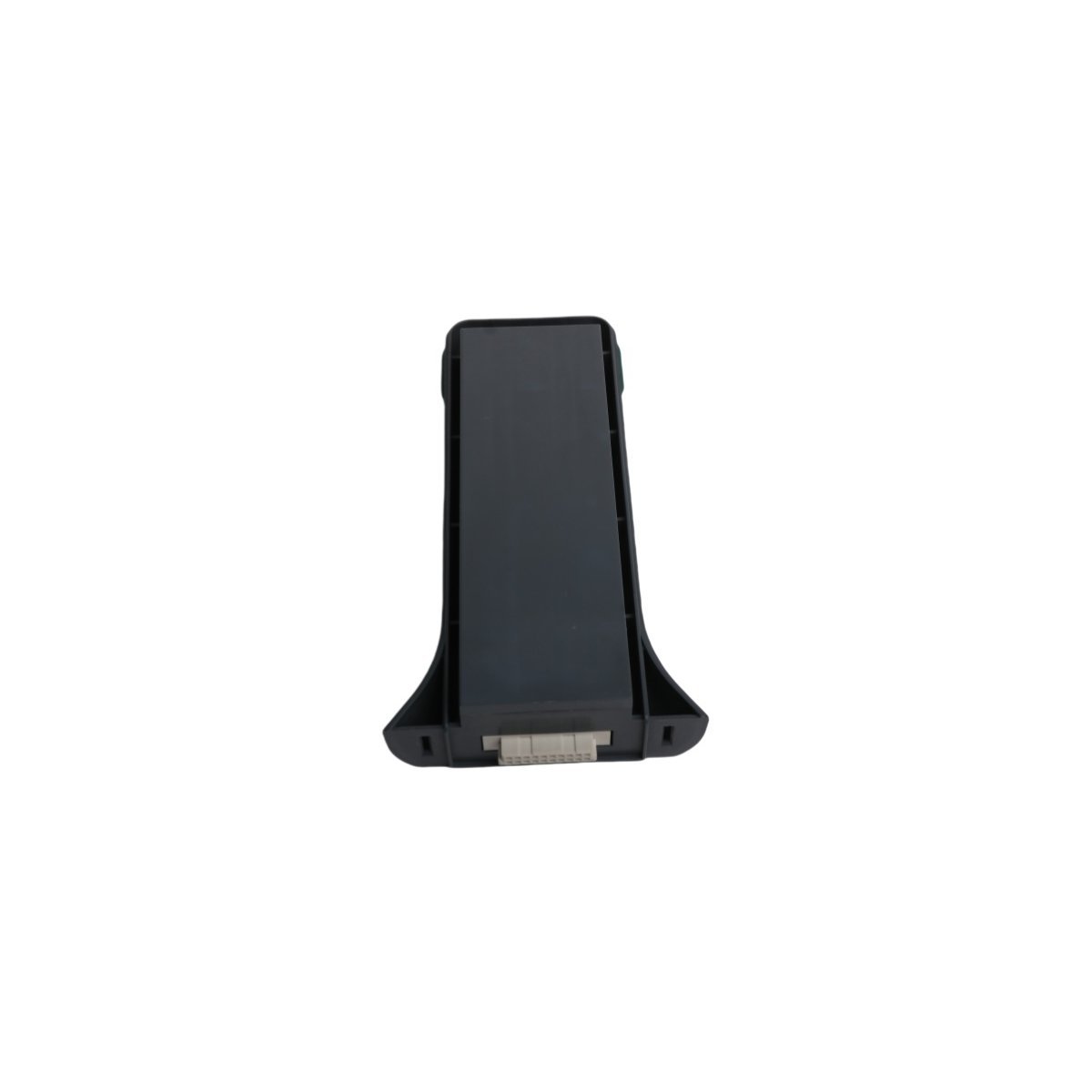

Engineered to withstand the rigors of heavy industry, the YHC-5150X-1/Z9A879-D features an intrinsically safe construction suitable for use in volatile atmospheres. The Z9A879-D power module provides long-lasting battery life for extended shifts, while the durable exterior housing protects internal electronics from dust and moisture. Transitioning from field to office is seamless, as the communicator supports PC connectivity for synchronizing calibration history and managing device database files. This dual-interface capability—physical keys for gloved use and a high-fidelity touchscreen for rapid data entry—makes it an indispensable tool for modern process plants and refineries.

Key Technical Characteristics

• High-Resolution Display: 4.3-inch anti-glare touchscreen ensures readability in direct sunlight.
• Full HART Support: Reads the complete library of HART device descriptors without additional licensing fees.
• Optimized Input: Combined QWERTY keyboard and dedicated navigation keys facilitate rapid data entry.
• Intrinsically Safe: Certified for operation in hazardous areas (ATEX/IECEx/FM/CSA).
• Offline Configuration: Allows technicians to create and store configurations before reaching the field.
• Documented Compliance: Tracks and stores calibration data to assist with regulatory audit requirements.

Technical Specifications
