Description

Brief Product Description

The GE VM-5H3 VM-5Z VM-5K series consists of high-precision dual-channel vibration monitors designed to protect critical rotating assets like turbines and compressors. These units provide real-time mechanical health data and multi-level alarm triggering to prevent catastrophic equipment failure.

Product Description

Comprehensive Rotating Machinery Protection

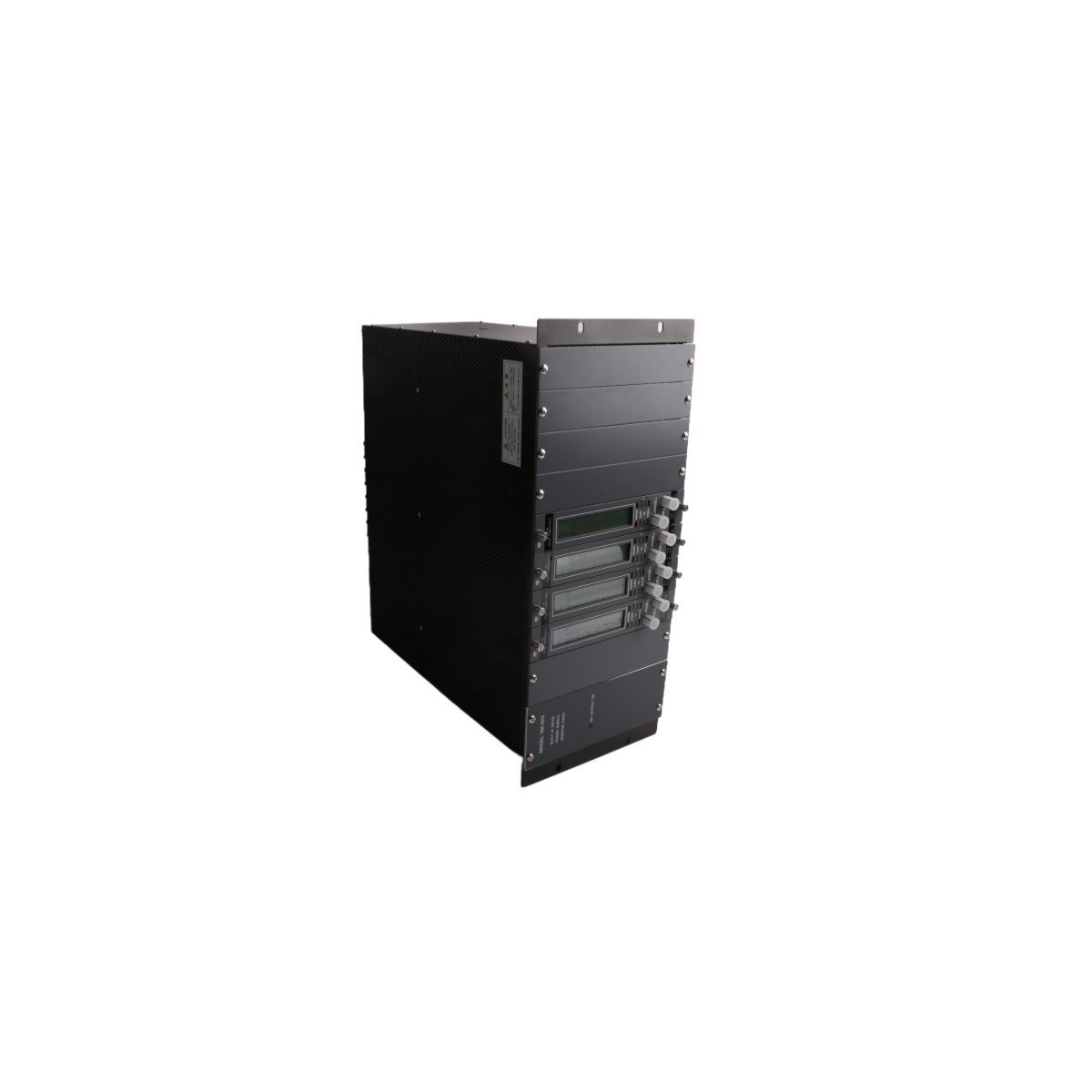

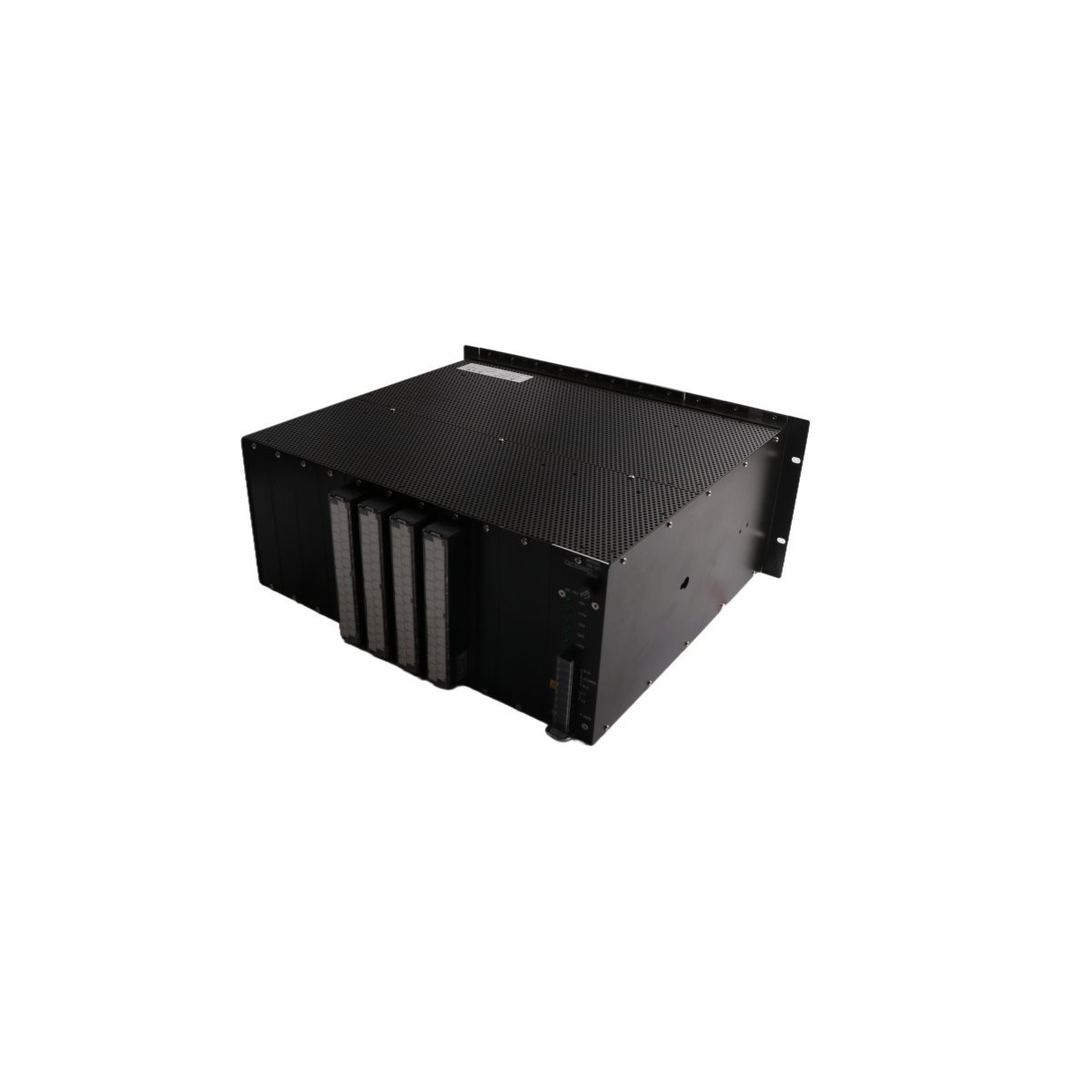

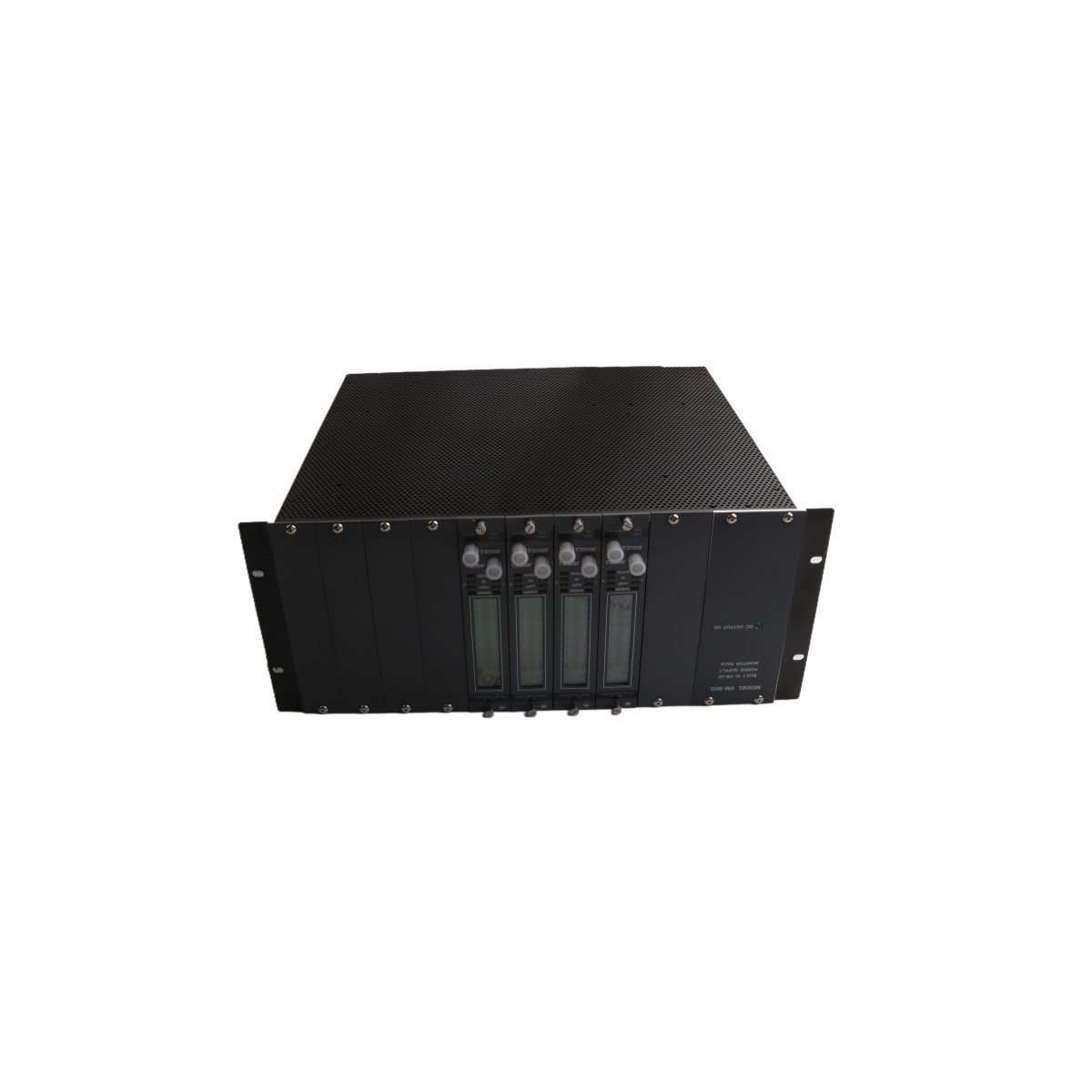

The General Electric VM-5H3, VM-5Z, and VM-5K series units serve as high-integrity dual-channel vibration monitors within GE’s machinery protection framework. These modules capture and analyze signals from diverse transducer types, including accelerometers and velocity sensors. By monitoring mechanical parameters in real-time, the system identifies early signs of wear or imbalance in high-value assets such as pumps, compressors, and industrial turbines. Consequently, these monitors act as a first line of defense, ensuring that plant operators can maintain oversight of mechanical stability across power generation and manufacturing facilities.

Precision Measurement and Parameter Tracking

Engineered for accuracy, the VM-5H3 VM-5Z VM-5K series tracks various vibration modalities, including bearing cap vibration, shaft eccentricity, and peak-to-peak displacement. These units typically manage measurement ranges from 0 to 1000 μm (or 0-50 mils), providing the granular data necessary for predictive maintenance. The sophisticated internal electronics maintain a strict accuracy tolerance of ±1% at room temperature and remain within ±2% throughout a broad thermal range of 0°C to 65°C. This thermal stability ensures that the monitoring data remains reliable even in the challenging ambient conditions often found near heavy industrial machinery.

Advanced Alarm Logic and Risk Mitigation

Safety and downtime prevention define the operational logic of the GE VM-5 series. Each channel supports customizable Alert and Danger setpoints for both escalating and diminishing vibration levels. This multi-tiered threshold system enables a graduated response strategy; operators receive early warnings (Alert) to investigate trends before reaching critical shutdown levels (Danger). Furthermore, the robust construction of these monitor racks supports long-term deployment in DCS environments. By integrating these units into a predictive maintenance program, facilities significantly extend the service life of their rotating equipment while minimizing the risk of unplanned outages.

Technical Specifications
