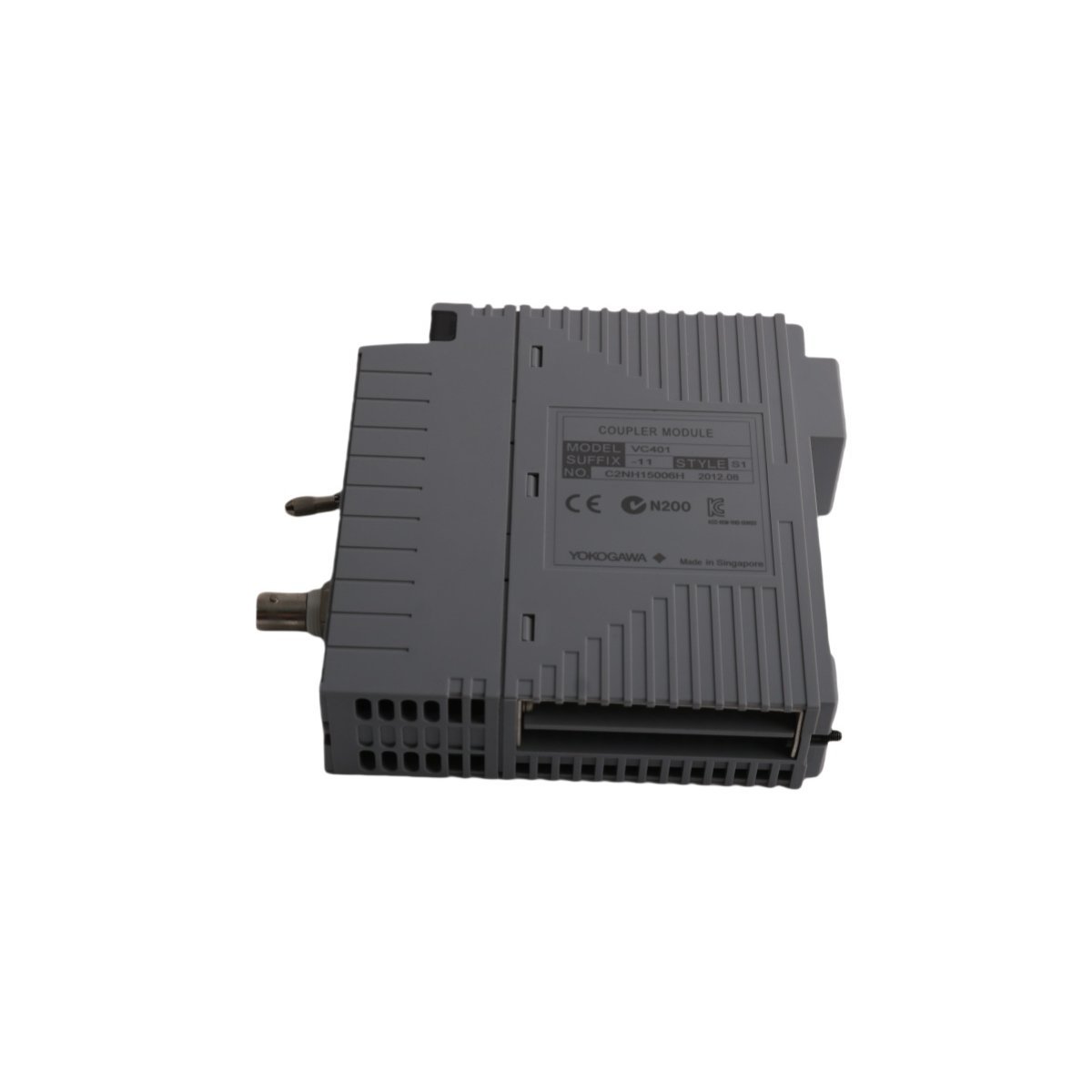

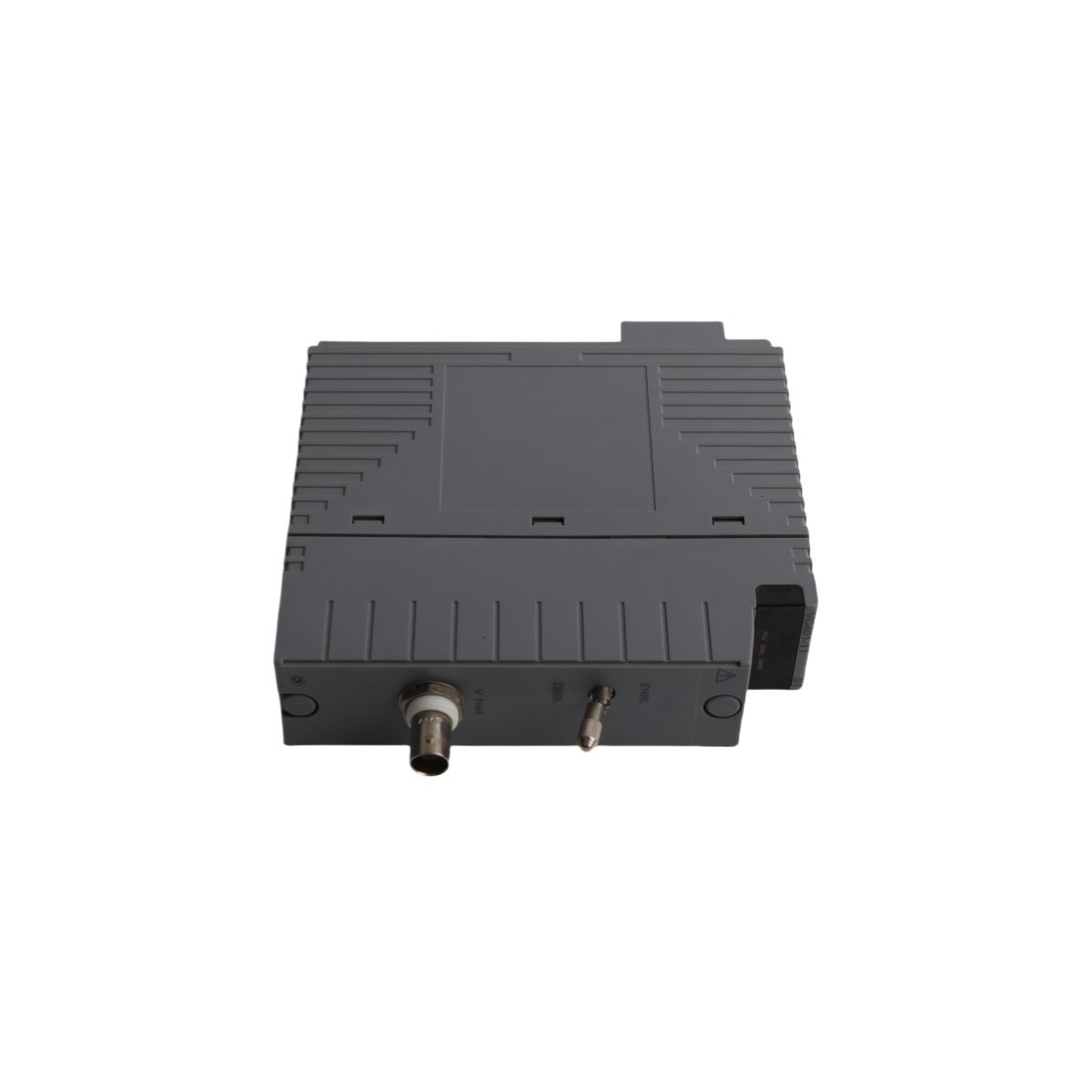

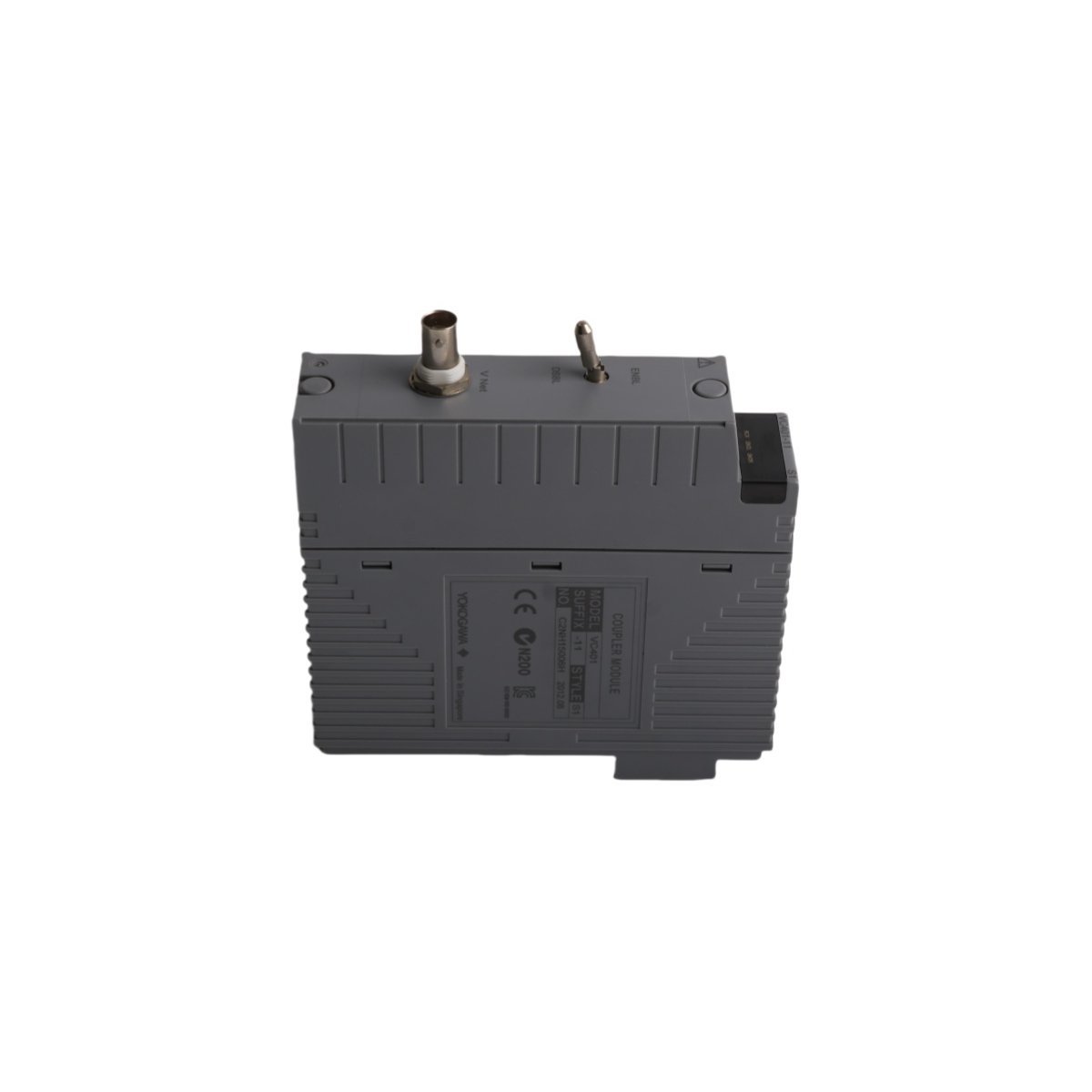

The Yokogawa VC401-11 is a high-precision coupler module integrated into the Sequence of Events Manager (SEM) system for Vnet/IP.¹ It captures and timestamps plant events with 1-millisecond resolution to facilitate detailed root-cause analysis of process upsets.

Product Description

Precision Event Capture and Analysis

The Yokogawa VC401-11 serves as a core component of the Sequence of Events Manager (SEM) within the CENTUM distributed control system. This module provides plant operators with high-resolution visibility by recording digital state changes with 1-millisecond accuracy. By establishing a chronological record of events, the module enables engineers to pinpoint the exact sequence of incidents that lead to plant trips or equipment failures. Furthermore, the system processes these Sequence of Events (SOE) inputs so they can perform dual roles, serving as both historical diagnostic data and active control signals for real-time logic.

System-Wide Time Synchronization

Reliable event logging requires perfect temporal alignment, which the VC401-11 coupler manages through advanced synchronization protocols. The module ensures that all timestamps remain consistent across the Vnet/IP network without necessitating external specialized hardware. While it maintains high internal clock stability, it also supports optional SNTP server integration to align the DCS timing with a facility-wide master clock. This unified timing architecture ensures that data remains coherent when comparing logs across multiple stations or geographical plant areas.

Advanced Data Management and Reporting

The Yokogawa VC401-11 automates the labor-intensive process of incident documentation by generating specialized trip reports. These reports trigger automatically based on user-defined process conditions, preserving critical data for long-term historical audits. Additionally, the module facilitates seamless data transparency by exporting SOE messages to OPC clients and Exaquantum PIMS. Because the module integrates SOE messages directly with standard process alarms, operators view a single, consolidated stream of information on their Human Interface Stations (HIS), which significantly improves situational awareness during emergency conditions.
