Description

Brief Product Description

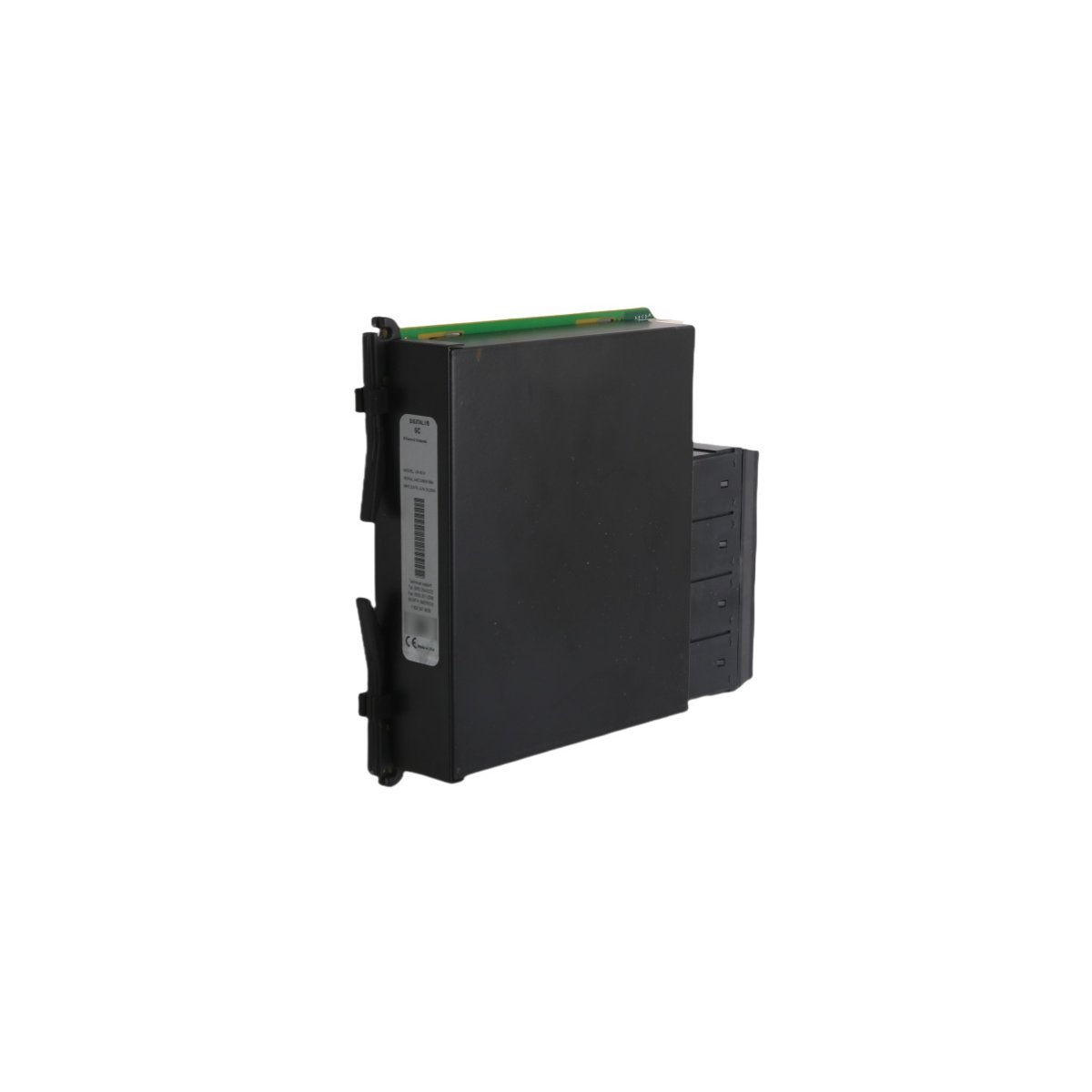

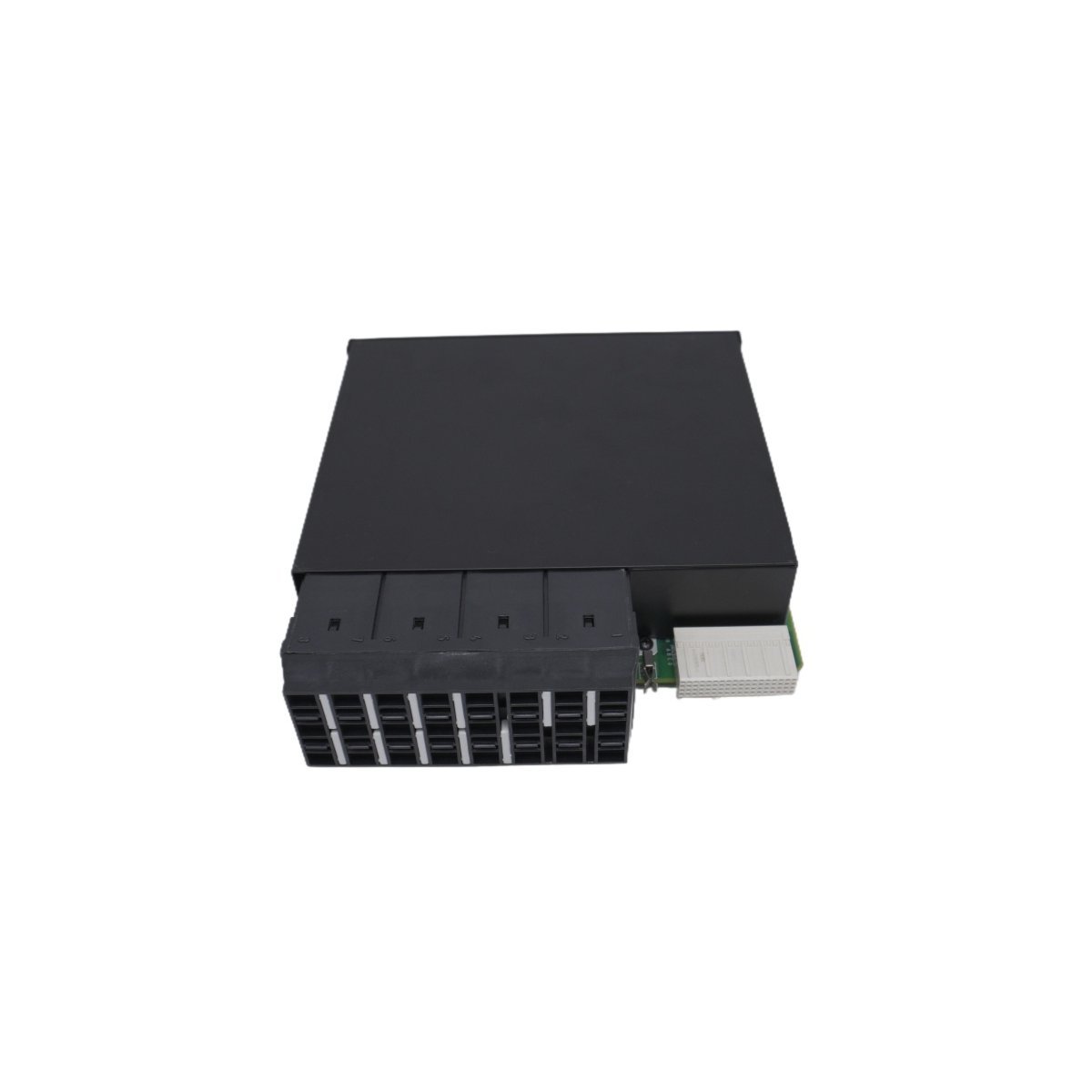

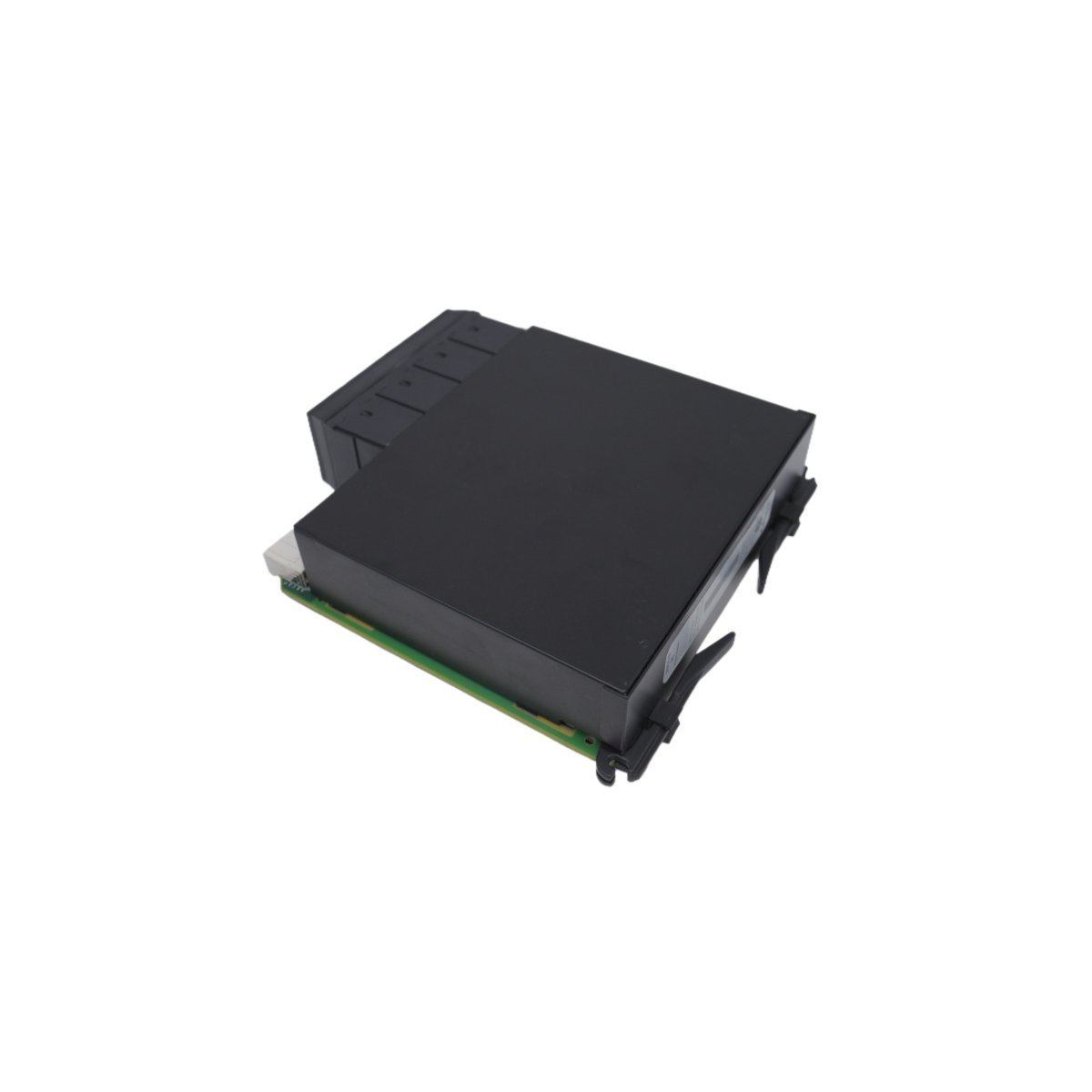

The General Electric UR6CV is a precision-engineered current and voltage input module designed for the Multilin Universal Relay (UR) series. It enables high-speed data acquisition for critical protection functions, including line differential and distance monitoring across industrial power grids.

Product Description

High-Fidelity Signal Acquisition

The GE UR6CV serves as a specialized input interface within the Multilin Universal Relay family. It precisely digitizes current and voltage signals from primary field equipment, facilitating advanced protective logic for power generation and distribution assets. By providing clean, high-resolution data to the relay CPU, the module supports complex calculations required for generator protection and line current differential analysis. This accuracy ensures that the system identifies faults nearly instantaneously, thereby minimizing potential equipment damage and maximizing grid stability.

Advanced Communications and Security

Integration into modern digital substations is a core strength of the UR6CV. This module supports the IEC 61850 Process Bus standard and utilizes IEEE 1588 for sub-microsecond time synchronization across the network. To ensure reliable connectivity, the module features three independent Ethernet ports, allowing for redundant LAN architectures. Furthermore, the embedded CyberSentry™ technology provides a robust layer of cybersecurity. This functionality protects the integrity of critical data and ensures the system remains compliant with evolving NERC/CIP standards and other industrial security regulations.

Comprehensive Diagnostics and Maintenance

The UR 6CV enhances operational visibility through sophisticated data logging and waveform capture capabilities. It records event sequences and captures oscillography during system disturbances, which provides engineers with the forensic data necessary for root-cause analysis. Transitioning from reactive to predictive maintenance is made possible by the module’s trending and recording features. Operators can monitor real-time system health via a full-color relay display, while the modular, plug-and-play design ensures that hardware expansions or replacements occur with minimal disruption to the overall protection scheme.
