Description

Brief Product Description

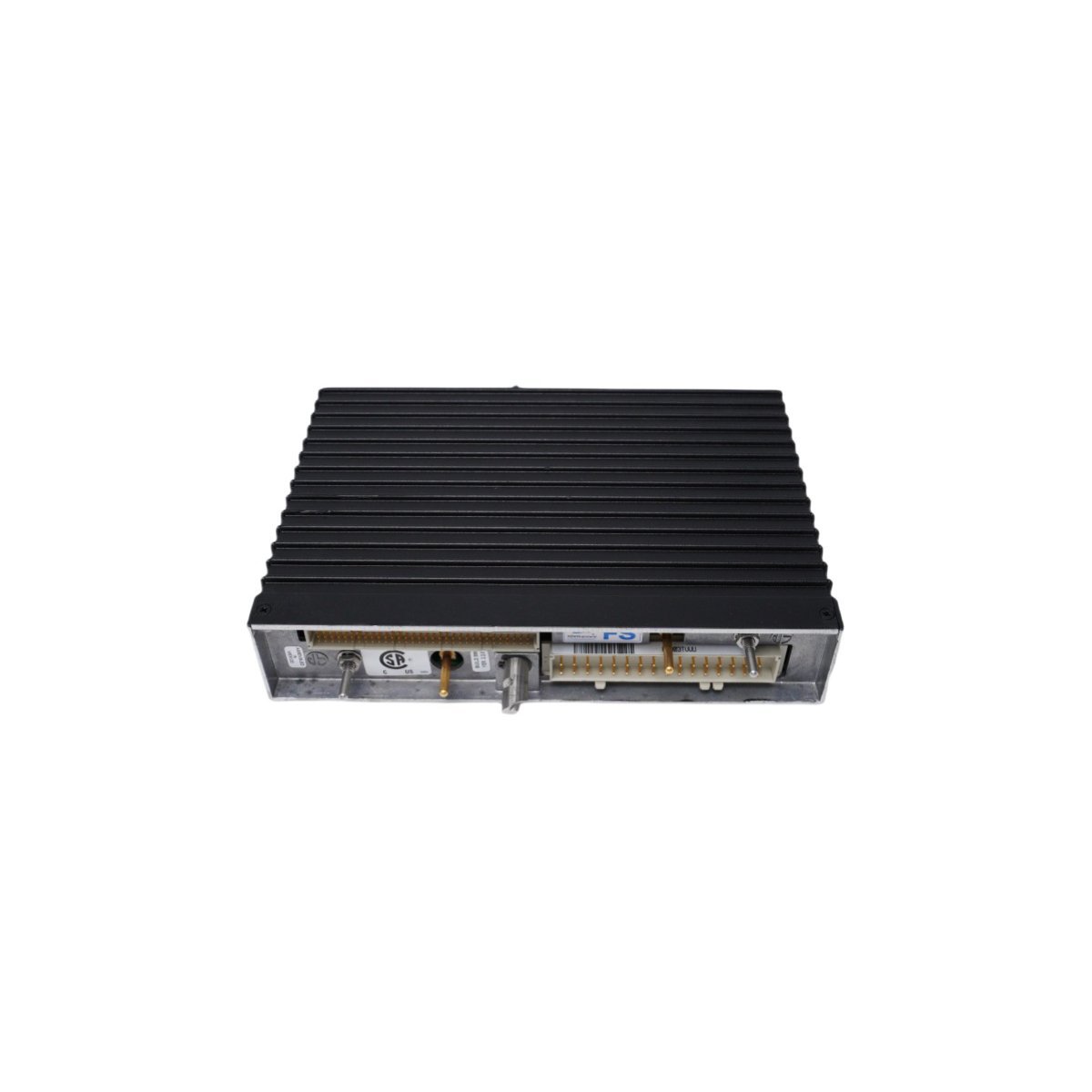

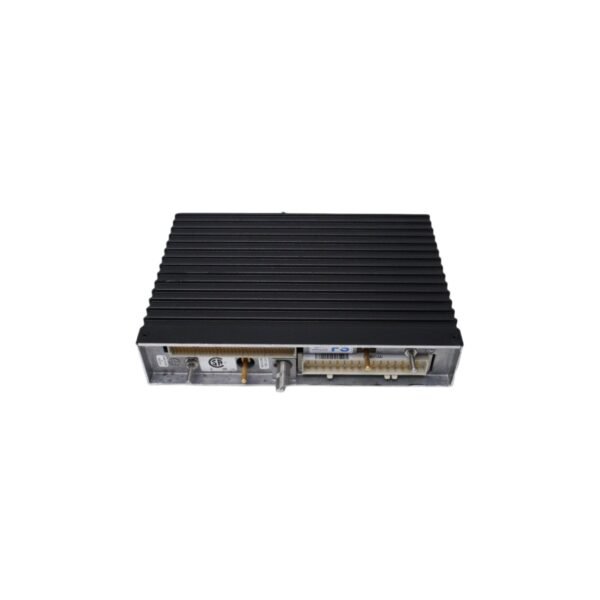

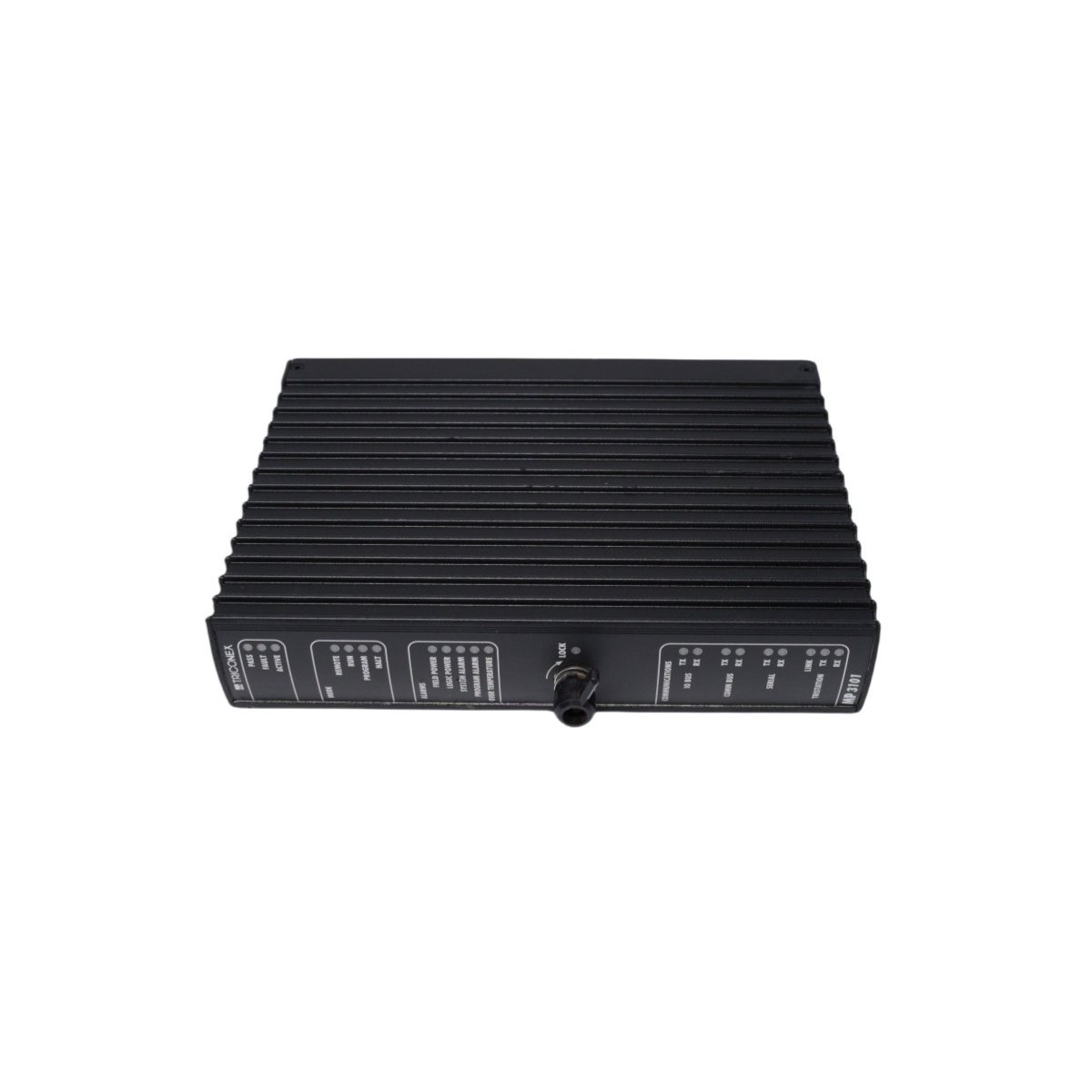

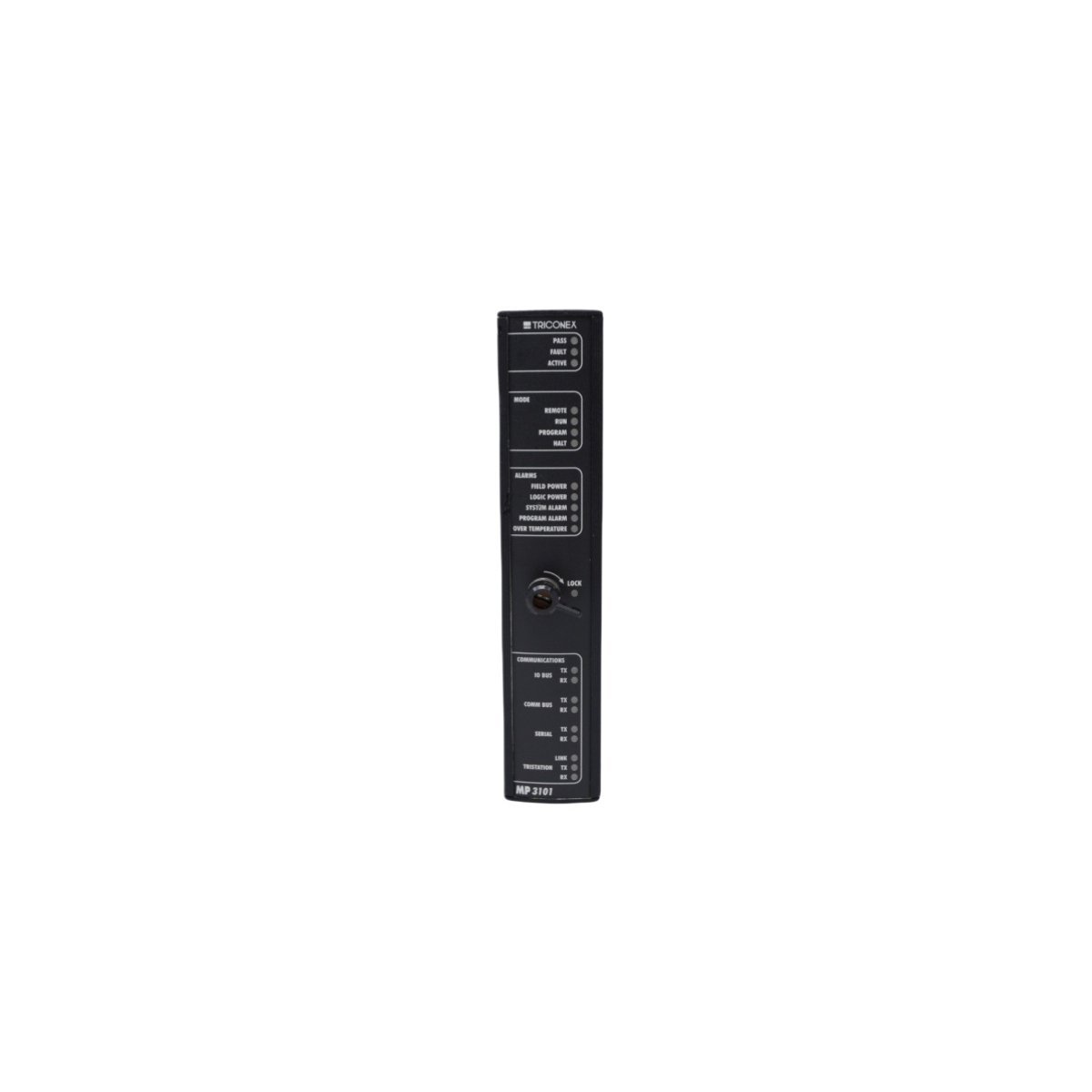

The Triconex MP3101 is a high-performance Main Processor module specifically engineered for the Trident safety system.² It utilizes Triple Modular Redundant (TMR) architecture to provide fault-tolerant control and high-integrity processing for SIL 3 safety applications.

Product Description

Centralized Fault-Tolerant Intelligence

The Triconex MP3101 acts as the primary computational brain for the Trident safety platform. By functioning as one of three identical units within a triplicated triad, the module ensures that critical safety logic remains operational even if a hardware component fails. This Main Processor manages complex control algorithms while coordinating with its peer modules to maintain a synchronized, fault-tolerant state.³ Each MP3101 contains independent communication and I/O processors, which allow the system to handle massive data throughput across the triplicated backplane without compromising the primary logic execution speed.⁴

Hardware-Based Voting and Synchronization

To achieve uncompromising reliability, the MP3101 module leverages a high-speed TriBus communication link to facilitate real-time data exchange between the three processors. Unlike software-based solutions, this module uses specialized DMA (Direct Memory Access) hardware to perform continuous data voting and synchronization. As input data arrives, the MP3101 compares its local memory table against the other two processors in the triad. If a discrepancy occurs, the hardware automatically applies majority voting logic to correct the error instantaneously. This seamless reconciliation process guarantees that the safety system always operates on validated data, preventing nuisance trips and dangerous failures.

Optimized for Critical Safety Functions

Designed for high-availability environments such as petrochemical refineries, offshore platforms, and nuclear power facilities, the Triconex MP3101 supports the most stringent SIL 3 safety integrity requirements.⁵ The module excels at executing emergency shutdown (ESD) protocols and fire and gas (F&G) detection logic with absolute precision.⁶ Furthermore, the robust design allows for hot-swapping, enabling operators to replace a single processor while the remaining two continue to protect the facility.⁷ This capability ensures 24/7 process uptime and provides a secure foundation for mission-critical automation and protection systems.

Technical Specifications
