Description

Brief Product Description

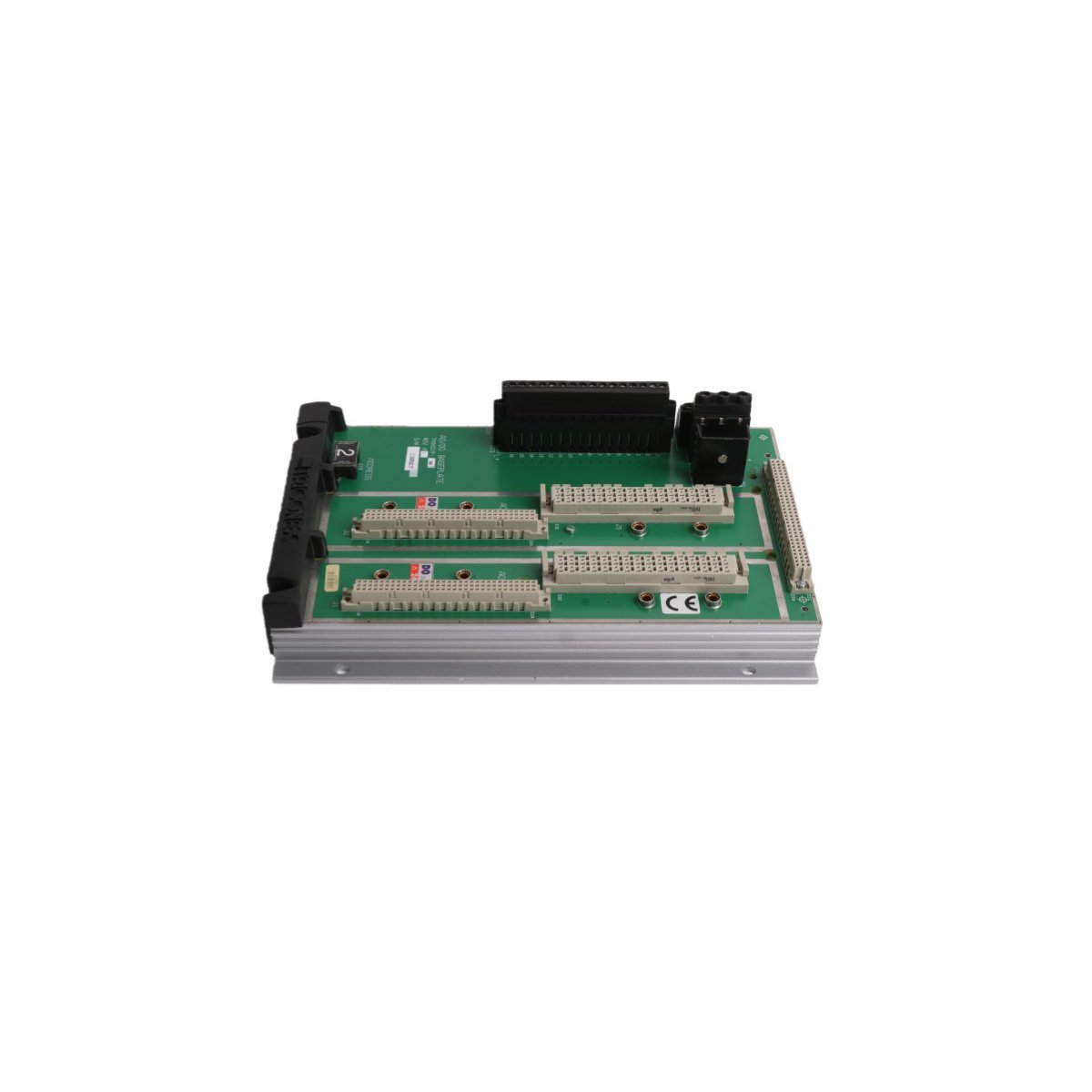

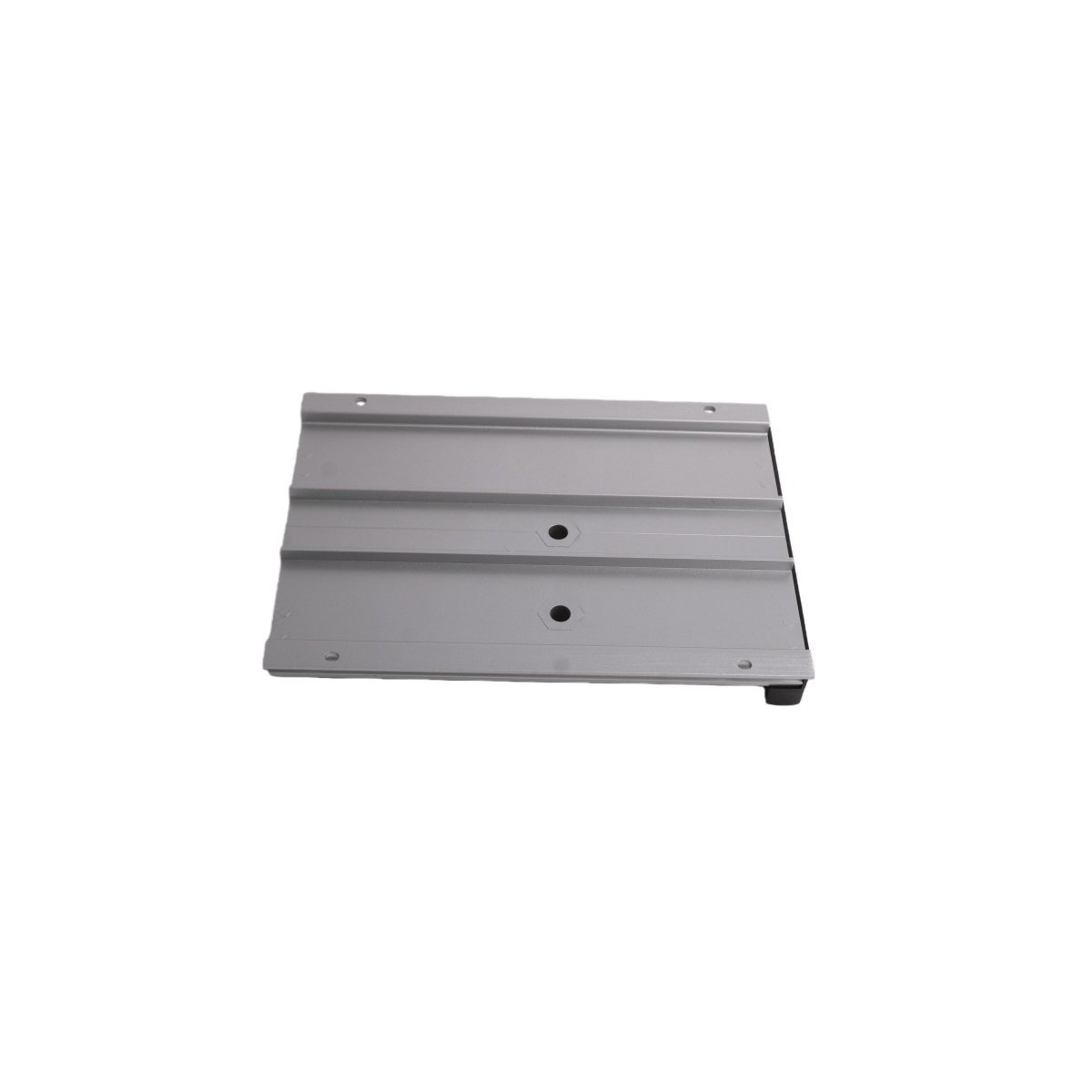

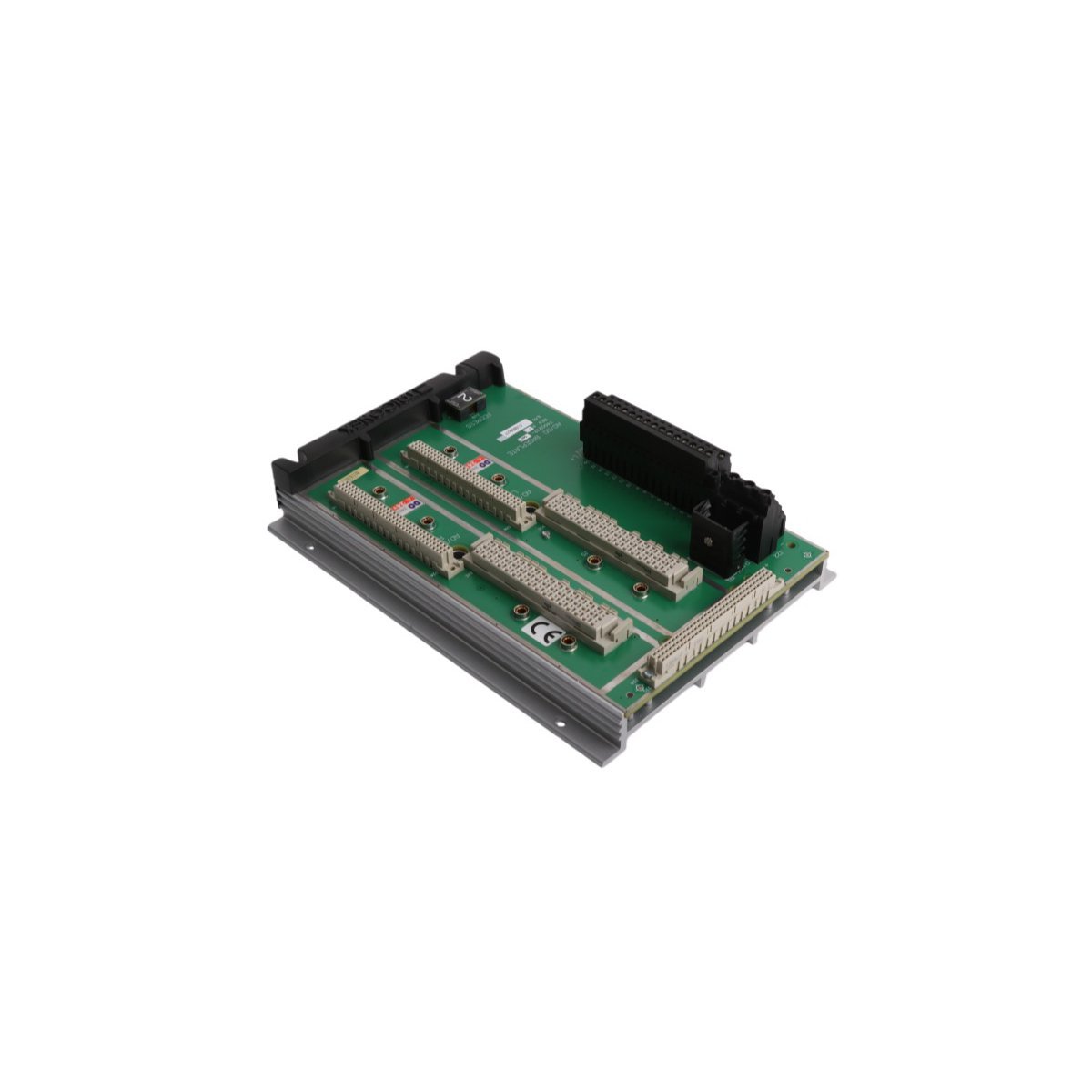

The Triconex DO2401 HS2 7400219-040 is a high-speed, 8-channel digital output baseplate engineered for Triple Modular Redundant (TMR) safety systems. It provides reliable 24 VDC control for critical final elements in emergency shutdown and fire and gas applications.

Product Description

High-Integrity Actuator Control

The Triconex DO2401 HS2 7400219-040 provides a secure interface for driving critical field devices within a Tricon safety-instrumented system. This baseplate supports 8 isolated digital output channels, each delivering 24 VDC to solenoids, relays, and motor starters. By utilizing a high-speed switching architecture, the module achieves an impressive 2ms response time, ensuring that safety actions execute almost instantaneously when a trip condition occurs. This rapid execution proves vital for high-pressure environments where every millisecond counts toward preventing equipment damage or environmental release.

Fault-Tolerant TMR Architecture

Safety remains the primary focus of the 7400219-040 baseplate, which integrates fully with the Triconex TMR (Triple Modular Redundancy) platform. The system performs continuous internal voting and online diagnostics to identify and isolate hardware faults before they can cause a nuisance trip or a fail-to-danger scenario. Furthermore, each channel features dedicated short-circuit protection and load monitoring. These diagnostics allow operators to identify field wiring issues or actuator failures directly from the control room. Because the unit supports hot-swapping, maintenance personnel can replace modules under live conditions, ensuring that the safety loop remains active without interrupting the plant process.

Engineered for Extreme Industrial Demands

The DO2401 HS2 thrives in the most challenging global climates, maintaining consistent performance across an operating range of -40°C to +70°C. Its rugged mechanical design protects against high-vibration and corrosive atmospheres, making it a standard choice for offshore platforms, refineries, and chemical plants. The baseplate complies with international safety standards, including IEC 61508 SIL 3, ATEX, and cULus for hazardous locations. Consequently, this hardware provides a globally recognized solution for facilities that demand the highest levels of asset protection and operational availability.

Technical Specifications
