Description

Brief Product Description

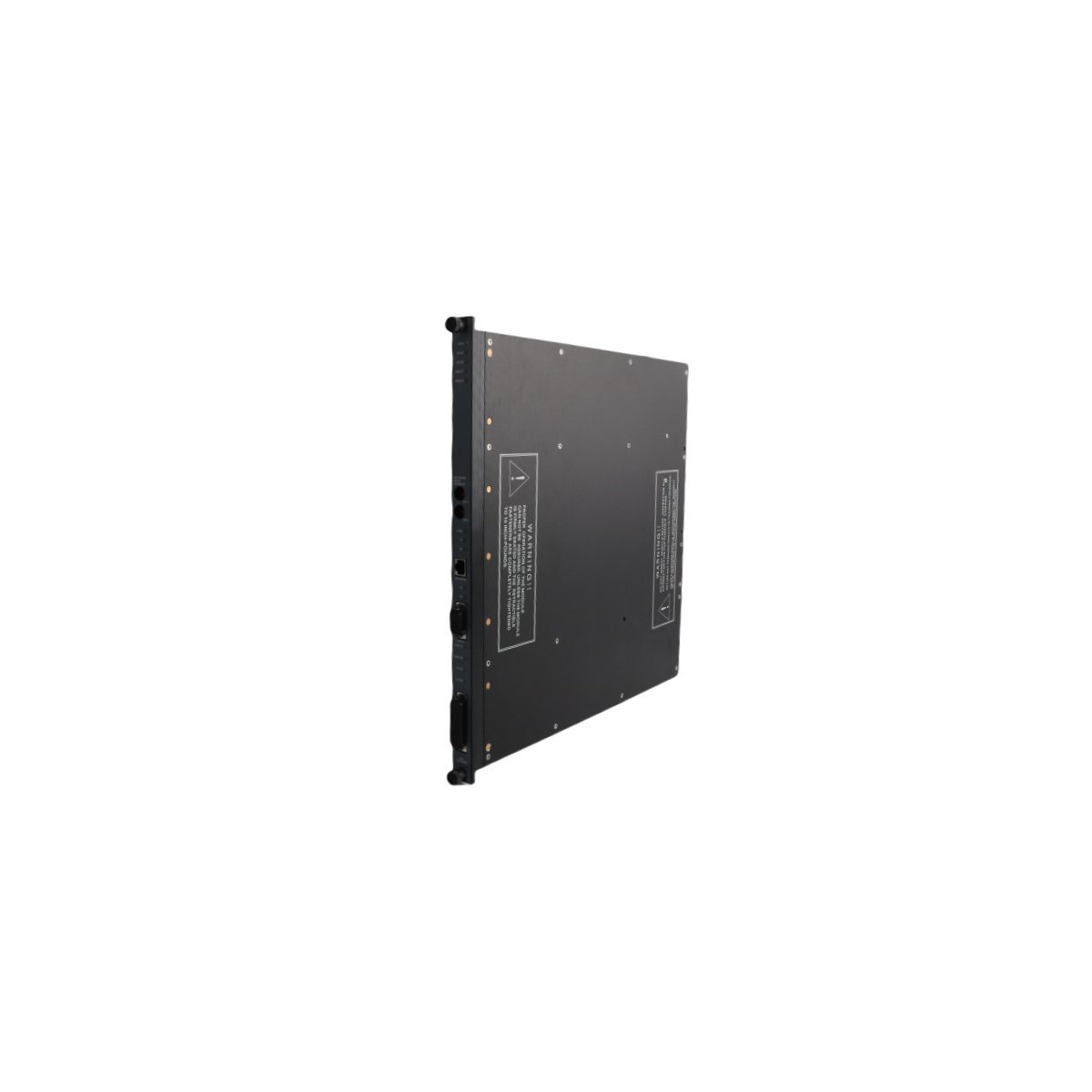

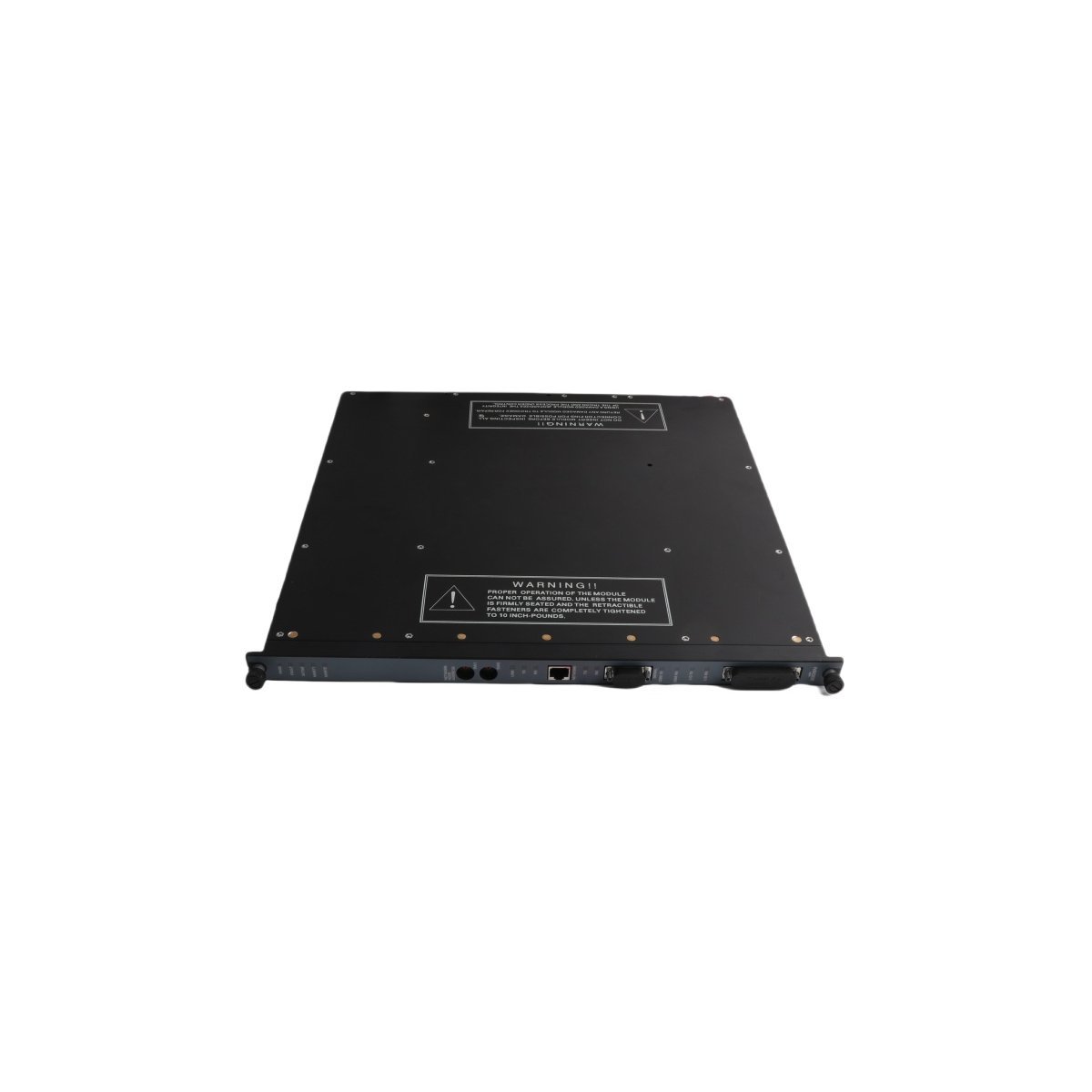

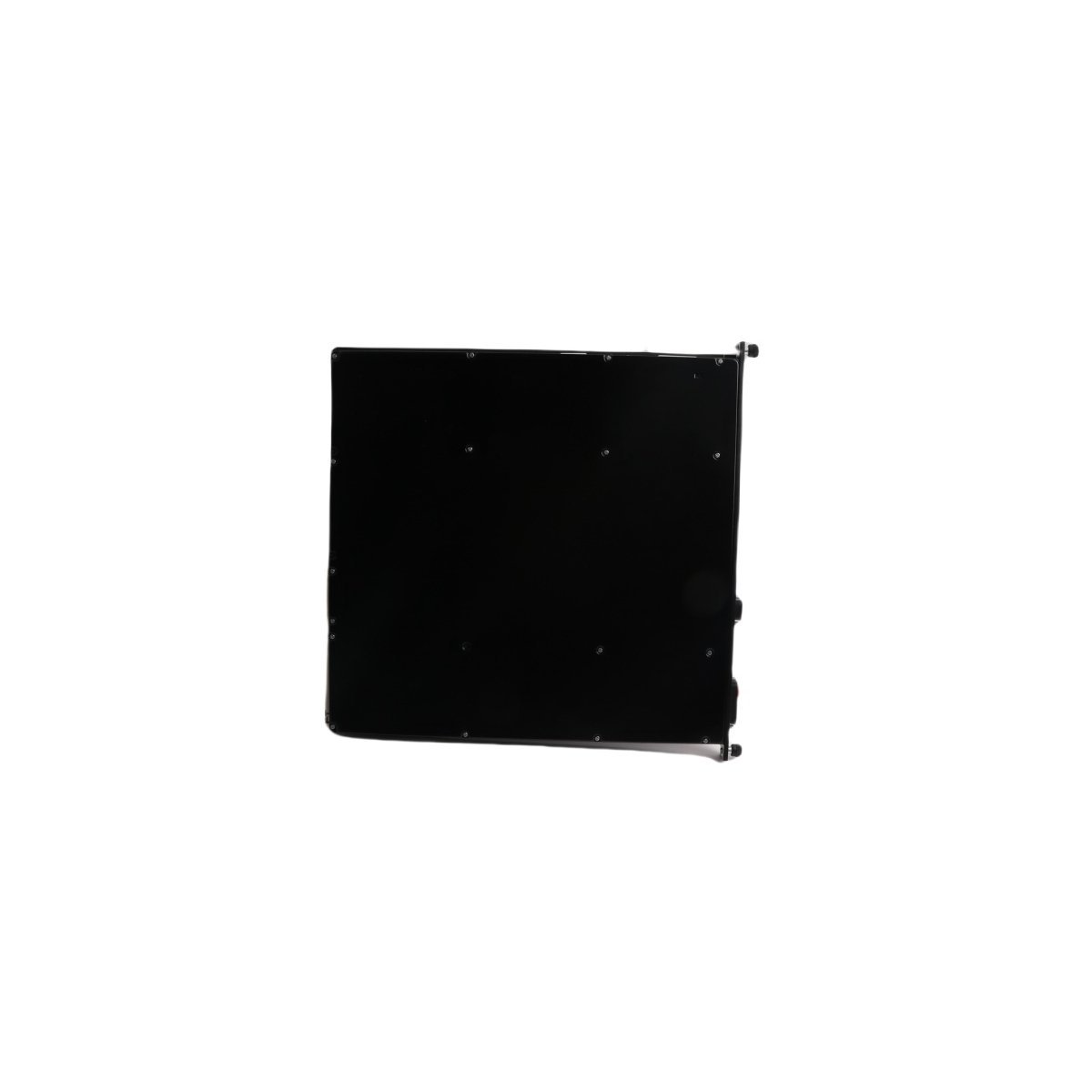

The Triconex 4201N is a high-performance Remote Extender Module designed to bridge communication between the primary Tricon controller and remote I/O expansion chassis. This module ensures the integrity of safety-critical data across long distances in expansive industrial facilities.

Product Description

Expanded Control Architecture

The Triconex 4201N enables the geographical expansion of Triple Modular Redundancy (TMR) safety systems by facilitating communication with remote I/O racks. This module serves as a high-speed interface that allows the central Tricon controller to manage field devices located in distant areas of a facility. By extending the I/O bus, the 4201N removes the physical limitations of local chassis placement, which proves essential for sprawling operations such as petrochemical refineries, offshore platforms, and mining sites. The module maintains the strict timing and synchronization required for safety instrumented functions (SIF) regardless of the increased distance.

High-Fidelity Signal Transmission

To ensure maximum reliability in electrically noisy environments, the 4201N often utilizes fiber optic media to connect remote locations. This optical isolation effectively eliminates ground loops and protects the safety network from electromagnetic interference (EMI). Furthermore, the module incorporates advanced error-checking protocols and internal hardware redundancy to prevent data corruption during transit. Consequently, the 4201N provides a transparent communication link that upholds the system’s overall Safety Integrity Level (SIL) while offering the flexibility needed for modern, large-scale automation projects.

Streamlined Integration and Diagnostics

Deployment of the Triconex 4201N remains highly efficient through the use of standard TriStation 1131 configuration software. This seamless software integration allows engineers to map remote I/O points with the same ease as local modules. Additionally, the 4201N provides continuous diagnostic feedback to the main processor, reporting on the health of the communication link and the status of the remote hardware. By providing real-time visibility into the extended network, the module empowers maintenance teams to identify and resolve connectivity issues rapidly, thereby maximizing system uptime and operational safety.
