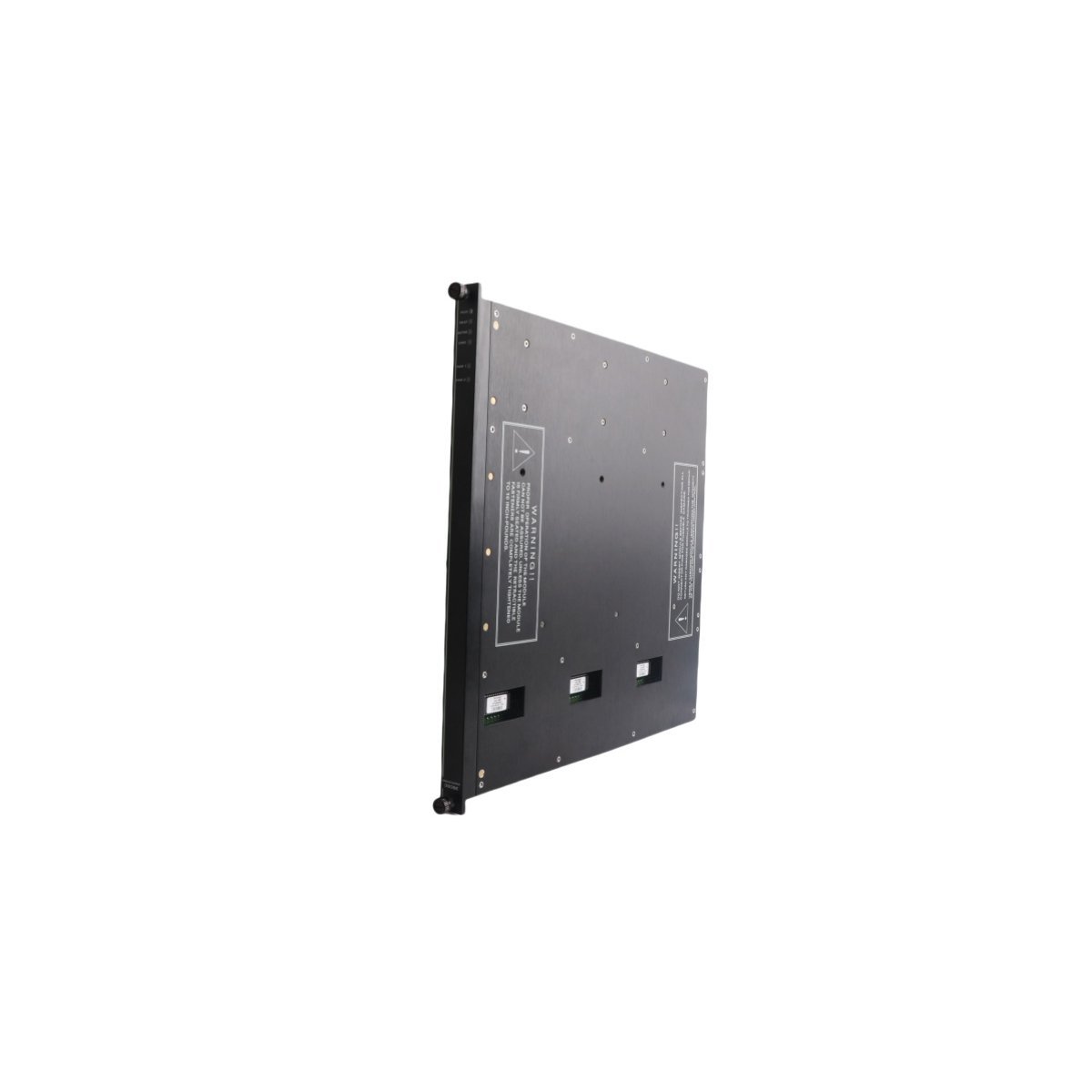

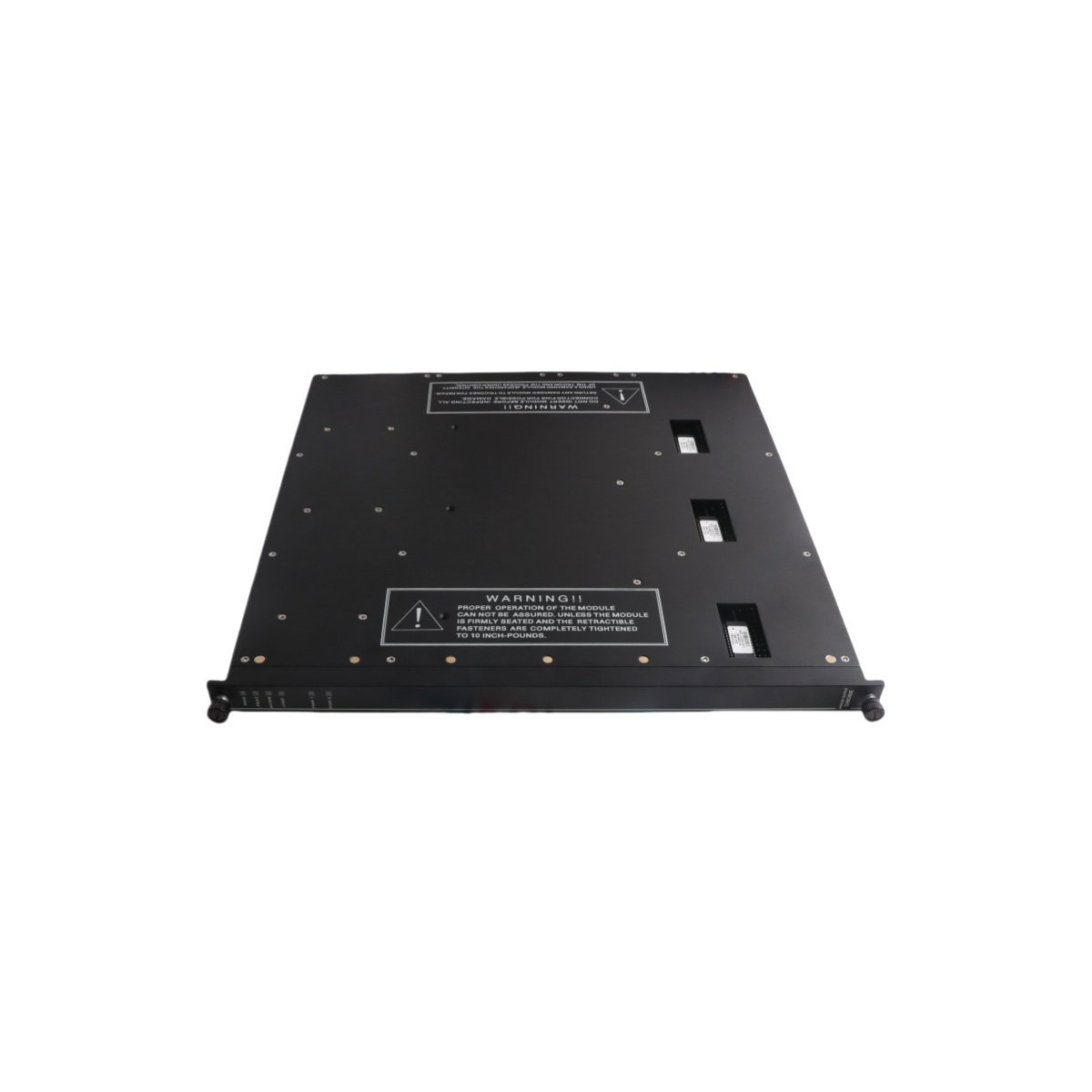

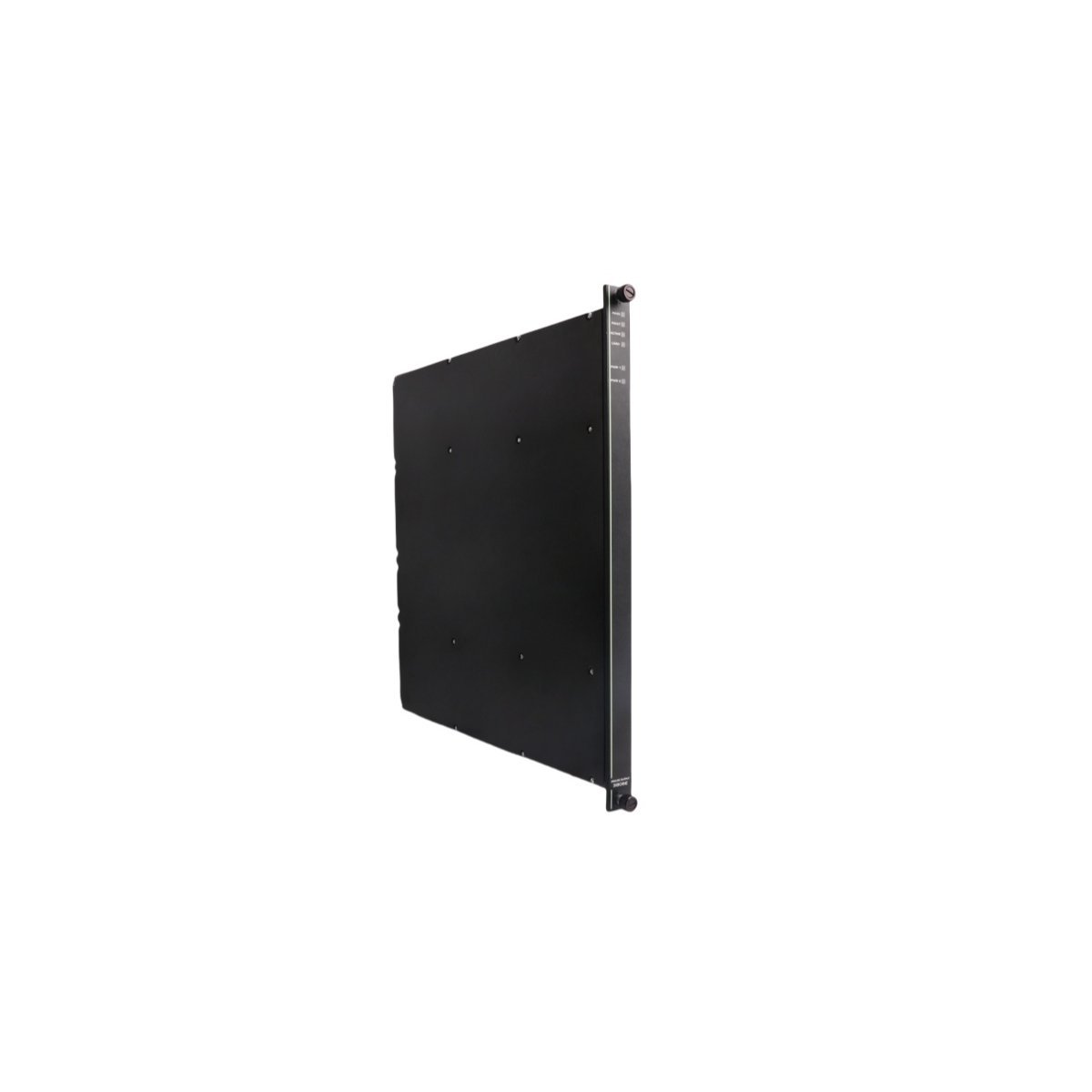

Triconex 3806E Analog Output Module
The Triconex 3806E is a high-precision, Triple Modular Redundant (TMR) analog output module designed for SIL 3 safety applications. It provides isolated 4-20 mA signals with 0.1% accuracy, ensuring reliable control of valves and actuators in critical DCS environments.
Description
The Triconex 3806E serves as a high-reliability analog output component within the Tricon Triple Modular Redundancy (TMR) architecture. This module converts digital commands from the main processors into precise analog signals to control final control elements like valves and actuators. It specifically targets safety-critical environments where unplanned downtime or signal failure presents significant operational risks.
Technical Specifications and Performance Data
| Feature | Specification Details |
| Manufacturer | Schneider Electric / Triconex |
| Model Number | 3806E |
| Output Type | Analog Output (TMR) |
| Number of Channels | 6 or 8 (Configuration dependent) |
| Signal Range | 4-20 mA / 0-20 mA |
| Accuracy | ±0.1% of FSR |
| Isolation | Channel-to-Channel and I/O-to-Logic |
| Safety Rating | Up to SIL 3 |
| Weight | 2.16 kg (Net) |
| Dimensions | 2.2 x 40.7 x 39.8 cm |
Functional Design and Safety Integrity
The 3806E module utilizes a Triple Modular Redundant architecture to ensure maximum process uptime. Three independent output legs vote on the signal value to eliminate single points of failure. If one leg fails, the remaining two maintain the correct output signal without interrupting the process.
Each channel incorporates sophisticated galvanic isolation to protect the system from field-side electrical surges. This design prevents ground loops and minimizes cross-channel interference. Furthermore, the module includes an integrated HART filter, allowing digital communication with smart field devices while maintaining signal purity.
Advanced Diagnostics and Field Applications
Onboard microprocessors continuously monitor the health of the output circuitry. The module performs self-tests to detect open circuits, short circuits, and calibration drifts in real-time. If the system identifies a fault, it triggers an immediate alarm in the Triconex diagnostic software.
Engineers specify the 3806E for demanding industrial sectors including:
- Oil and Gas refinery emergency shutdown systems.
- Chemical processing plant pressure control loops.
- Power generation turbine governing systems.
- Nuclear safety actuation and monitoring.
Maintenance and Legacy System Support
The rugged mechanical construction allows for reliable operation in harsh electromagnetic environments. While newer generations exist, the 3806E remains a vital spare part for maintaining existing Tricon v9 and v10 installations. Its hot-swappable design permits module replacement without powering down the controller or disrupting the active process.
Additional information
| Weight | 2.16 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 2.2 x 40.7 x 39.8 cm |
