Description

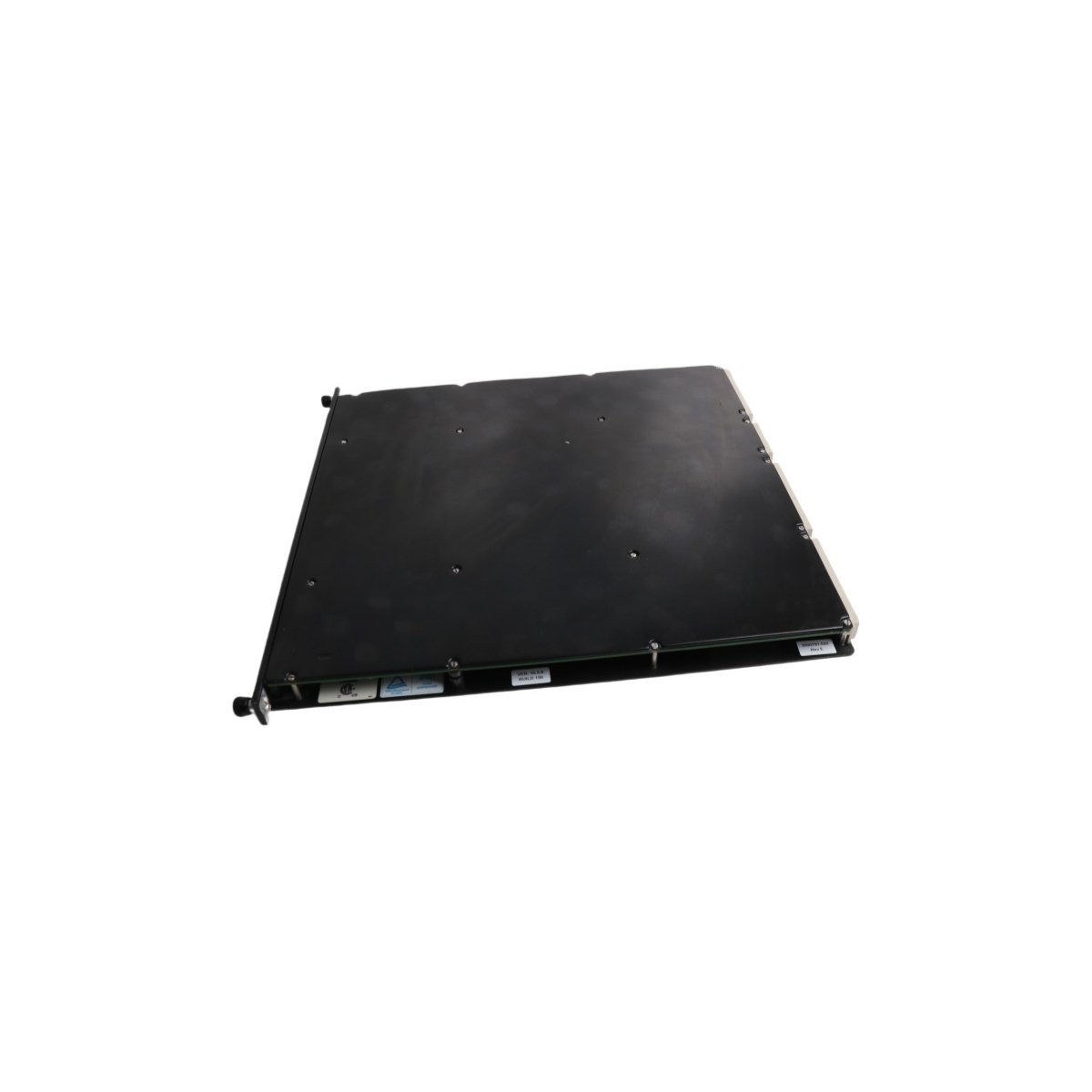

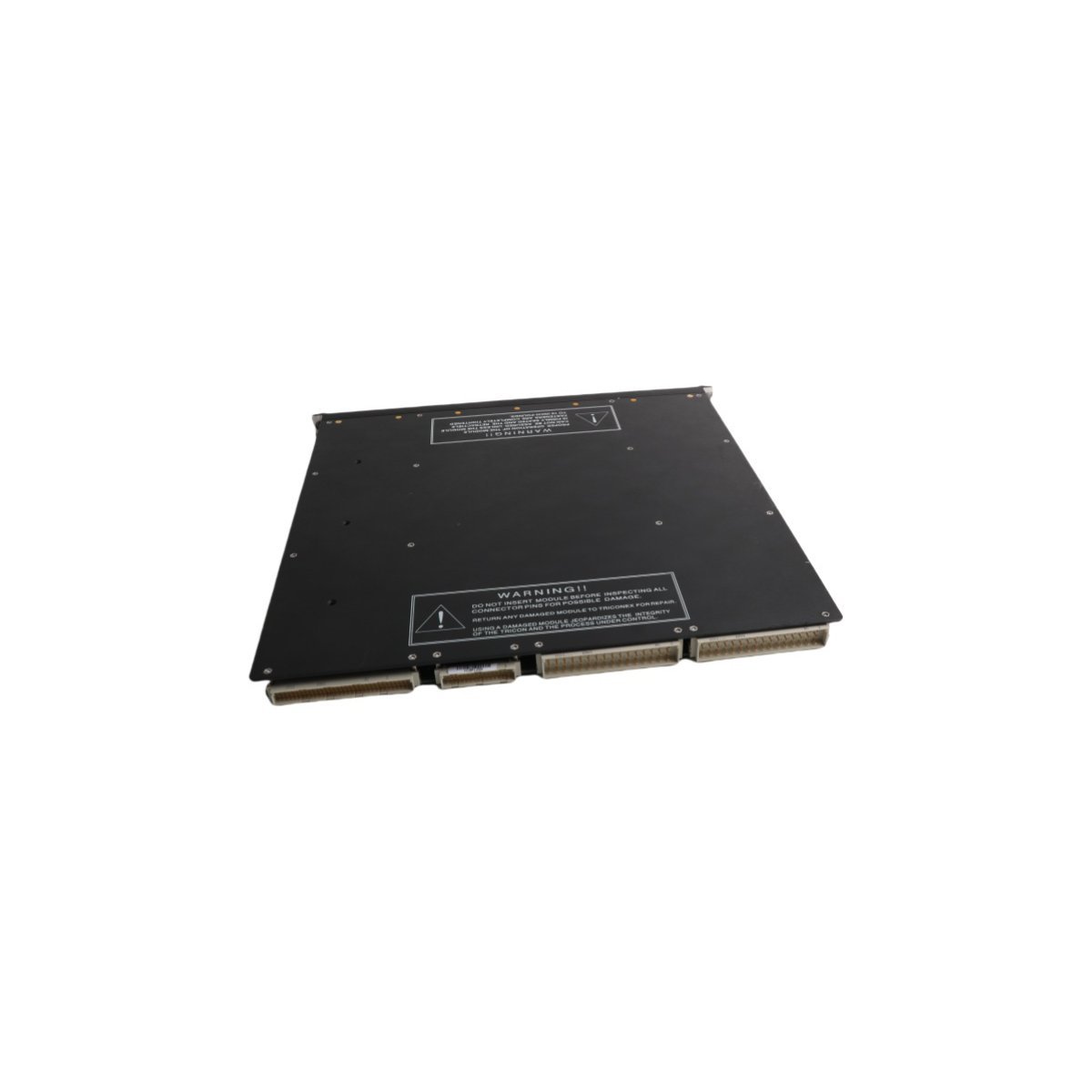

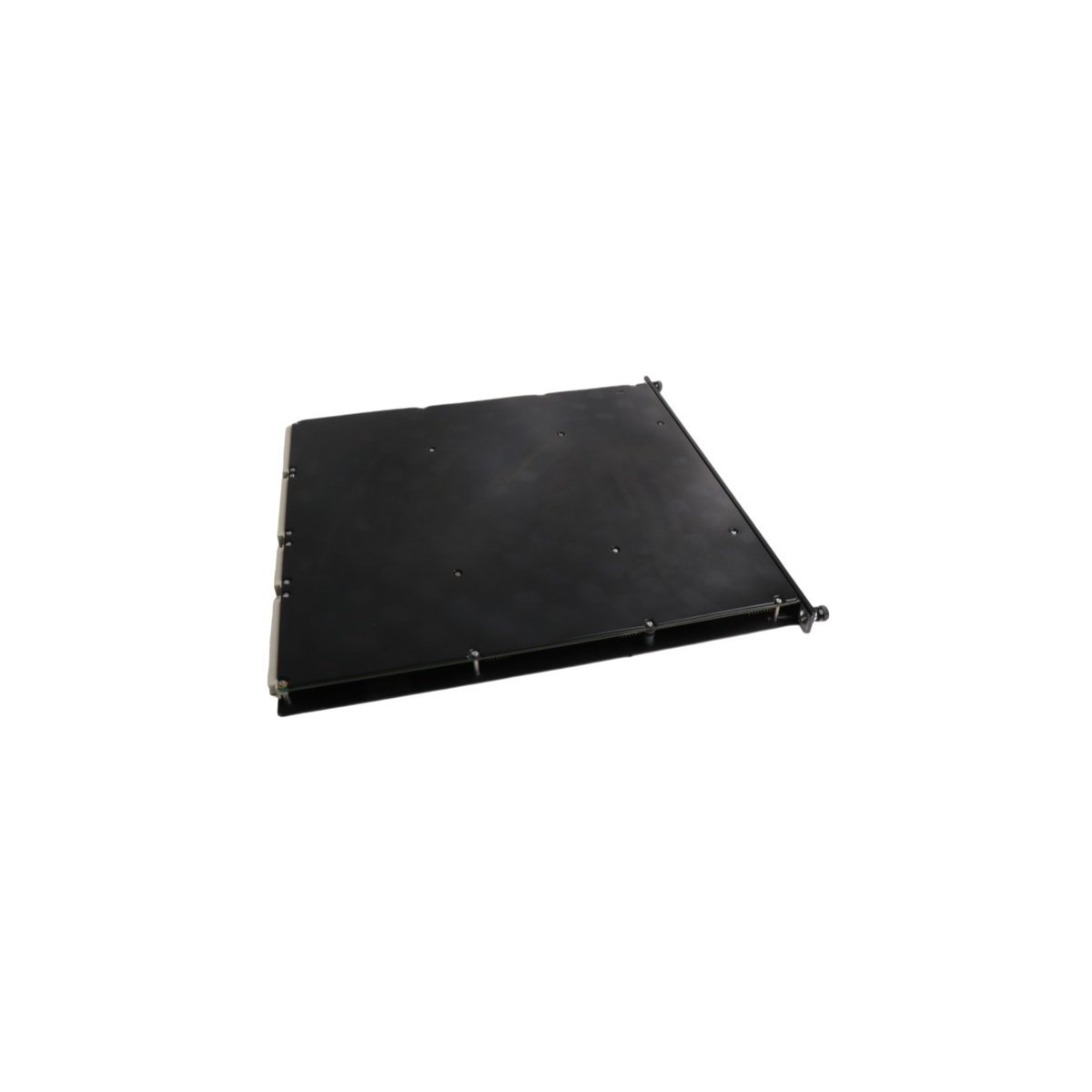

The Triconex 3625A provides highly reliable switching for critical industrial control loops. This digital output module utilizes a Triple Modular Redundant (TMR) architecture to ensure maximum system availability. It translates logic commands from the main processors into 24VDC signals for field equipment. Consequently, it excels in high-stakes environments where signal failure is not an option.

Primary Technical Specifications

Enhanced Safety and Fault Tolerance

The 3625A module incorporates a unique quad-voting output circuit. This design ensures that a single component failure does not disrupt the output state. Three independent internal legs vote on the final signal to maintain absolute operational integrity.

Furthermore, the module includes comprehensive self-test features that detect stuck-on and stuck-off conditions. Internal diagnostics monitor each point to verify the field-side switch status. This proactive monitoring allows for immediate fault isolation and minimizes the risk of latent failures.

System Integration and Environmental Resilience

The modular footprint of the 3625A facilitates effortless installation into existing Tricon system racks. Each unit supports high-speed communication backplanes for rapid data synchronization with main processors. Moreover, the low power consumption profile reduces heat generation within the control cabinet.

The module withstands extreme temperatures and high humidity levels during continuous operation. This rugged construction makes the 3625A suitable for remote industrial sites and harsh environments. Its hot-swappable nature allows for maintenance without requiring a total system shutdown.

Typical B2B Applications

Engineers typically specify the 3625A for safety-instrumented functions across various sectors. The module provides dependable control for:

• Solenoid valve actuation in emergency shutdown systems.
• Relay control for fire and gas mitigation.
• Motor starter interlocks in power generation plants.
• Critical alarm beacons and notification devices.
• High-integrity pressure protection system (HIPPS) final elements.
