Description

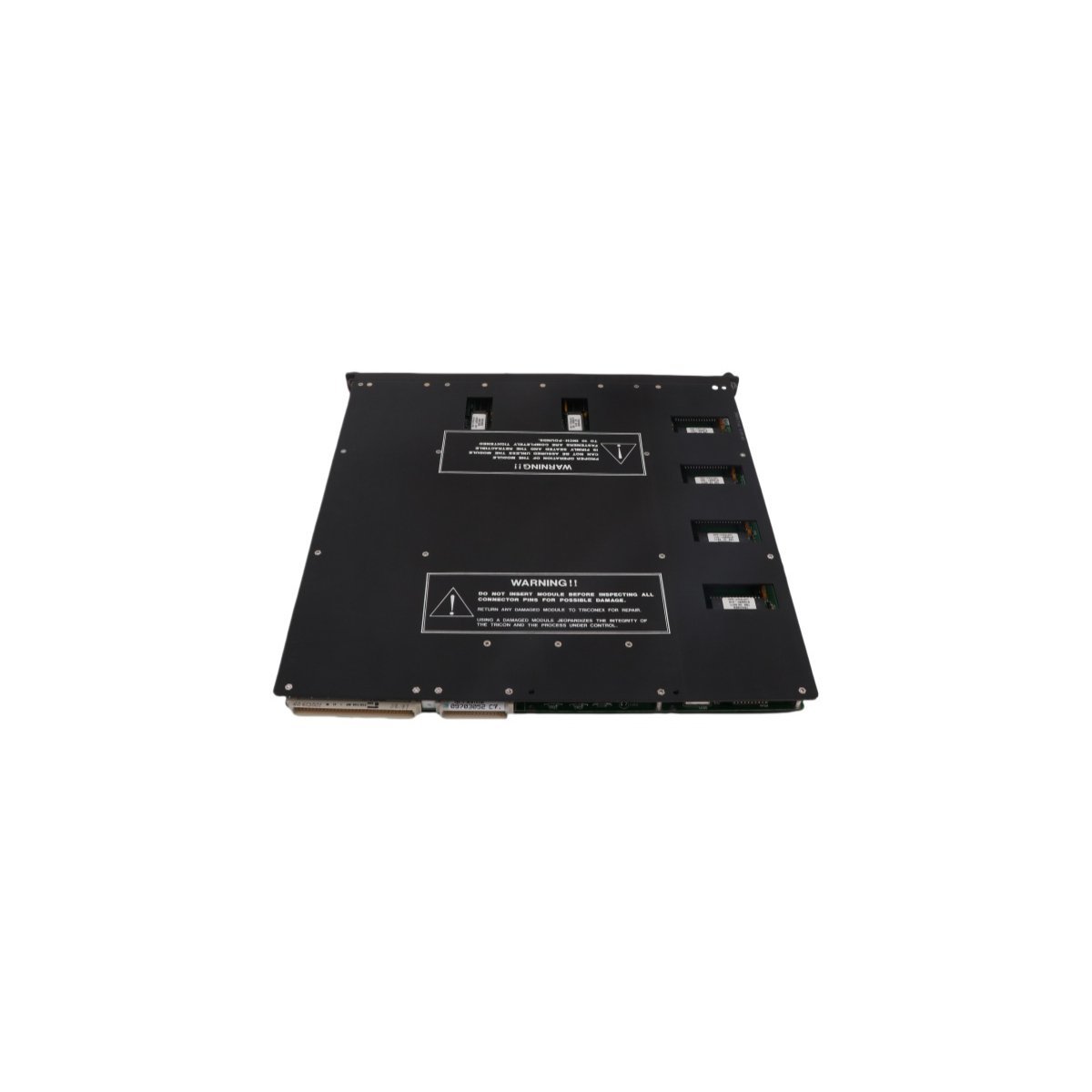

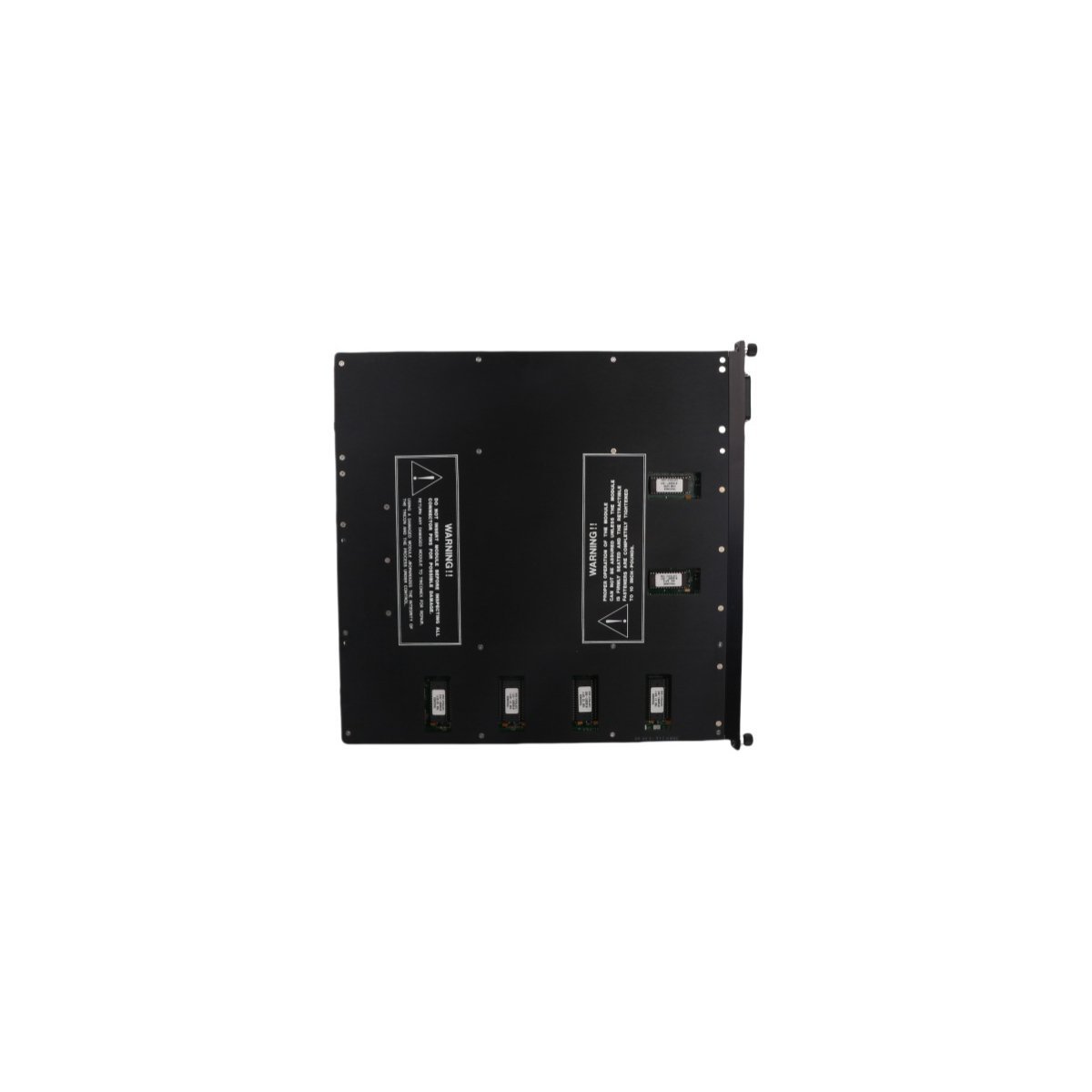

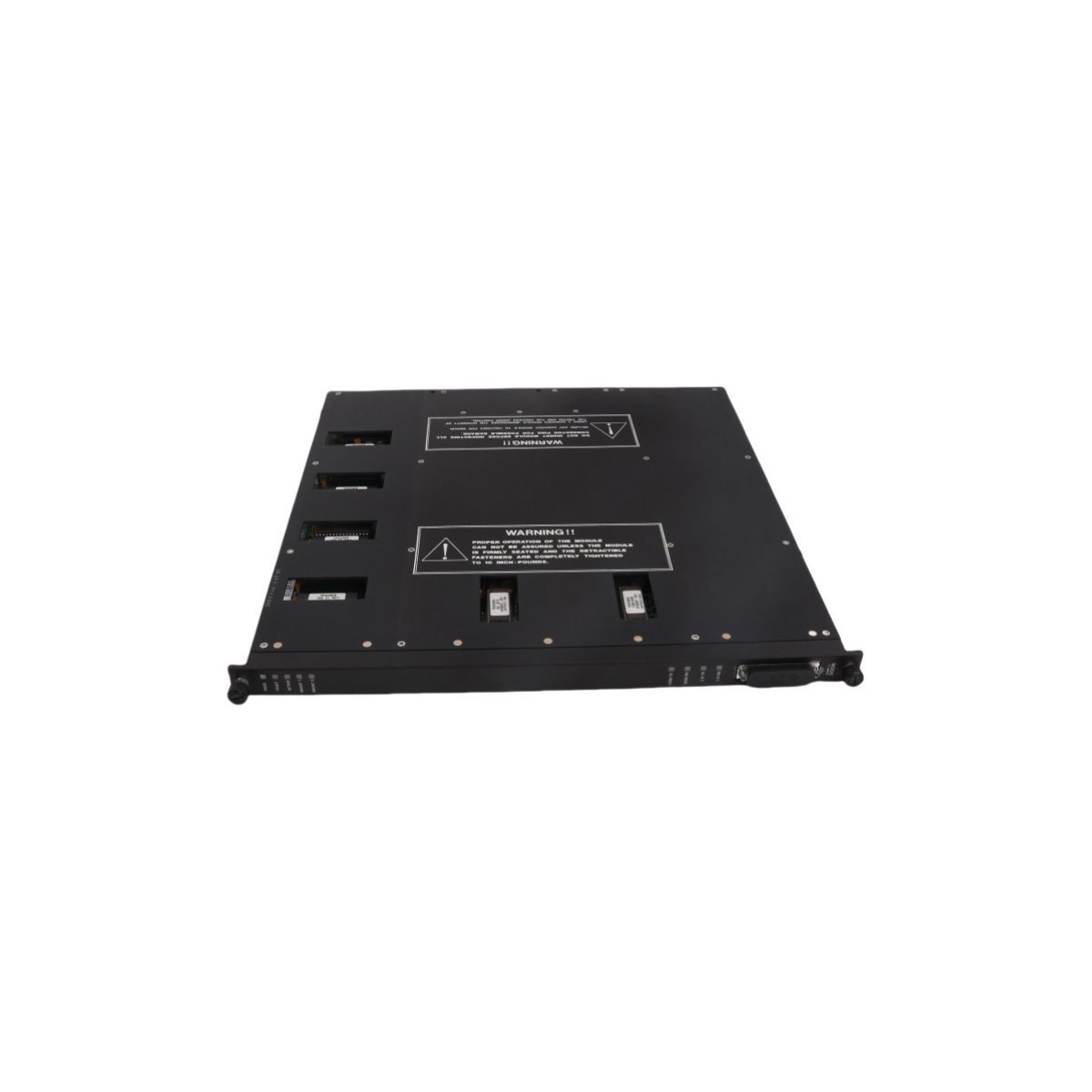

The Triconex 3006 acts as the primary computational engine for the Tricon Triple Modular Redundancy (TMR) system. This enhanced processor module manages complex control logic and coordinates high-speed communication across the system backplane. It provides the essential intelligence required for safety-instrumented functions in high-hazard industrial environments.

Core Technical Specifications

Operational Reliability and Architecture

The 3006 module utilizes a sophisticated multi-processor design to maintain continuous system availability. Three identical processing channels execute the application program simultaneously to ensure absolute data integrity. A hardware-based voting mechanism compares results from all three channels to eliminate potential errors.

This TMR architecture allows the system to identify and isolate internal faults instantly. Consequently, the controller continues to operate safely even if a hardware component fails. This high level of redundancy significantly reduces the risk of nuisance trips in critical processes.

System Integration and Maintenance

Engineers can easily integrate the 3006 module into existing Tricon racks via a hot-swappable interface. This feature enables technicians to replace modules without interrupting the active control process. Furthermore, the module supports a wide array of I/O configurations for diverse industrial applications.

Comprehensive diagnostic tools monitor the internal health of the CPU in real-time. These diagnostics provide detailed status reports to the workstation for proactive maintenance planning. The rugged mechanical housing protects the sensitive electronics against electromagnetic interference and harsh plant conditions.

Industrial Safety Applications

The Triconex 3006 serves critical roles in sectors requiring maximum safety integrity. Typical applications include:

• Emergency Shutdown Systems (ESD) in refineries.
• Fire and Gas (F&G) detection and mitigation.
• Burner Management Systems (BMS) for utility boilers.
• High Integrity Pressure Protection Systems (HIPPS).
• Critical process control in chemical manufacturing.
