Description

Brief Product Description

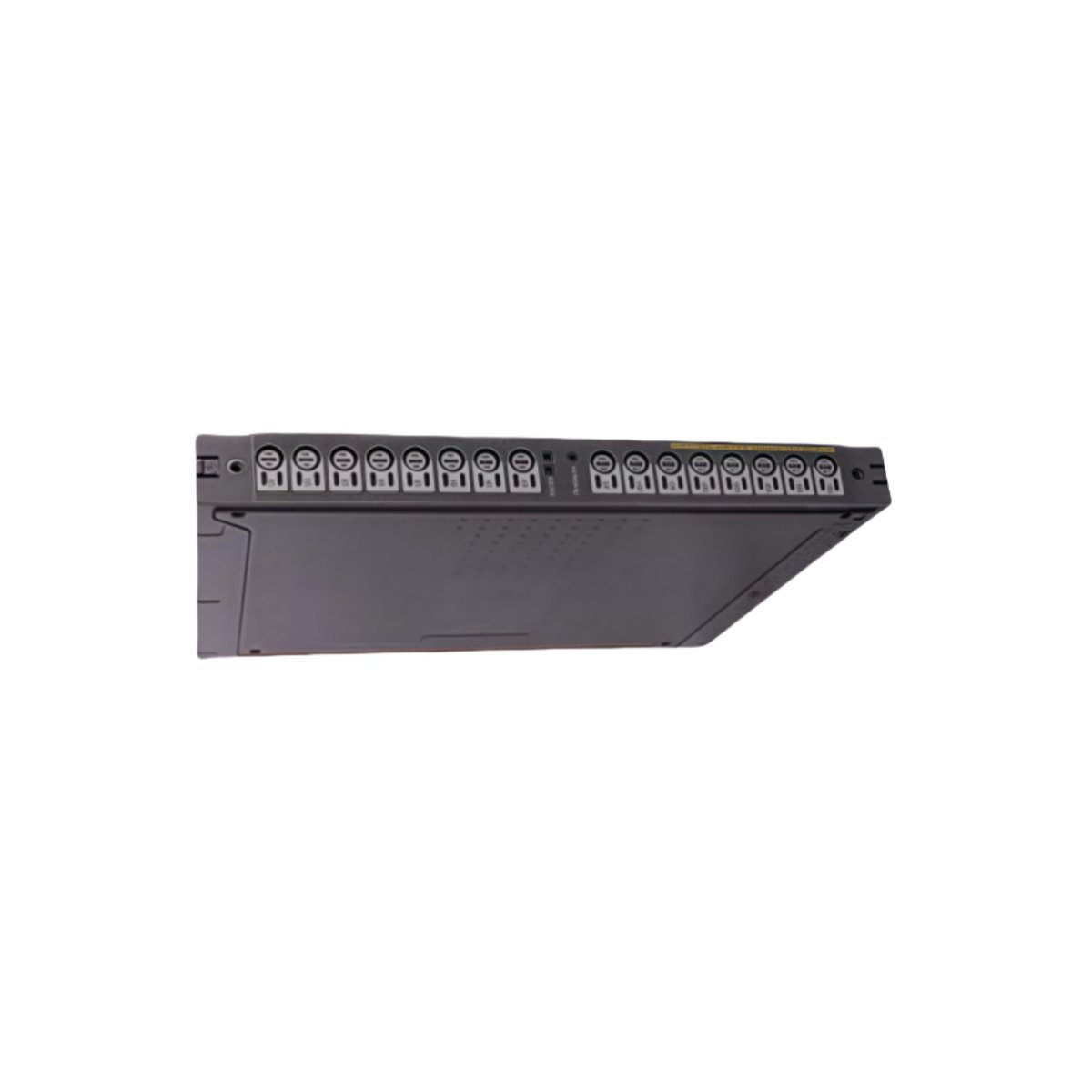

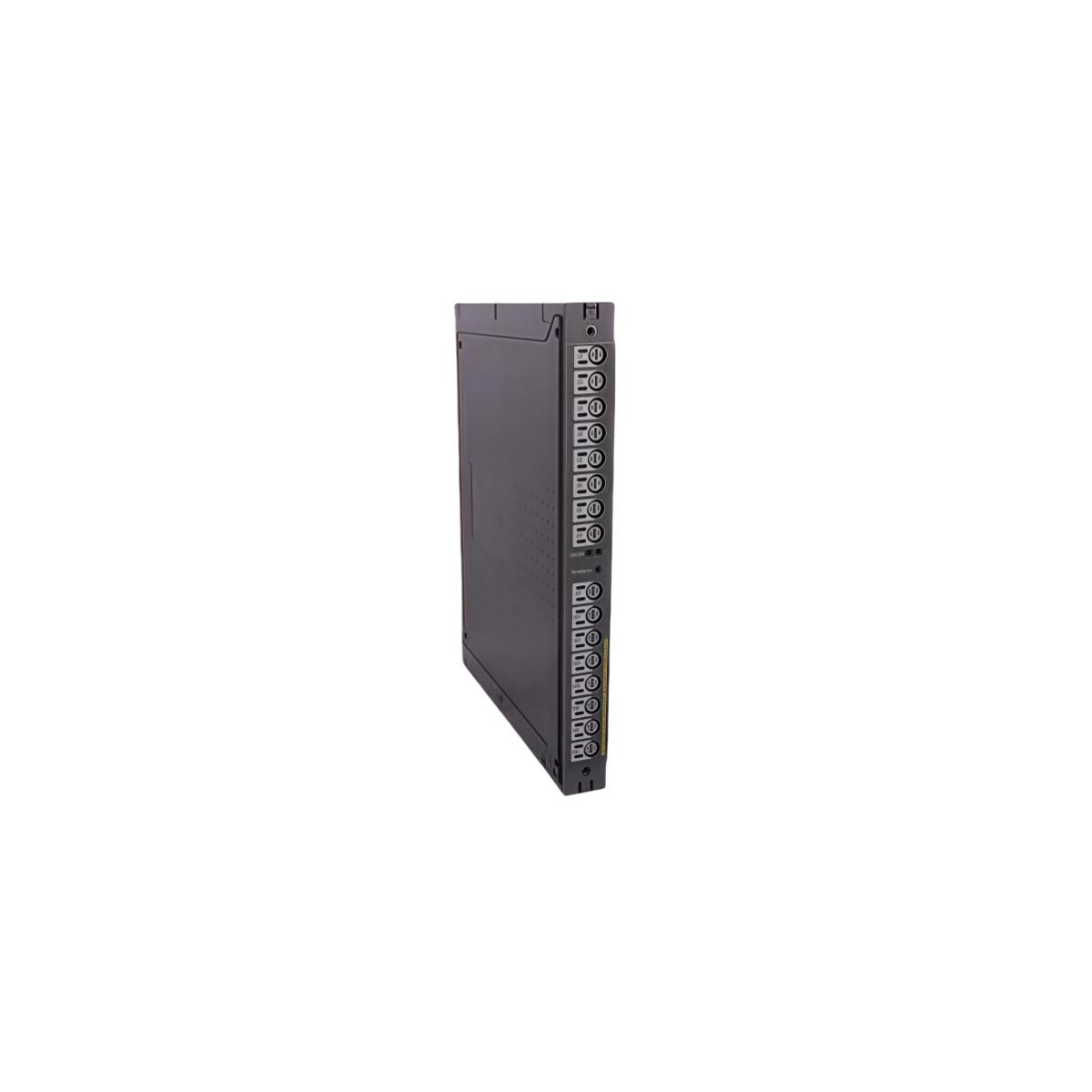

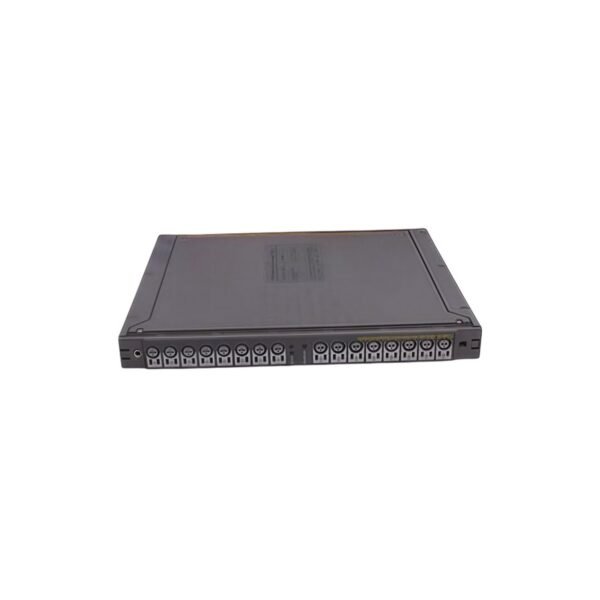

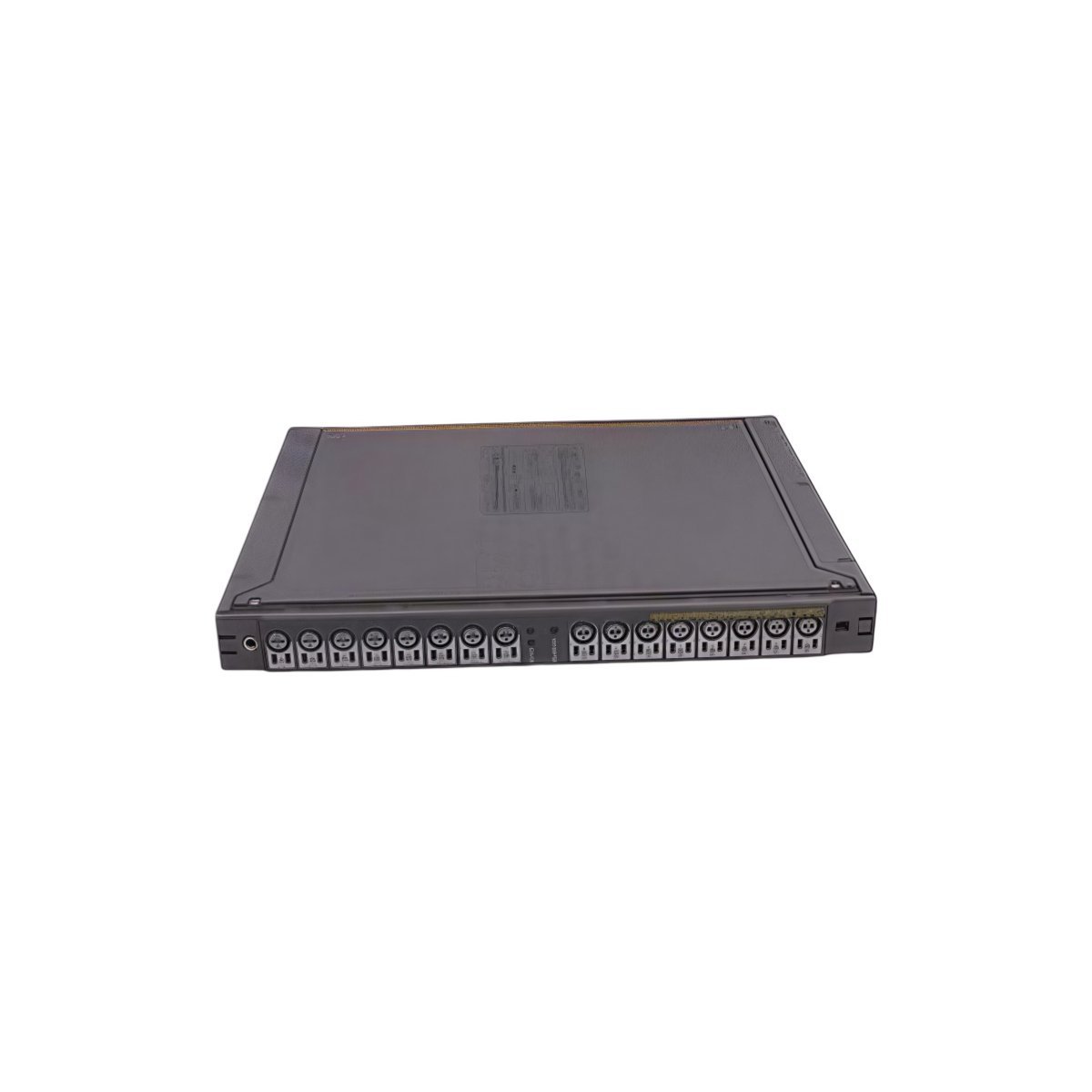

The ICS Triplex T8240C is a high-reliability, 8-channel digital input module designed for the Trusted™ Triple Modular Redundant (TMR) safety platform. It provides SIL 2-certified signal processing and advanced fault management for critical industrial control applications.

High-Integrity Signal Processing for Safety Systems

The ICS Triplex T8240C serves as a fundamental component within the Trusted™ TMR architecture, specifically engineered to provide secure digital input monitoring. This module utilizes a Triple Modular Redundant design to ensure that signal acquisition remains uninterrupted, even if a hardware fault occurs within one of the processing paths. Because the T8240C adheres to IEC 61508 SIL 2 standards, it successfully manages high-risk operational variables in environments where system failure could lead to catastrophic results. By integrating this module into a safety instrumented system (SIS), operators gain a robust layer of protection for complex automation logic.

Advanced Fault Management and Communication

Performance reliability defines the T8240C, which features a sophisticated Class 3 fault management system. This internal diagnostic suite identifies and isolates anomalies in real-time, preventing field errors from propagating to the main controller. Furthermore, the module supports the Modbus RTU communication protocol, which facilitates seamless data exchange with a wide variety of third-party industrial hardware and supervisory systems. This versatility ensures that the T8240C can act as a bridge between legacy field devices and modern control networks, maintaining high-speed data throughput without compromising safety integrity.

Durable Engineering for Rigorous Environments

The physical construction of the T8240C emphasizes durability, allowing it to function effectively in areas subject to thermal fluctuations and high electromagnetic interference. Its compact 0.5 kg chassis houses high-grade electronic components that are rated for continuous service in mission-critical sectors such as petrochemical refining and power generation. Moreover, the unit’s user-friendly interface simplifies the commissioning process for onsite engineers. By combining a rugged physical profile with precise digital processing, the T8240C provides a dependable solution for long-term industrial uptime and comprehensive process protection.

Key Technical Characteristics

• SIL 2 Certification: Complies with IEC 61508 standards for high-integrity safety functions.
• TMR Architecture: Employs Triple Modular Redundancy to ensure maximum system availability.
• 8-Channel Capacity: Provides independent monitoring for eight separate digital input signals.
• Class 3 Fault Management: Detects and mitigates internal hardware failures without process interruption.
• Modbus Compatibility: Supports standard Modbus RTU for flexible integration into diverse PLC networks.
• Ruggedized Form Factor: Optimized for installation in harsh industrial enclosures with a footprint of 10.5 x 15.4 x 12.6 cm.

Technical Specifications
