Description

Brief Product Description

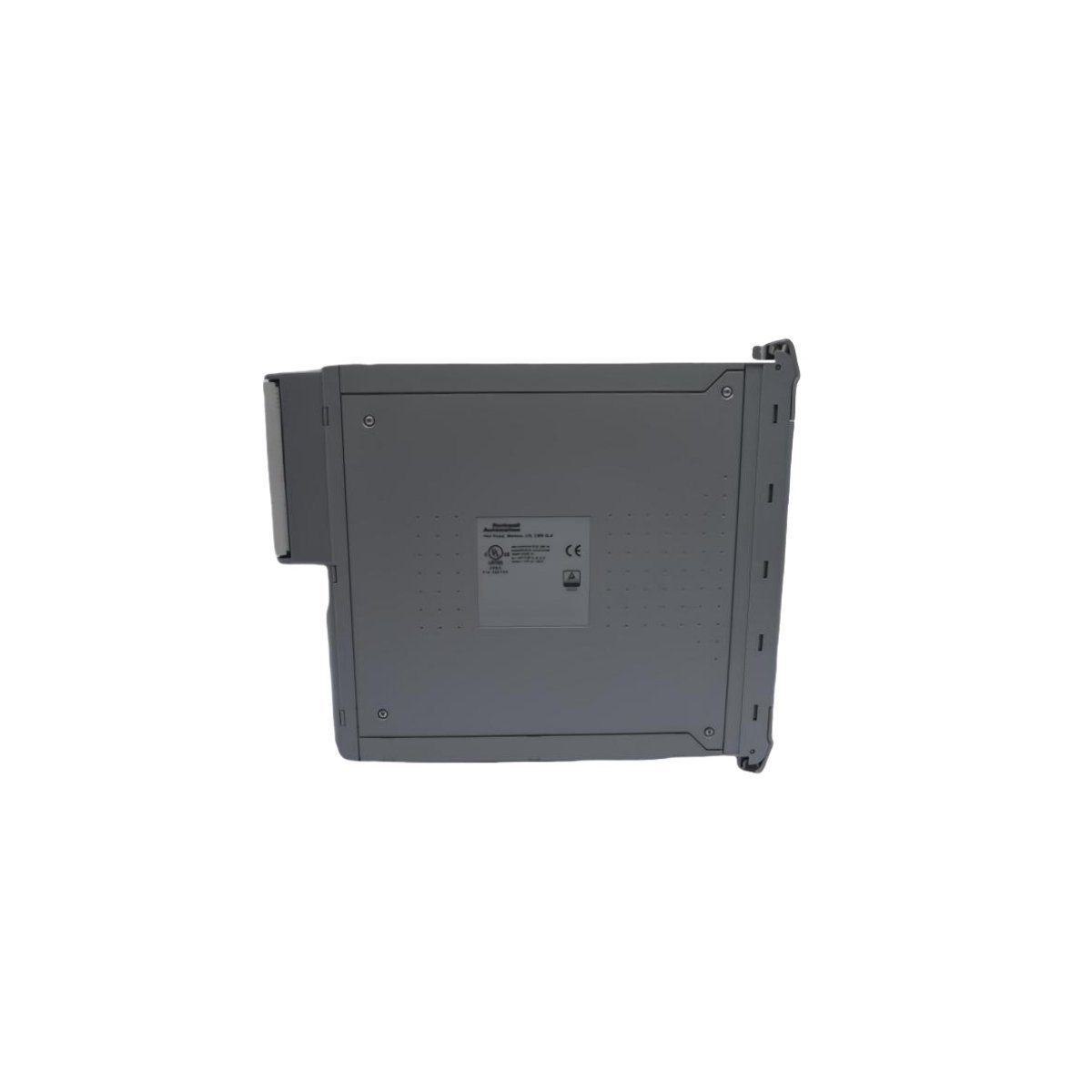

The ICS Triplex T8230 is a high-availability power shelf designed for the Trusted and Regent control systems, providing the physical and electrical framework for power supply modules. It ensures continuous energy distribution to critical processors and I/O components through a fault-tolerant, redundant architecture.

​Product Description

Mission-Critical Power Distribution

The ICS Triplex T8230 serves as the primary power infrastructure for the Trusted safety platform, facilitating the housing and interconnection of power supply units. This power shelf provides a stable electrical backbone that distributes energy across the system backplane to vital processors and interface modules. By centralizing power management, the T8230 ensures that every component within the PLC rack receives a clean, regulated supply, which is essential for maintaining logic integrity in high-stakes environments like oil and gas processing or power generation.

Fault Tolerance and Redundancy

Engineered for maximum uptime, the T8230 Power Shelf supports redundant configurations to eliminate single points of failure. The design allows multiple power units to operate in parallel, sharing the load while actively monitoring each other’s health. If a primary power source fails, the shelf facilitates an immediate, seamless transition to the backup unit without interrupting the system logic or field device control. This high-availability characteristic proves indispensable for safety-critical applications where unplanned shutdowns can result in significant mechanical or financial risks.

Rugged Reliability and Diagnostics

The T8230 incorporates advanced filtering circuitry to shield the control system from industrial electrical noise and voltage surges. Furthermore, the module supports hot-swapping, enabling technicians to replace power components while the system remains fully energized and operational. Integrated diagnostic capabilities allow operators to monitor power health in real time, identifying potential issues before they escalate into hardware failures. This proactive monitoring, combined with a robust physical frame capable of withstanding extreme temperatures and vibrations, ensures the T8230 delivers a rock-solid foundation for industrial automation.

Technical Specification Table
