Description

Brief Product Description

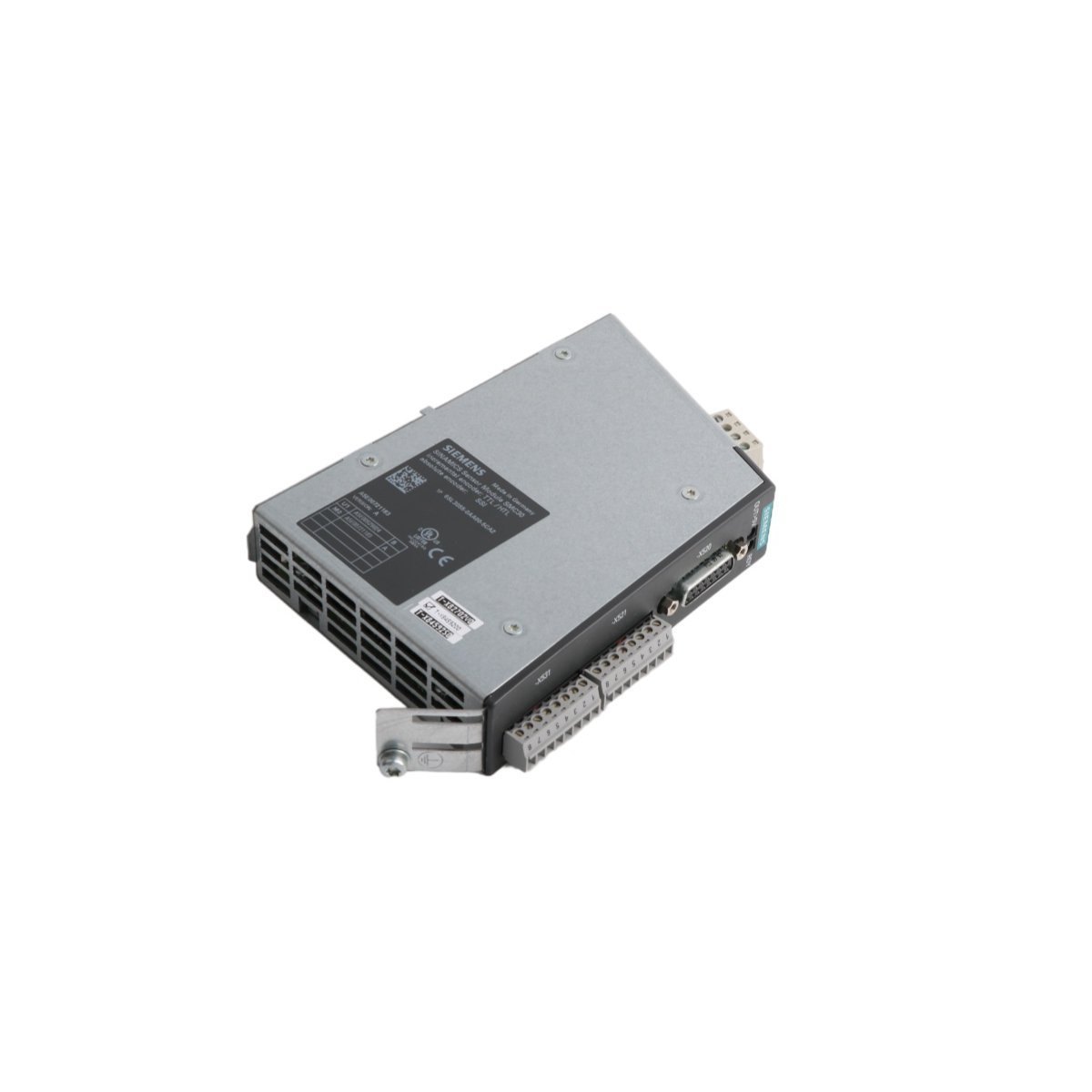

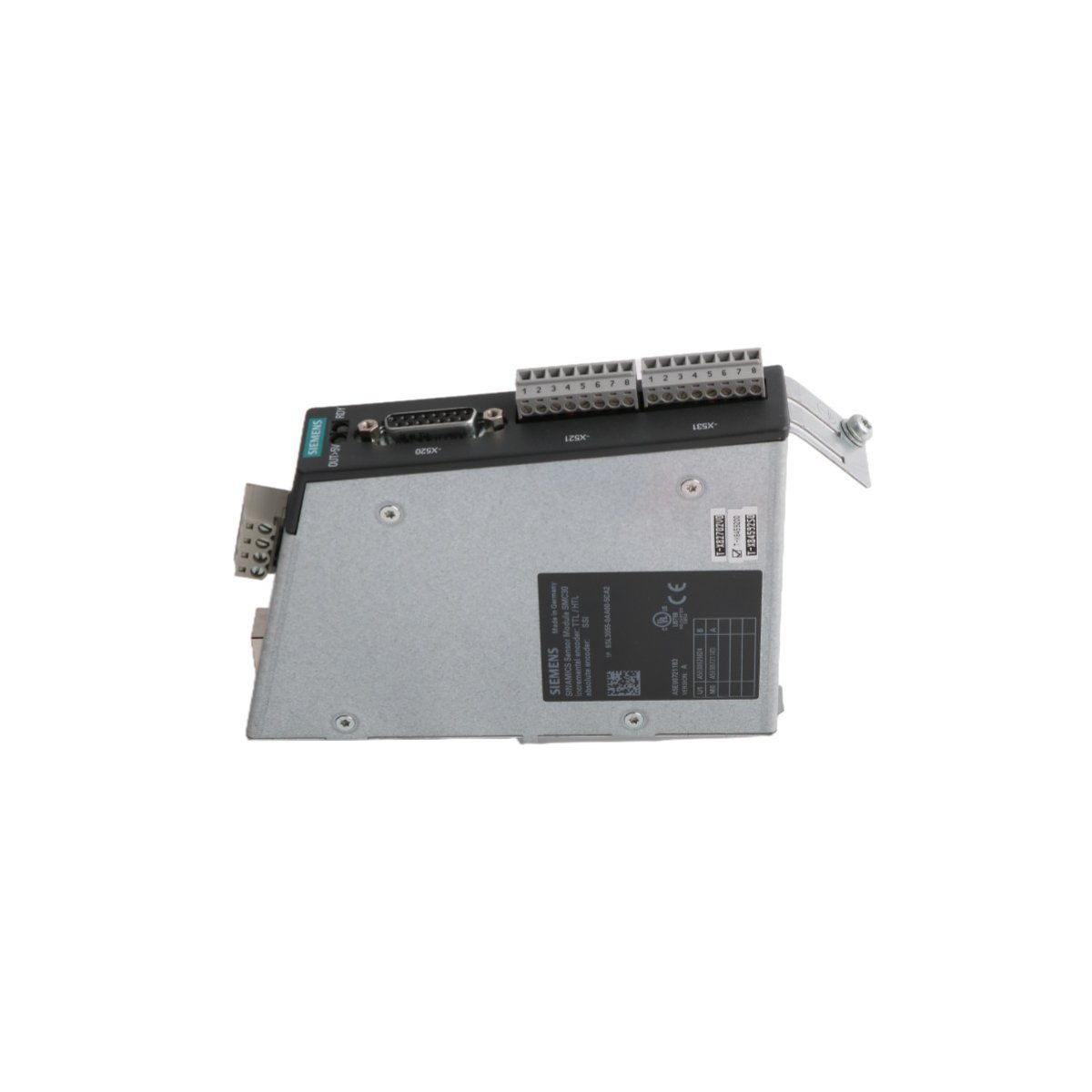

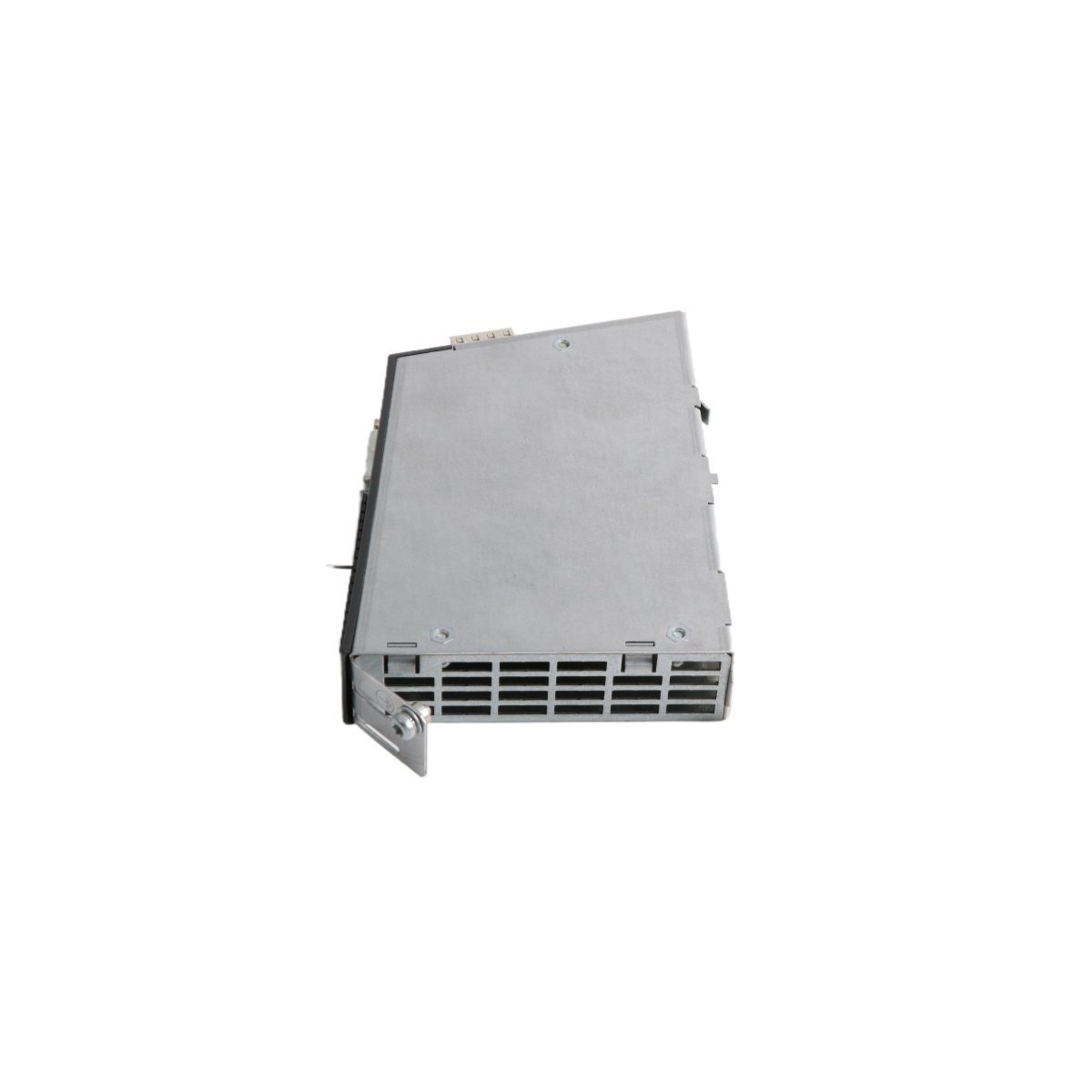

The Siemens 6SL3055-0AA00-5CA2 is a SINAMICS SMC30 Cabinet-Mounted Sensor Module designed to bridge the gap between various industrial encoders and the DRIVE-CLiQ communication system. It provides high-resolution feedback by supporting a wide range of TTL, HTL, and SSI encoder protocols for precise motion control applications.

Professional Encoder Signal Processing

The Siemens 6SL3055-0AA00-5CA2 serves as a critical interface within the SINAMICS S120 drive system, converting standard encoder signals into the digital DRIVE-CLiQ protocol. By centralizing the feedback logic, this module enables the control unit to monitor motor position and speed with high precision. The SMC30 supports a vast array of hardware interfaces, including TTL and HTL incremental encoders, as well as SSI absolute encoders.³ This multi-protocol compatibility ensures that engineers can integrate diverse sensing technologies into a unified motion control architecture without requiring specialized custom hardware.

Flexible Power and Signal Integration

This sensor module simplifies system design by offering dual-voltage encoder supply capabilities. Specifically, the unit can provide 5 V DC for TTL sensors or 24 V DC for HTL and SSI equipment, supporting a maximum current output of 300 mA. Furthermore, the 6SL3055-0AA00-5CA2 manages complex signal types, such as absolute encoders with auxiliary incremental tracks. Because the module effectively filters electrical noise and handles signal conditioning internally, it delivers clean, reliable data to the DRIVE-CLiQ bus, even over significant distances. Consequently, this leads to smoother motor operation and improved dynamic response in automated machinery.

Optimized for Industrial Cabinet Installation

Designed for efficiency in high-density control panels, the SMC30 features a compact 30mm width that minimizes DIN-rail footprint. The module operates reliably in ambient temperatures up to +55°C, making it suitable for rigorous manufacturing environments. Moreover, the unit incorporates diagnostic LEDs to provide real-time status updates, which significantly accelerates troubleshooting during commissioning or maintenance. By utilizing this robust sensor interface, facilities can maintain high safety standards and operational uptime while ensuring their motion control loops remain perfectly synchronized.

Key Technical Characteristics

• Universal Encoder Support: Compatible with TTL, HTL, and SSI absolute or incremental encoder types.
• Integrated DRIVE-CLiQ Interface: Seamlessly transmits conditioned sensor data to the SINAMICS Control Unit.
• Adjustable Power Supply: Provides 5V or 24V DC power directly to the connected encoder (up to 300 mA).
• High Frequency Handling: Supports encoder signal frequencies up to 300 kHz for high-speed motor feedback.
• Robust Thermal Range: Engineered for continuous operation in temperatures ranging from 0°C to +55°C.
• Evaluation of Temperature Sensors: Includes inputs for KTY, PT1000, or PTC thermistors to monitor motor windings.⁴
