Description

Brief Product Description

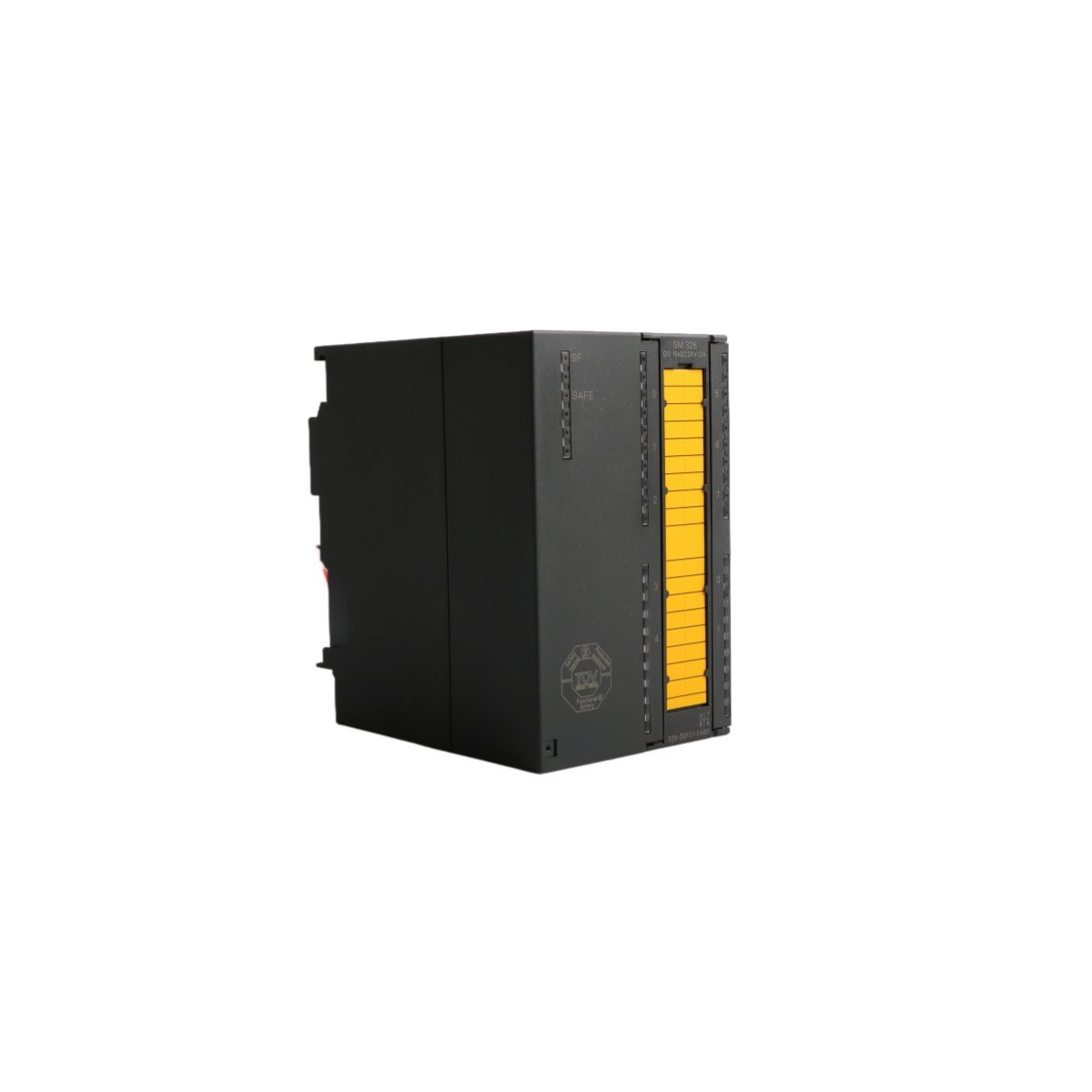

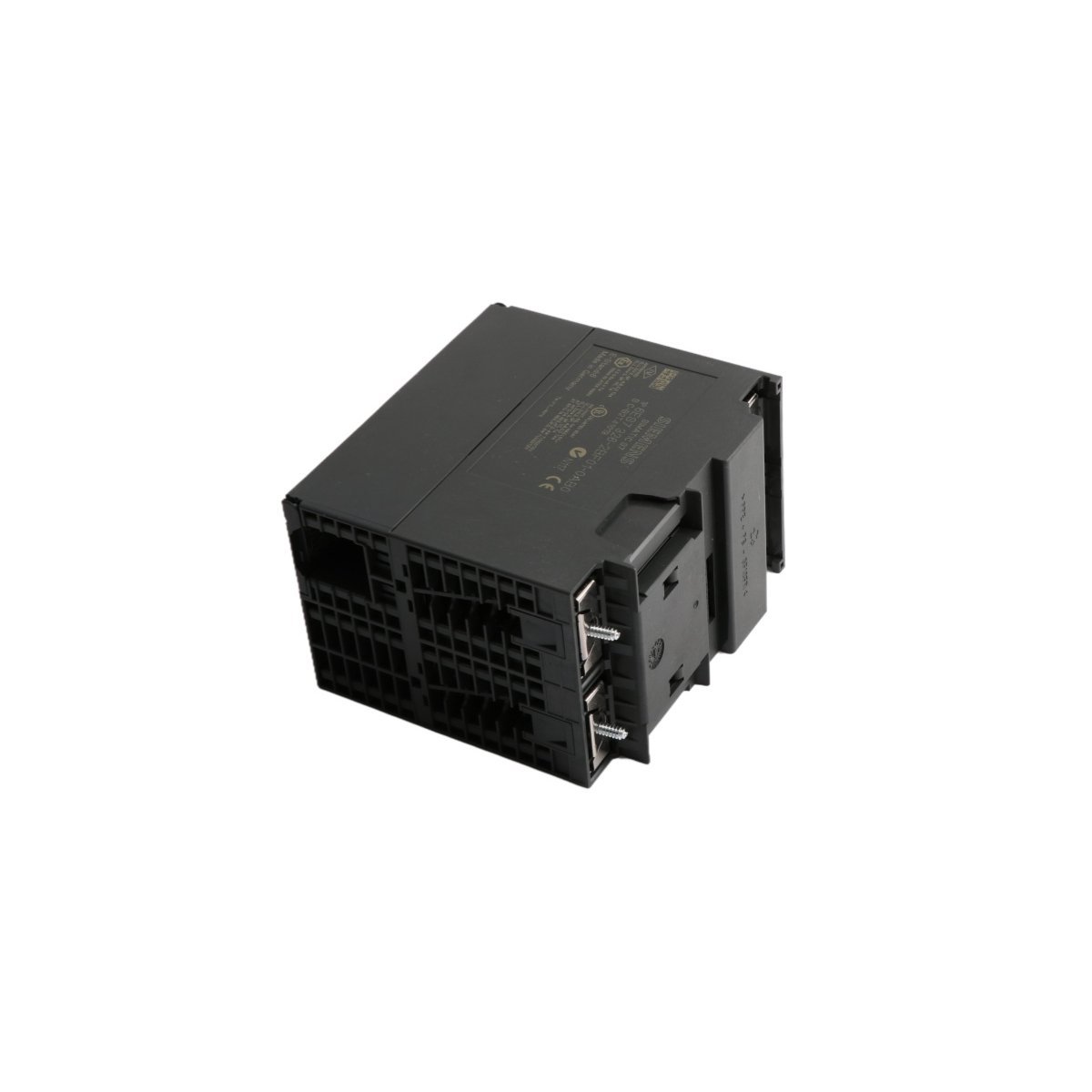

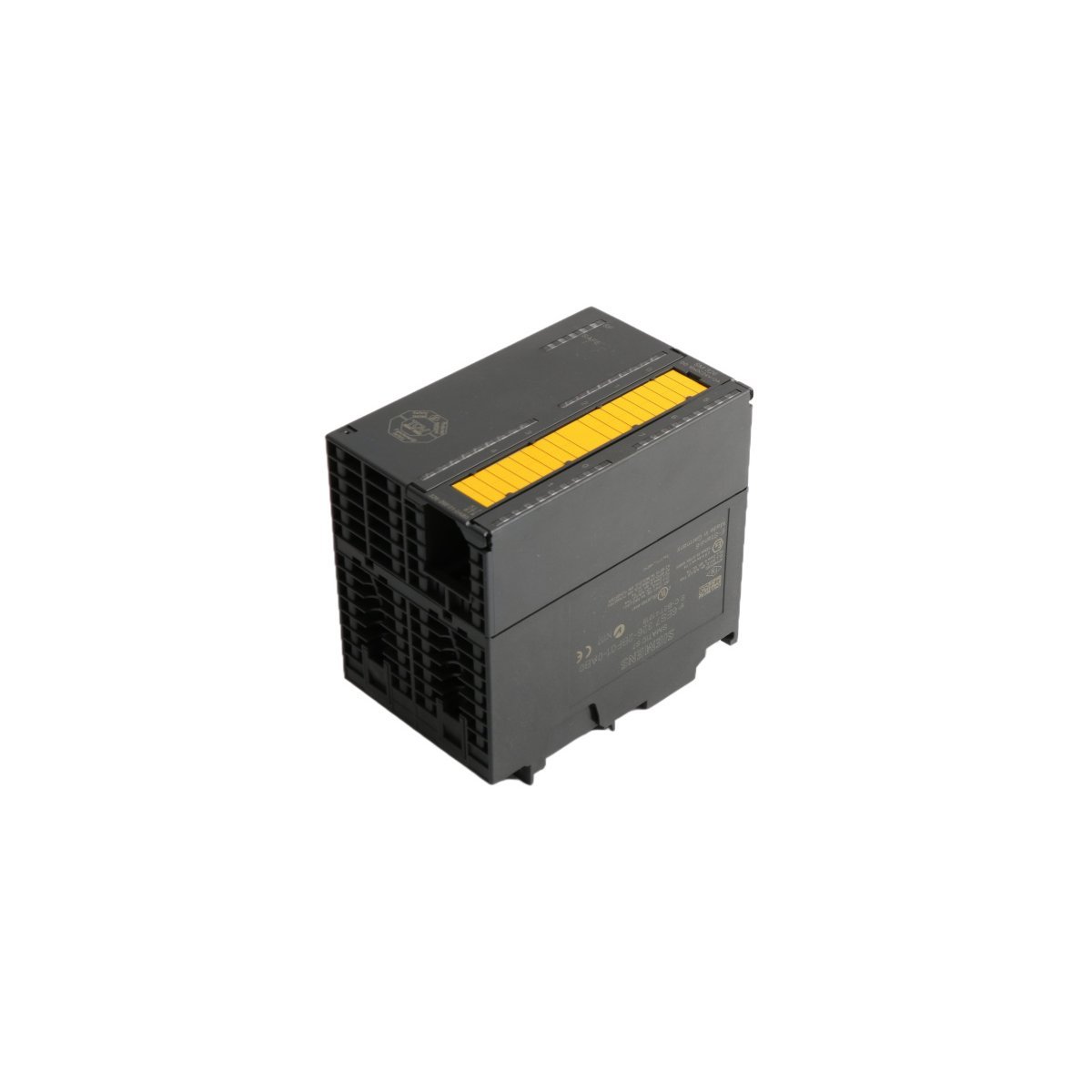

The Siemens 6ES7326-2BF01-0AB0 is a specialized 10-channel failsafe digital output module designed for SIMATIC S7-300 safety-integrated systems. It provides high-current 2A switching for safety-critical actuators, ensuring rigorous protection for industrial personnel and machinery.

High-Reliability Safety Control for S7-300 Systems

The Siemens 6ES7326-2BF01-0AB0 functions as a critical safety component within the SIMATIC S7-300 automation platform. This module specifically targets failsafe applications where reliable deactivation of actuators is mandatory during emergency scenarios. Featuring 10 isolated digital output channels, the unit manages 24V DC loads with a significant current capacity of 2A per channel. Because this module integrates directly into the S7-300 safety rack, it enables seamless communication with F-CPUs to execute safety-related control functions. Although Siemens transitioned this model to a mature product status in 2010, it remains a vital hardware standard for maintaining legacy safety systems and localized fail-safe architectures.

Advanced Diagnostics and Load Management

Operational transparency defines the 6ES7326-2BF01-0AB0 hardware design. The module incorporates comprehensive diagnostic features that monitor the health of each output circuit, detecting short circuits or wire breaks instantly. Furthermore, the unit supports diverse electrical loads by offering specific switching frequencies, such as 10Hz for resistive components and 2Hz for inductive machinery. This versatility ensures that the module can control everything from simple indicator lamps to heavy-duty solenoids without compromising signal integrity. By utilizing integrated internal current monitoring, the module protects the backplane bus and external power supplies from overload conditions, thereby extending the lifespan of the entire control system.

Engineering Standards and Installation Efficiency

Built with German precision, the 6ES7326-2BF01-0AB0 module adheres to stringent international safety standards for industrial environments. The hardware employs a standard 40-pin front connector, which allows for organized wiring and simplifies maintenance during module swaps. While newer generations have arrived, this specific SM 326 module continues to provide essential failsafe functionality for existing plants that require exact hardware replacements. Its robust housing and effective heat dissipation allow for stable performance in high-density PLC racks. Consequently, facilities can maintain their SIL (Safety Integrity Level) ratings by utilizing this original, proven Siemens safety hardware.

Key Technical Characteristics

• 10 Failsafe Outputs: Provides 10 isolated channels for safety-related digital signals.
• High Current Capacity: Each channel supports up to 2A at 24V DC for driving heavy actuators.
• Integrated Safety Diagnostics: Features automated detection for external wiring faults and internal module errors.
• Load Versatility: Optimizes switching cycles for resistive, inductive, and lamp-based loads.
• Compact S7-300 Design: Fits standard mounting rails and uses the common 40-pin front connector system.
• Certified Failsafe Performance: Engineered for use in safety-integrated systems up to SIL 3/PLe.
