Description

Brief Product Description

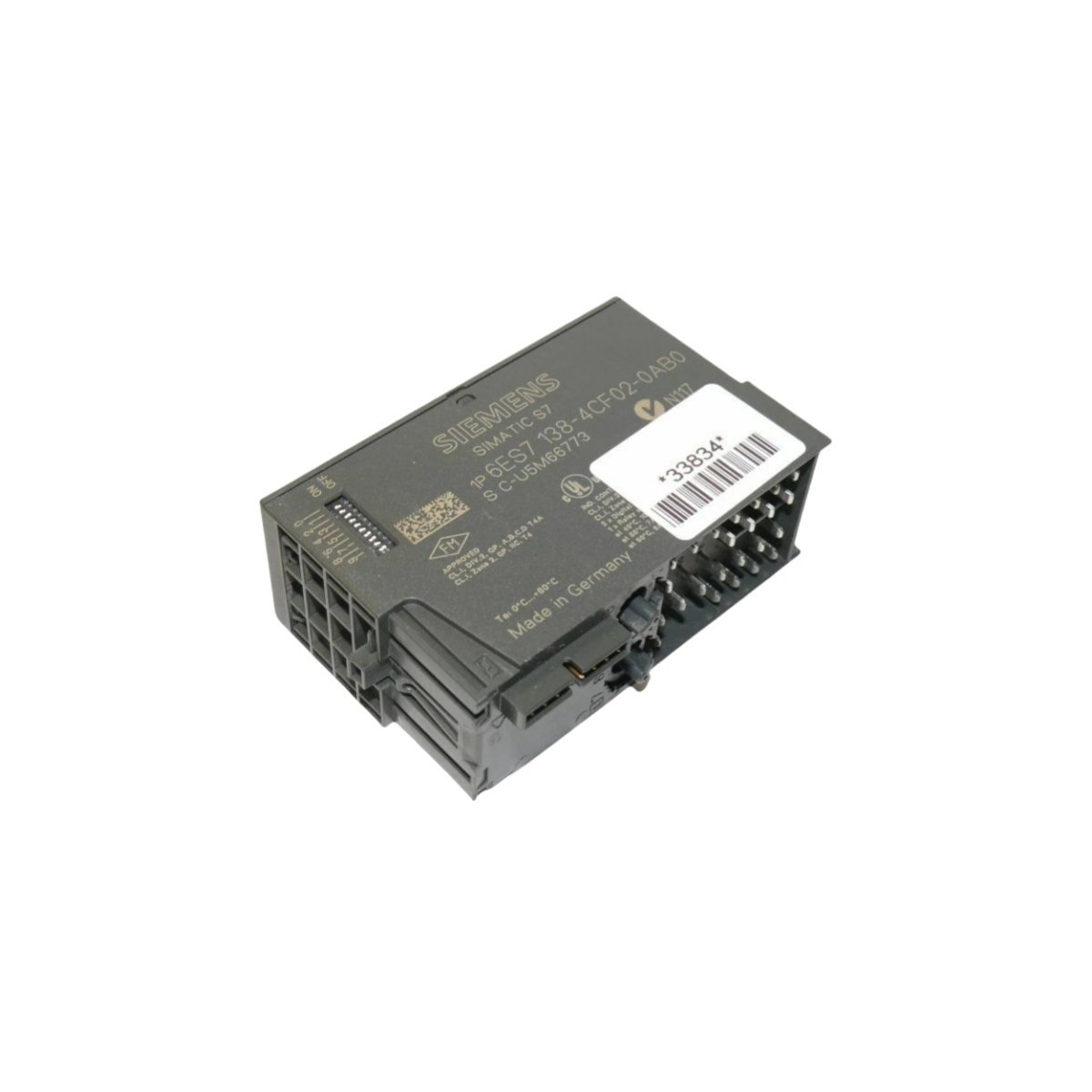

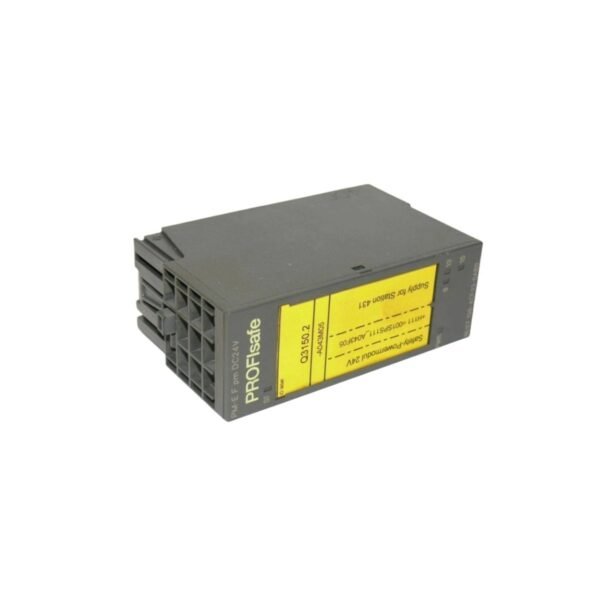

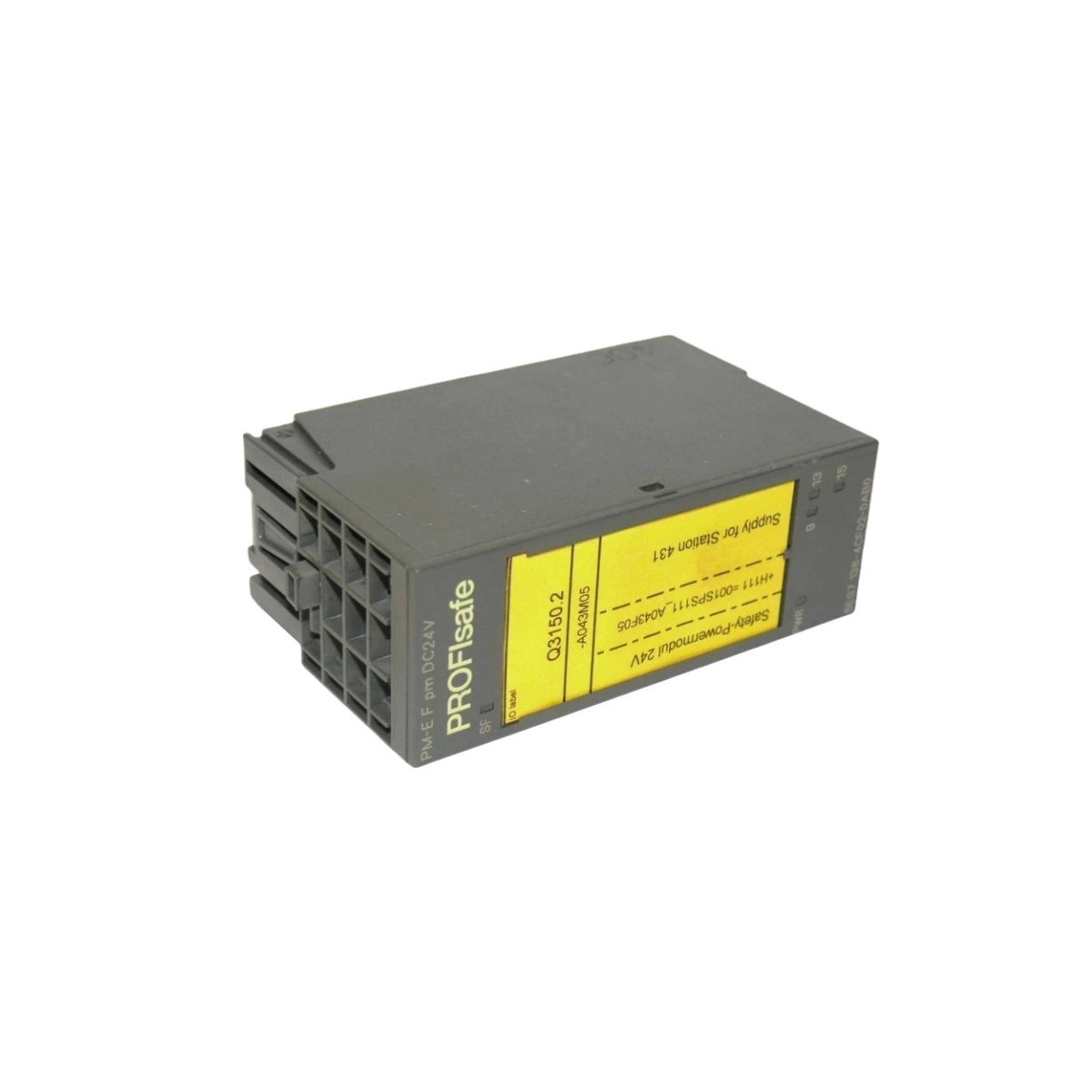

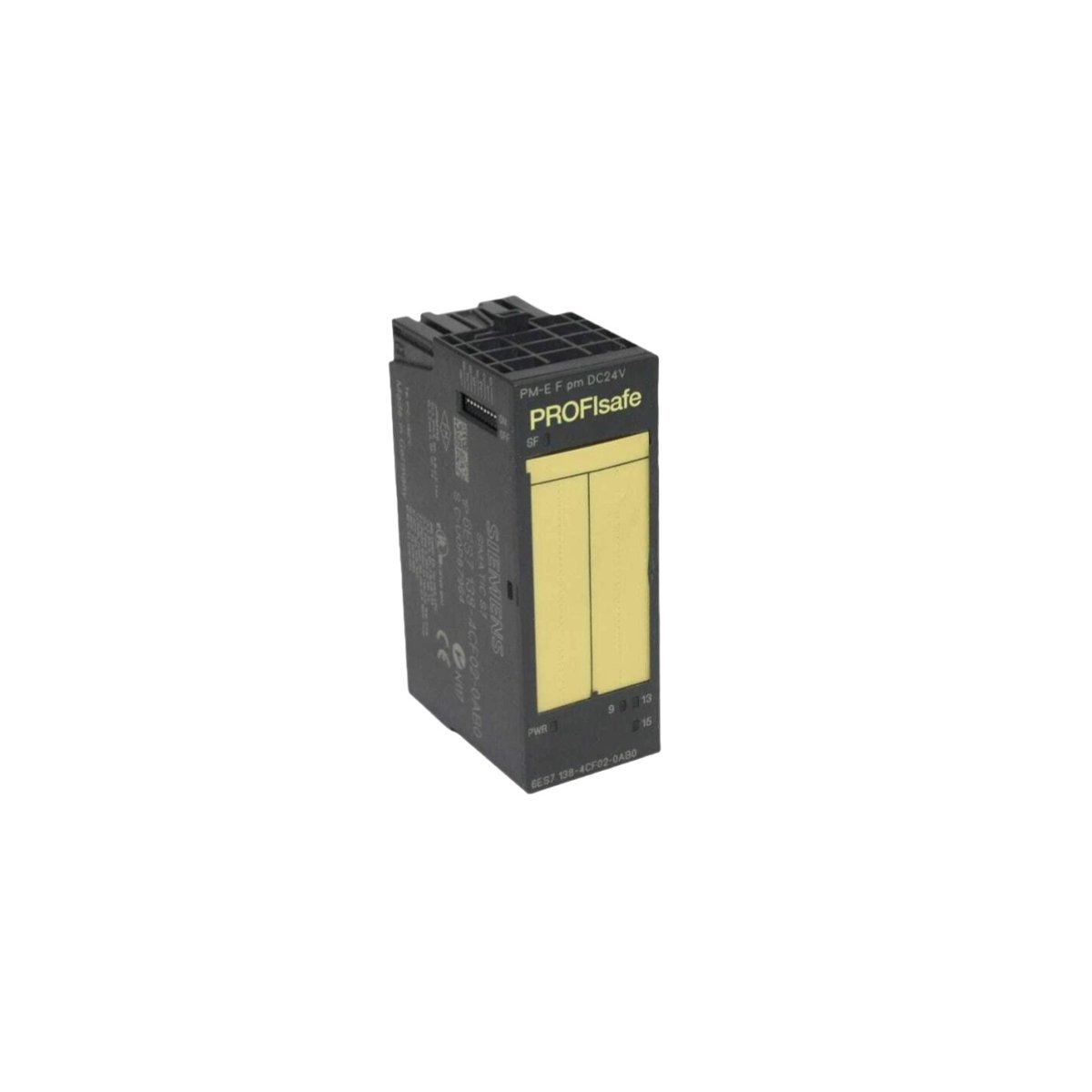

The Siemens 6ES7138-4CF02-0AB0 is a specialized PM-E F PROFIsafe power module engineered for the SIMATIC ET 200S distributed I/O system. It provides high-integrity fail-safe switching for voltage buses P1 and P2, enabling safety-related control up to SIL 3 and Category 4 standards.

Fail-Safe Voltage Management and Safety Compliance

The 6ES7138-4CF02-0AB0 serves as a critical safety component within the Siemens ET 200S ecosystem. This PM-E F power module manages the 24V DC supply for downstream electronic modules while providing hardware-based fail-safe switching via integrated relays. Because it monitors the P1 and P2 voltage buses, the unit effectively ensures that emergency stop signals or safety trips result in an immediate and reliable power disconnection. This functionality allows the module to achieve Category 3 (EN 954-1) and SIL 2 (IEC 61508) compliance for bus switching, while the two integrated digital outputs provide even higher protection levels, meeting Category 4 and SIL 3 requirements.

Intelligent Integration and Network Flexibility

Seamless communication defines the 6ES7138-4CF02-0AB0, as it integrates fully into both PROFIBUS and PROFINET architectures. When engineers pair this module with an IM 151-3 HF or similar high-feature interface module, they unlock advanced diagnostic capabilities across the entire safety segment. Furthermore, the module supports ungrounded reference potentials, which provides significant installation flexibility in complex industrial environments where grounding configurations vary. Transitioning to this PROFIsafe-enabled hardware allows for the consolidation of standard and safety-related automation into a single, unified distributed I/O station.

Reliable Performance in Distributed I/O Systems

Constructed for long-term industrial durability, this power module withstands the rigors of continuous operation in manufacturing and process plants. The compact 10.5×12.5×4 cm form factor ensures it fits easily into standard ET 200S terminal modules, optimizing cabinet space. Moreover, the module includes comprehensive status indicators that provide real-time feedback on voltage availability and safety relay states. This transparency simplifies troubleshooting and reduces unscheduled downtime. By utilizing the 6ES7138-4CF02-0AB0, facility managers ensure their safety circuits remain robust, compliant, and ready for high-demand automation cycles.

Key Technical Characteristics

• Fail-Safe Switching: Provides redundant relay-based disconnection of internal voltage buses.
• High Safety Standards: Certified for use in applications up to SIL 3 and PL e / Category 4.
• Versatile Outputs: Features two fail-safe digital outputs for direct control of safety actuators.
• Distributed Intelligence: Fully compatible with PROFIsafe communication protocols via TIA Portal.
• Flexible Potential: Supports operation with ungrounded reference potentials for diverse electrical setups.
• Integrated Diagnostics: Reports bus status and hardware faults directly to the central PLC.

Technical Specifications
