Description

Product Overview

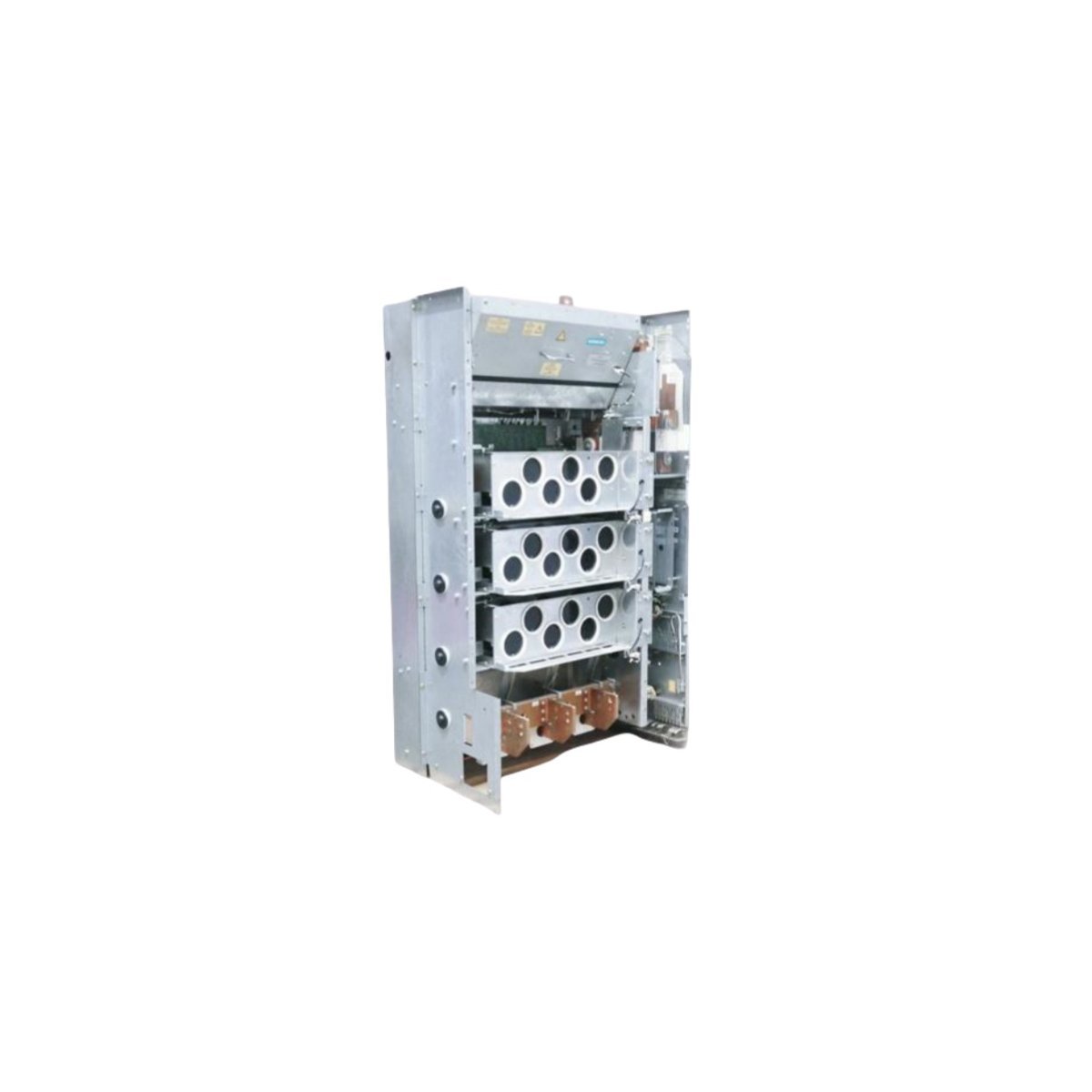

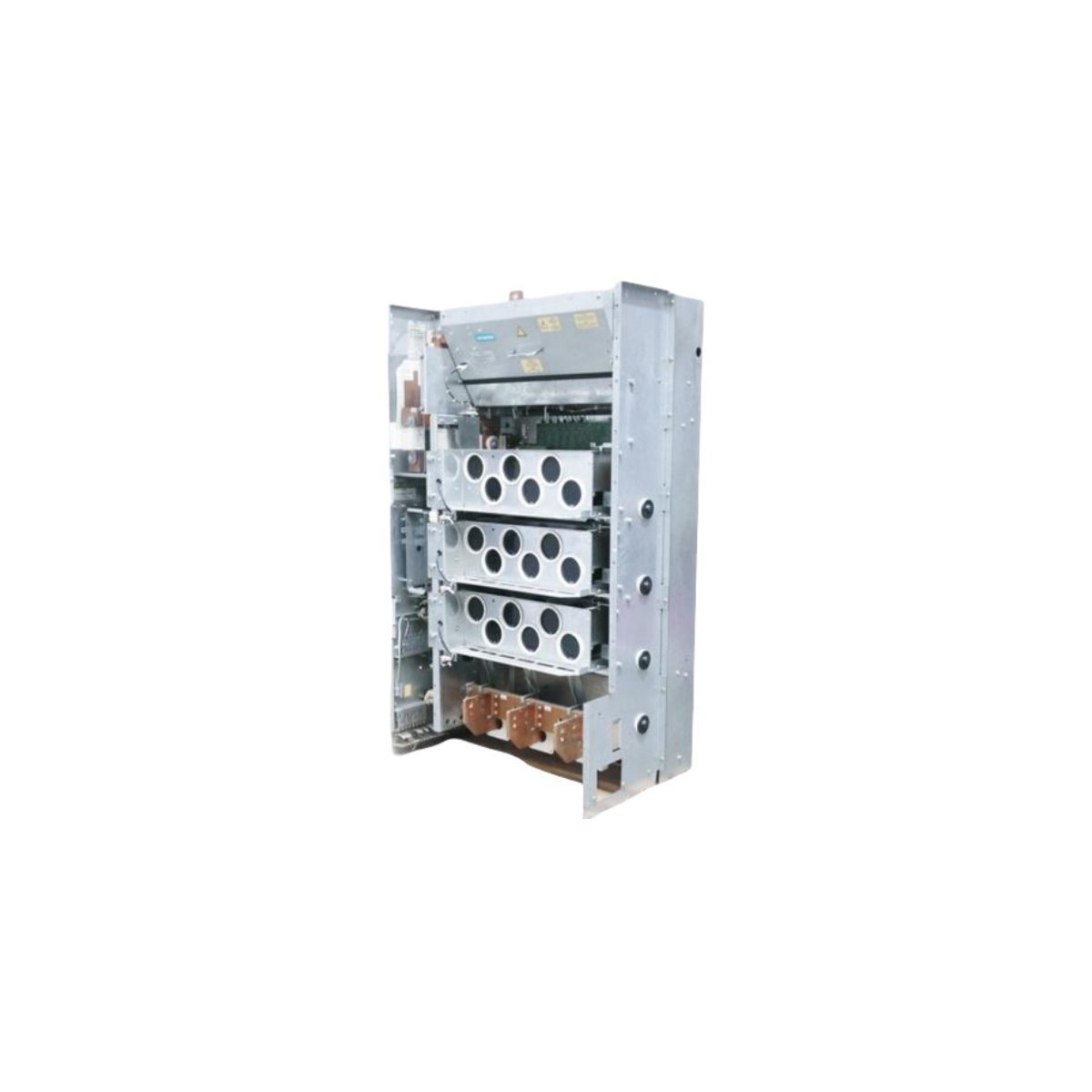

The Siemens 6SE7035-1TJ60-Z is a high-performance SIMOVERT MASTERDRIVES Vector Control inverter designed for the precise regulation of three-phase AC motors. This compact power module utilizes advanced Pulse Width Modulation (PWM) to provide dynamic speed and torque control for demanding industrial drive systems.

Precision Drive Control and Frequency Management

The 6SE7035-1TJ60-Z provides superior control over three-phase drives by converting DC link voltage into a variable-frequency AC output. Because the unit supports an output frequency range from 0 Hz up to 600 Hz, it accommodates both standard and high-speed motor applications. This module specifically operates within a DC link voltage of 510V to 650V, ensuring consistent performance even during supply fluctuations. Furthermore, the integrated closed-loop electronics utilize specialized software to maintain high levels of accuracy for mission-critical automation processes.

Modular Flexibility and Interface Options

Engineers can easily customize the 6SE7035-1TJ60-Z to meet specific application needs through its six internal expansion slots. These slots support various optional boards, including communication modules and encoder interfaces for pulse encoders or analog tachometers. For daily operations, the drive supports multiple control methods such as the PMU operator panel, the OP1S user interface, or terminal strips. Additionally, serial interfaces allow for seamless integration into larger industrial bus systems, enhancing the unit’s connectivity within a networked plant environment.

Industrial Construction and Thermal Protection

Siemens built this inverter as a compact IP00-rated unit, making it suitable for integration into protected control cabinets. While the hardware remains lightweight at 0.88 kg, it manages significant power outputs effectively. The module incorporates robust thermal management and a stable internal 24V DC power supply to ensure maximum uptime. Moreover, the 6SE7035-1TJ60-Z includes comprehensive protective functions that safeguard the power section and connected motor from overcurrent and voltage spikes, thereby reducing maintenance costs and preventing unexpected production halts.

Technical Characteristics
