Description

Brief Product Description

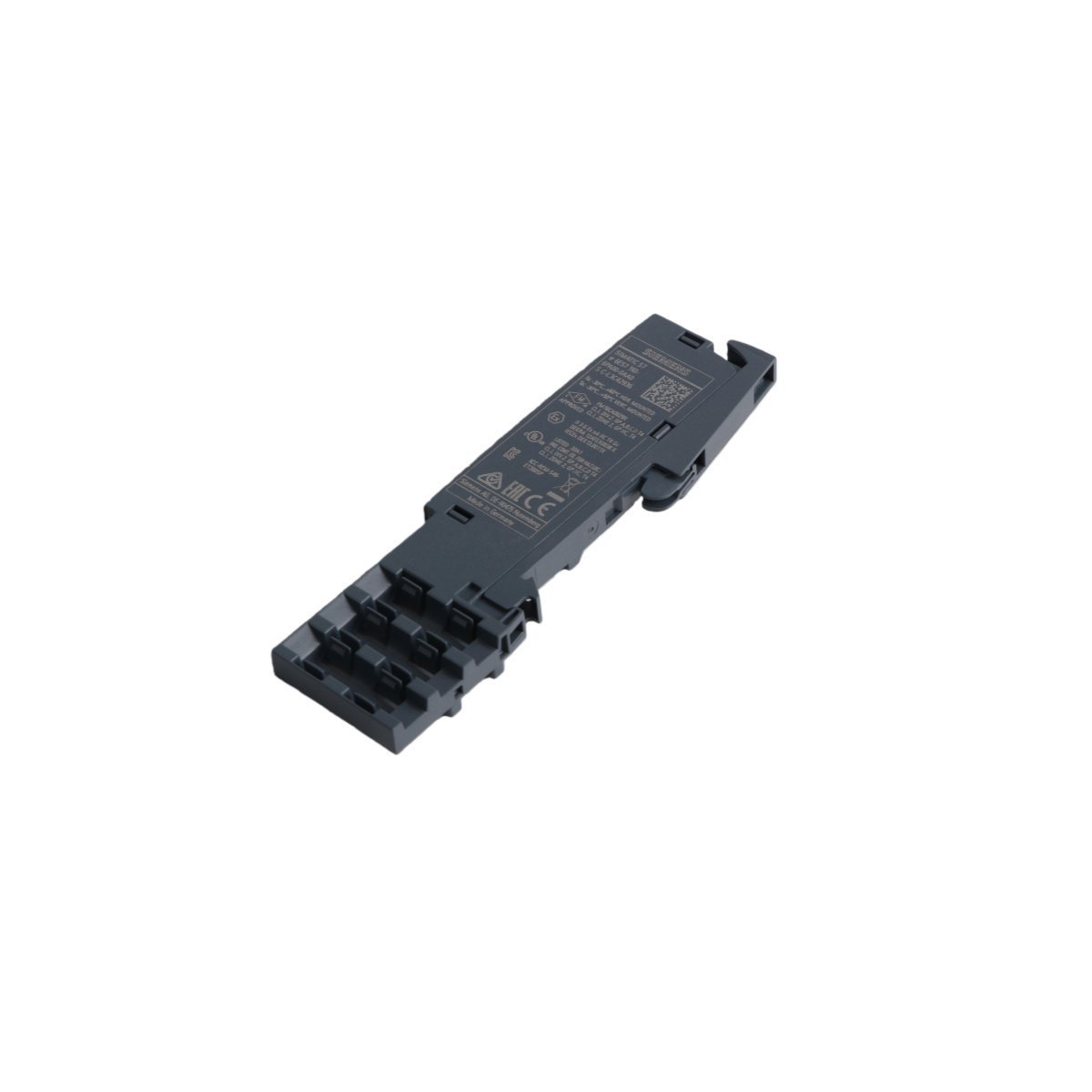

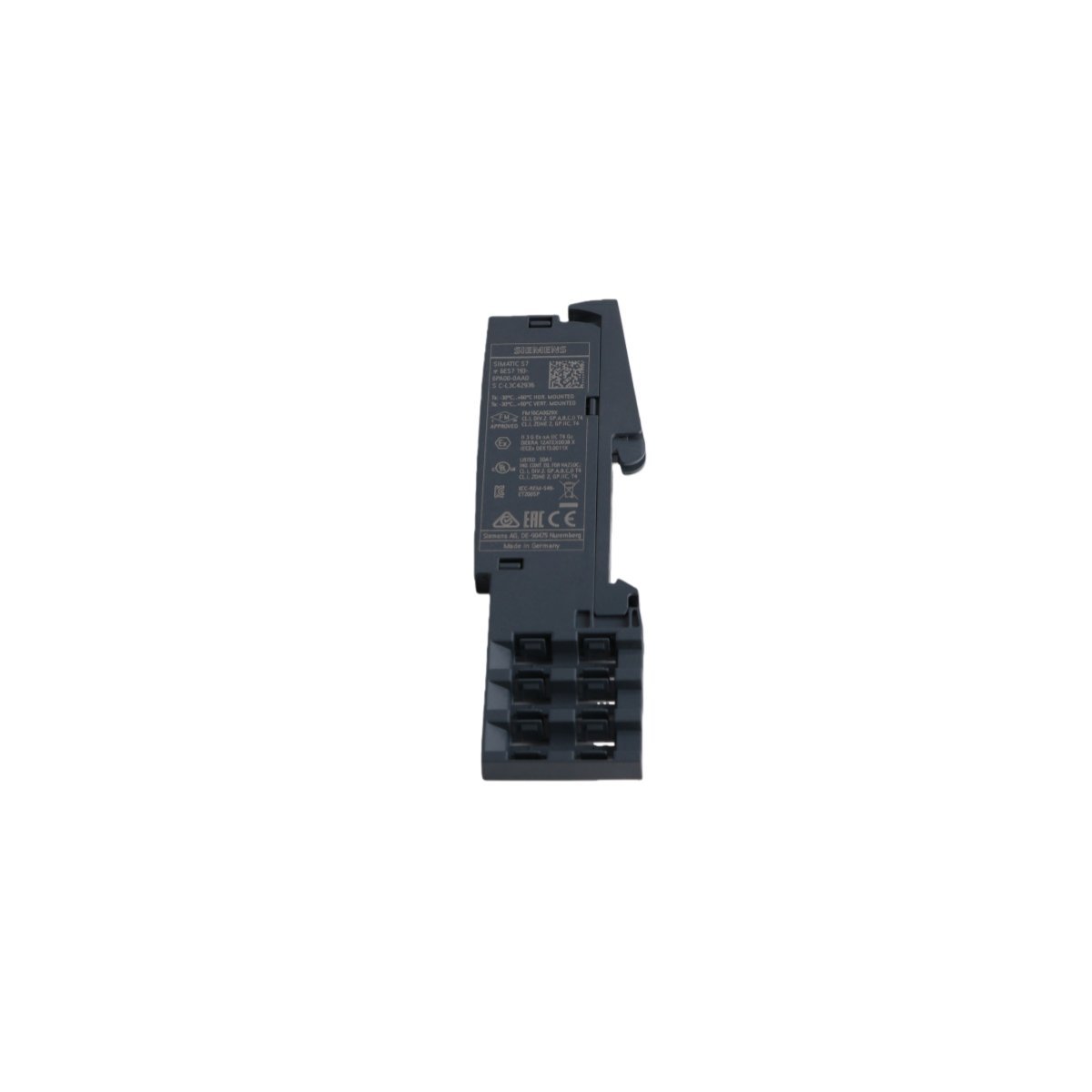

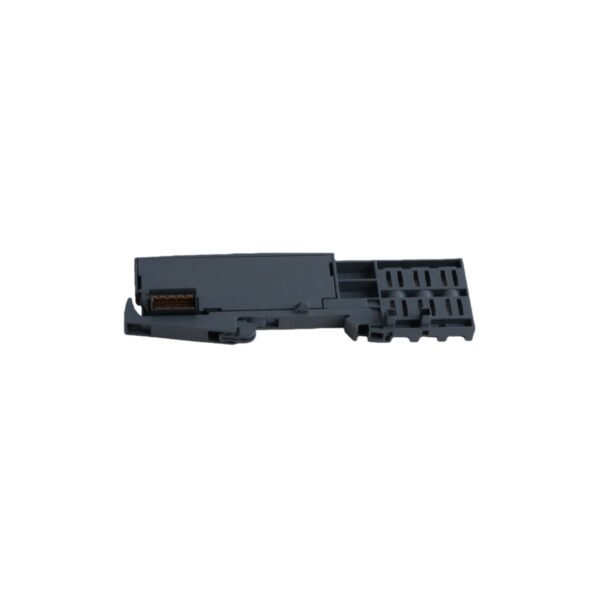

The Siemens 6ES7193-6PA00-0AA0 is a fundamental server module for the SIMATIC ET 200SP distributed I/O system, specifically engineered to complete the internal backplane bus and manage potential group bridging. It ensures electrical continuity and mechanical stability for a fully assembled I/O station.

​Product Description

The Siemens 6ES7193-6PA00-0AA0 functions as the indispensable concluding component for the SIMATIC ET 200SP distributed I/O station. This server module fulfills a dual role: it mechanically terminates the backplane bus while electronically enabling potential group bridging. By integrating this module at the end of the rail, engineers ensure that power distribution continues seamlessly across adjacent terminal modules. Without this specific component, the internal communication and power circuits of the ET 200SP configuration remain incomplete, preventing the station from achieving operational status.

Environmental Durability and Versatile Deployment

Siemens designed the 6ES7193-6PA00-0AA0 to withstand the rigors of heavy industrial environments. The module operates reliably in temperatures ranging from -30 °C to +60 °C during horizontal mounting, making it suitable for both cold-storage facilities and high-heat manufacturing floors. Furthermore, the hardware supports installations at altitudes reaching 5,000 meters. This high-altitude rating allows for global deployment in specialized sectors such as mining or mountain-based infrastructure. The rugged housing protects the internal circuitry against vibration and shock, maintaining the integrity of the PLC backplane even in high-stress applications.

Efficient Installation and Maintenance Features

The mechanical design of the 6ES7193-6PA00-0AA0 prioritizes rapid assembly and long-term serviceability. It utilizes a tool-free push-in terminal system that allows technicians to secure wiring quickly and reliably. This design significantly minimizes the risk of loose connections often caused by industrial vibrations. Additionally, because the module serves as a critical spare part for the ET 200SP series, it supports “hot-swapping” or easy replacement protocols to reduce system downtime during maintenance cycles. The compact form factor ensures it occupies minimal DIN rail space while providing the necessary terminal points for system-wide potential distribution.

Technical Specification Table
