Description

Brief Product Description

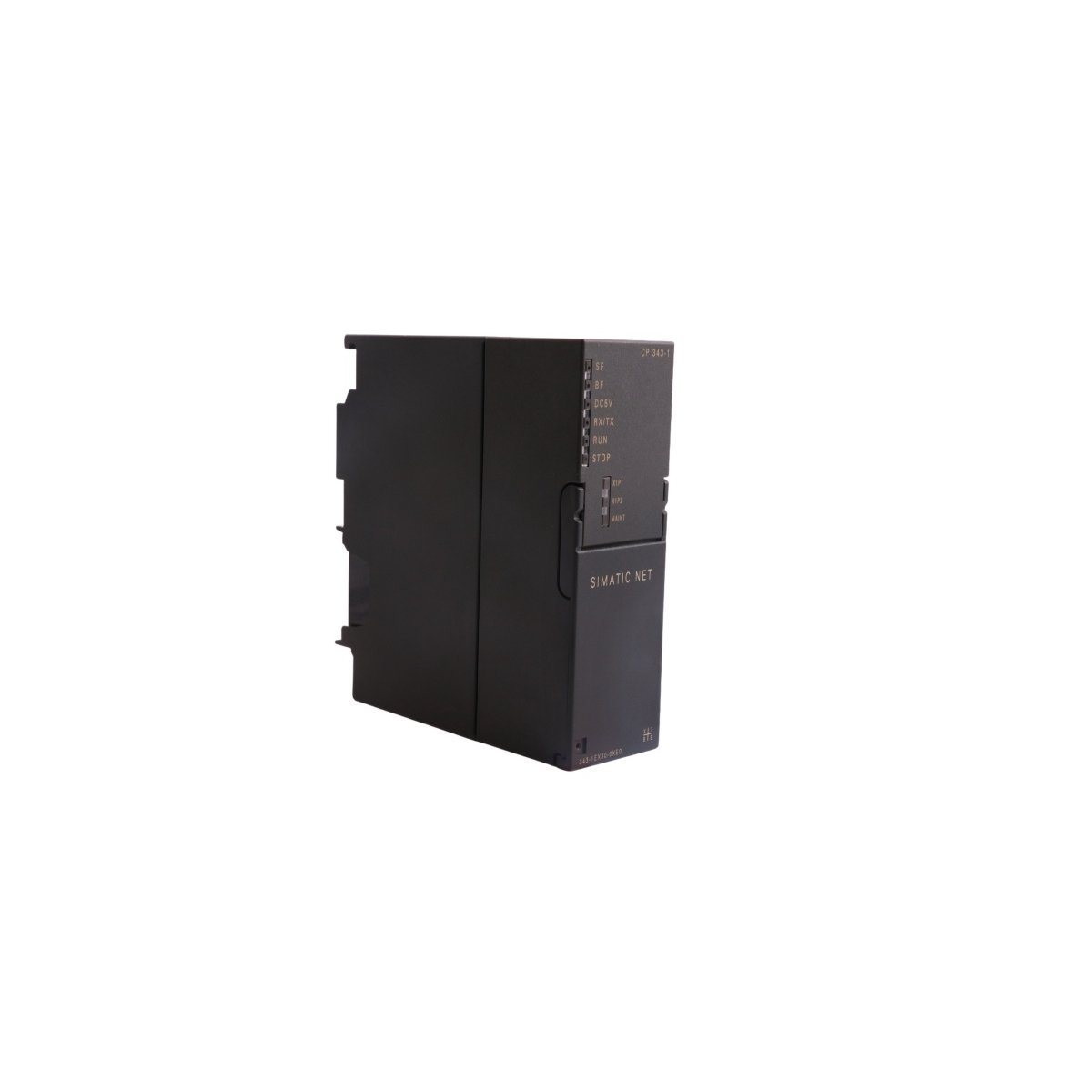

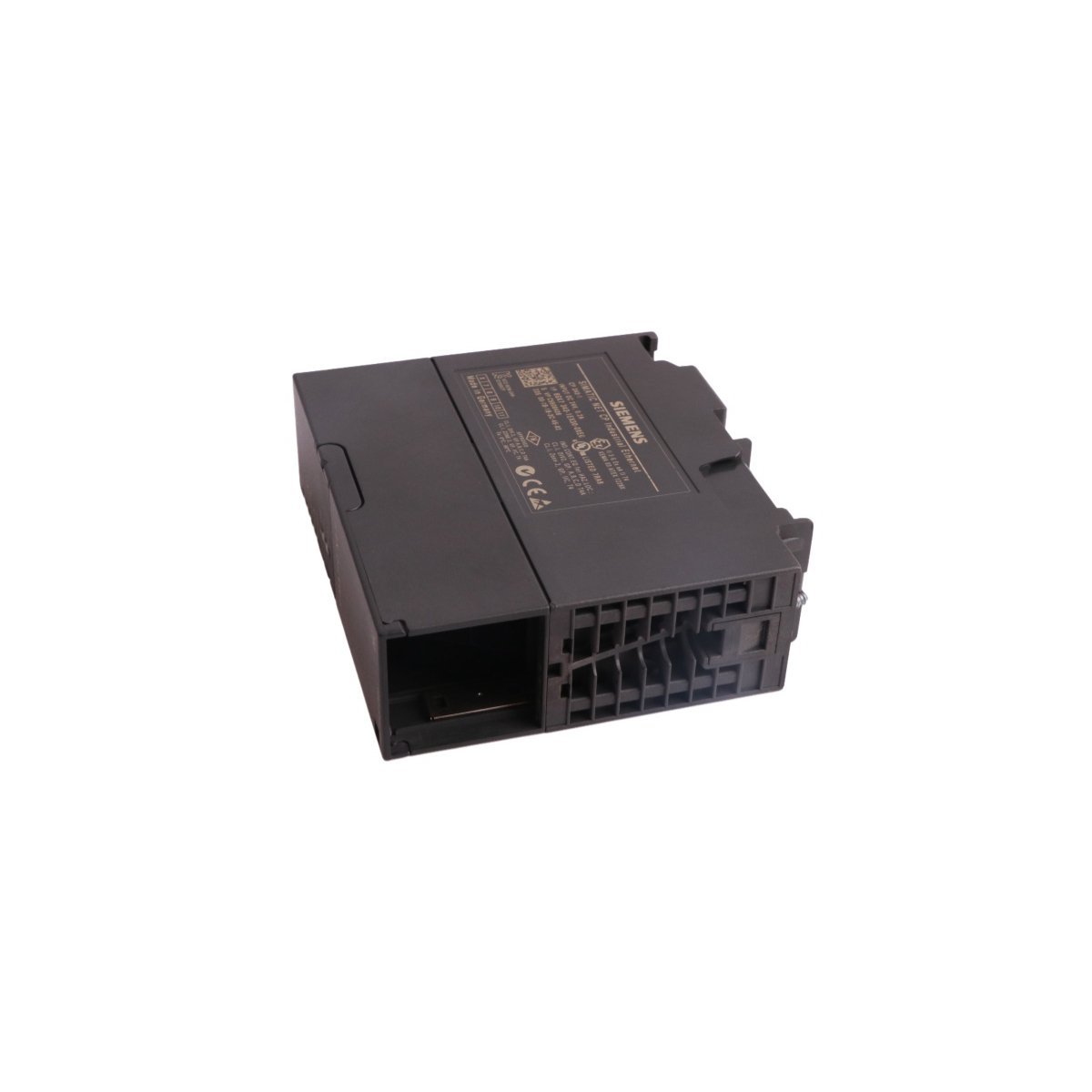

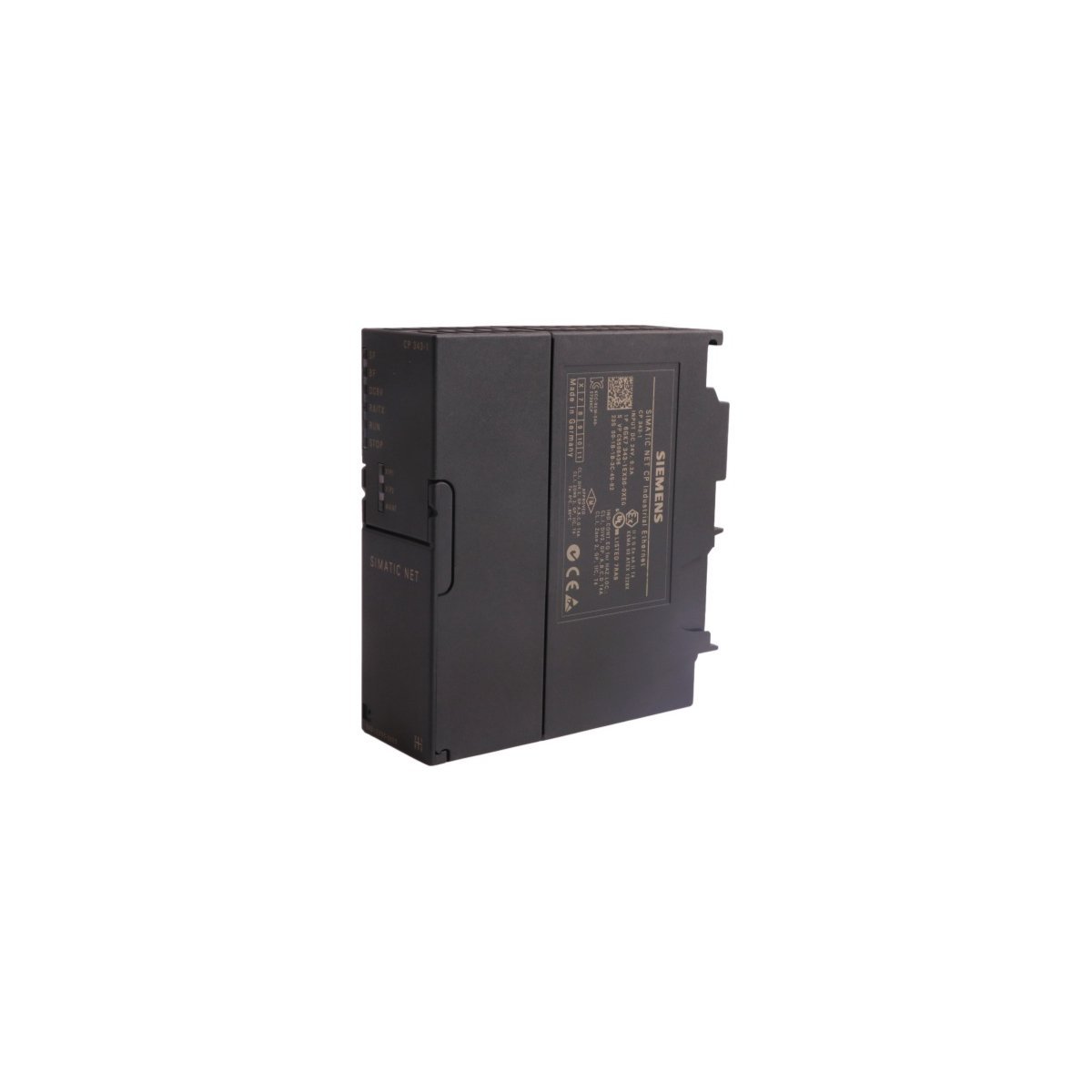

The Siemens 6GK7343-1EX30-0XE0 is a high-performance CP 343-1 communications processor that connects SIMATIC S7-300 PLCs to Industrial Ethernet networks. This module facilitates advanced PROFINET IO communication and S7 data exchange, ensuring seamless integration between field devices and enterprise-level systems.

​Product Description

The Siemens 6GK7343-1EX30-0XE0 serves as the primary communication bridge for the SIMATIC S7-300 series, enabling the programmable logic controller to interface with Industrial Ethernet. By supporting both ISO and TCP/IP protocols, this module guarantees reliable data transmission across diverse network environments. It essentially transforms a standard S7-300 CPU into a powerful networking hub capable of handling complex automation tasks. Furthermore, the module supports S7 communication, allowing for optimized data synchronization and remote programming within the Siemens TIA Portal or Step 7 environments.

Advanced PROFINET and Real-Time Networking

This communications processor features an integrated 2-port switch powered by the high-efficiency ERTEC 200 ASIC. Consequently, users can implement linear or ring network topologies without investing in additional external hardware. The module excels in PROFINET applications, functioning as either an IO Controller or a dedicated IO Device to manage field-level sensors and actuators. Because it supports 10/100 Mbit/s transmission speeds with auto-detection and auto-crossover capabilities, it significantly simplifies the physical installation and commissioning of industrial networks.

Versatile Protocol Support and IT Integration

Beyond standard PLC-to-PLC communication, the 6GK7343-1EX30-0XE0 offers broad compatibility for IT-based industrial requirements. It utilizes the SEND/RECEIVE interface via compliant TCP/UDP connections to communicate with third-party systems and PC-based controllers. Additionally, the module supports NTP (Network Time Protocol) for precise CPU clock synchronization across the plant floor. Integration into managed infrastructures becomes straightforward through features like DHCP for automatic IP assignment and SNMP for network diagnostics and monitoring. This multi-protocol approach ensures the S7-300 remains a viable component in modern, data-driven manufacturing facilities.

Technical Specification Table
