Siemens S7-200 TD 200 Operator Interface 6ES7272-0AA30-0YA1

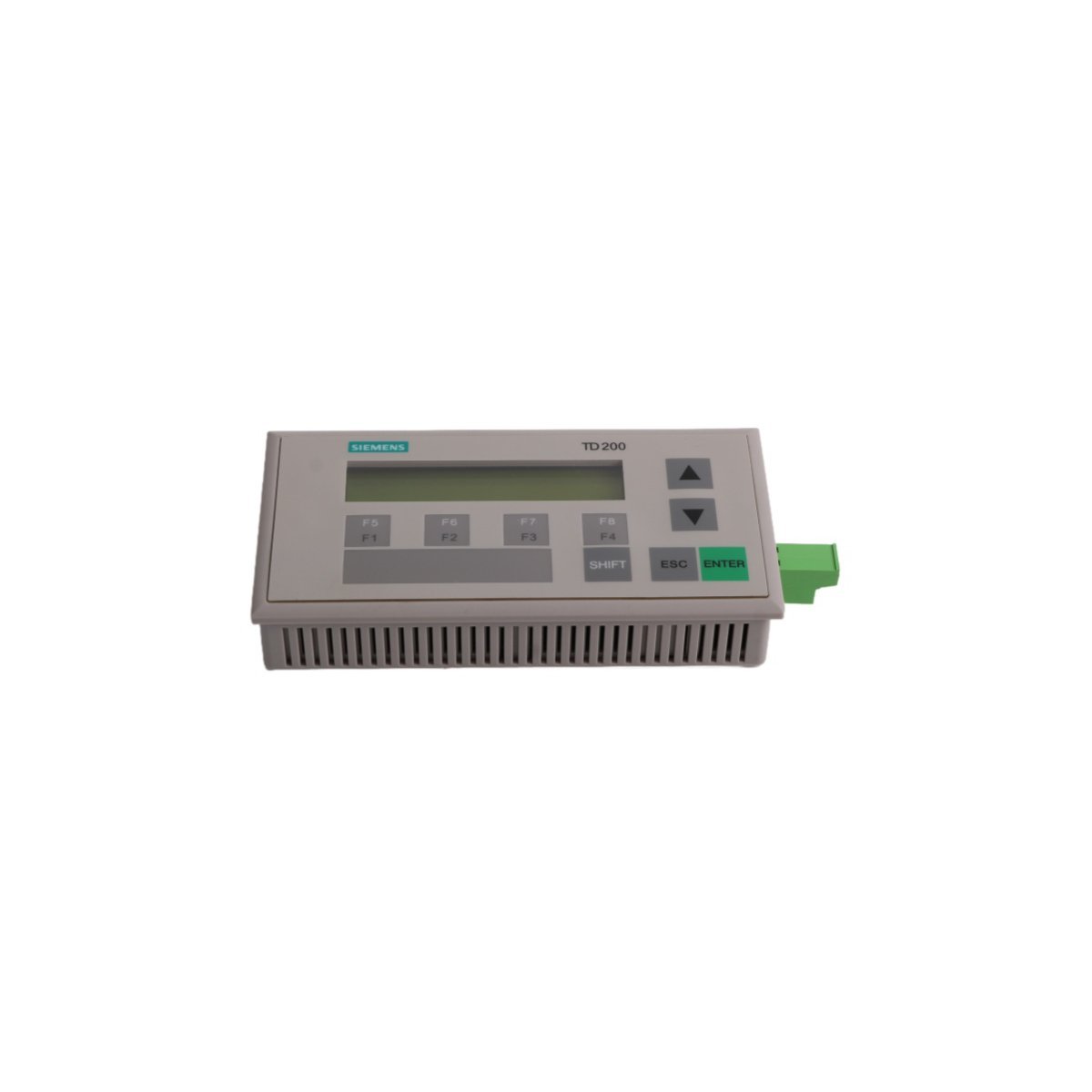

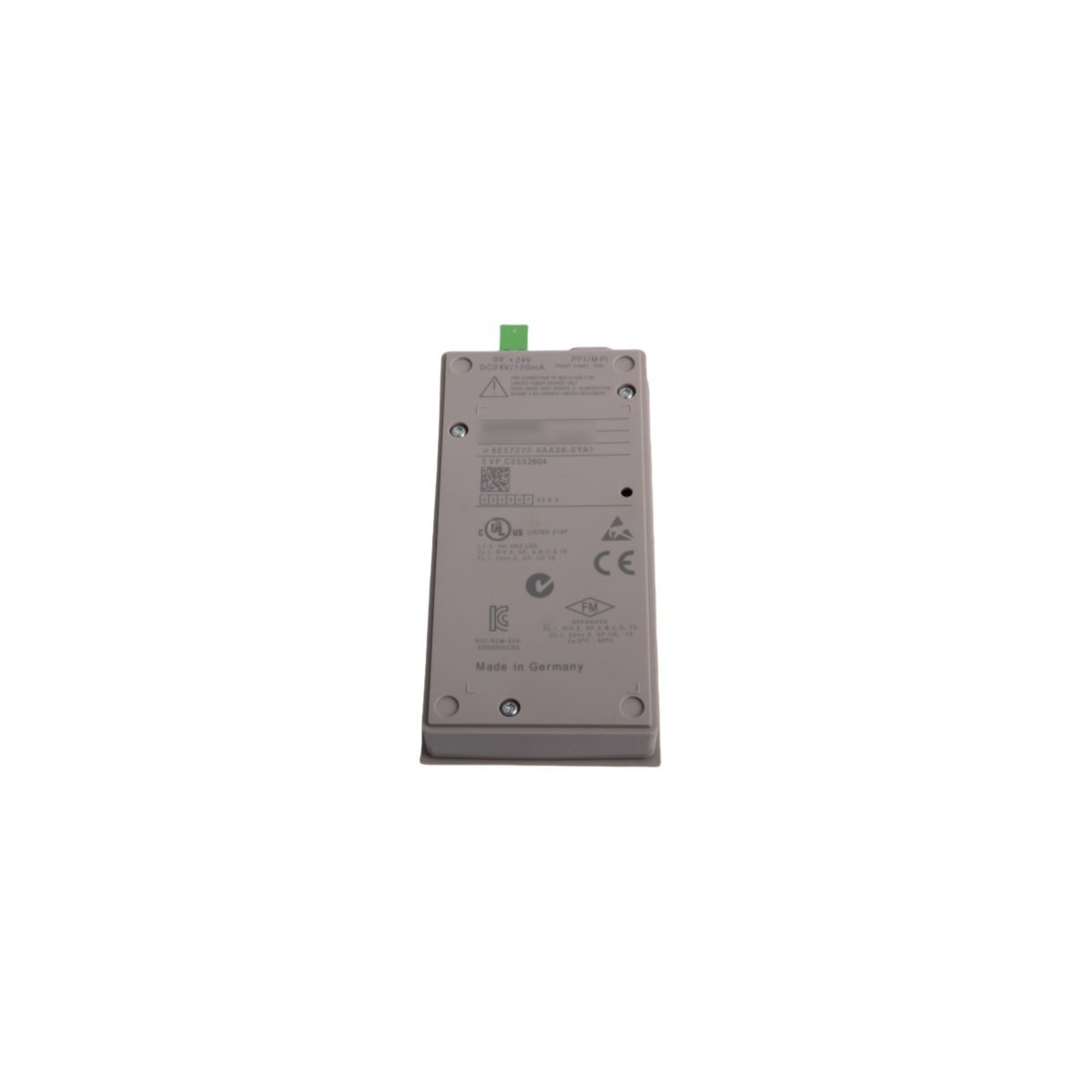

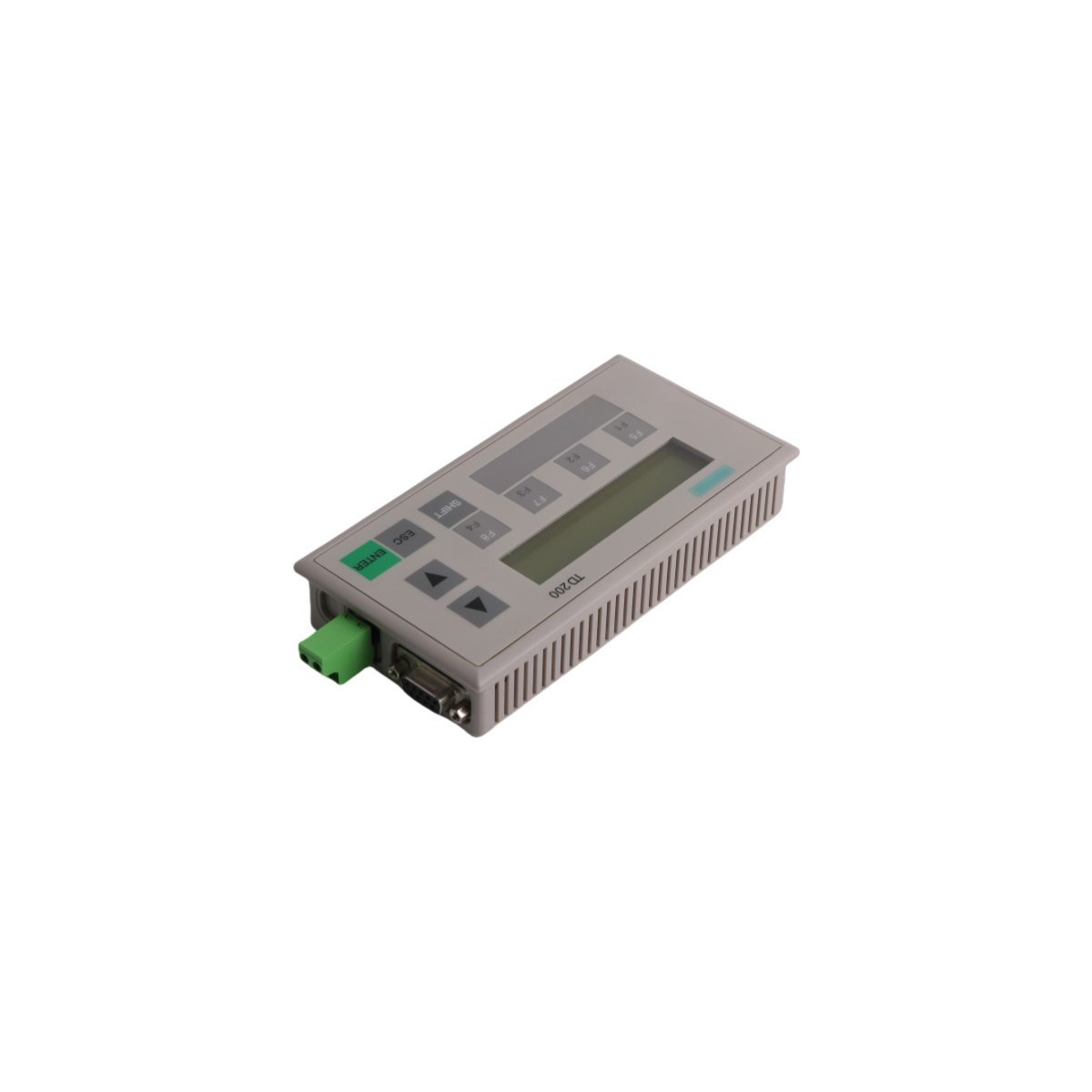

The Siemens 6ES7272-0AA30-0YA1 is a TD 200 text display for S7-200 PLC systems. Featuring a 2-line LCD and 8 function keys, it includes a 2.5m PPI cable for integrated power and data communication.
Description
Brief Product Description
The Siemens 6ES7272-0AA30-0YA1 is a specialized TD 200 text display interface designed for the SIMATIC S7-200 PLC series. This operator panel enables real-time interaction with control systems by displaying diagnostic messages and allowing for manual parameter adjustments via its integrated keypad.
Product Description
Integrated Human-Machine Interface
The Siemens 6ES7272-0AA30-0YA1 serves as a rugged and efficient text display for the legacy SIMATIC S7-200 automation platform. By providing a backlit liquid crystal display (LCD), this unit allows operators to view up to two lines of text, with 20 characters per line. Consequently, maintenance personnel can monitor machine status, view system errors, and acknowledge alarms directly at the machine level. The device also features eight programmable function keys, which enable users to trigger specific PLC commands or navigate through multi-layered menus without an external computer.
Simplified Communication and Power
Engineering efficiency remains a core benefit of the 6ES7272-0AA30-0YA1. The module utilizes a single 2.5-meter connecting cable to handle both data transmission and power supply. Because the unit draws its 24V DC power directly from the S7-200 CPU’s PPI interface, users eliminate the need for secondary power wiring within the control cabinet. Furthermore, the panel supports the Point-to-Point Interface (PPI) protocol, ensuring a stable connection and straightforward configuration within the STEP 7-Micro/WIN programming environment.
Durable Design for Industrial Environments
Siemens manufactured the 6ES7272-0AA30-0YA1 to withstand the rigors of industrial floor operation. The front panel features an IP65 protection rating, shielding the electronics from dust and splashed water when correctly installed in a control cabinet door. Its slim profile and light weight of 0.95 kg make it a versatile choice for small-scale machinery, packaging equipment, and textile processing units. By integrating this operator panel, engineers provide a cost-effective HMI solution that bridges the gap between basic LED status indicators and high-end graphical touchscreens.
Technical Specification Overview
| Feature | Specification Details |
| Manufacturer | Siemens |
| Model Number | 6ES7272-0AA30-0YA1 |
| Product Type | TD 200 Text Display |
| Compatibility | SIMATIC S7-200 PLC Series |
| Display Type | Backlit LCD (2 lines, 20 chars/line) |
| Input Voltage | 24V DC (via PPI Cable) |
| Protection Class | IP65 (Front Side) |
| Connectivity | 9-pin D-sub (PPI Interface) |
| Cable Length | 2.5 Meters |
| Operational Temp | 0°C to +60°C |
| Weight | 0.95 kg |
Additional information
| Weight | 0.95 kg |
|---|---|
| Country of Origin | Germany |
| Dimension | 2.5 cm x 5.1 cm x 83.8 cm |
