Description

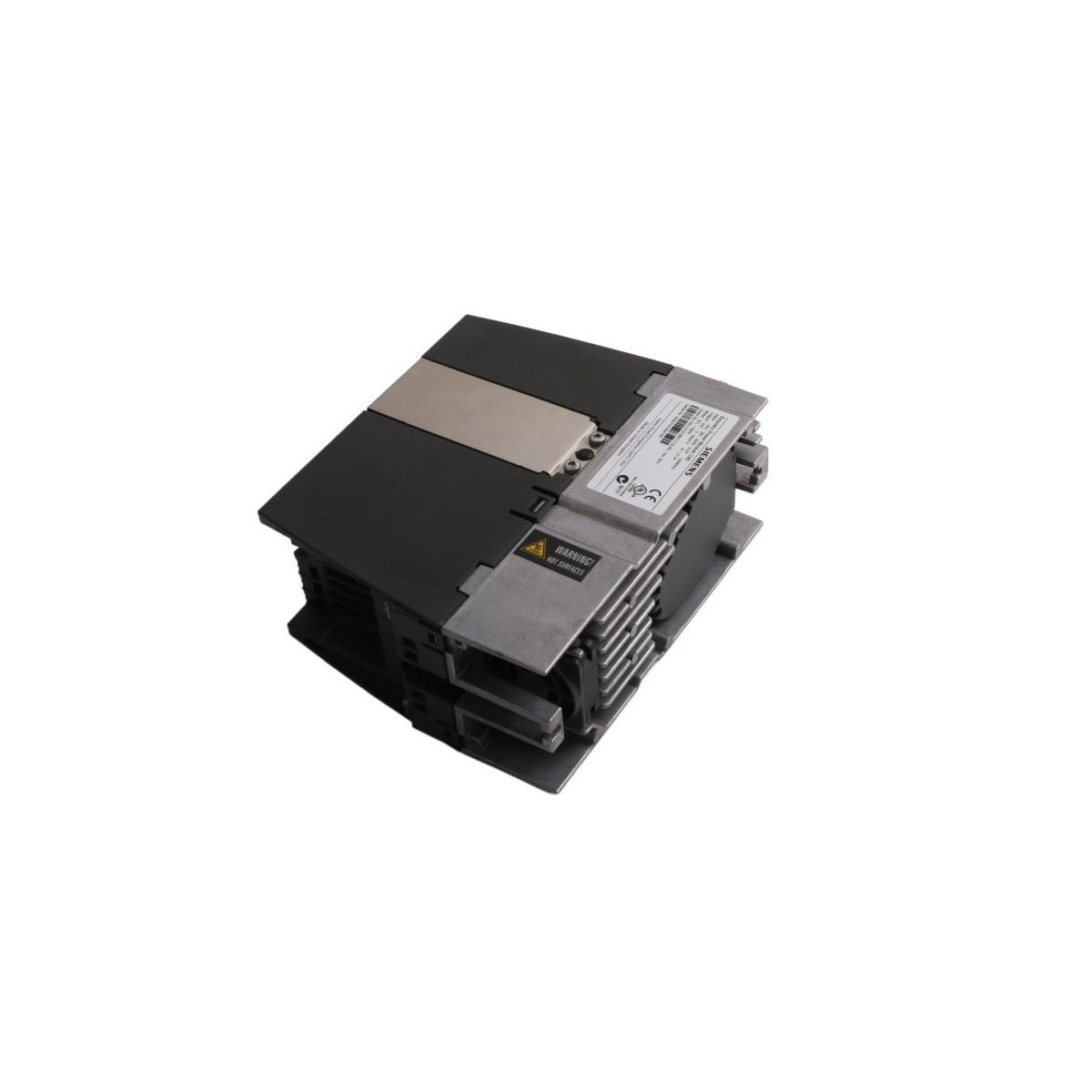

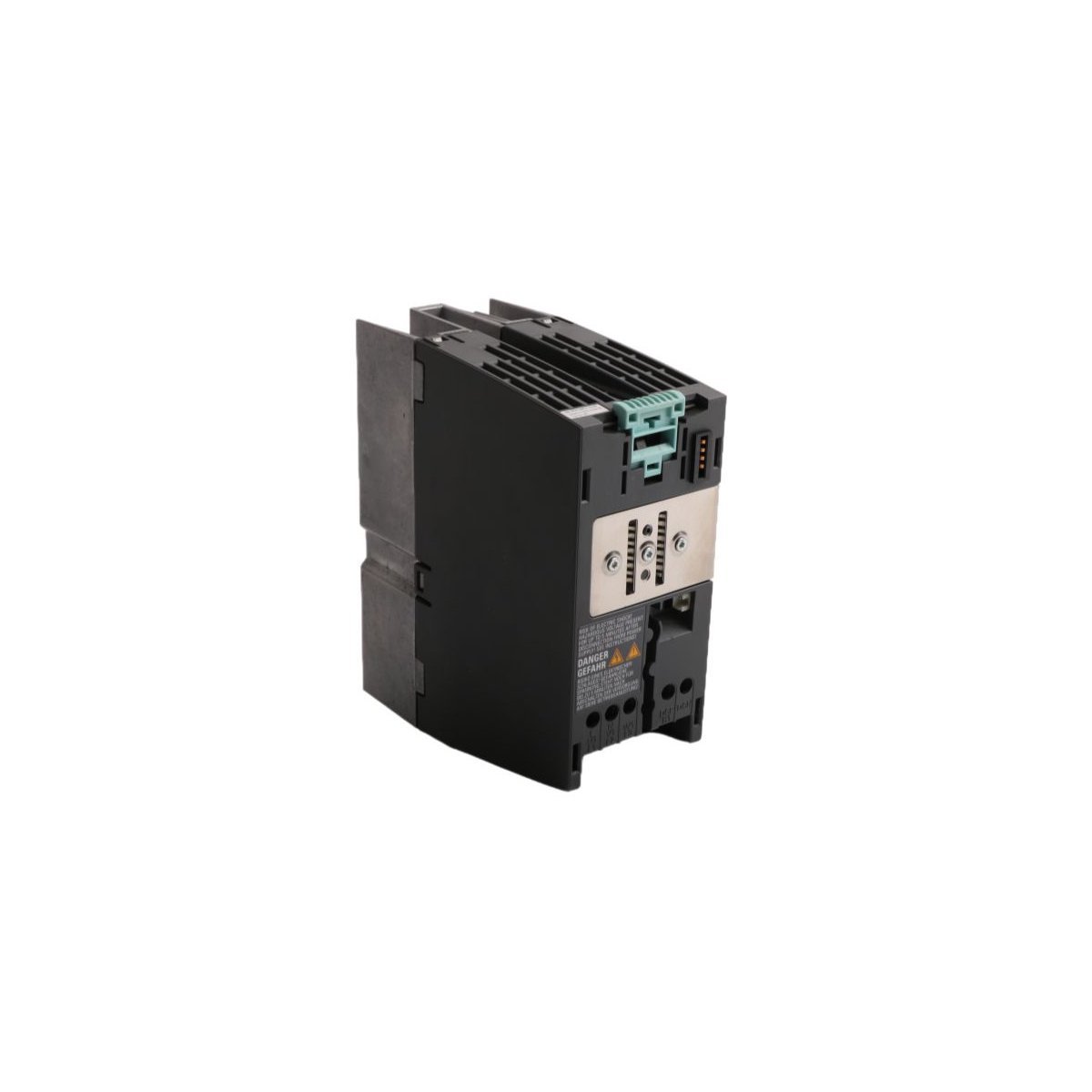

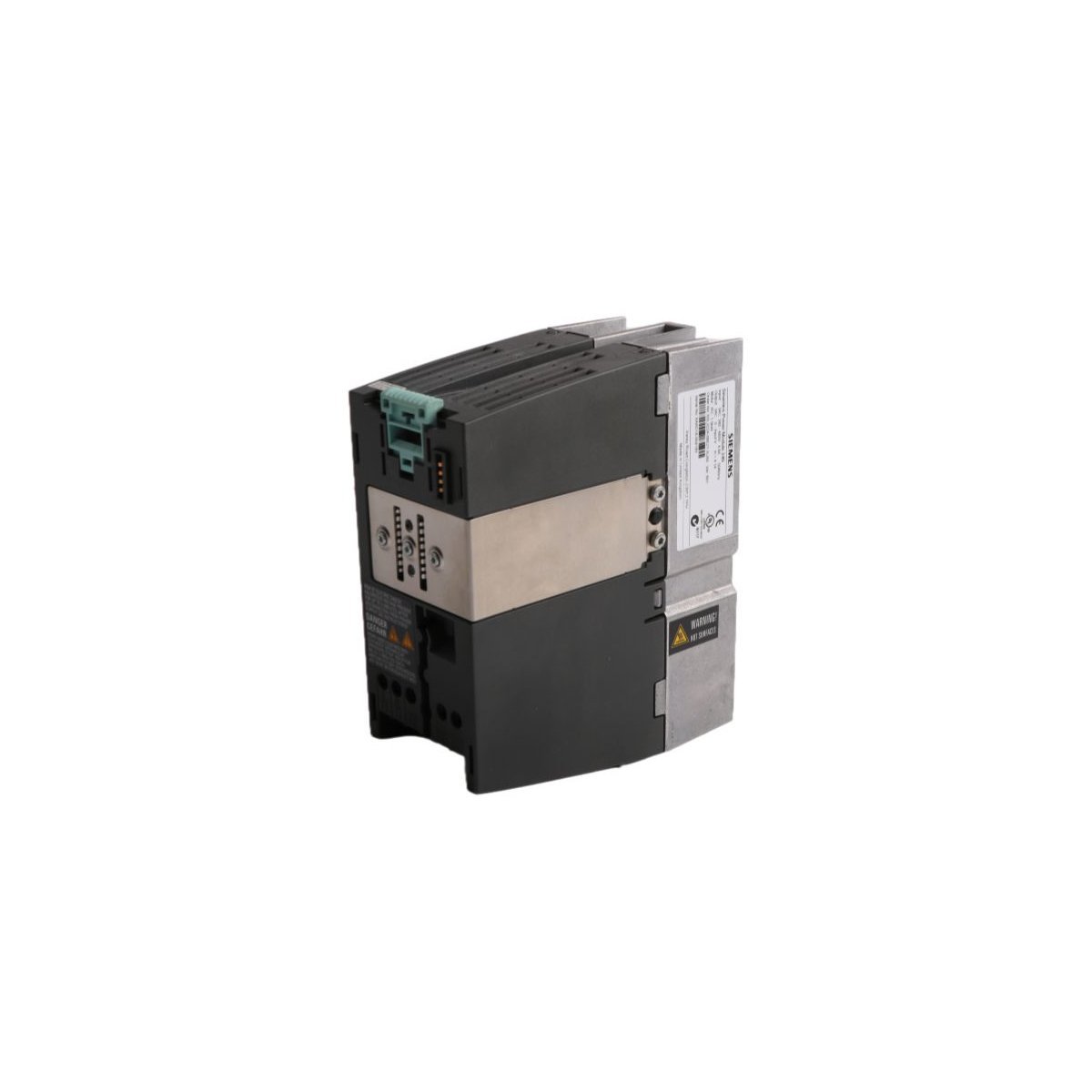

The Siemens 6SL3224-0BE21-5UA0 is a high-performance PM240 power module belonging to the SINAMICS G120 drive family. This unit handles the power conversion for AC induction motors in diverse industrial environments. Because it features an integrated braking chopper, the module manages regenerative energy effectively during motor deceleration. The hardware requires a compatible Control Unit to form a functional frequency inverter system. Consequently, this modular design allows users to customize their drive solutions for specific automation tasks.

Technical Specifications

Power Distribution and Thermal Management

The module operates efficiently across a broad voltage range of 380V to 480V AC. It supports high overload cycles to accommodate demanding startup conditions for heavy machinery. Internal fans maintain optimal operating temperatures by circulating air through the heat sink. Furthermore, the unit supports output frequencies up to 550Hz for high-speed motor applications. This performance ensures stable torque delivery regardless of the load fluctuations. The compact Frame Size A footprint minimizes space requirements within the electrical control cabinet.

Industrial Implementation and Versatility

Manufacturing facilities utilize the 6SL3224-0BE21-5UA0 for conveyor systems, pumps, and industrial fans. The module excels in applications requiring precise speed regulation and energy efficiency. Because it supports both V/f and vector control profiles, it suits various motor types. Engineers can easily mount the unit due to its standardized mechanical design. Additionally, the built-in protection features prevent damage from overvoltage, undervoltage, and ground faults. This reliability helps reduce unplanned downtime in critical production lines.

Key Technical Features

• Delivers a rated power of 1.5kW for standard three-phase induction motors.
• Incorporates a dedicated braking chopper for dynamic braking requirements.
• Features a modular interface for quick attachment of G120 Control Units.
• Supports high-overload operation for machinery with high inertia.
• Provides IP20 protection for safe installation in ventilated enclosures.
• Operates effectively in ambient temperatures up to 50 degrees Celsius.
• Utilizes a low-noise design with a sound pressure level of 45dB.
