Description

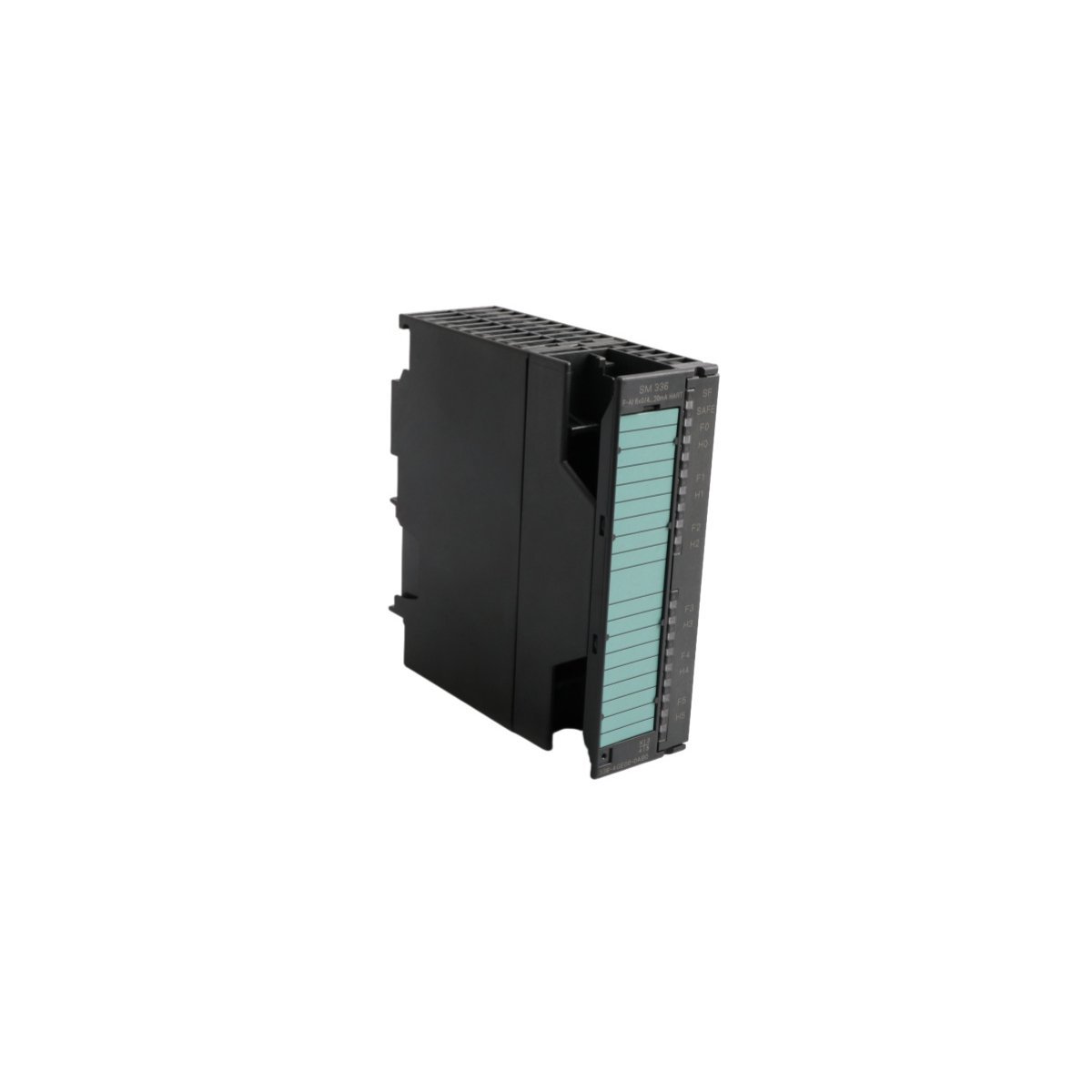

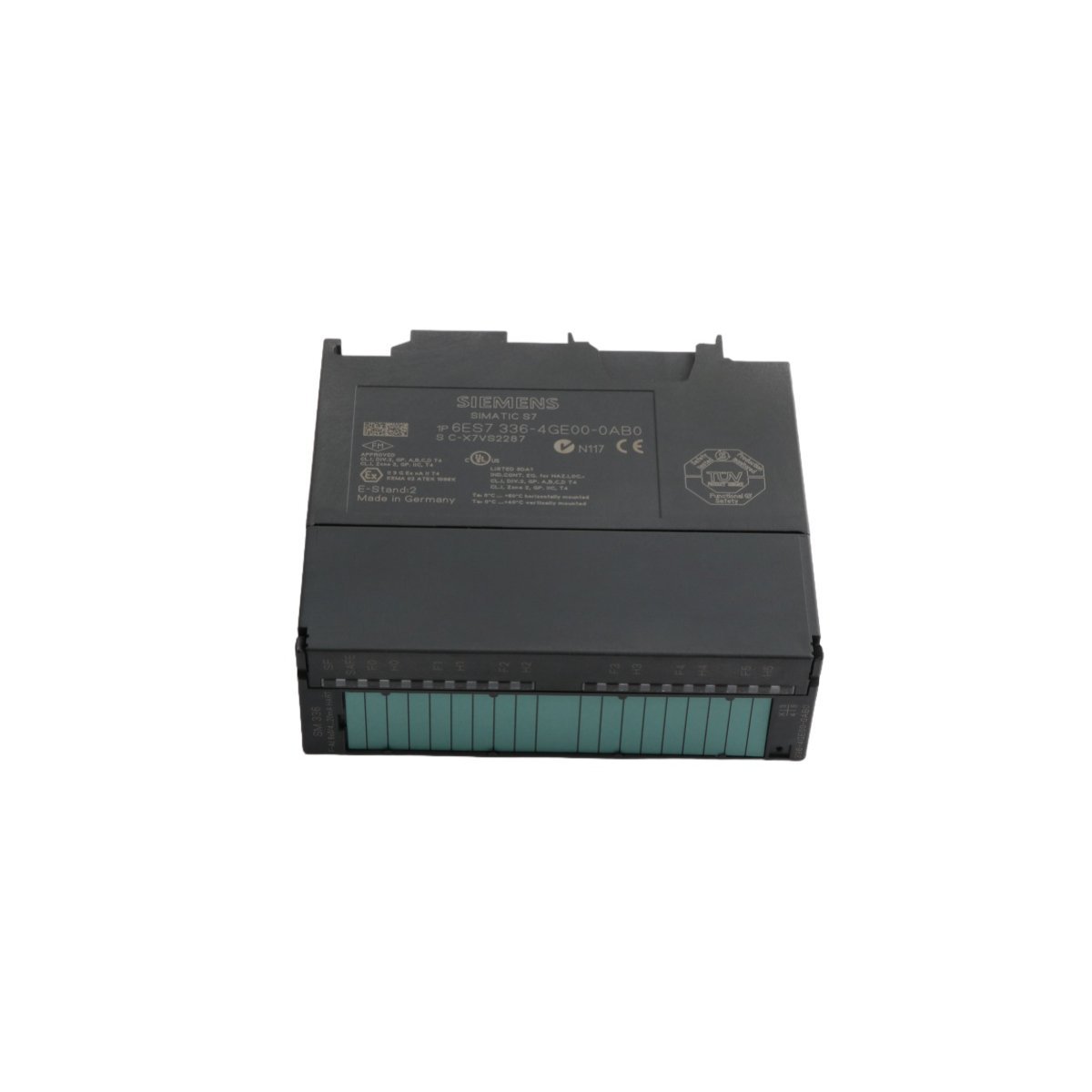

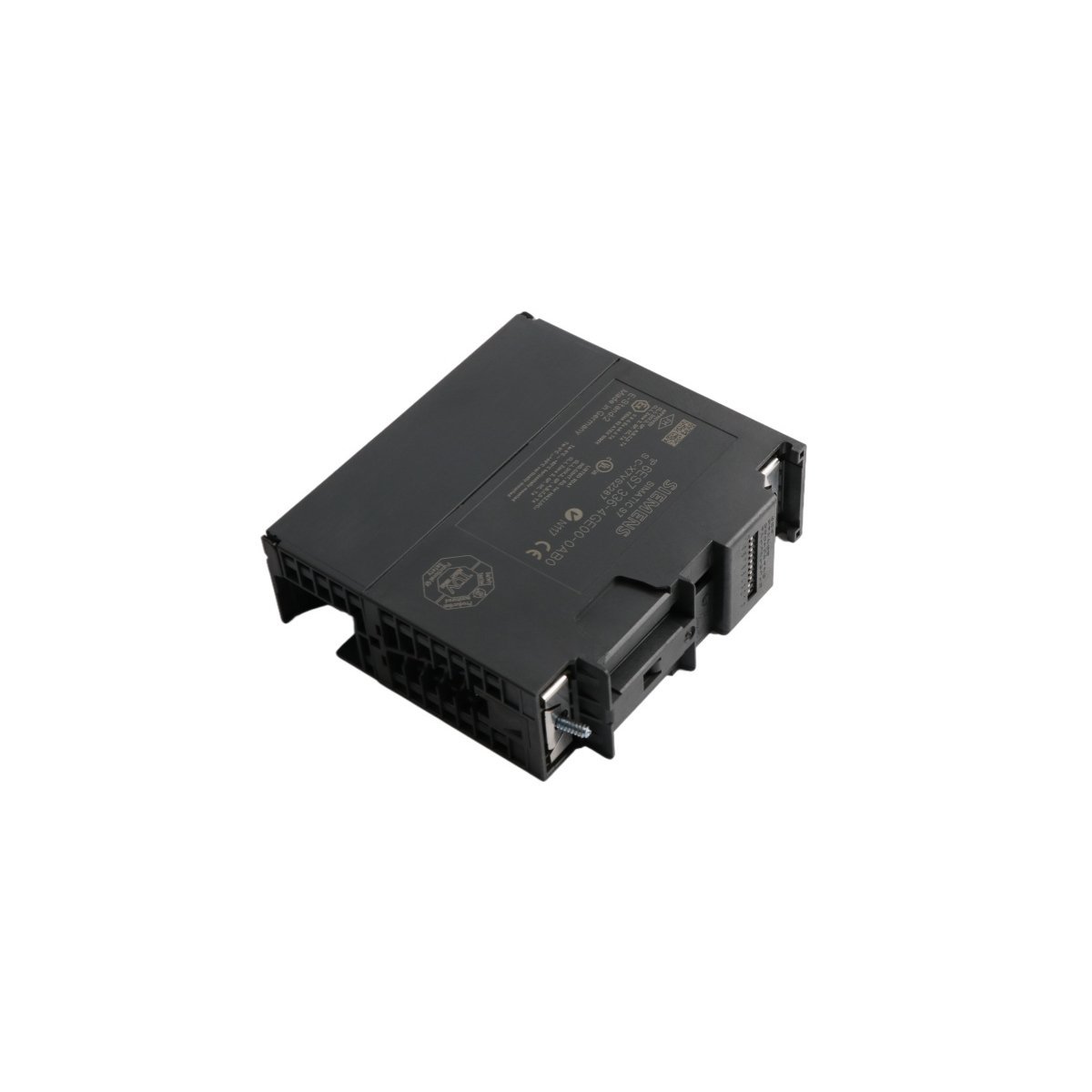

The Siemens 6ES7336-4GE00-0AB0 is a specialized fail-safe analog input module for the SIMATIC S7-300 series. It provides six high-precision channels designed for safety-instrumented systems (SIS). This module integrates HART communication protocol capabilities for smart field device management. Consequently, it delivers both critical process data and advanced diagnostic information.

Industrial facilities utilize this module to meet stringent functional safety requirements. It supports SIL3, PLe, and Category 4 safety standards simultaneously. Therefore, it is ideal for hazardous environments in oil, gas, and chemical processing. The hardware ensures maximum protection for personnel and equipment during operation.

Technical Specifications

Essential Technical Features

Advanced Fail-Safe Measurement

The 6ES7336-4GE00-0AB0 provides 15-bit resolution for extremely accurate current measurements. It monitors safety-related analog signals within a 0/4 to 20 mA range. The module executes internal self-tests to ensure signal validity constantly. If a fault occurs, the system transitions to a safe state immediately. This reliability minimizes the risk of dangerous undetected failures.

Integrated HART Functionality

This module facilitates seamless communication with HART-compatible field transmitters. Users can access device parameters and secondary variables directly through the PLC. This integration eliminates the need for separate HART multiplexers. As a result, engineers can perform remote calibrations and detailed device health checks. It significantly reduces the time required for field maintenance.

Intelligent Diagnostics and Monitoring

The unit features extensive diagnostic capabilities to enhance system uptime. It detects wire breaks, short circuits, and power supply errors across all channels. Detailed status LEDs on the front panel provide instant local feedback. Furthermore, the module transmits specific error codes to the engineering station. This transparency helps technicians locate and resolve field issues quickly.
