Description

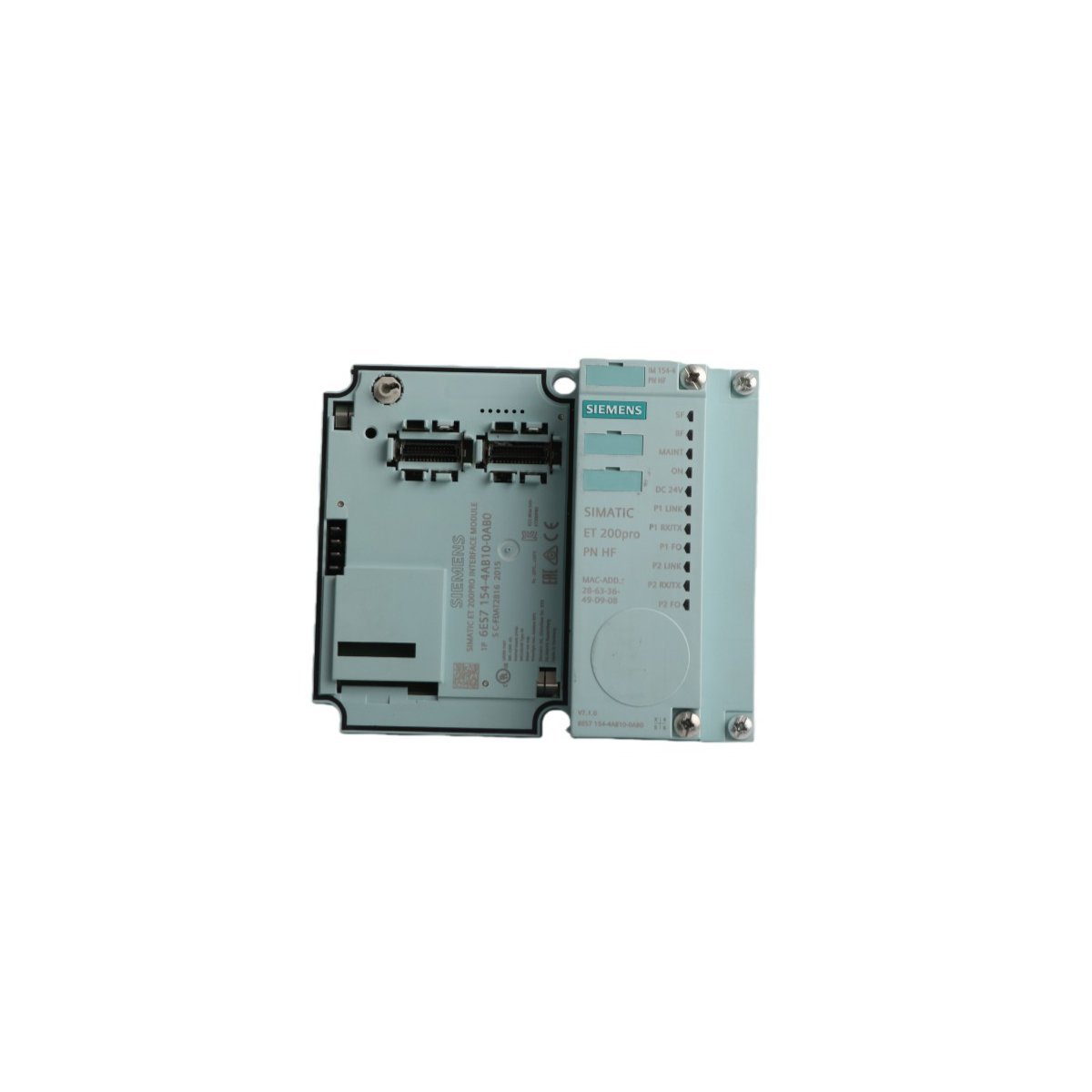

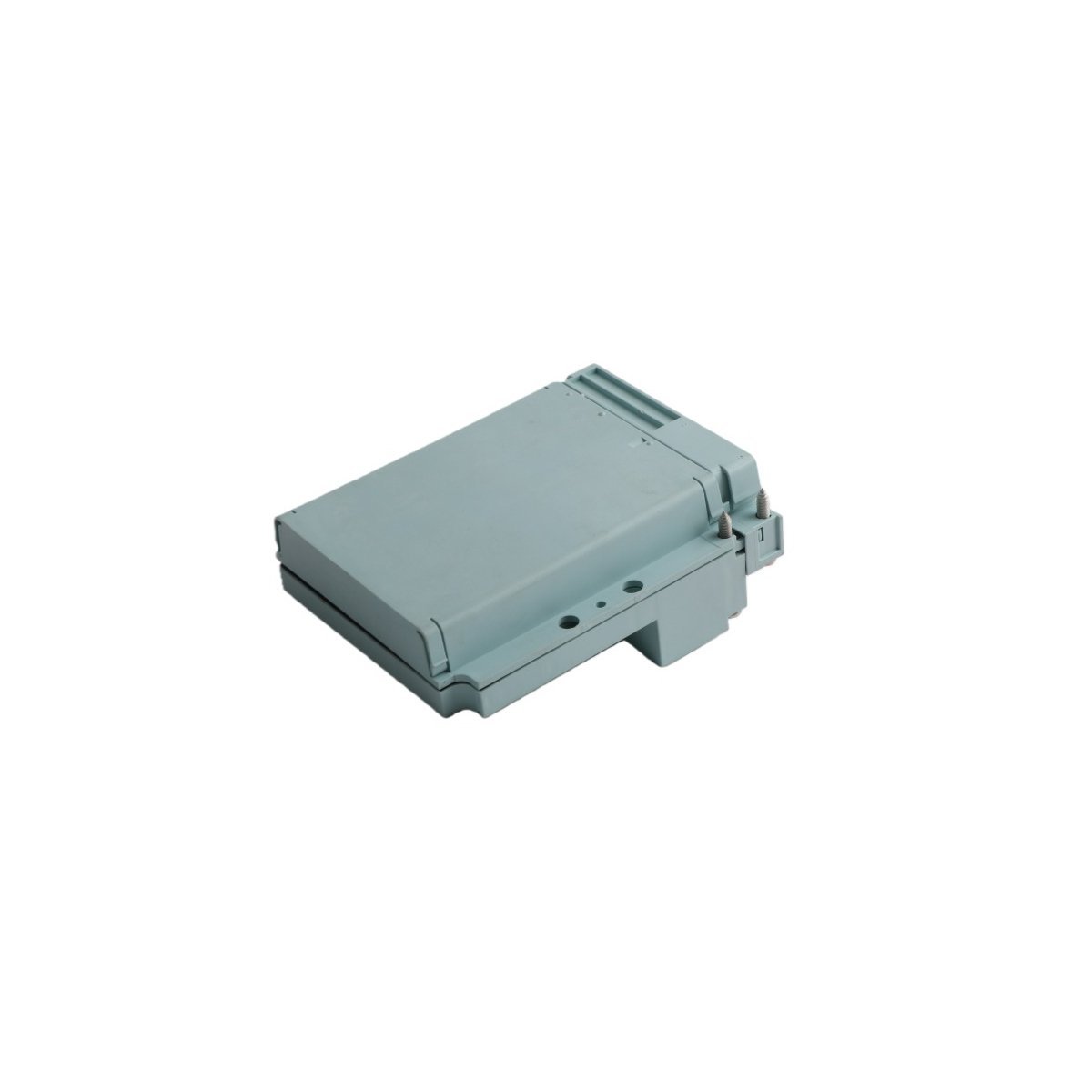

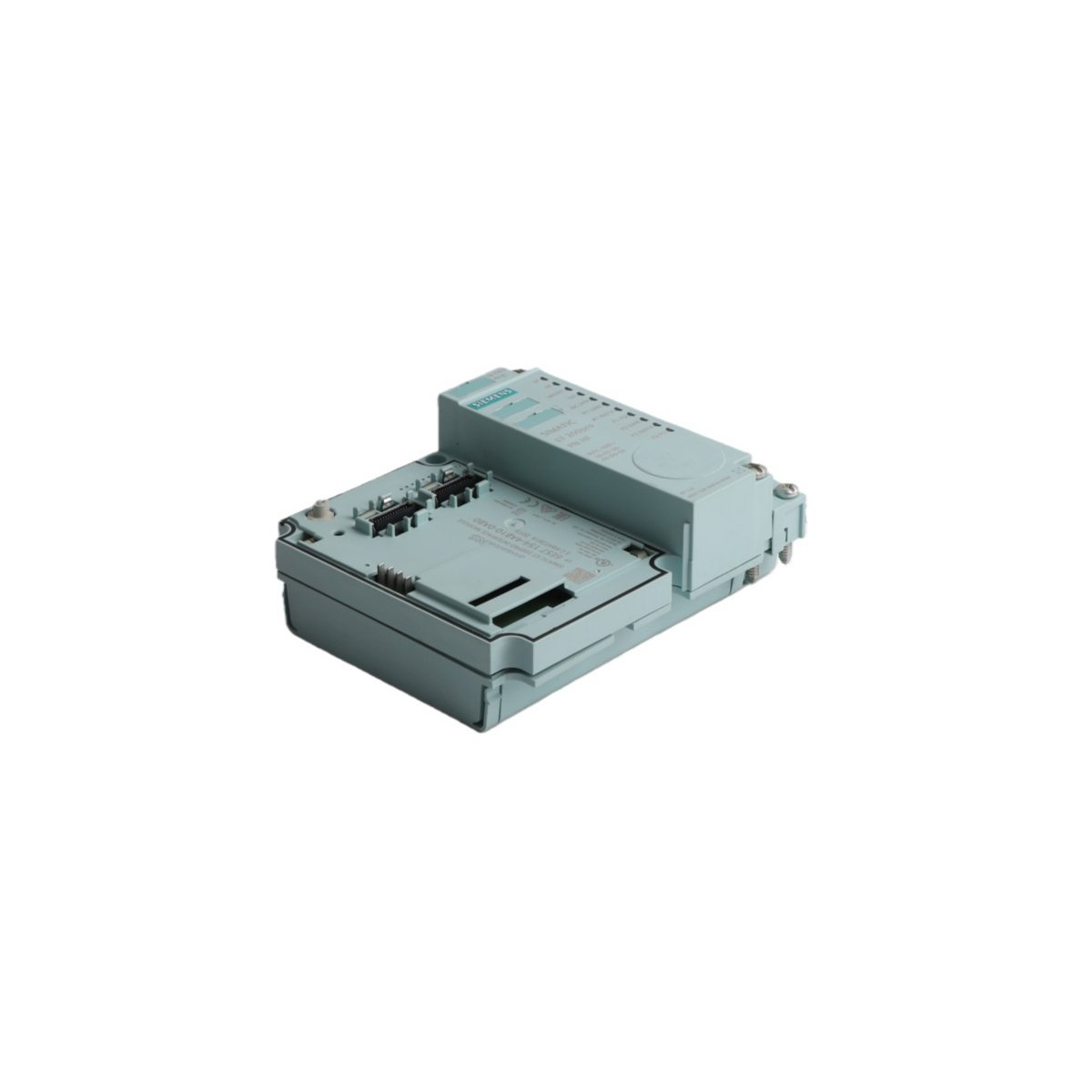

The Siemens 6ES7154-8AB01-0AB0 functions as a powerful central processing unit within the SIMATIC ET 200pro distributed I/O line. This module integrates the capabilities of a standard PLC with decentralized communication interfaces. It specifically targets machine-level control applications where cabinet-free installation is necessary. Because the unit features high-speed processing and dual-protocol support, it manages complex automation cycles with high precision.

Technical Specifications

Advanced Processing and Communication

The 6ES7154-8AB01-0AB0 module excels in high-speed data handling and synchronization tasks. It supports isochronous mode on both PROFINET and PROFIBUS networks for motion control. Therefore, engineers can achieve perfectly timed sequences in complex mechanical systems. The integrated three-port switch allows for flexible linear or ring network topologies. Additionally, the unit maintains excellent performance even when managing a high volume of I/O points.

Environmental Durability and Installation

One primary benefit of this CPU is its exceptional physical resilience. The IP65/67 rating ensures complete protection against dust and powerful water jets. Consequently, users can mount the module directly on machinery without using heavy protective enclosures. This design reduces the overall footprint of the automation system. Furthermore, the 6ES7154-8AB01-0AB0 includes built-in reverse polarity protection to safeguard against electrical installation errors.

Key Technical Characteristics

• Operates as a standalone controller or an intelligent slave in distributed networks.
• Provides 384 KB of work memory for extensive user program storage.
• Includes a built-in PROFINET interface with three physical RJ45 ports.
• Supports high-level programming through STEP 7 V5.5 or the TIA Portal.
• Features a rugged housing suitable for extreme industrial environments.
• Offers rapid bit operation execution for time-critical logic tasks.
