Description

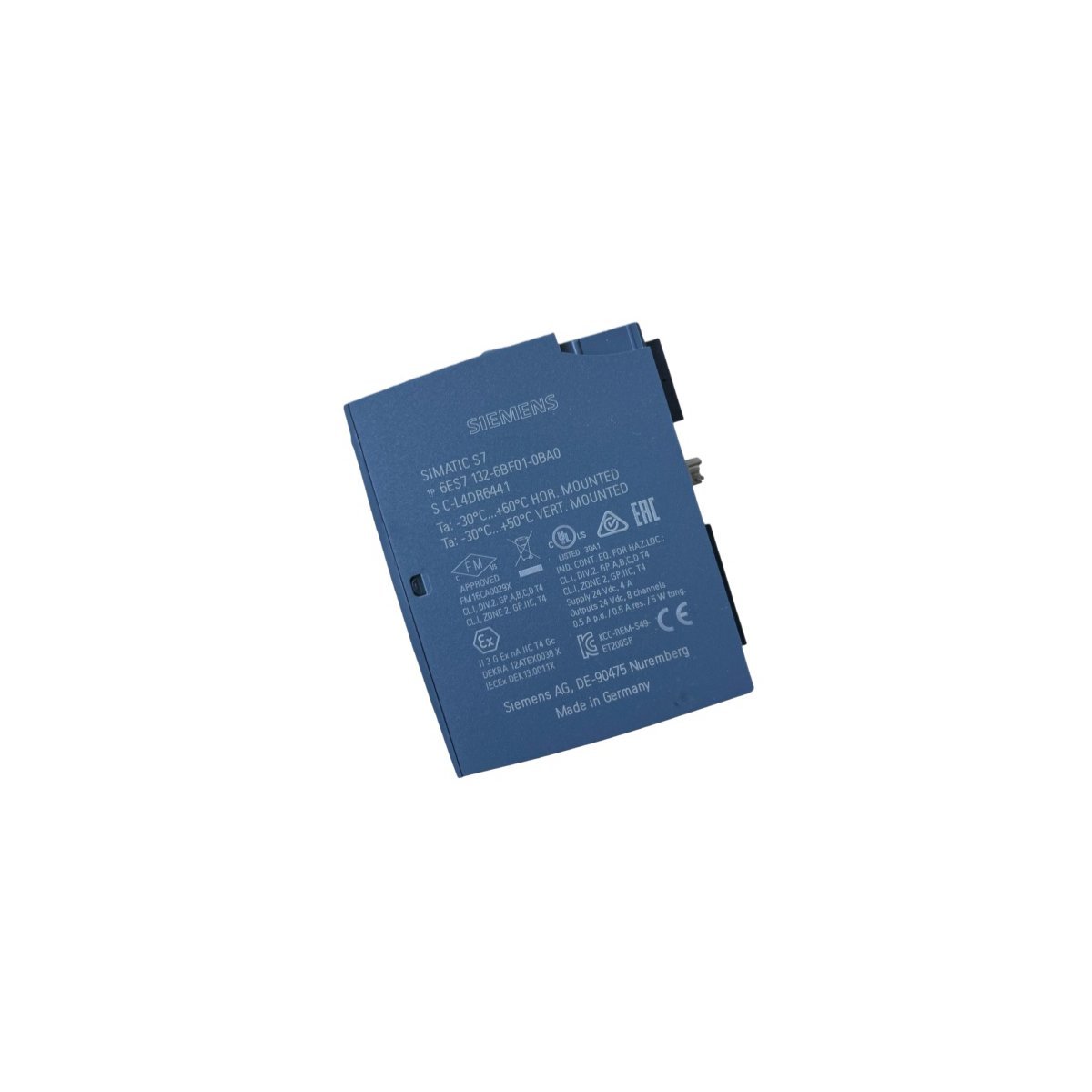

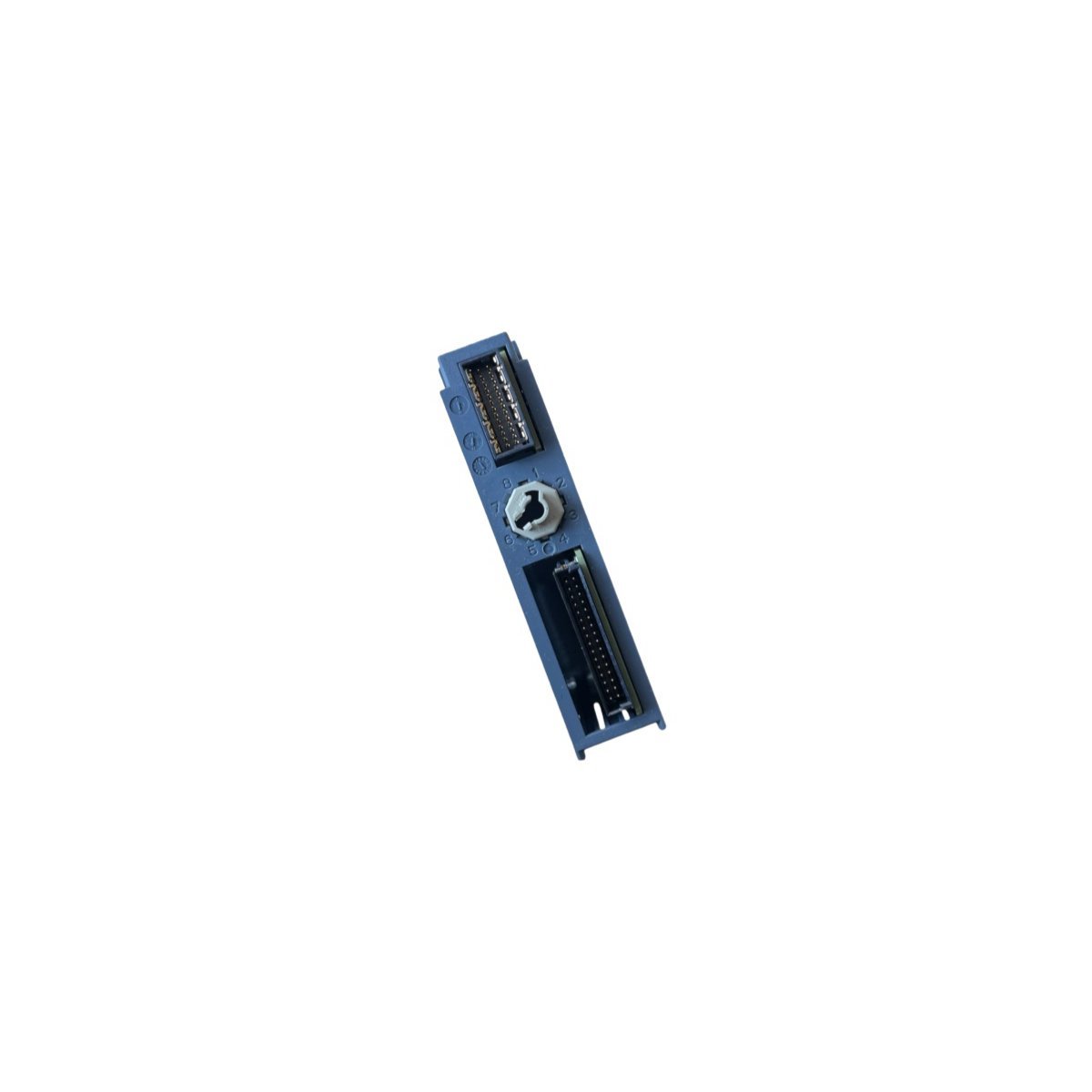

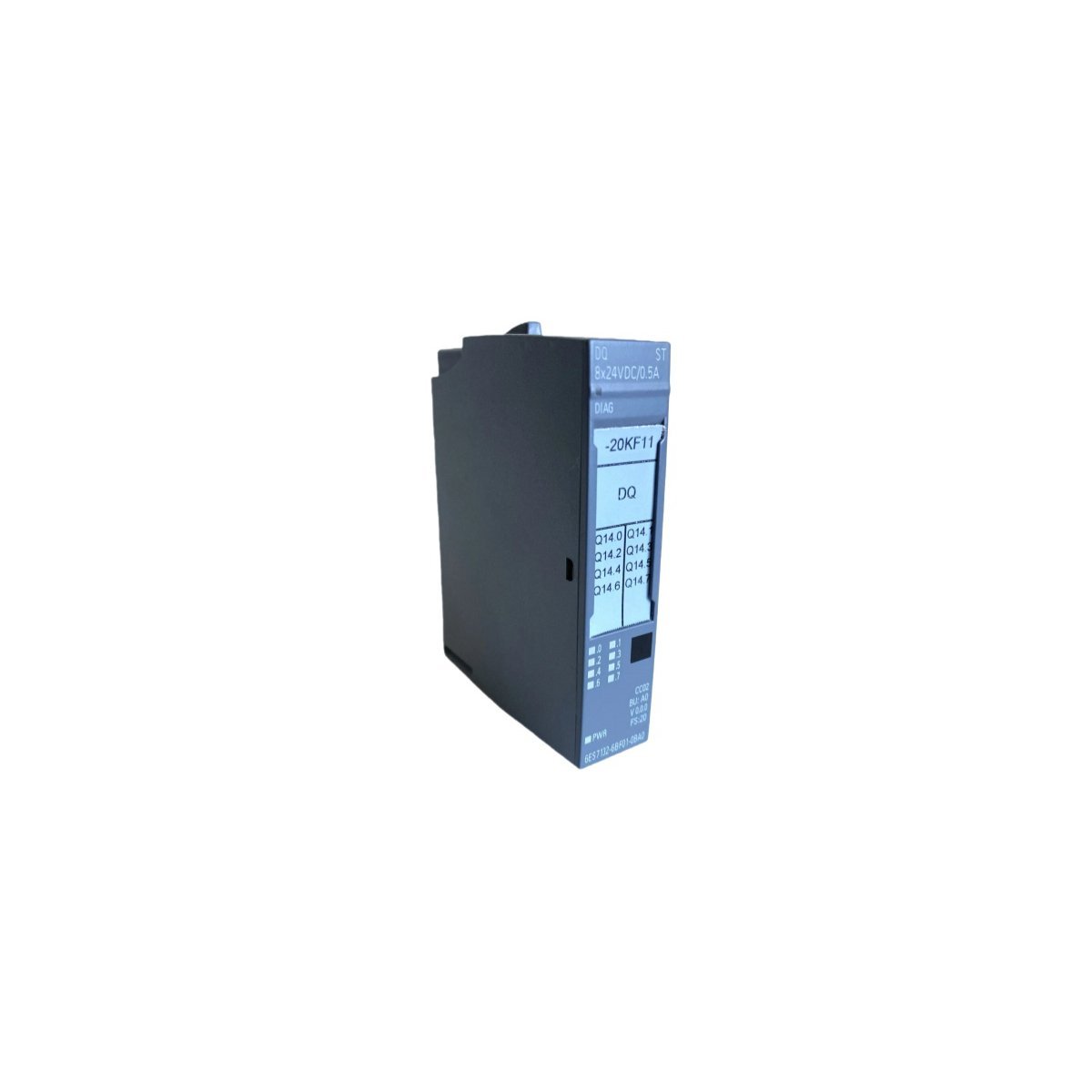

The Siemens 6ES7132-6BF01-0BA0 is a high-performance digital output (DQ) module. It belongs to the scalable SIMATIC ET 200SP distributed I/O system. This specific unit provides eight discrete output channels for industrial automation control. Each channel delivers a 24V DC signal with a 0.5A current capacity.

Operators primarily use this module to drive actuators, valves, and contactors. The “Standard” (ST) functional class balances cost-efficiency with essential diagnostic capabilities. Consequently, it excels in modern control cabinet installations where space and reliability are critical. The module utilizes the CC02 color code for easy terminal identification.

Technical Specifications

Operational Features and Functionality

Advanced Diagnostic Monitoring

This module features comprehensive diagnostic tools to ensure maximum machine uptime. It continuously monitors for short-circuits to ground and the L+ supply. Additionally, the system detects wire breaks and missing supply voltages instantly. These real-time alerts help maintenance teams locate faults without extensive manual testing.

System Flexibility and Maintenance

The hardware supports the innovative multi hot-swapping feature of the ET 200SP platform. Maintenance personnel can replace the module while the rest of the station remains powered. This capability drastically reduces production downtime during hardware updates. Furthermore, the unit supports a “Substitute Value” function during communication failures. This ensures the outputs transition to a predefined safe state automatically.

Compact Hardware Integration

The slim 15mm width allows for high-density I/O configurations in small enclosures. It installs easily onto standard ET 200SP BaseUnits (Type A0). Because the module uses push-in terminals, wiring becomes faster and more reliable. This mechanical design optimizes the physical footprint of the PLC station significantly.

Industrial Communication and Standards

The 6ES7132-6BF01-0BA0 integrates seamlessly into PROFINET or PROFIBUS networks. It supports the identification and maintenance (I&M) data functions from I&M0 to I&M3. These electronic rating plates simplify asset management across large-scale industrial facilities. The robust electronics handle typical factory temperatures and vibration levels effectively.
