Description

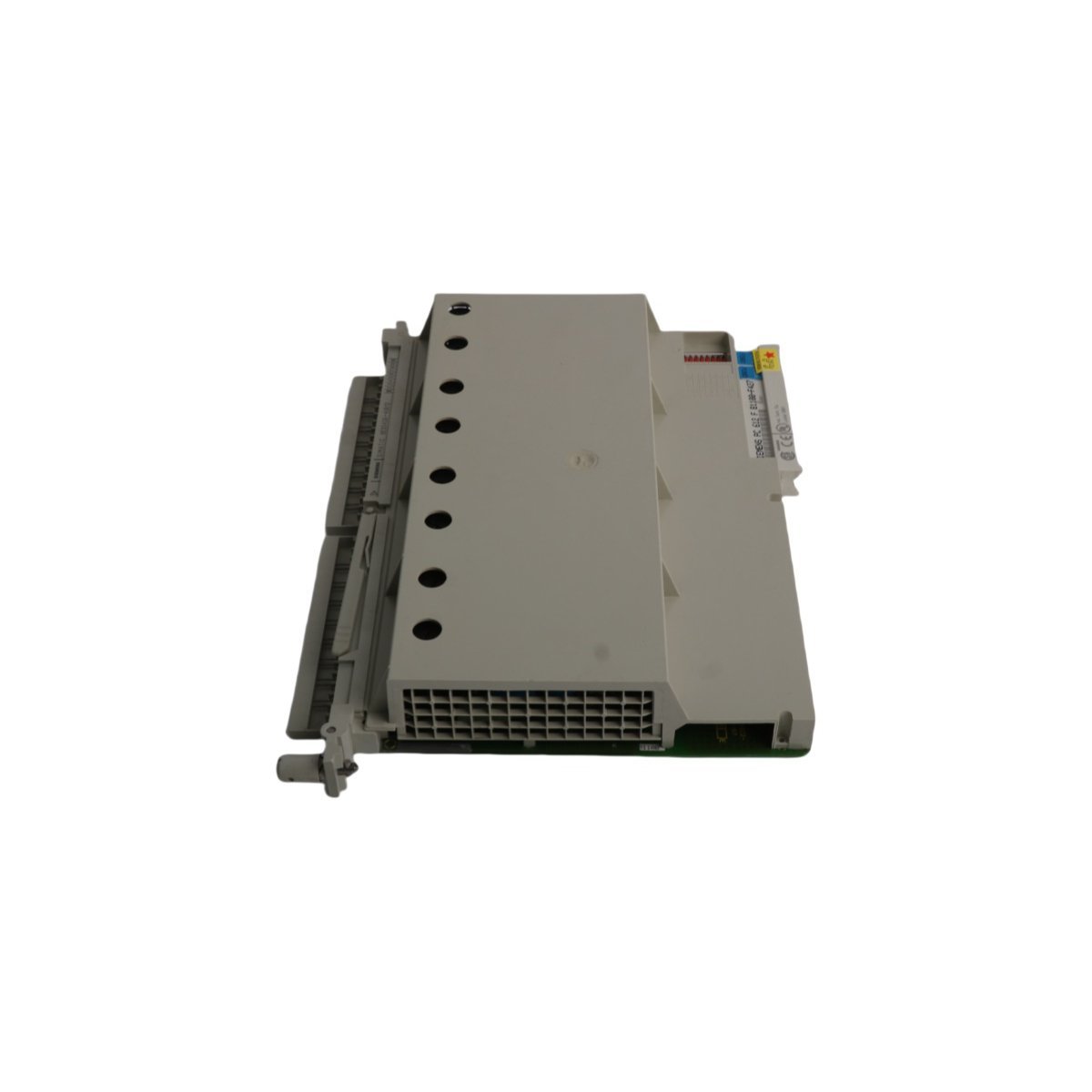

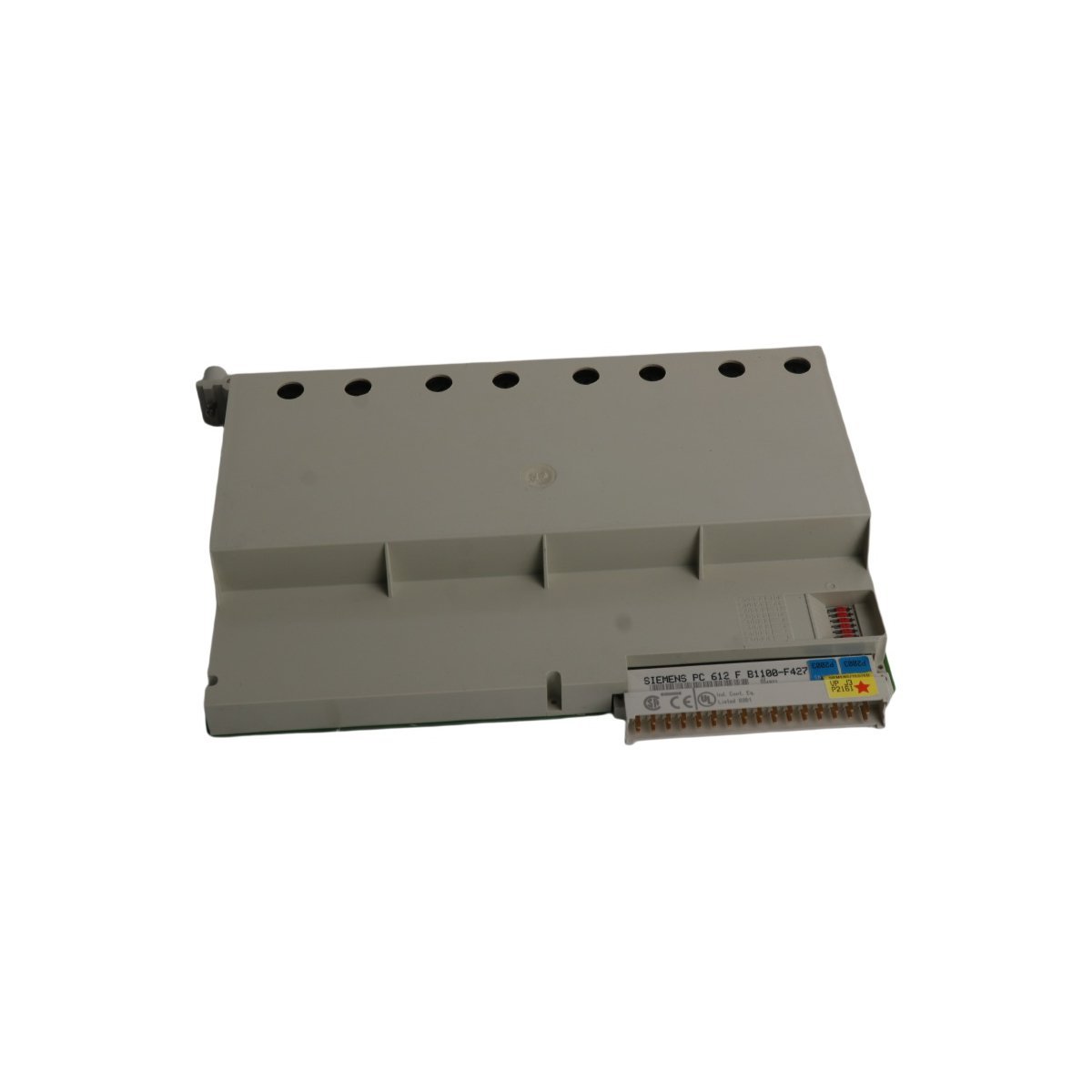

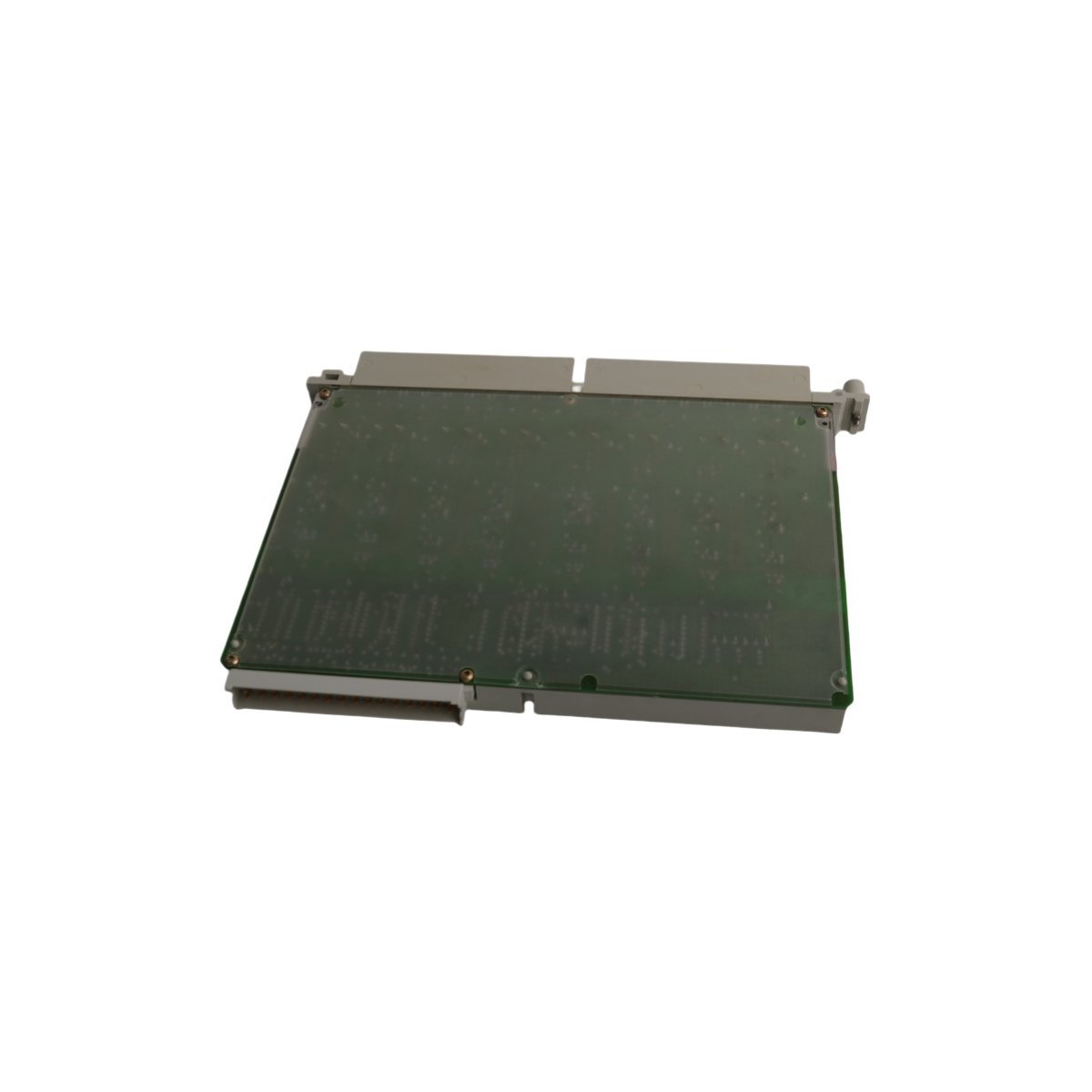

The Siemens 6ES5456-4UB12 is a specialized digital output component for the legacy SIMATIC S5 automation series. It provides eight floating output channels designed for high-voltage AC loads. This hardware excels in controlling heavy industrial equipment like motors and solenoids. Furthermore, it serves as a critical bridge for plants maintaining older control systems.

This module features a rugged construction typical of German engineering standards. It manages switching tasks for 115V and 240V AC circuits with high stability. Consequently, it remains a preferred choice for reliable legacy system support. The unit also supports modern migration strategies through specialized adapter interfaces.

Technical Specifications

Key Performance Characteristics

Robust AC Load Control

The 6ES5456-4UB12 handles substantial electrical loads across its eight output points. Each channel supports up to 2A of continuous current. This capacity allows the PLC to drive power-heavy actuators directly. Additionally, the floating design ensures electrical isolation between the internal bus and field circuits.

Simplified System Migration

One major benefit involves the compatibility with Interface Module Adapters (IMA). Users can upgrade to SIMATIC S7-300 or S7-400 platforms easily. By using these adapters, you avoid time-consuming and expensive rewiring projects. This feature protects your initial investment in field wiring and infrastructure.

Reliable Industrial Operation

The module thrives in demanding manufacturing environments. It features a high resistance to electrical interference and noise. Because it belongs to the proven S5 lineage, it guarantees long-term durability. Maintenance teams often rely on this model for consistent performance in critical process loops.
