Description

Brief Product Description

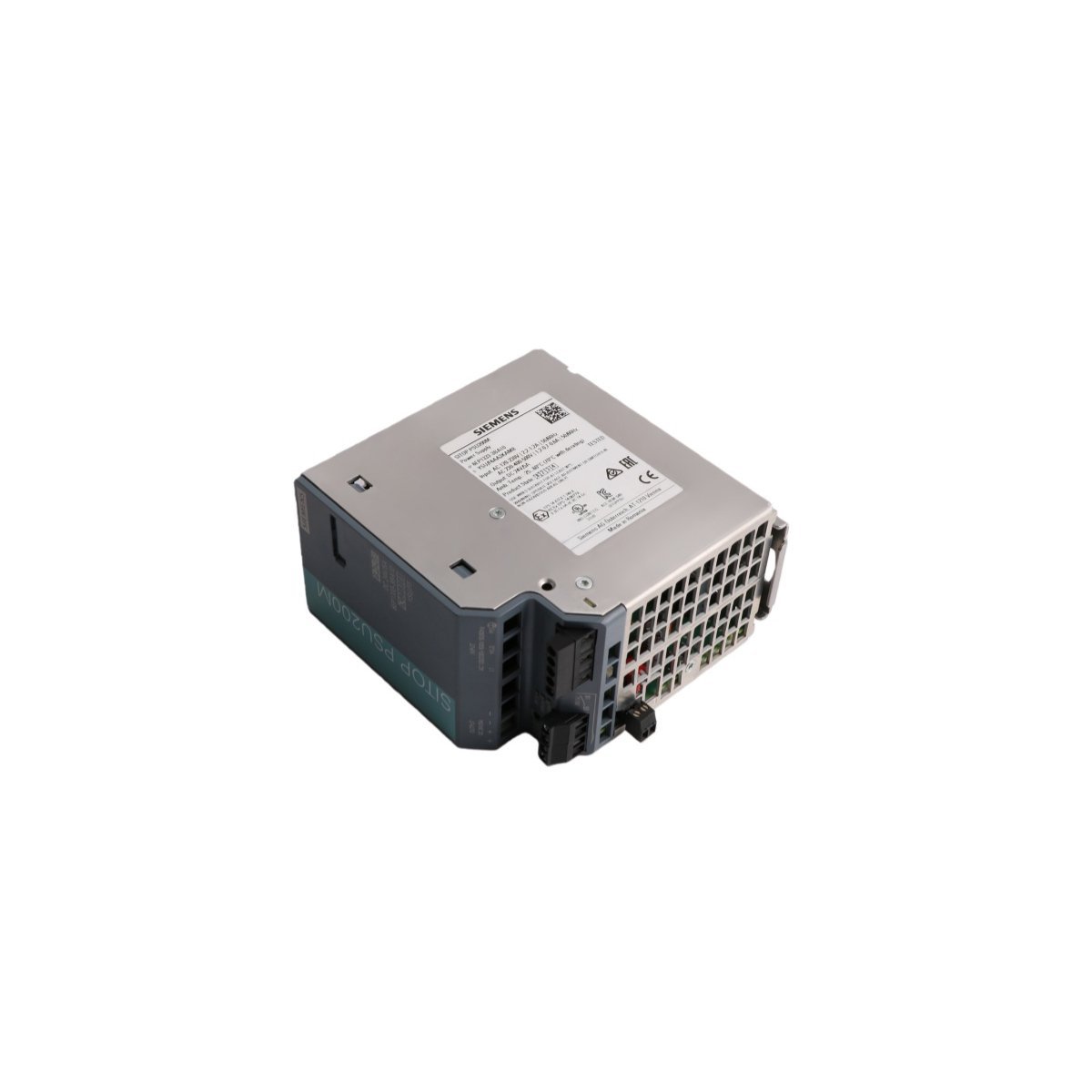

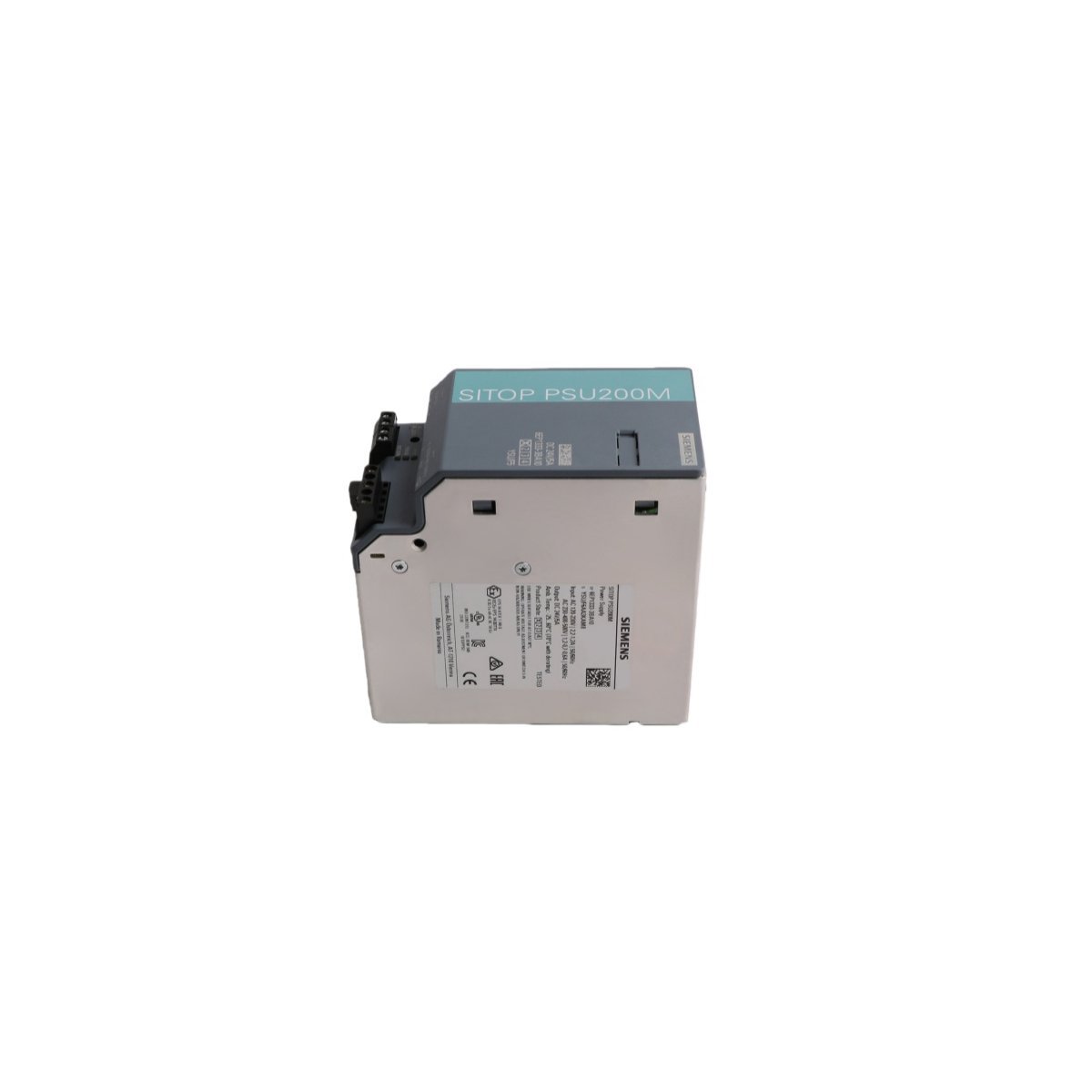

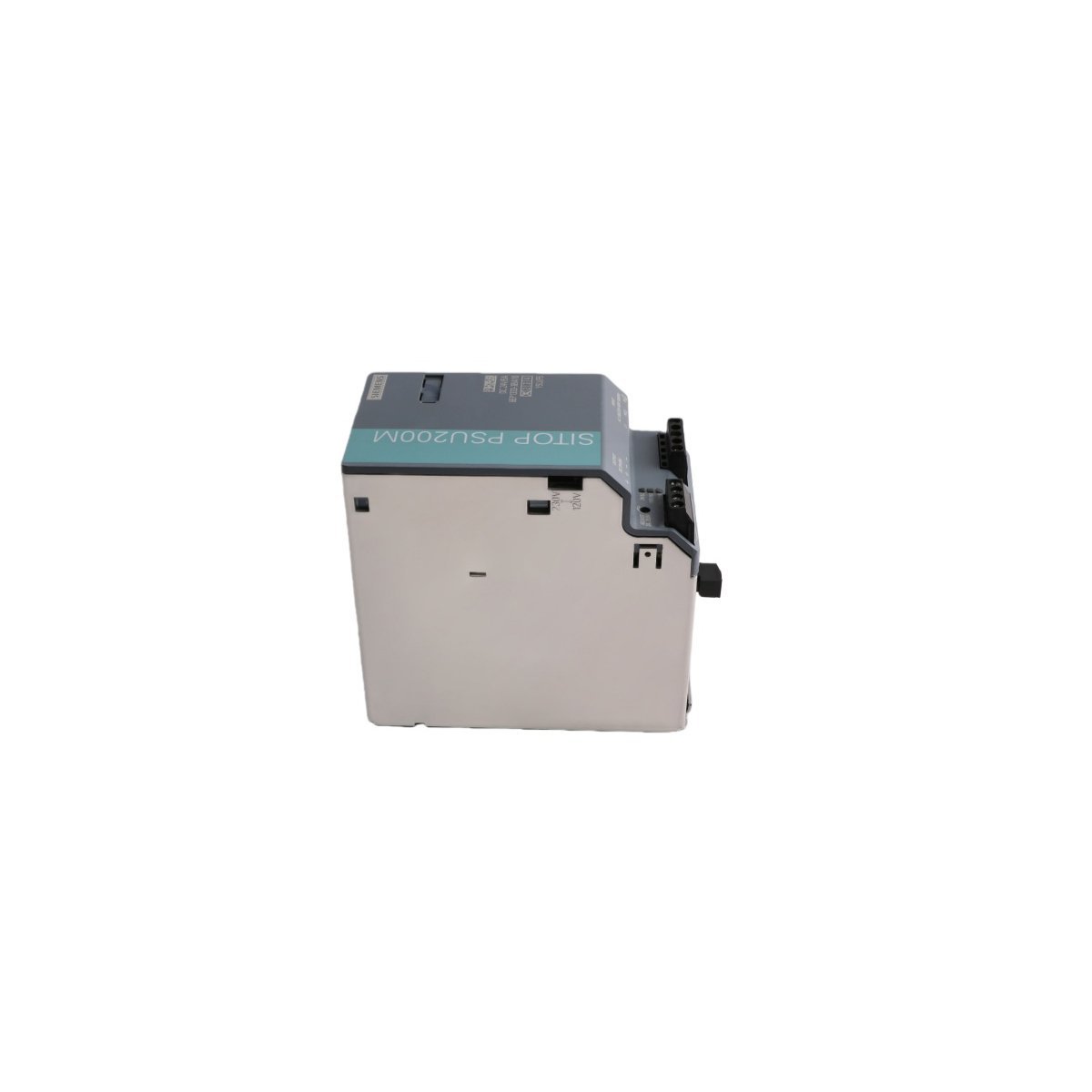

The Siemens 6EP1333-3BA10 is a high-performance 5A stabilized power supply from the SITOP PSU200M series, designed to convert wide-range AC inputs into a regulated 24V DC output. This module supports both single-phase and two-phase operation, providing a flexible and resilient power foundation for PLC and DCS automation systems.

Versatile Input Architecture for Global Distribution

The Siemens 6EP1333-3BA10 SITOP PSU200M excels in adaptability by supporting an ultra-wide input voltage range from 120 V to 500 V AC. This flexibility allows the module to operate on both single-phase and two-phase networks, making it an ideal choice for international machinery exports where electrical standards vary. By automatically accommodating different voltage levels, the unit reduces the need for multiple transformer variants in your control cabinet. Consequently, this power supply simplifies global procurement and design processes for original equipment manufacturers (OEMs).

Enhanced Process Continuity and Adjustable Output

Maintaining system uptime is the primary objective of the 6EP1333-3BA10 power module. The unit features an integrated mains buffering capability that offers a 150-millisecond hold-up time, which effectively bridges brief voltage dips and power flickers. To ensure compatibility with various field devices, the module includes a front-mounted potentiometer that adjusts the output voltage between 24 V and 28.8 V DC. This adjustment feature compensates for voltage drops across long cable runs, ensuring that distant sensors and actuators receive the exact power required for accurate operation.

Industrial Protection and Integrated Safety Features

Siemens has engineered the PSU200M 5A module to withstand the rigors of heavy industrial environments. The module provides electronic short-circuit and overload protection to safeguard expensive PLC processors and I/O modules from electrical damage. Moreover, its compact DIN-rail mountable design optimizes cabinet density while providing efficient convection cooling. Transitioning to this stabilized power solution minimizes the risk of system resets caused by unstable power, thereby increasing the overall reliability and Safety Integrity Level (SIL) of the automation environment.

Key Technical Characteristics

• Multi-Phase Input Compatibility: Operates on 120-230/230-500 V AC for maximum installation flexibility.
• Regulated 5A Output: Delivers a stable 24V DC supply suitable for sensitive electronic loads and sensors.
• Voltage Fine-Tuning: Potentiometer allow for output adjustments up to 28.8 V DC to counteract line losses.
• High Buffering Capacity: Maintains output for 150ms during input interruptions to prevent system downtime.
• Robust Electronic Protection: Features automatic restart or latching shutdown modes during short-circuit events.
• Compact DIN-Rail Design: Saves valuable space in control panels with a narrow width and simplified wiring terminals.

Technical Specifications
