Description

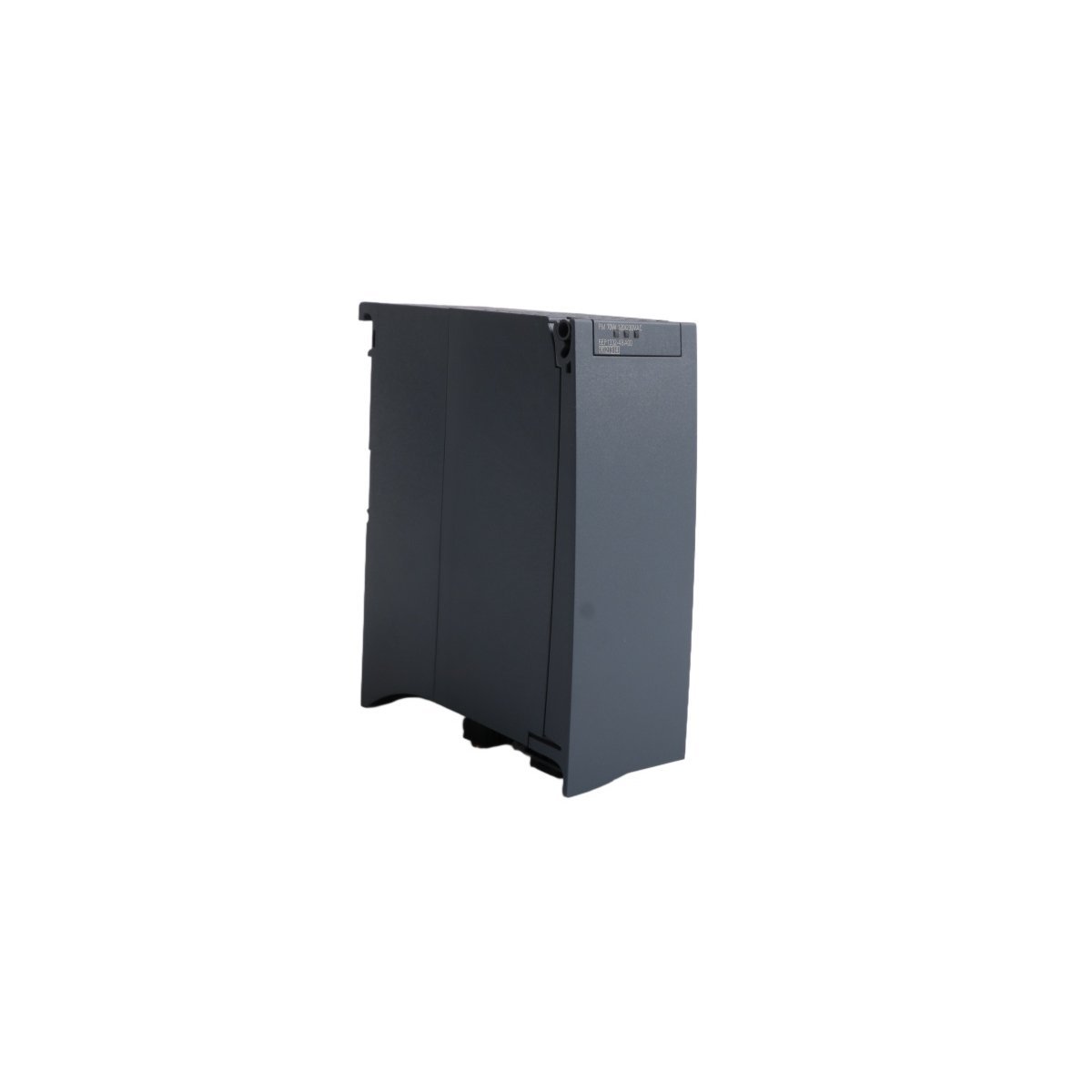

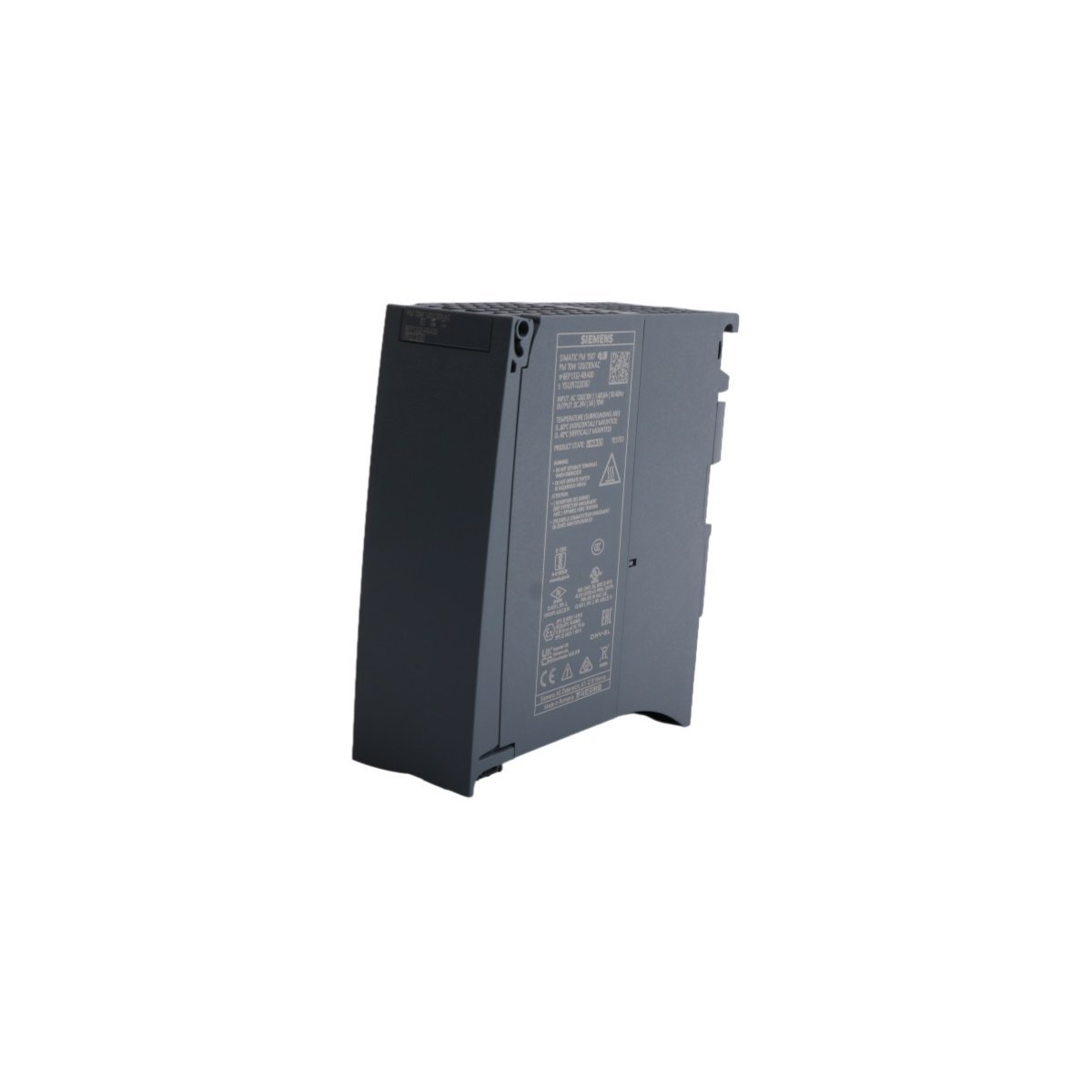

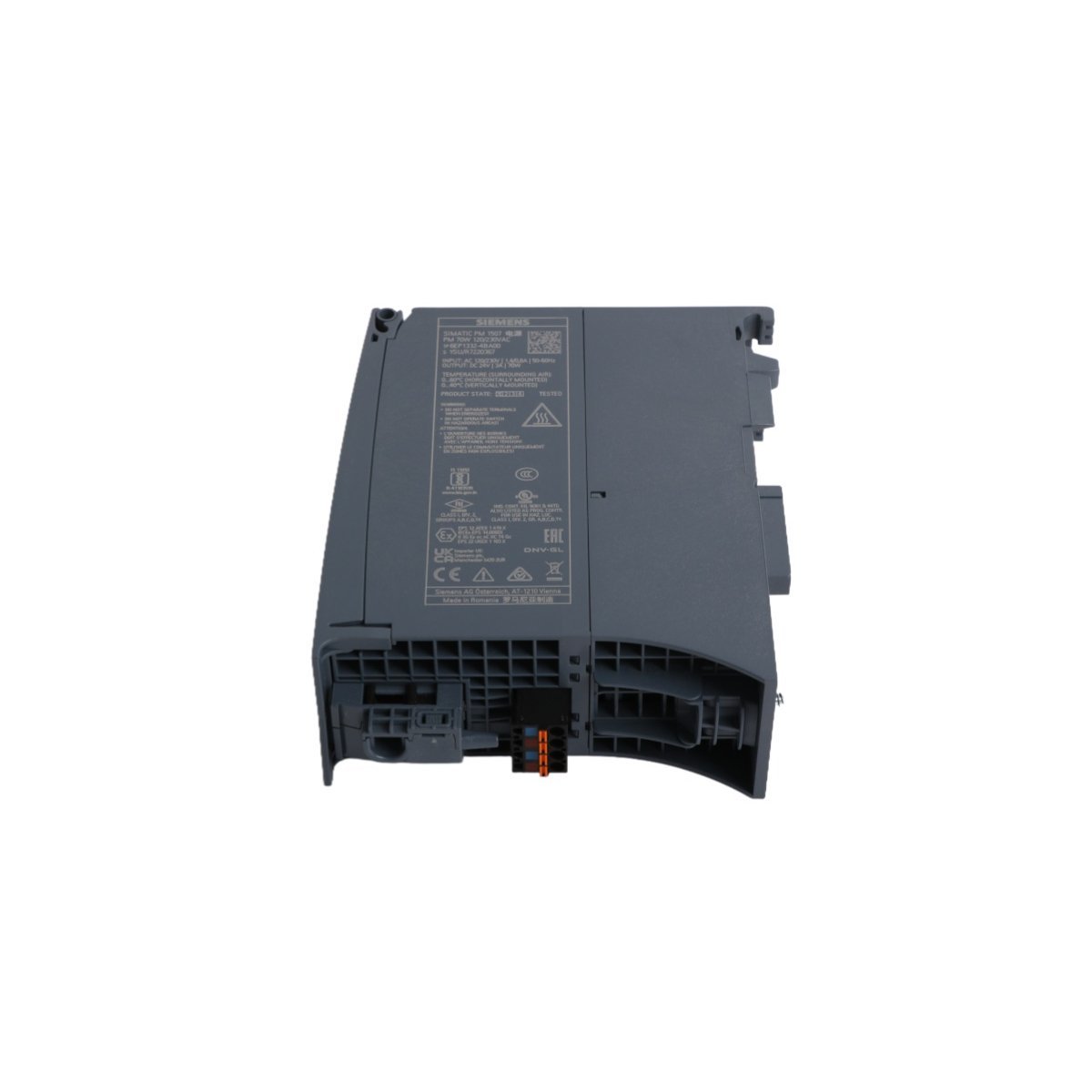

The Siemens 6EP1332-4BA00 is a specialized PM1507 load power supply. This unit provides a stable energy source for SIMATIC S7-1500 controller systems. It converts varying AC input voltages into a regulated 24V DC output. Consequently, it protects sensitive PLC electronics from power irregularities.

Designers optimized this power module for seamless physical integration with S7-1500 rails. It mirrors the system design to create a unified cabinet appearance. The compact 72W output serves small to medium automation tasks efficiently. Furthermore, its robust construction ensures reliable operation within challenging industrial factory settings.

Technical Specifications

Key Performance Attributes

Automatic Voltage Sensing

The PM1507 features an automatic range switch for input voltage. It detects whether the supply is 120V or 230V AC. This capability simplifies global deployment without manual jumper settings. Therefore, it reduces installation errors and streamlines international machinery exports.

Advanced Circuit Protection

Integrated safety protocols prevent damage during electrical faults. The module includes active current limiting for short-circuit events. It also provides electronic shutdown during sustained overloads. These features ensure the power supply recovers quickly once the fault clears.

Thermal Management and Efficiency

The 6EP1332-4BA00 produces very little waste heat during operation. High efficiency ratings help lower the temperature inside the control enclosure. This thermal stability extends the life of adjacent PLC modules. Additionally, the unit operates quietly without the need for external cooling fans.

Installation and System Compatibility

This power supply mounts directly onto the S7-1500 standard DIN rail. It uses a standardized wiring connector for fast electrical setup. The unit supplies power to the CPU backplane and local I/O circuits. Because it matches the S7-1500 profile, it saves significant horizontal space in high-density panels.
