Description

Brief Product Description

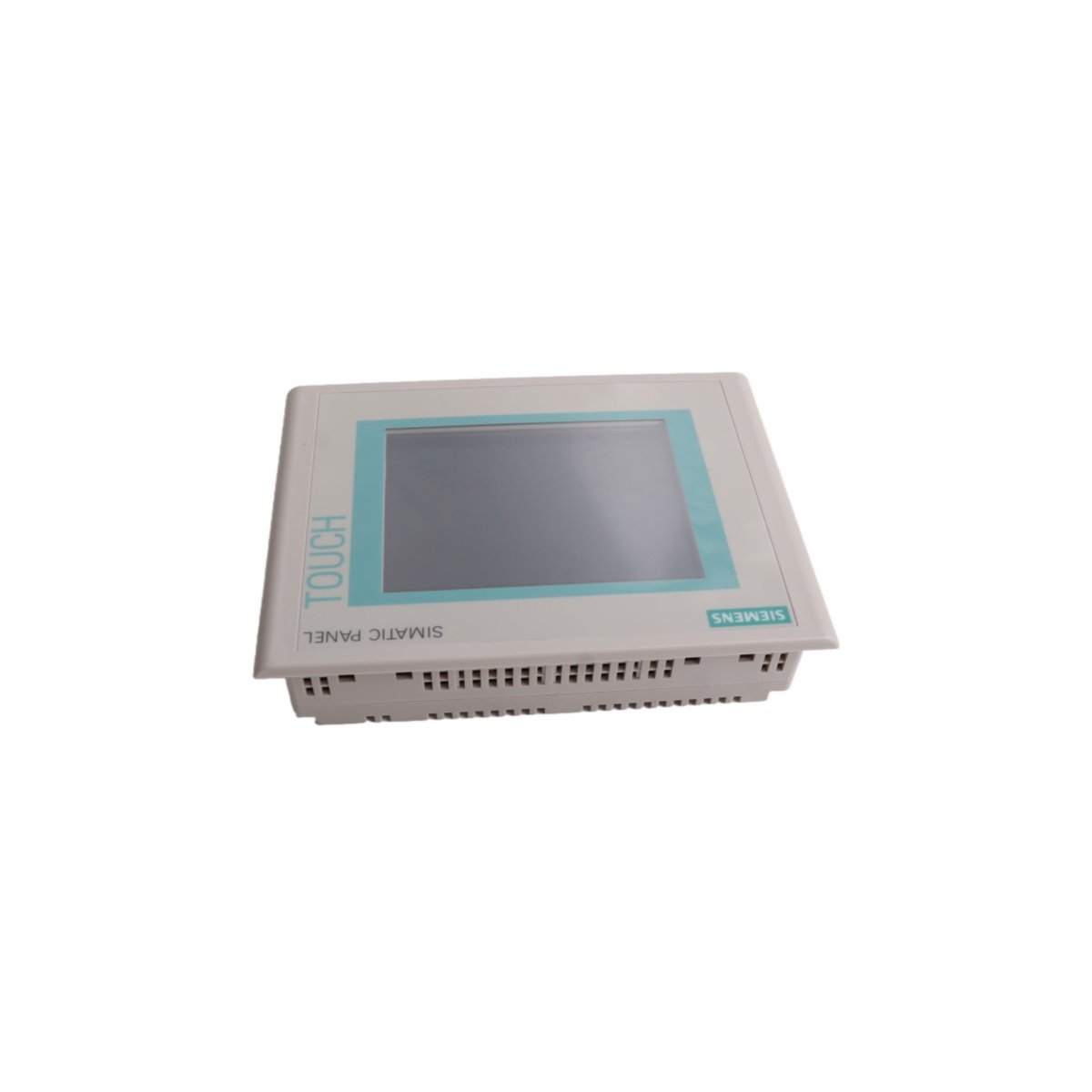

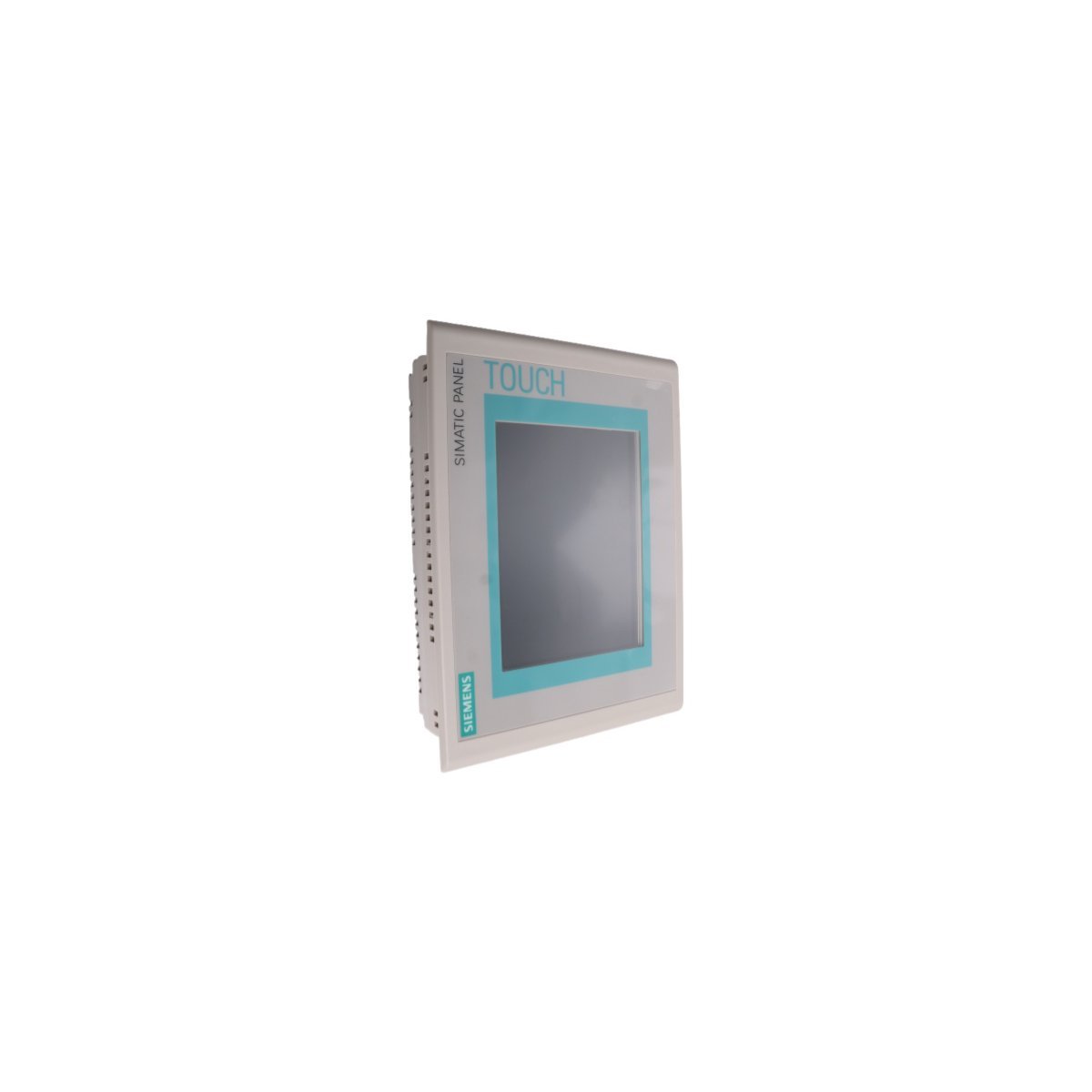

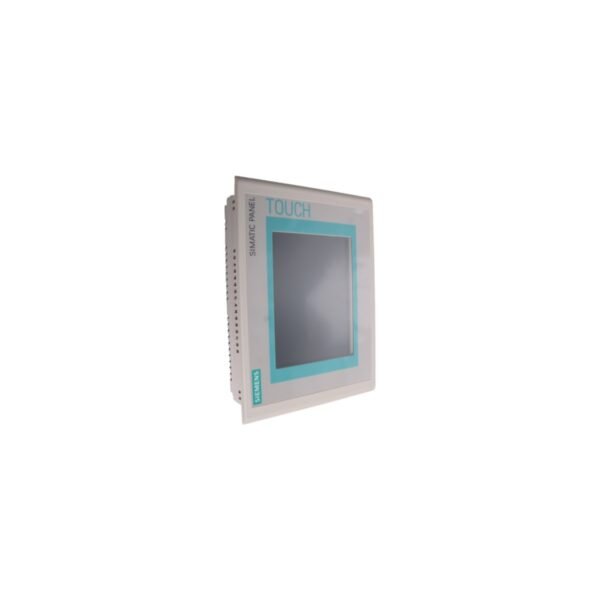

The Siemens 6AV6642-0BA01-1AX1 is a high-performance 6-inch SIMATIC TP 177B touch panel engineered for precise machine-level HMI tasks. This unit integrates both PROFINET and PROFIBUS interfaces to facilitate seamless communication across diverse industrial network architectures.

Product Description

Industrial Visualization and Display Performance

The Siemens 6AV6642-0BA01-1AX1 serves as a robust operator interface within the SIMATIC HMI family. It features a 5.7-inch STN display that supports 256 colors at a resolution of 320 x 240 pixels. This configuration ensures that process data, alarms, and graphical trends remain legible for plant personnel. To guarantee operational longevity, the CCFL backlight offers a mean time between failures (MTBF) of approximately 50,000 hours. The resistive touch screen allows for precise input even when operators wear industrial gloves, making it an ideal choice for manufacturing environments.

Versatile Connectivity and Integration

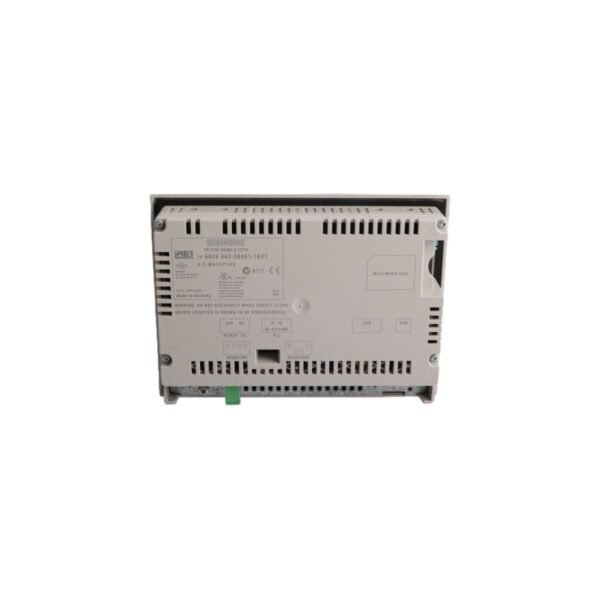

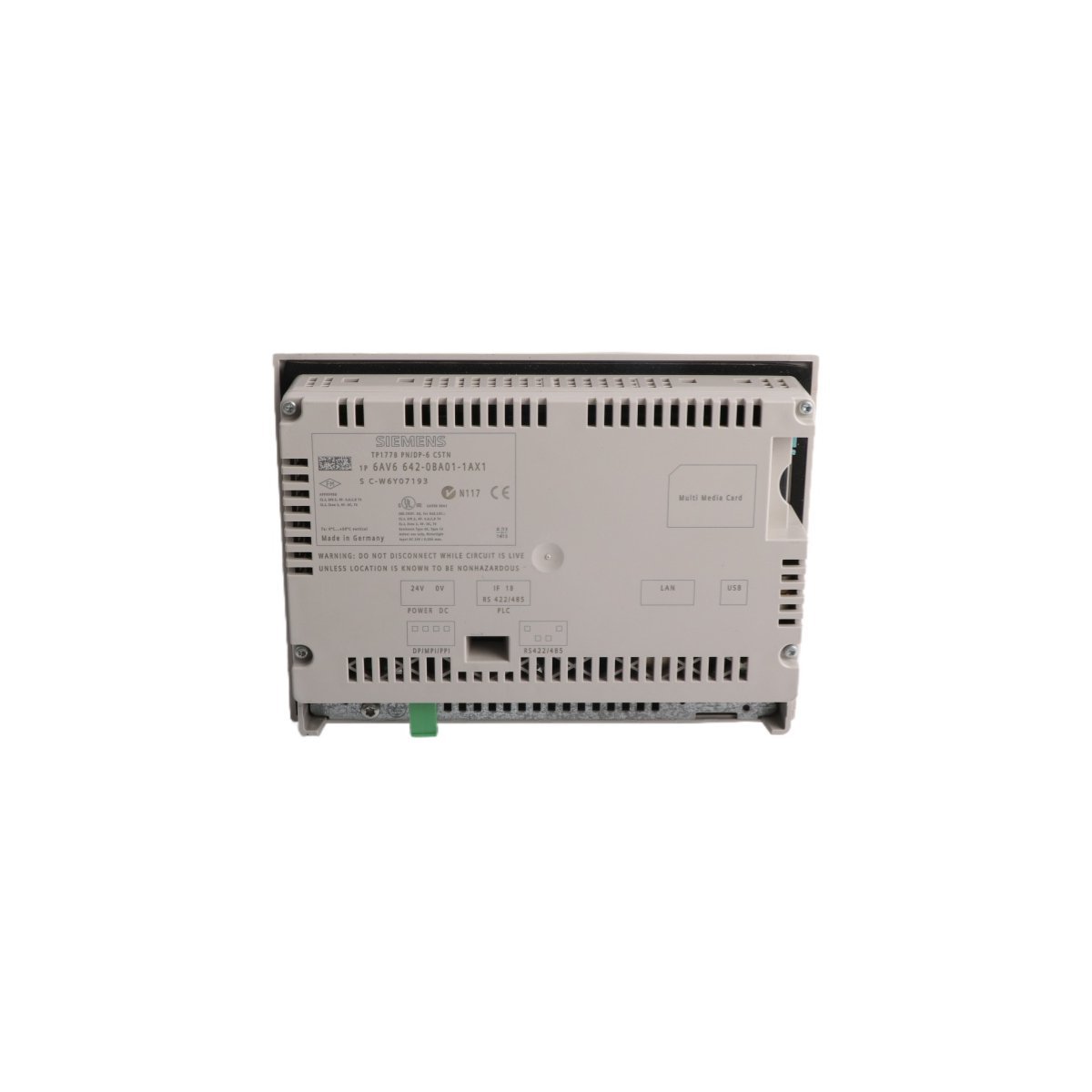

Connectivity defines the versatility of the TP 177B PN/DP model. Unlike standard panels, this device supports dual-protocol communication, incorporating both an RS485/422 interface for MPI/PROFIBUS DP and a dedicated RJ45 port for Ethernet (PROFINET). This hybrid approach enables the panel to communicate simultaneously with legacy S7-300/400 controllers and modern Ethernet-based systems. Furthermore, an integrated USB port supports external peripherals, while a MultiMediaCard (MMC) slot provides expandable storage for recipe data, project backups, and historical logging.

Lifecycle Management and System Compatibility

Engineers configure the 6AV6642-0BA01-1AX1 using WinCC flexible 2005 SP1 or higher, though it remains fully compatible with newer TIA Portal environments for migration purposes. Although Siemens has moved this specific model into the “Product Discontinuation” phase, it continues to be a critical spare part for existing production lines globally. Its compact housing dimensions and standardized cutout requirements allow for straightforward replacement or maintenance of older HMI systems. The panel’s rugged design and legacy support ensure that existing automation investments remain protected while maintaining high system availability.

Technical Specifications
