Description

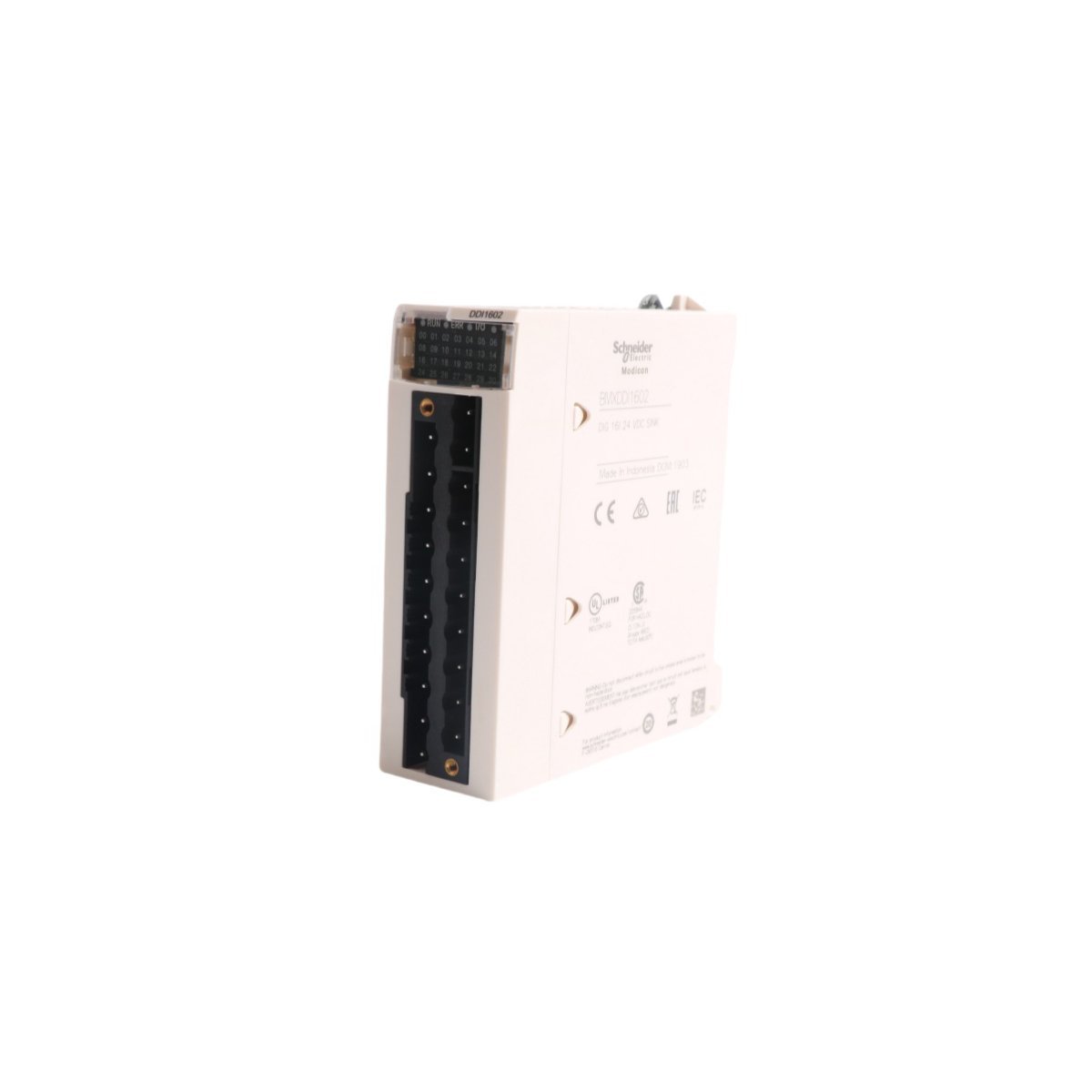

The Schneider Electric BMXDDI1602 serves as a high-density discrete interface for the Modicon X80 automation platform. This 16-channel module captures digital signals from various field devices like sensors and switches. It utilizes 24V DC isolated inputs with positive logic (sink) configuration. Because it features a compact single-slot design, it optimizes rail space in M340 and M580 PAC systems. Engineers choose this module for its reliable performance in high-speed manufacturing environments. This hardware ensures precise data transmission between the factory floor and the central controller.

Technical Specifications

• Brand: Schneider Electric
• Model Number: BMXDDI1602
• Product Type: Discrete Input Module
• Input Channels: 16 Isolated Channels
• Rated Input Voltage: 24V DC
• Logic Type: Positive (Sink)
• Input Current: 3.5 mA
• Response Time: 4 ms (Typical) / 7 ms (Maximum)
• Insulation Resistance: > 10 MΩ at 500V DC
• Power Dissipation: 2.5 W Maximum
• Weight: 0.12 kg
• Connector Type: 20-way removable terminal block

Performance and Electrical Protection

This digital input module delivers rapid signal processing for time-sensitive industrial operations. Internal circuitry provides robust electrical isolation to protect sensitive logic components. Furthermore, the 20-way removable terminal block simplifies wiring and reduces maintenance time. The module maintains stable operation within temperature ranges from 0°C to 60°C. Its IP20 rating ensures protection against solid particles in standard control cabinets. Additionally, low power dissipation prevents excessive heat buildup during continuous 24-hour cycles. These characteristics guarantee long-term durability in demanding process control applications.

System Integration and Standards

The BMXDDI1602 integrates seamlessly into any Modicon X80 rack architecture. It supports a wide variety of industrial sensors and proximity switches. Global certifications including CE, UL, and CSA permit worldwide deployment in diverse markets. Moreover, the French-engineered construction adheres to strict EN 61131-2 industrial standards. This compatibility reduces inventory complexity by using standardized X80 components. It provides an efficient solution for upgrading legacy machinery or building new automation lines. This module remains a vital component for achieving high-density digital I/O in modern facilities.
