Description

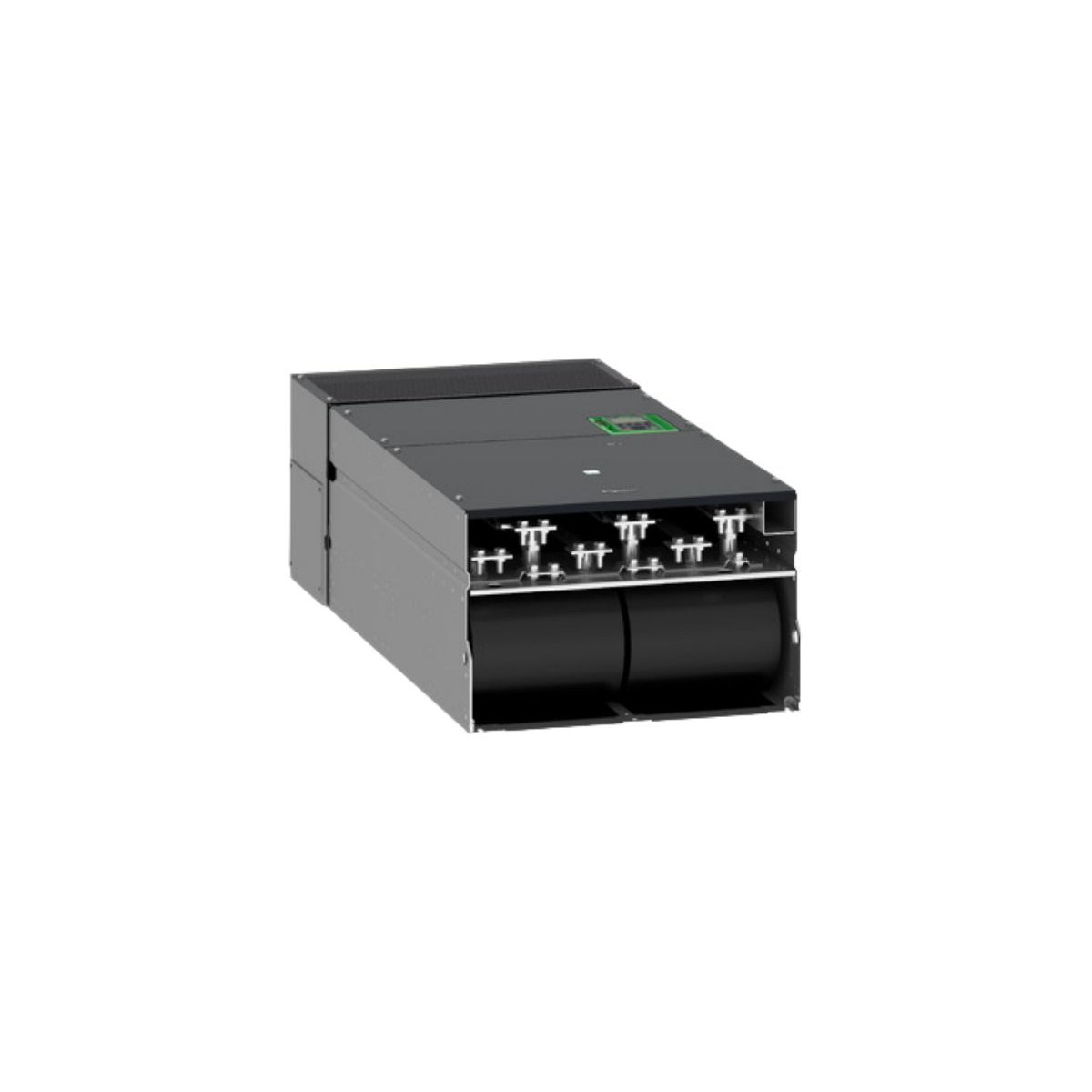

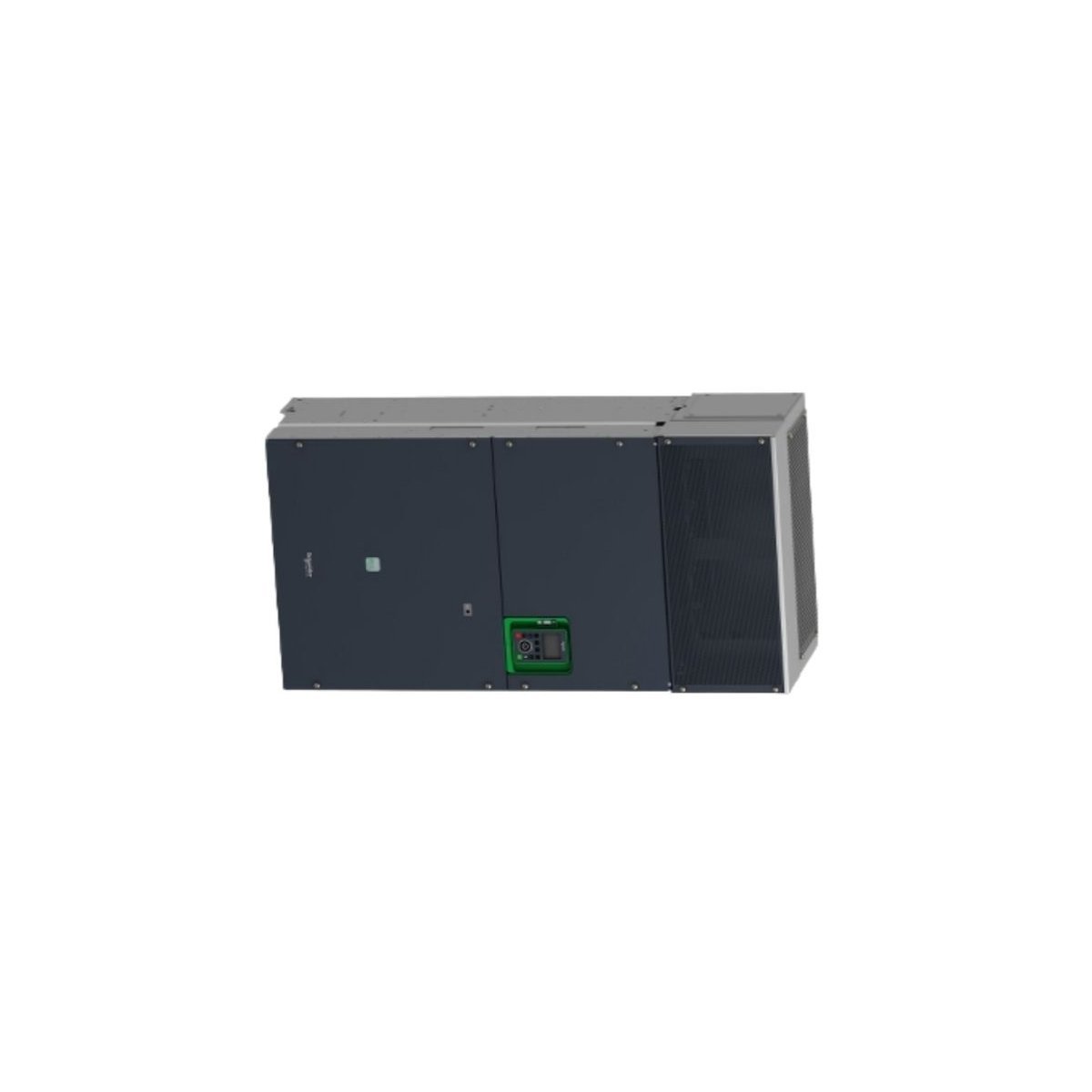

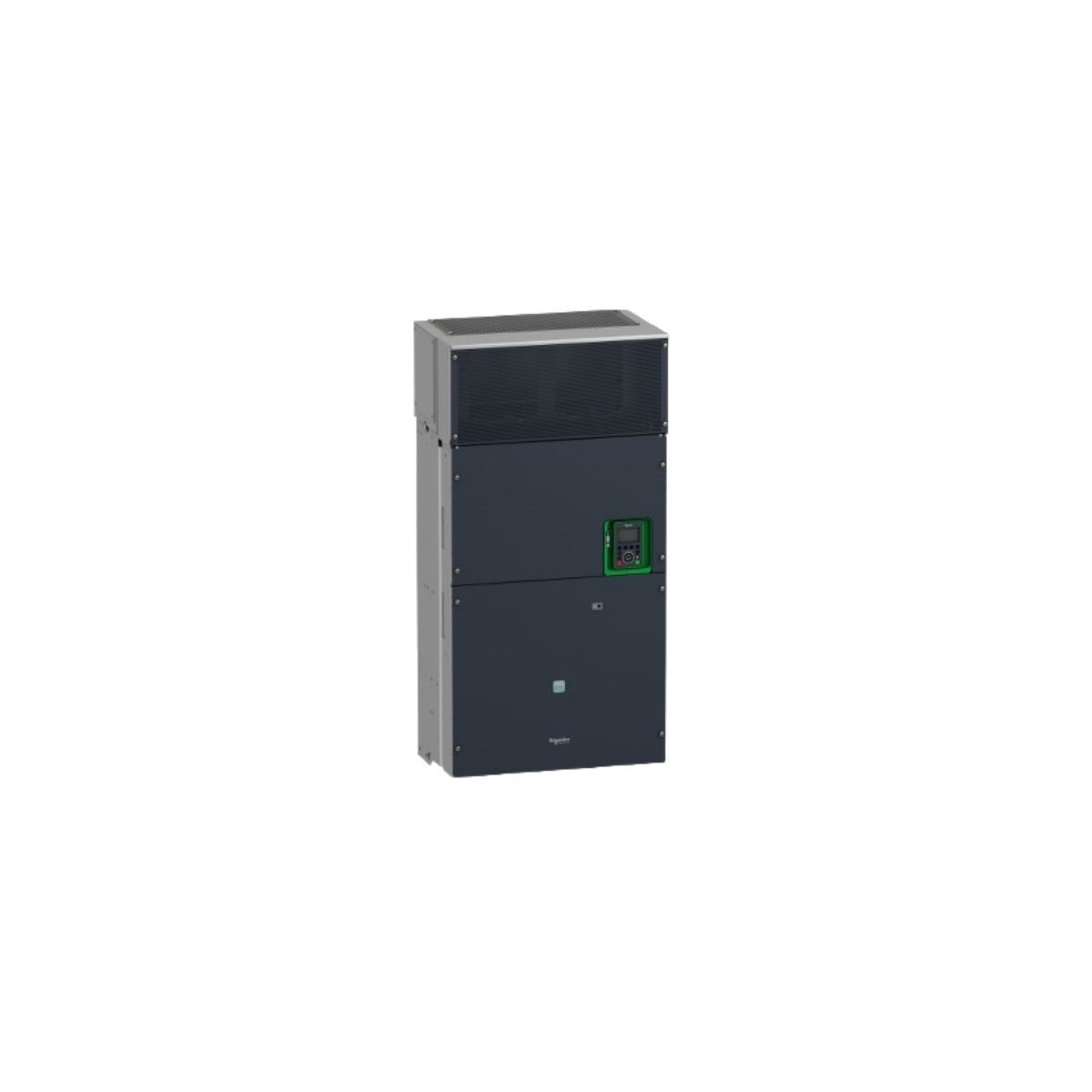

The Schneider Electric ATV930C25N4C belongs to the high-performance Altivar Process 900 series. This frequency inverter manages three-phase asynchronous and synchronous motors with extreme precision. It primarily targets heavy-duty industrial applications requiring advanced motor control. The drive operates within a standard voltage range of 380V to 480V AC.

High-Capacity Performance and Process Control

This drive supports massive power requirements for large industrial machinery. It manages motors up to 250 kW (400 HP) under normal duty conditions. For high-torque demands, it supports up to 200 kW (300 HP) with 150% overload capacity. This flexibility allows engineers to optimize performance based on specific load characteristics.

Furthermore, the ATV930C25N4C excels in complex automation architectures. It enables sophisticated master/slave configurations for coordinated multi-drive movements. The integrated web server and data logging tools facilitate real-time monitoring. These features ensure that maintenance teams can implement predictive strategies effectively. Consequently, the drive maximizes uptime in continuous production environments.

Technical Connectivity and Environmental Design

Connectivity remains a core strength of this Altivar Process model. It features dual-port Ethernet/IP and Modbus TCP for seamless network integration. These protocols allow the drive to share critical process data with supervisory systems. Therefore, it acts as an intelligent sensor within the industrial internet of things (IIoT).

• Motor Power (Normal Duty): 250 kW / 400 HP
• Motor Power (Heavy Duty): 200 kW / 300 HP
• Input Voltage: 380…480 V AC
• Protection Rating: IP00 (Open Type)
• Mounting: Vertical wall mount (± 10°)
• Communication: EtherNet/IP, Modbus TCP, Modbus Serial
• Enclosure Type: Compact design for panel integration
