Description

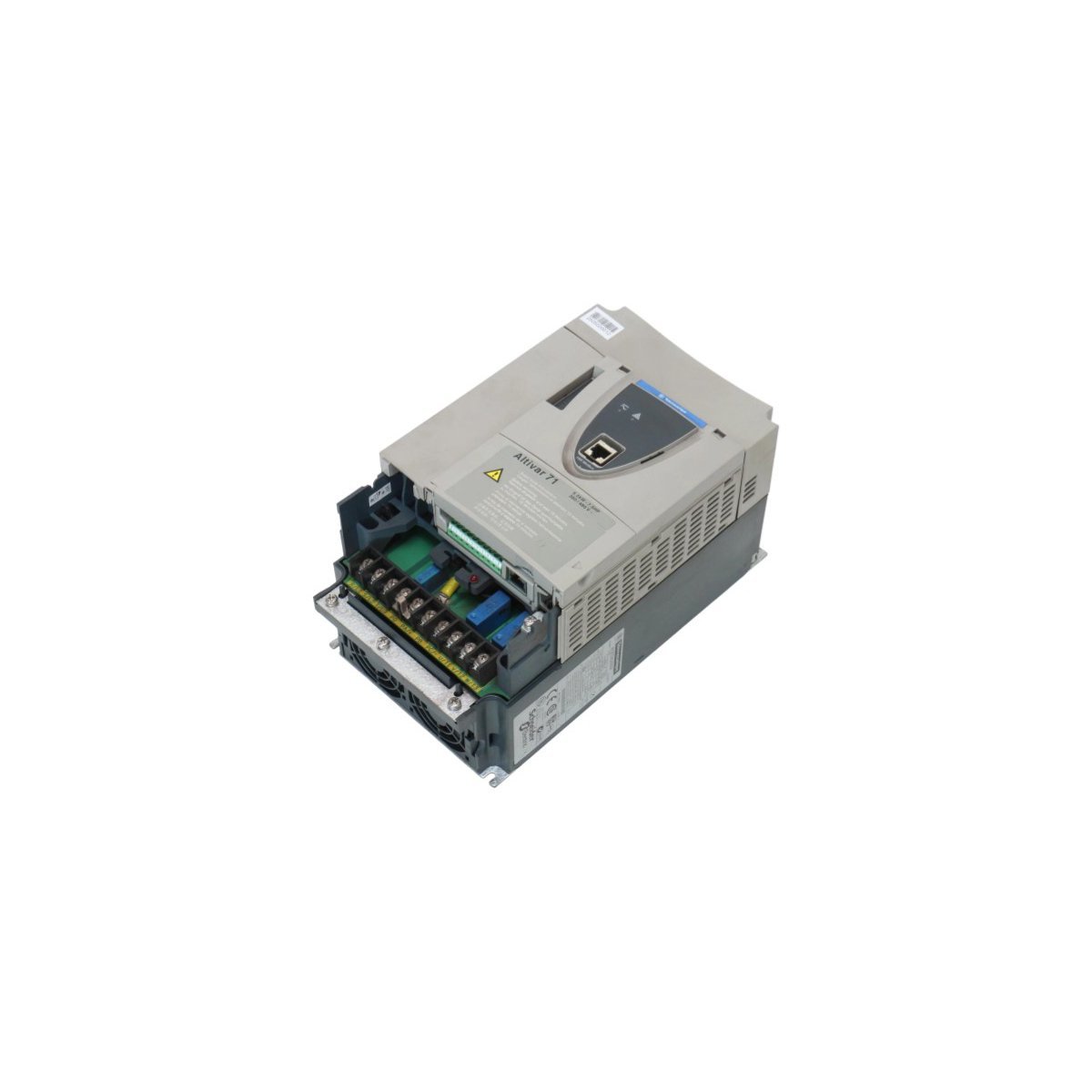

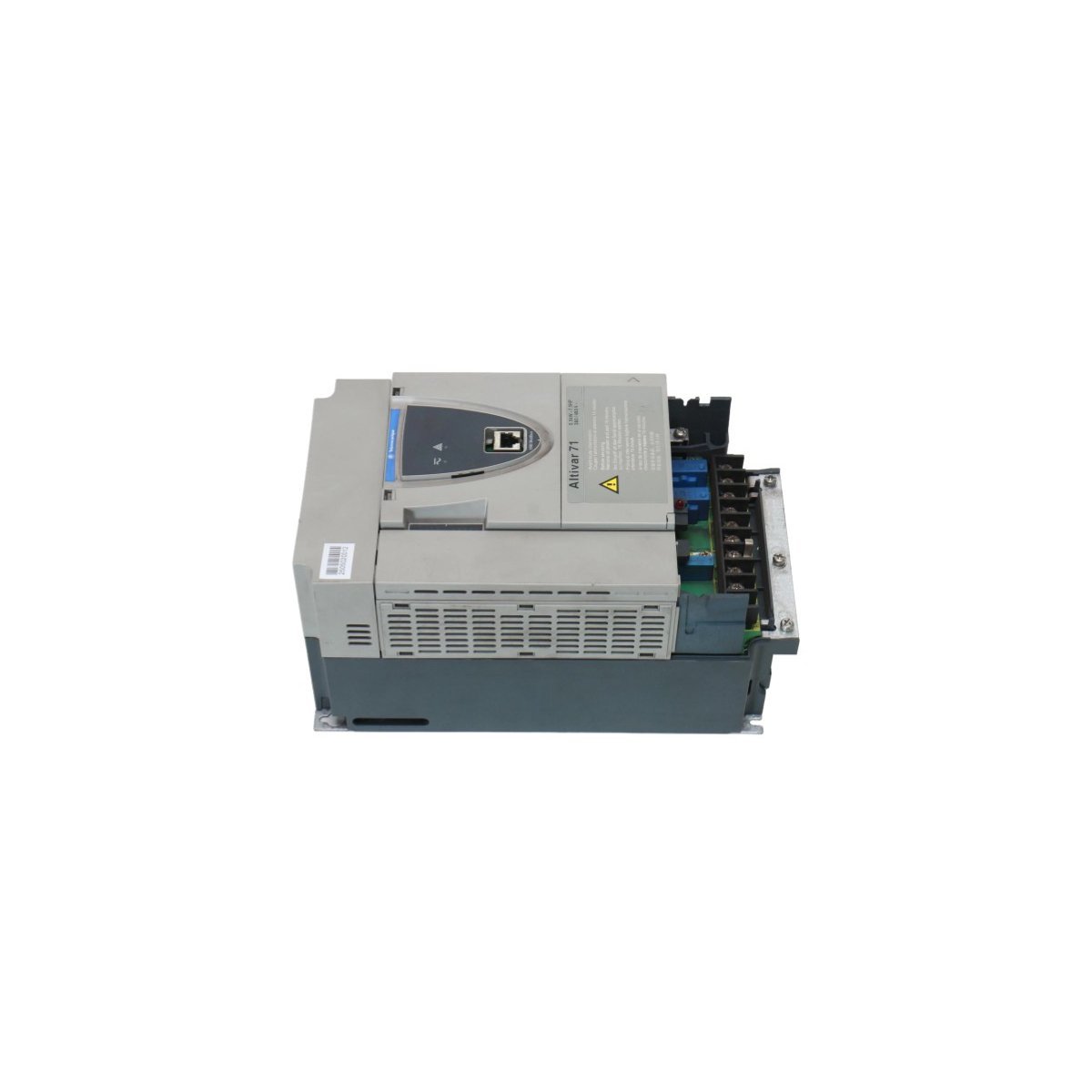

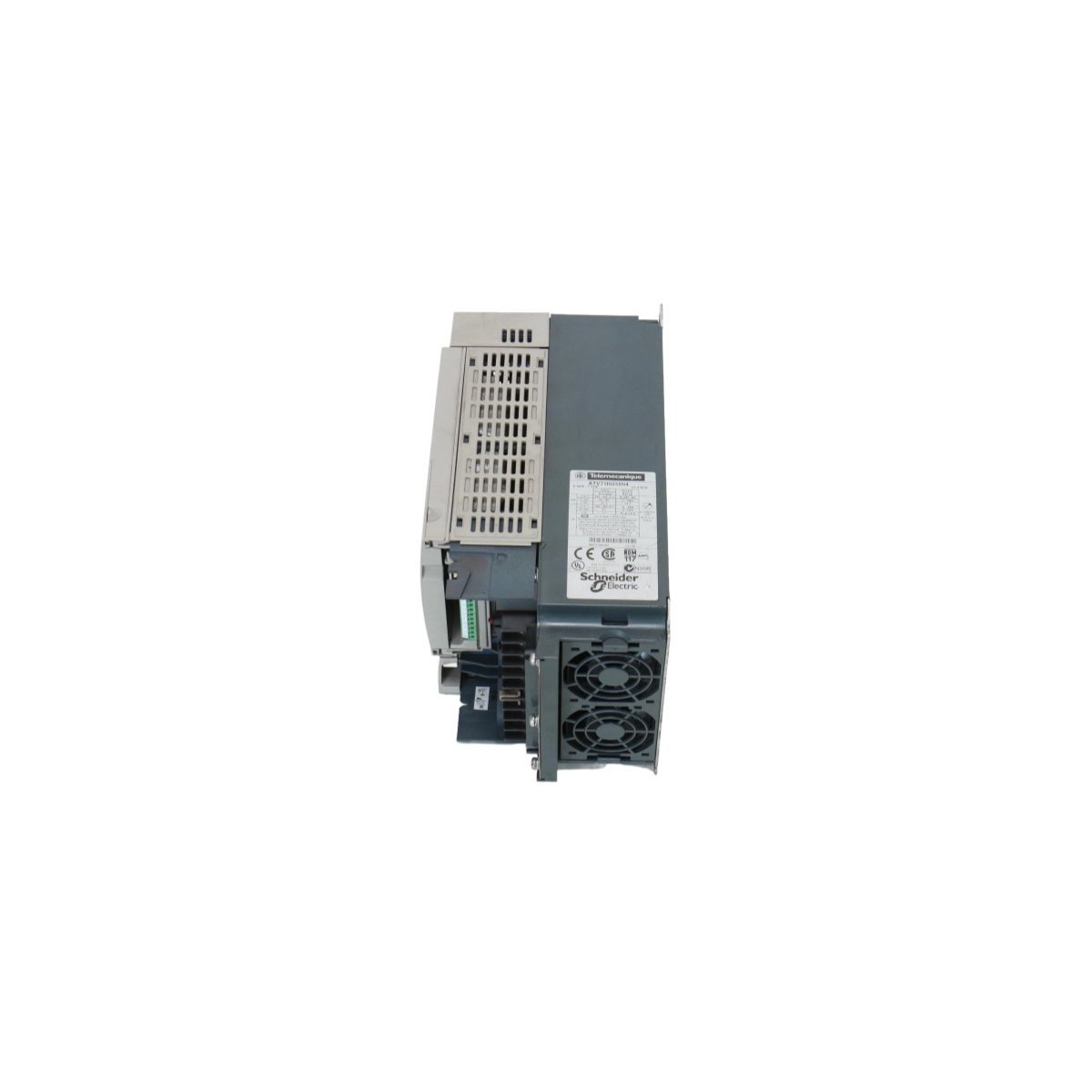

The Schneider Electric ATV71HU55N4 provides high-performance frequency conversion for complex industrial machinery. This Altivar 71 series drive delivers 5.5 kW (7.5 HP) of power to three-phase asynchronous motors. It excels in heavy-duty applications requiring high torque and precise speed regulation. Furthermore, the drive handles constant torque loads effectively in diverse environmental conditions. Engineers specifically designed this unit to manage advanced automation tasks within modern industrial frameworks.

Advanced Control and Protection Features

This drive incorporates vector control technology for superior motor performance. Consequently, it maintains consistent speed even during significant load fluctuations. The integrated thermal management system prevents overheating during continuous operation. Additionally, the unit features built-in protection against short circuits and phase loss. These safety mechanisms ensure long-term reliability for both the drive and the connected motor. Real-time diagnostics allow operators to monitor system health and prevent unexpected downtime.

Connectivity and Integration

The ATV71HU55N4 supports multiple communication protocols for seamless network integration. Standard Modbus and CANopen ports facilitate rapid data exchange with control systems. Moreover, the modular design allows for optional communication cards or I/O extensions. This flexibility helps engineers customize the drive for specific machine requirements. The compact footprint optimizes enclosure space while providing substantial power output for demanding tasks.

Primary Technical Specifications

Versatile Industrial Applications

• Hoisting and material handling equipment
• Complex packaging and textile machinery
• Woodworking and metal processing tools
• High-torque pumps and industrial fans
• Process control systems via PLC integration
