Description

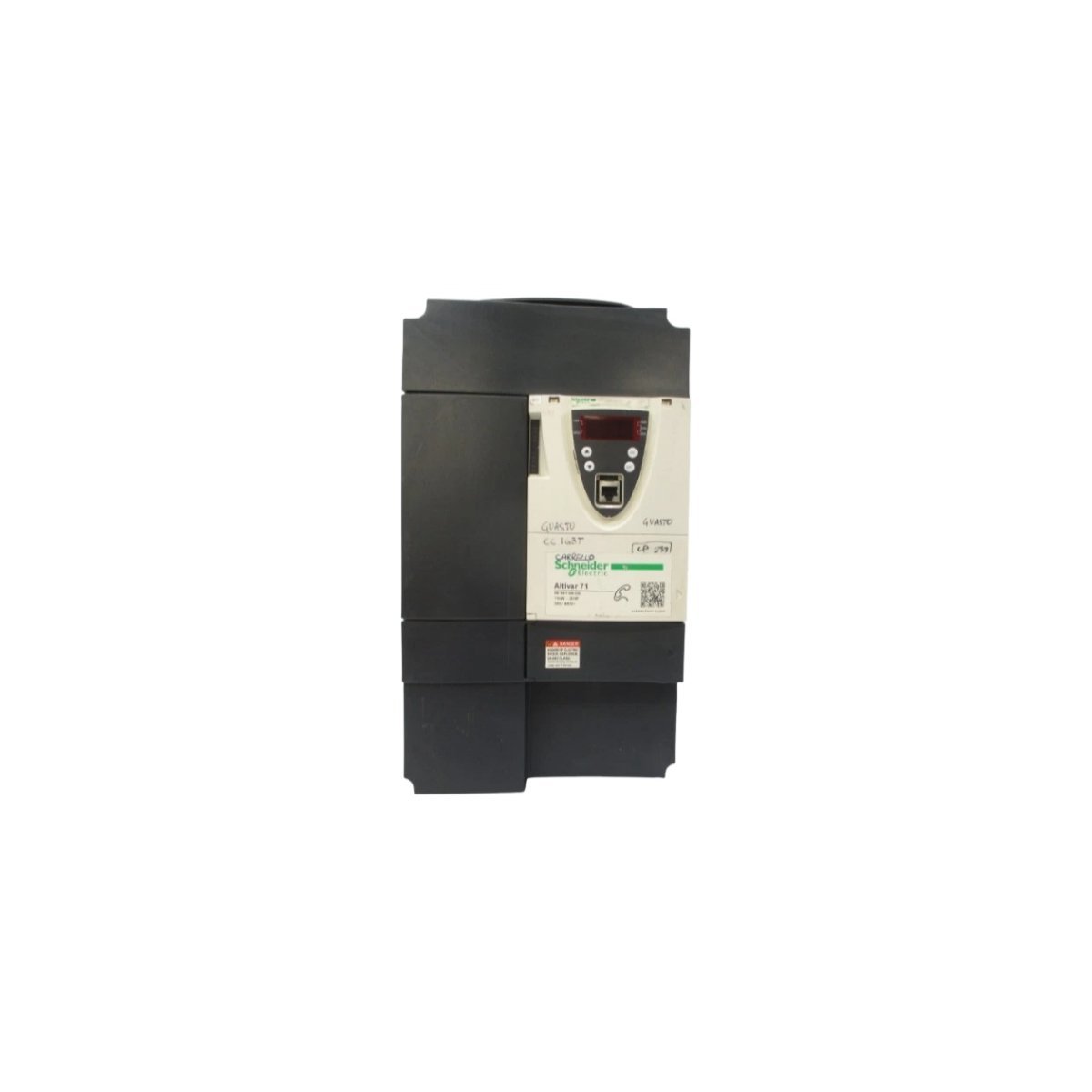

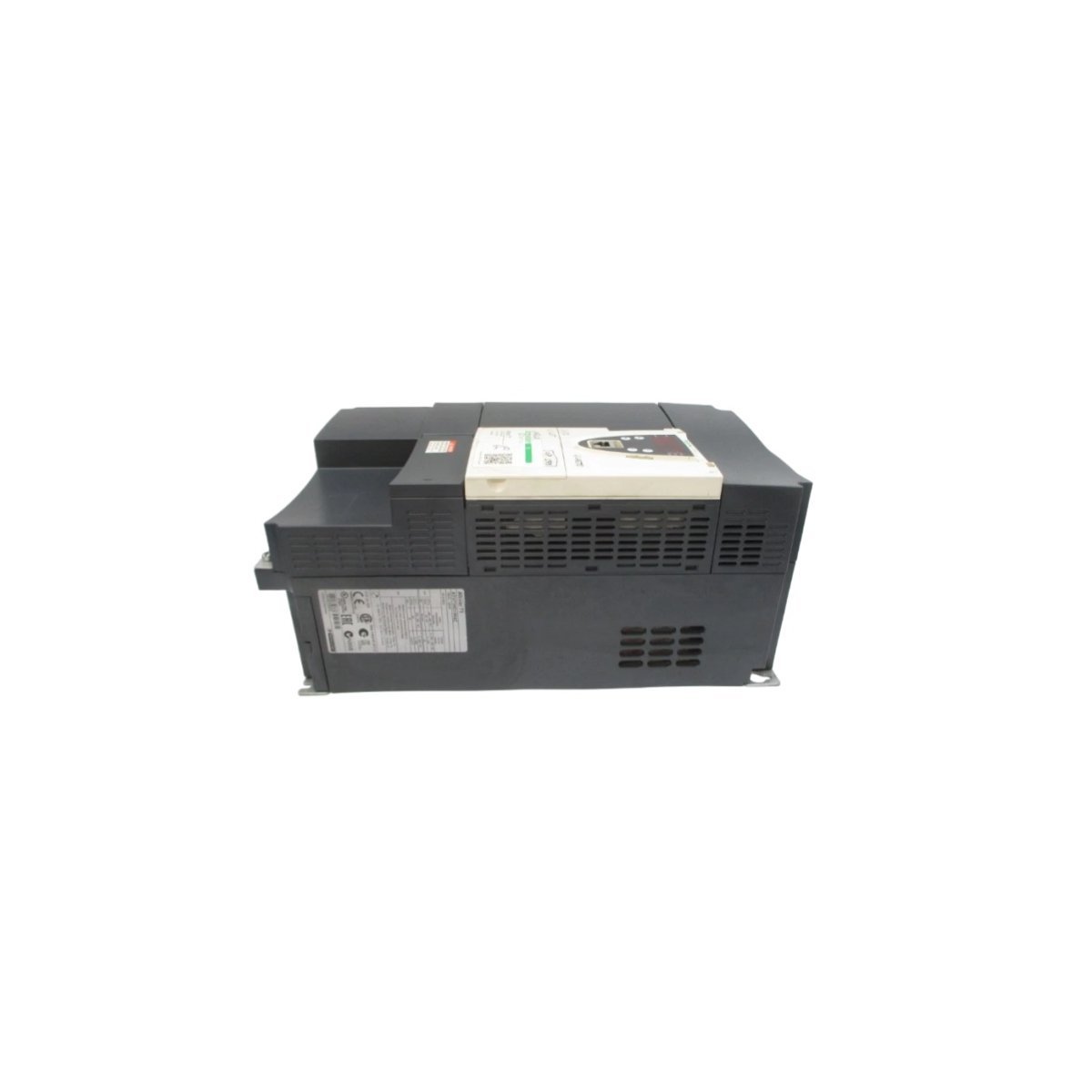

The Schneider Electric ATV71HD15N4Z provides high-performance regulation for sophisticated industrial machinery. This 15 kW (20 hp) drive belongs to the specialized Altivar 71 series. It manages three-phase asynchronous and synchronous motors with extreme precision. The unit excels in applications requiring high torque and dynamic response. Furthermore, its hardware design specifically targets complex automation tasks. It ensures stable motor operation across a wide voltage range of 380V to 480V. This drive serves as a critical component for optimizing machine efficiency and mechanical longevity.

Technical Specifications

• Brand: Schneider Electric
• Model Number: ATV71HD15N4Z
• Product Type: Variable Speed Drive (VFD)
• Motor Power: 15 kW / 20 hp
• Network Voltage: 380V to 480V AC (Three-Phase)
• Line Current: 48A at 380V / 39A at 480V
• Apparent Power: 31.6 kVA at 380V
• EMC Filter: Class A integrated filter

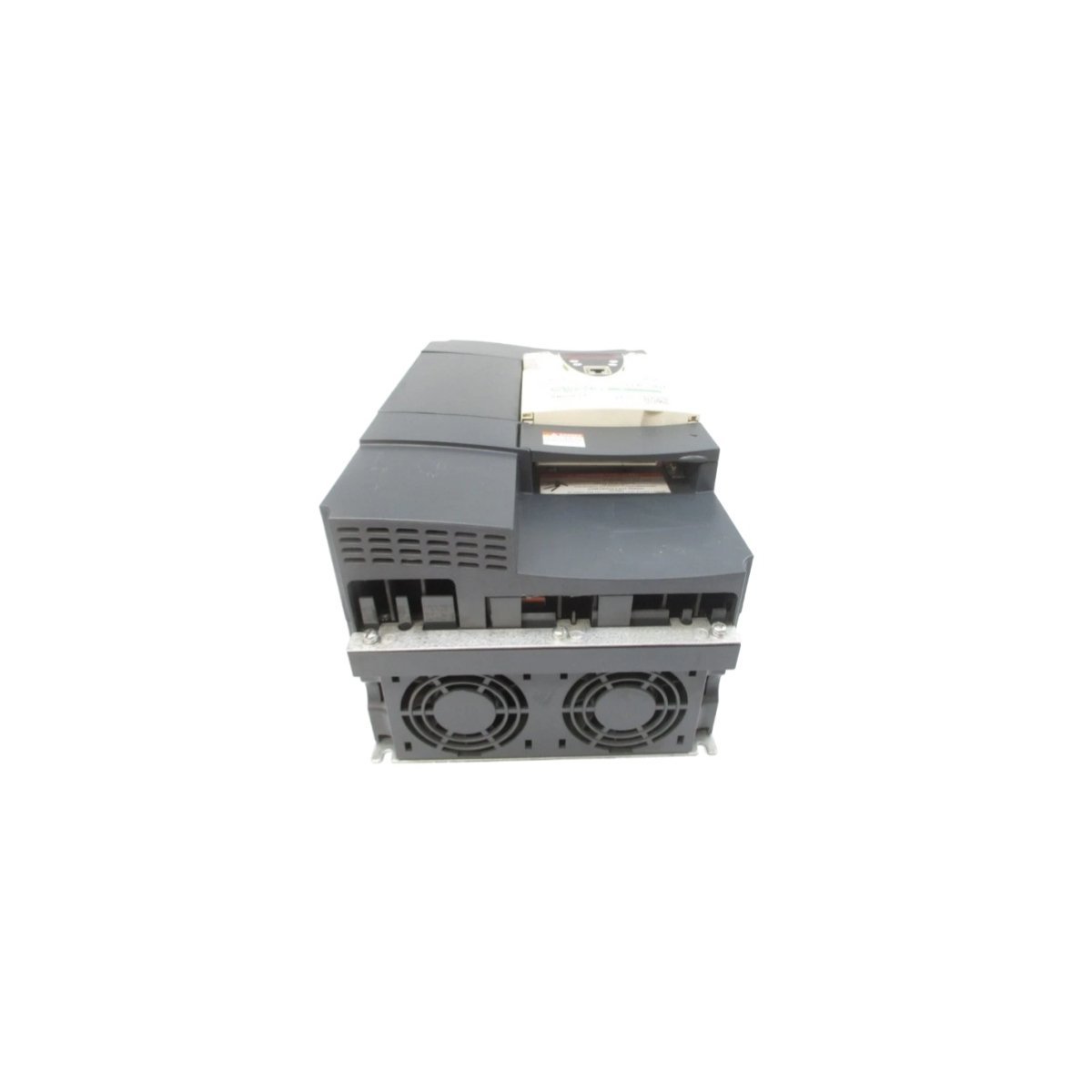

• Cooling: Integrated fan system
• Noise Level: 60.2 dB
• Terminal Type: No graphic display terminal included
• Weight: 3.2 kg

Electrical Characteristics and Installation

This Altivar 71 drive handles demanding power requirements in heavy-duty industrial settings. The internal circuitry tolerates significant input voltage fluctuations without interrupting output. Additionally, the unit supports versatile cabling configurations for remote motor placement. It accommodates shielded motor cables up to 50 meters in length. For unshielded installations, the drive supports distances reaching 100 meters. These capabilities provide engineers with greater flexibility during factory floor planning. Integrated protection features also defend the motor against short circuits and thermal overloads.

Industrial Integration and Applications

The ATV71HD15N4Z integrates seamlessly into centralized automation architectures via Modbus or CANopen protocols. Because this version omits the graphic terminal, users typically configure it via PC software. This approach streamlines the setup for serial machine production. The drive effectively manages lifting, handling, and high-torque process applications. It minimizes energy waste by adjusting motor speed to match real-time demand. Moreover, the compact frame allows for efficient mounting in high-density electrical cabinets. This model represents a reliable solution for modern, high-power industrial control systems.
