Description

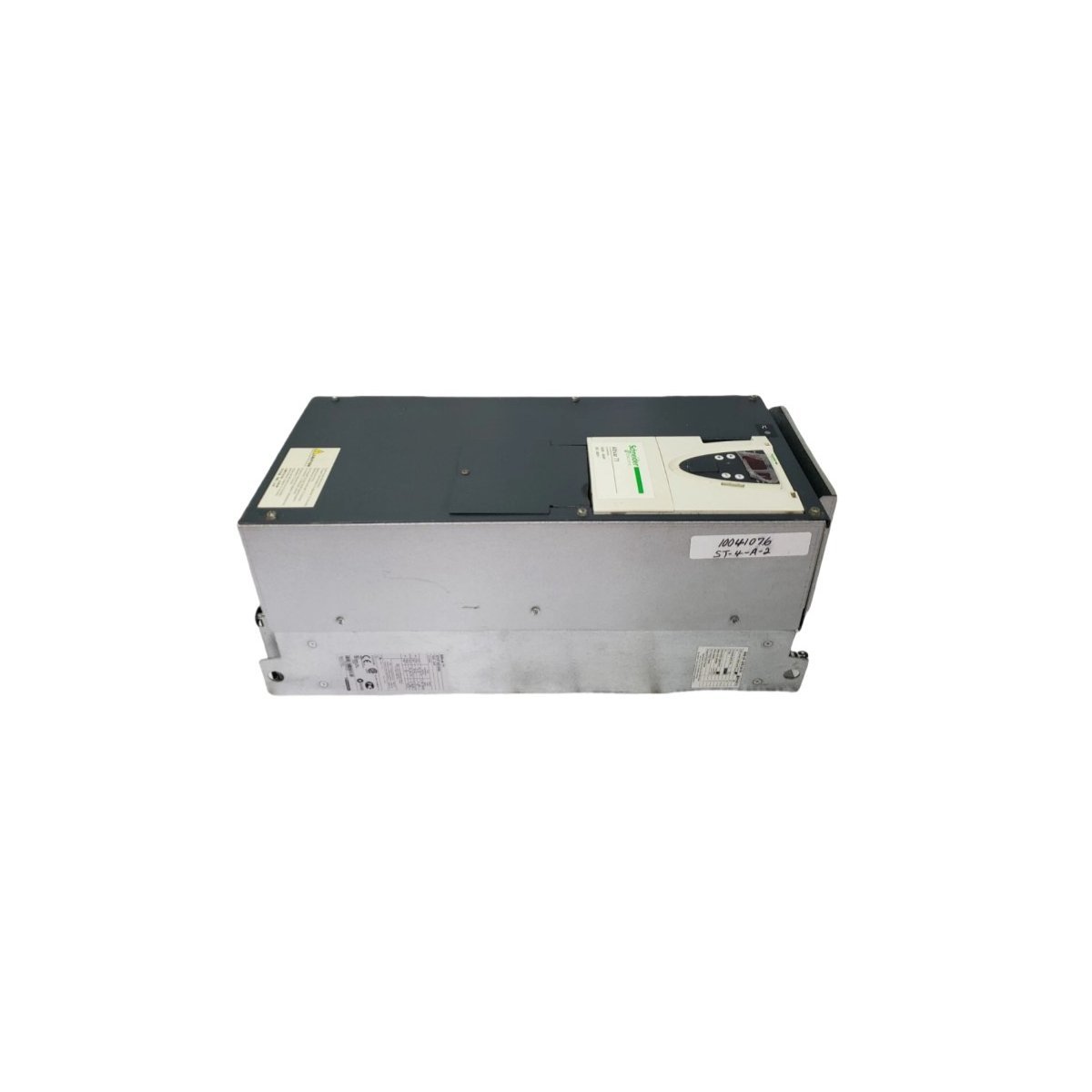

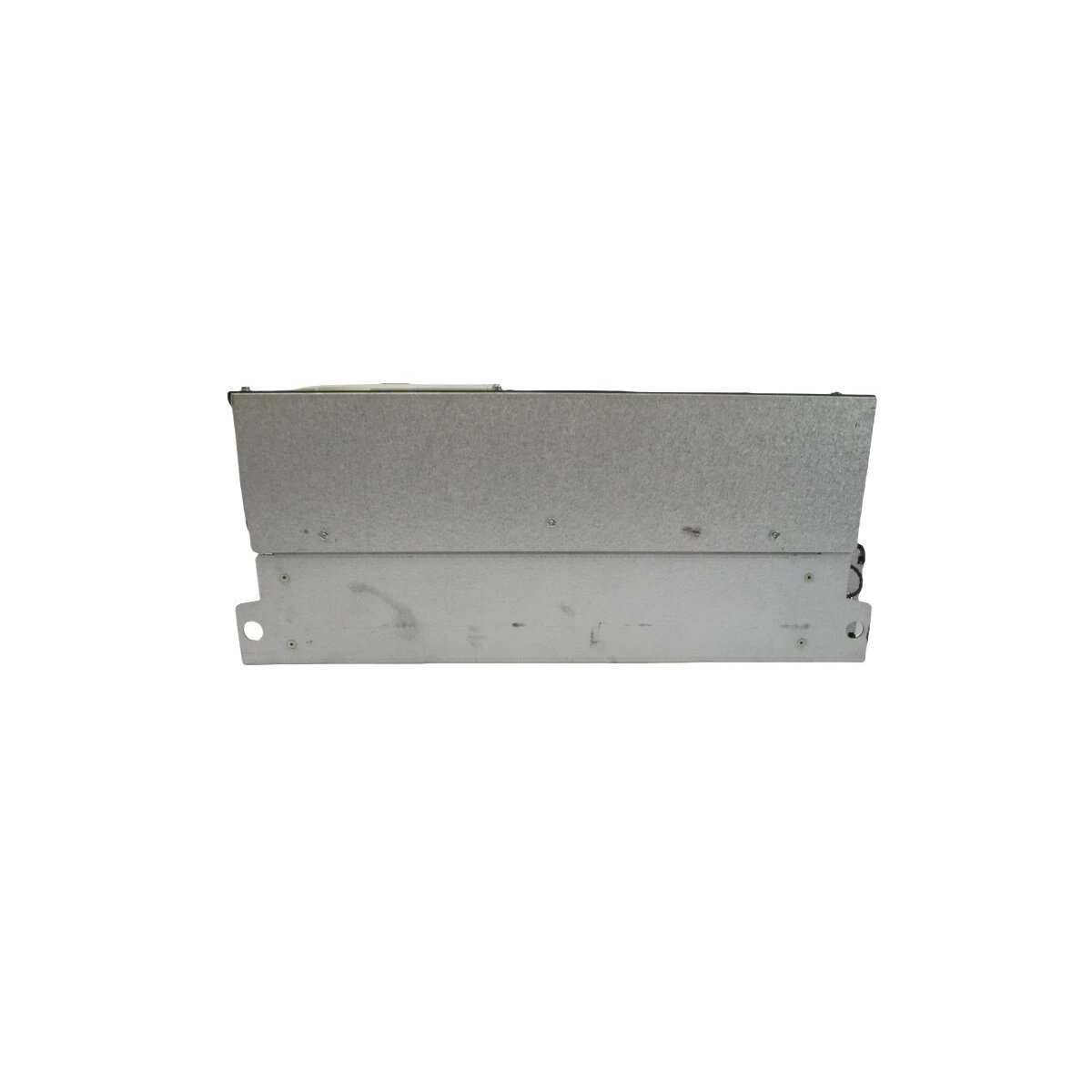

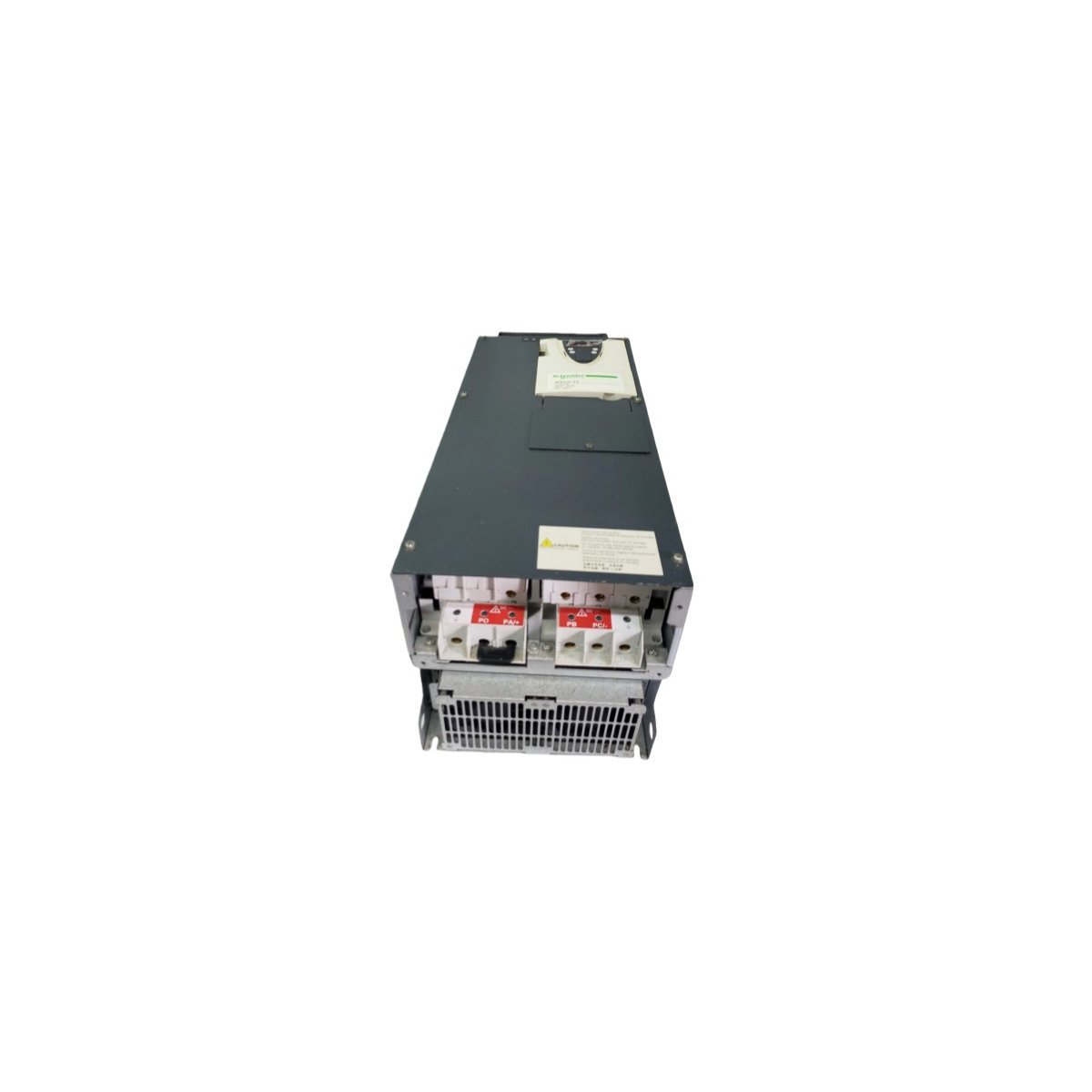

The Schneider Electric ATV71HD11N4Z383 is a high-performance variable speed drive from the Altivar 71 series. This 11kW unit excels in controlling permanent magnet synchronous motors within complex industrial architectures. It handles demanding 380-480V three-phase power systems with exceptional precision. Because it manages high-power machinery efficiently, it serves as a critical component for energy-sensitive operations. The drive maintains steady performance even when facing fluctuating motor loads.

Technical Specifications

Engineering Characteristics

This Altivar 71 variant utilizes specialized control algorithms for synchronous motor speed feedback. Consequently, the drive provides extremely accurate regulation across the entire speed spectrum. An integrated heat sink manages thermal dissipation to ensure long-term hardware reliability. Furthermore, the standard EMC filter minimizes electrical noise in sensitive industrial environments. This version ships without a graphic terminal but supports optional display modules for deep configuration.

Connectivity and Protection

The ATV71HD11N4Z383 offers flexible wiring options for diverse factory layouts. It supports shielded cable runs up to 50 meters for superior signal integrity. Alternatively, users can implement unshielded cables for distances reaching 100 meters. The drive also includes comprehensive safety protocols to prevent operational faults. These protective functions safeguard both the internal circuitry and the connected motor. This robust design significantly reduces maintenance overhead and prevents unexpected production downtime.
