Description

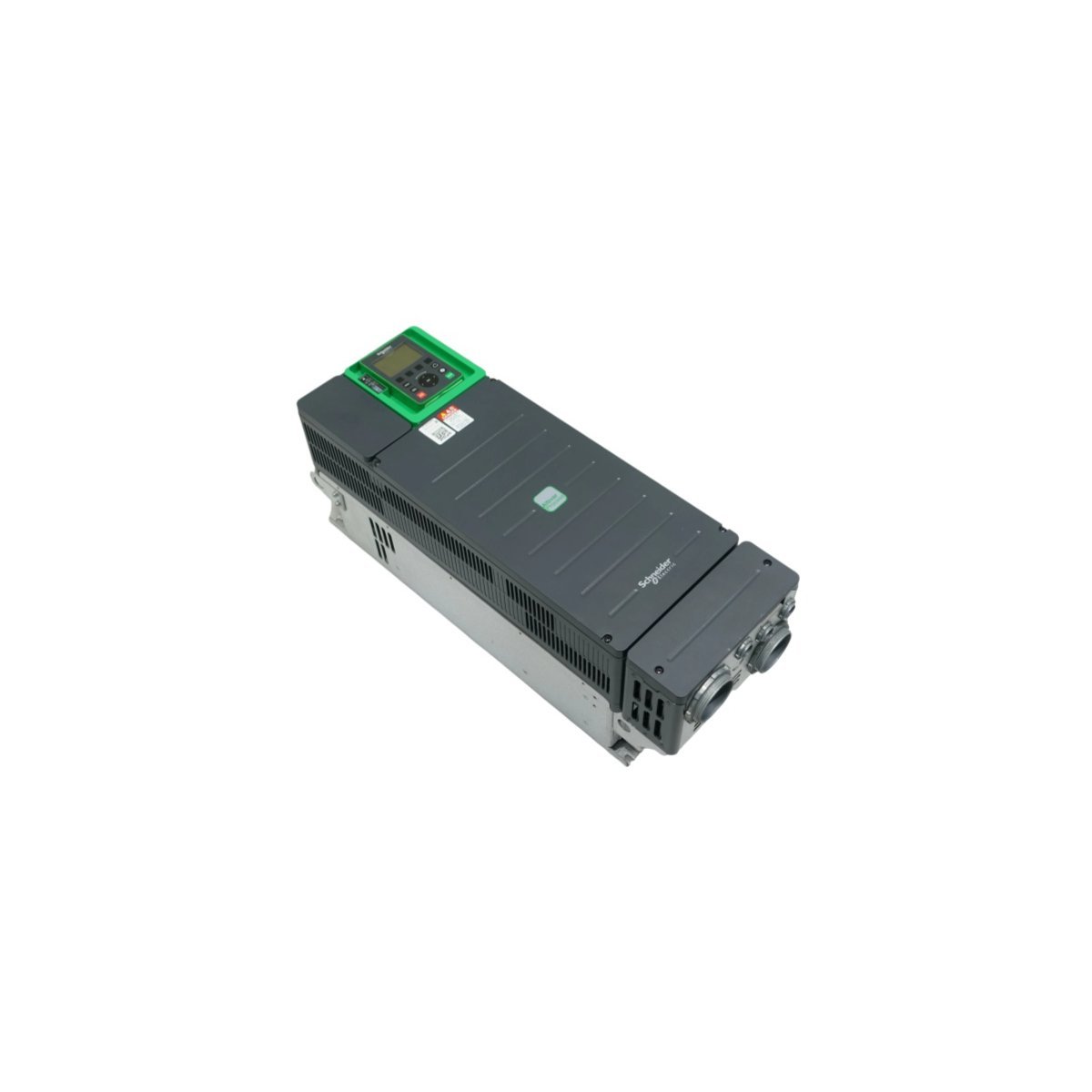

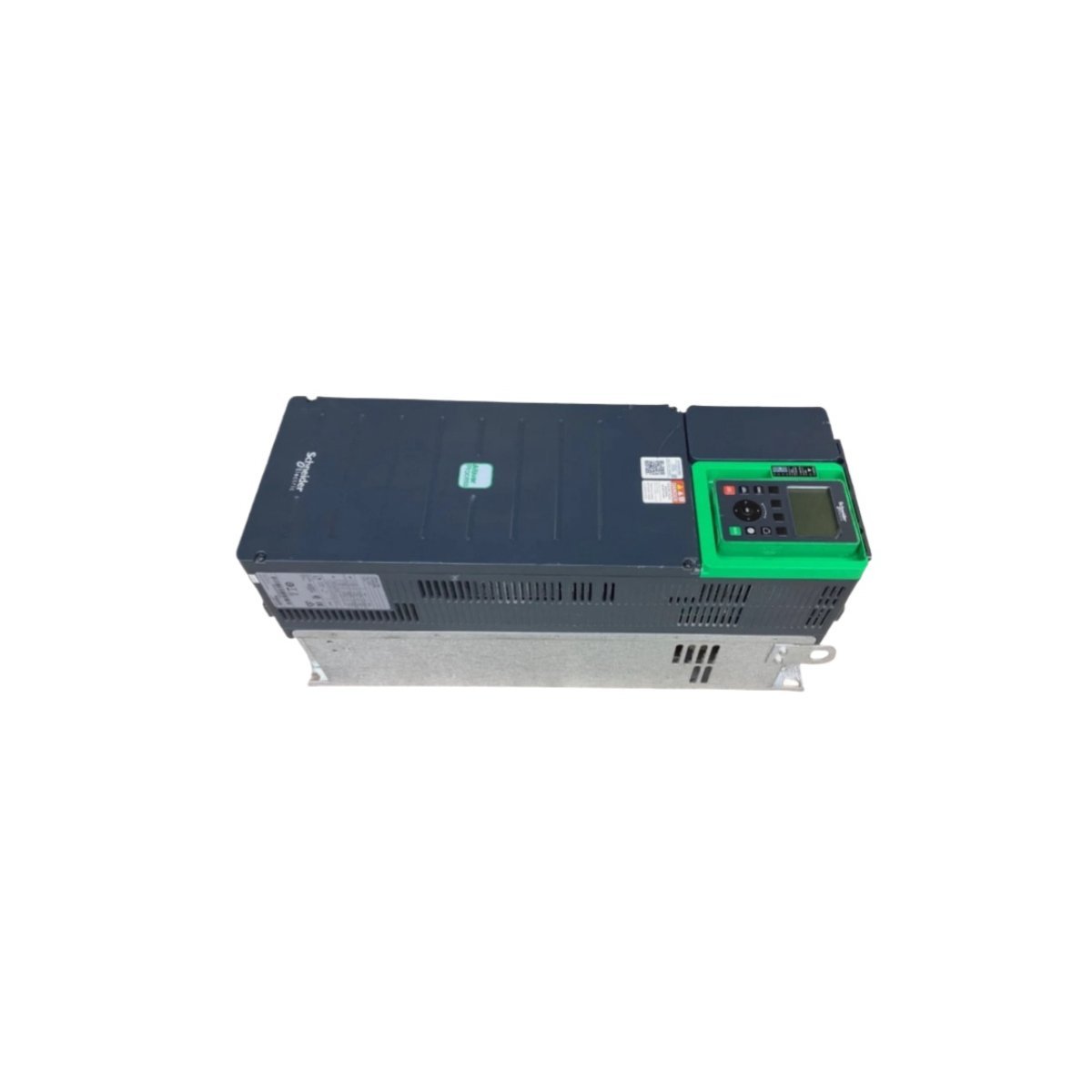

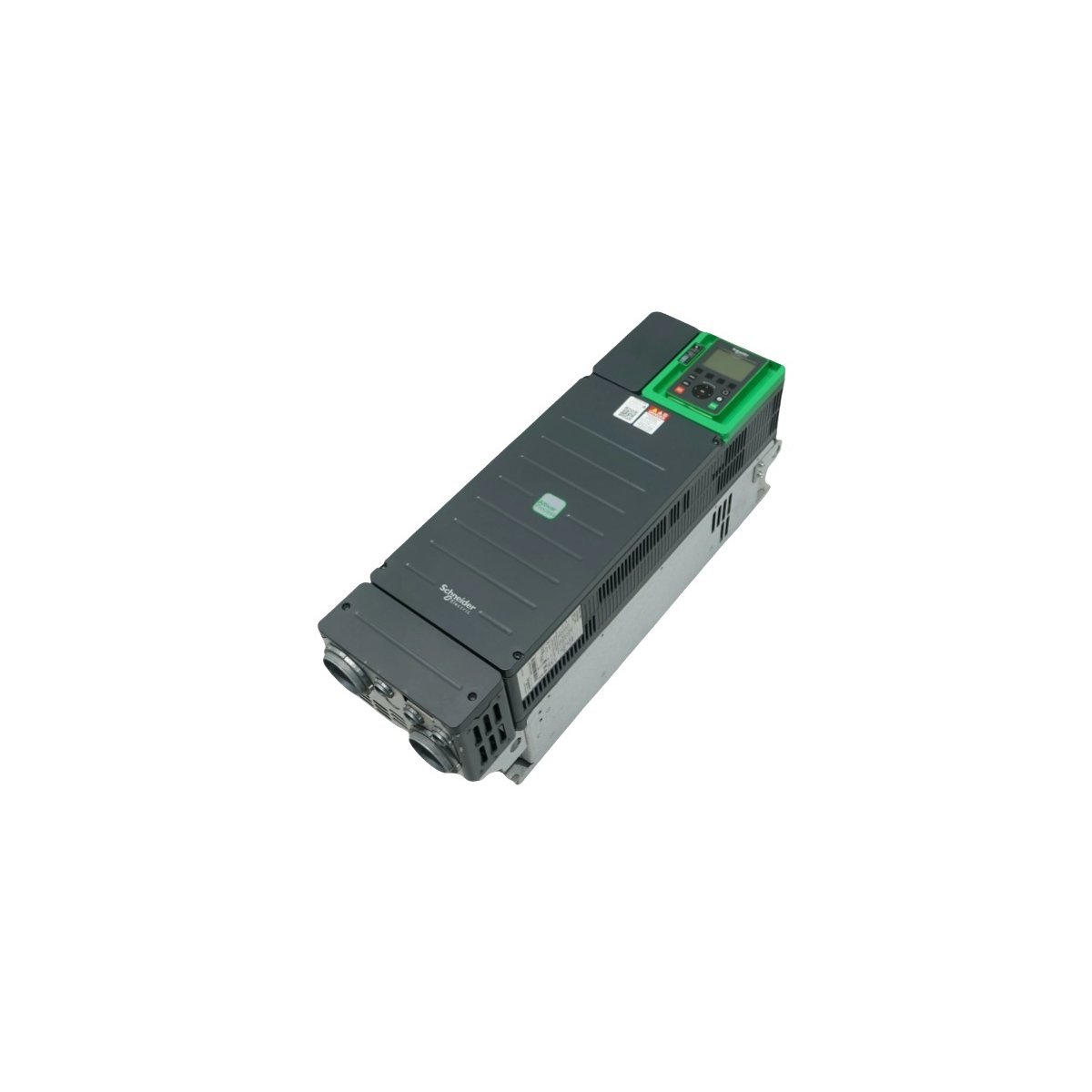

The Schneider Electric ATV630D45N4 belongs to the advanced Altivar Process 600 series. This variable speed drive optimizes motor performance in demanding fluid management applications. It delivers precise control for both asynchronous and synchronous motor types. Because it supports normal duty power ratings up to 45kW, it handles heavy-duty industrial tasks effectively. The unit promotes significant operational savings through improved asset management and energy efficiency.

Technical Specifications

Performance Characteristics

This frequency converter introduces an intelligent “Stop and Go” mechanism. Consequently, the drive reduces energy consumption by up to 30% during idle phases. It provides various motor control profiles to suit specific load requirements. These include optimized torque modes and 16 different preset speeds. Furthermore, the integrated safety functions protect equipment and personnel during operation. The drive also helps minimize total cost of ownership through embedded power monitoring tools.

Connectivity and Integration

The ATV630D45N4 features three standard RJ45 ports for seamless network integration. It supports Modbus and Ethernet protocols directly out of the box. Meanwhile, users can expand communication via optional modules for Profinet, Profibus, or CANopen. This flexibility allows the drive to fit into any modern PLC architecture. The vertical wall-mount design also simplifies installation within standard electrical cabinets.

Target Applications

The drive excels in water treatment, wastewater management, and mining sectors. It regulates pumps, fans, and mixers with high reliability. Additionally, the food and beverage industry utilizes this unit for energy-intensive processing lines. Since it carries a rugged IP21 rating, it performs consistently in diverse industrial climates. Its robust design ensures continuous operation even in the most challenging process environments.
