Description

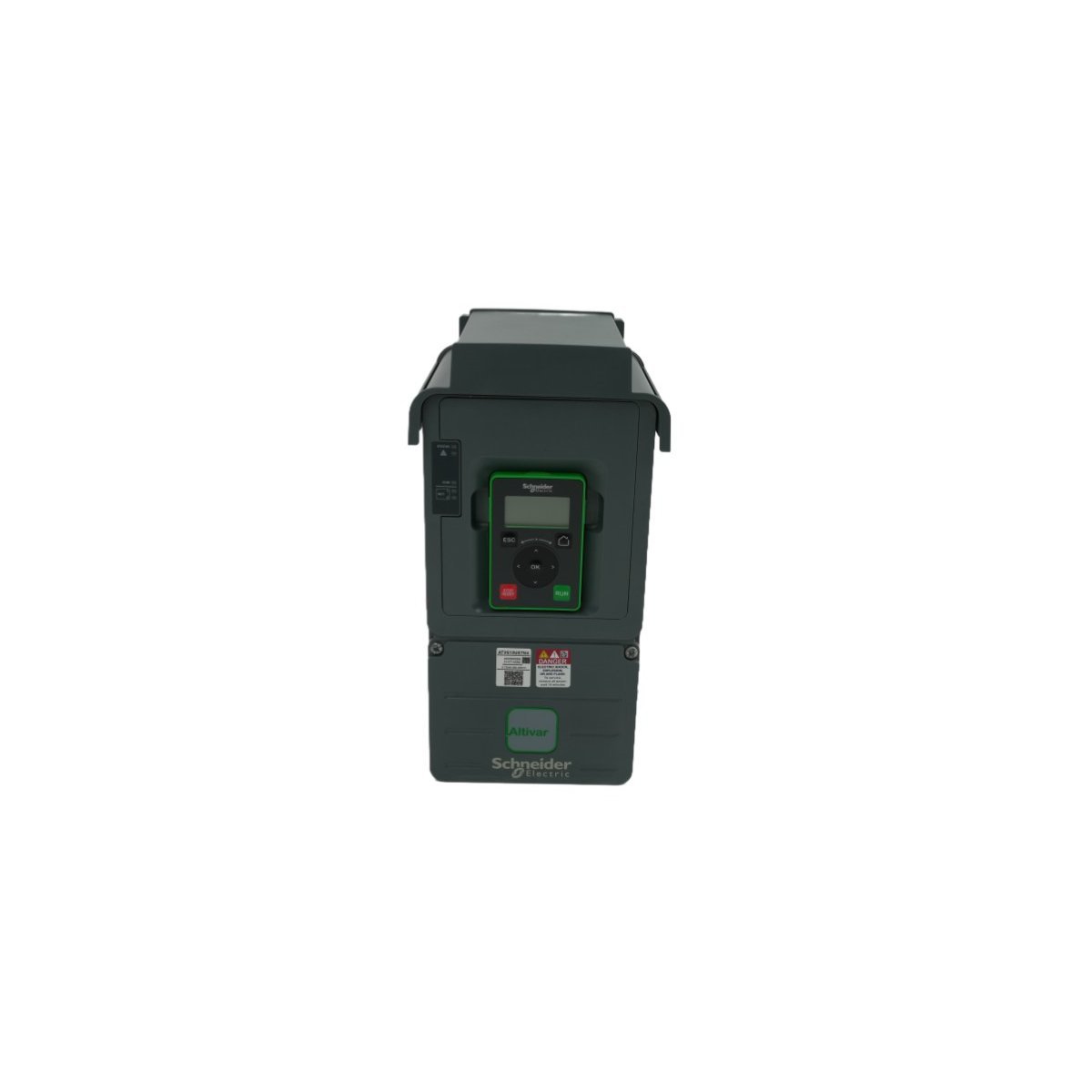

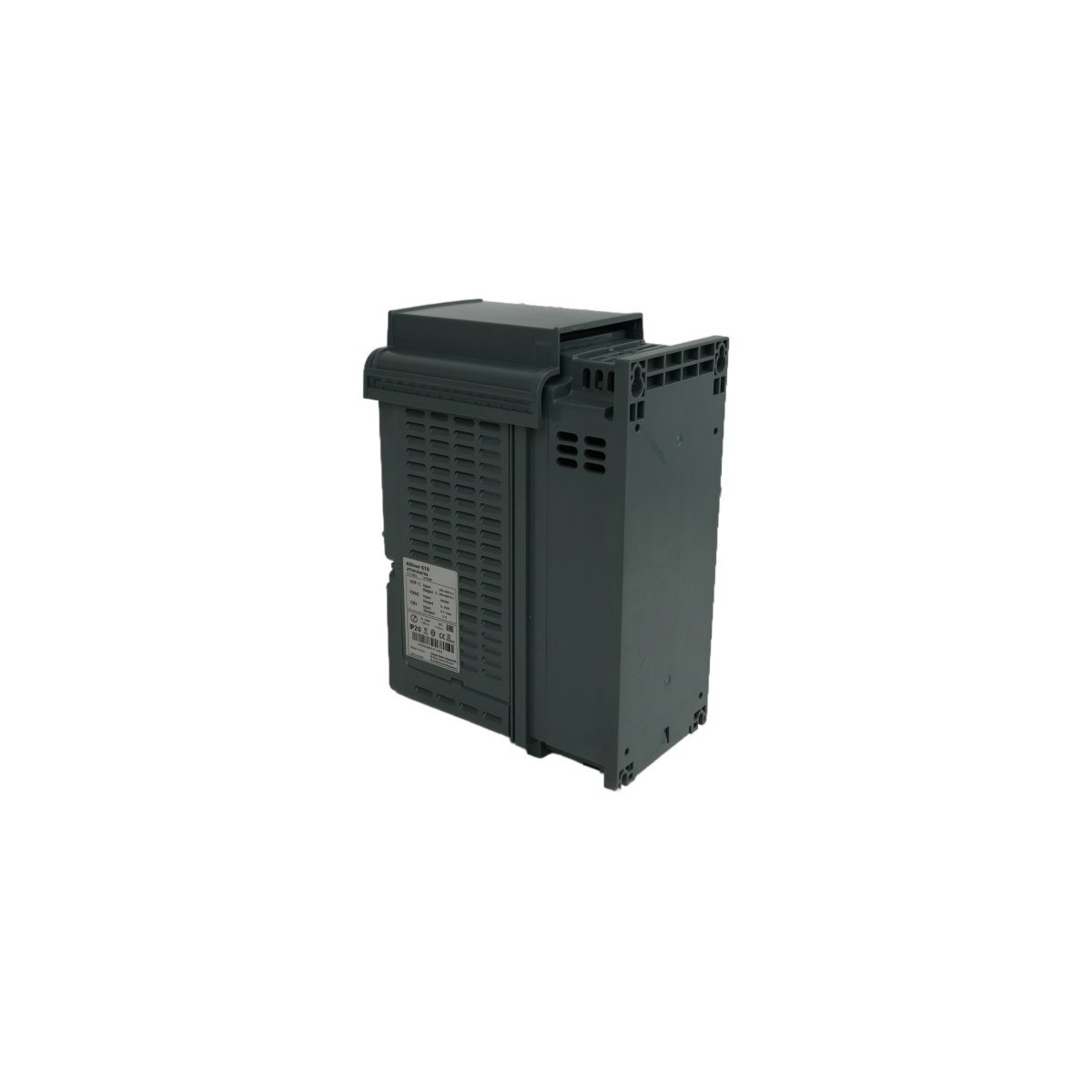

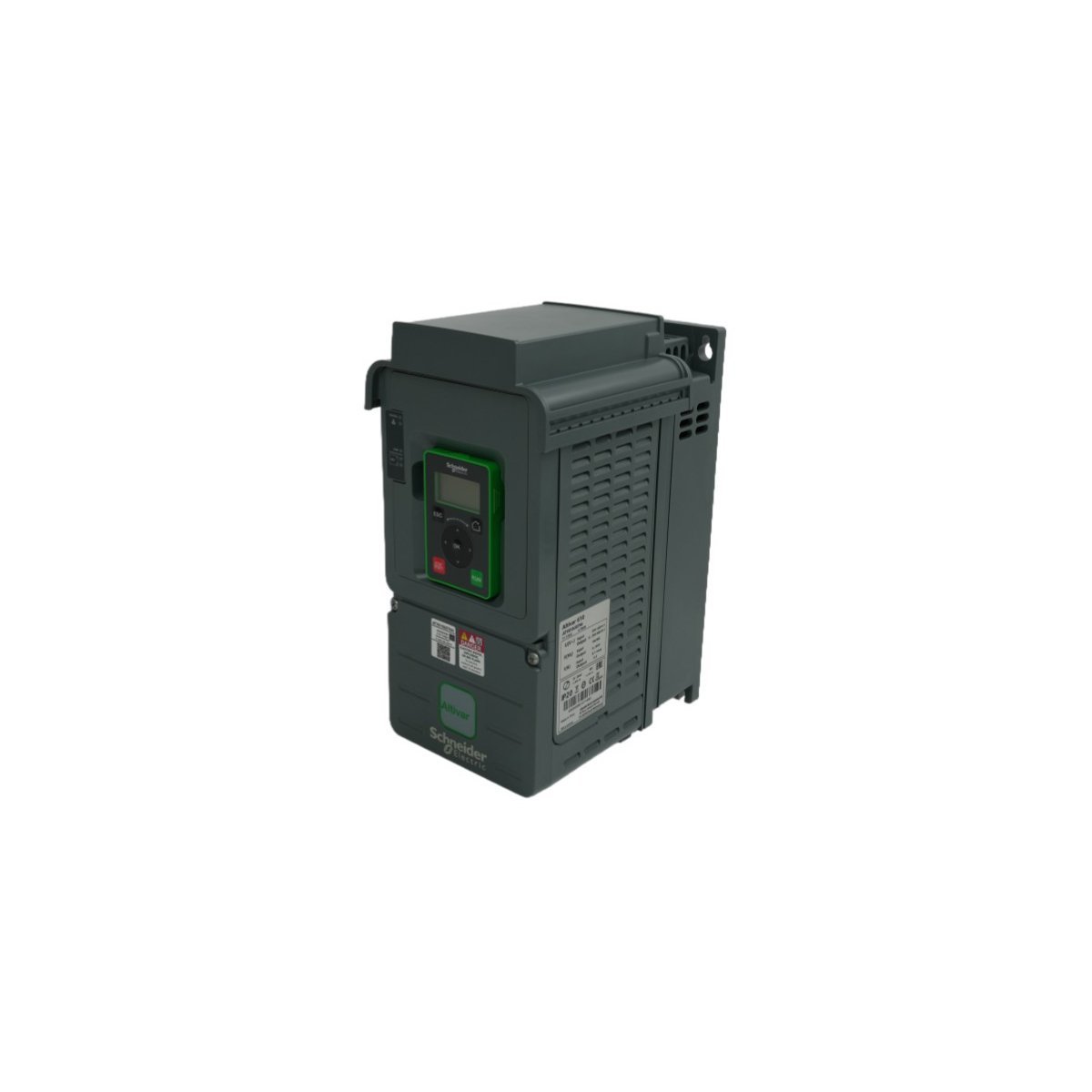

The Schneider Electric ATV610C11N4 is a robust frequency inverter designed specifically for three-phase asynchronous motor control. As part of the Altivar Easy 610 range, this 1.1 kW drive provides an ideal balance between essential functionality and cost-efficiency. It operates reliably within a voltage range of 380V to 460V AC to meet global industrial standards.

Enhanced Engineering and Electromagnetic Compatibility

Schneider Electric prioritizes system stability by integrating high-quality radio interference filters into the drive architecture. These components ensure compliance with IEC/EN 61800-3 standards for electromagnetic compatibility. Furthermore, the unit features a plug-and-play configuration. This design allows technicians to utilize factory presets for immediate commissioning in standard applications.

The hardware construction focuses on durability during continuous operation. Advanced thermal management protocols protect internal electronics while maintaining a compact physical footprint. These features ensure the drive performs consistently even under moderate overload conditions common in industrial settings.

Primary Industrial Applications

The ATV610C11N4 excels in process-oriented environments such as water and wastewater management. It provides precise control for pumps, fans, and compressors in building management systems. Additionally, the drive supports basic industrial machinery where reliable speed regulation and motor protection are paramount. By choosing this model, operators benefit from a simplified maintenance schedule and enhanced system longevity.

Core Specifications and Technical Data

• Motor Power: 1.1 kW (1.5 HP)
• Input Voltage: 380…460 V AC, 50/60 Hz
• Communication Protocol: Modbus RTU as standard
• Protection Rating: IP20 for cabinet installation
• Operating Temperature: -15°C to 60°C (with derating)
• Dimensions: 27.9 x 21.6 x 6.3 cm
• Shipping Weight: 1.9 kg
