Description

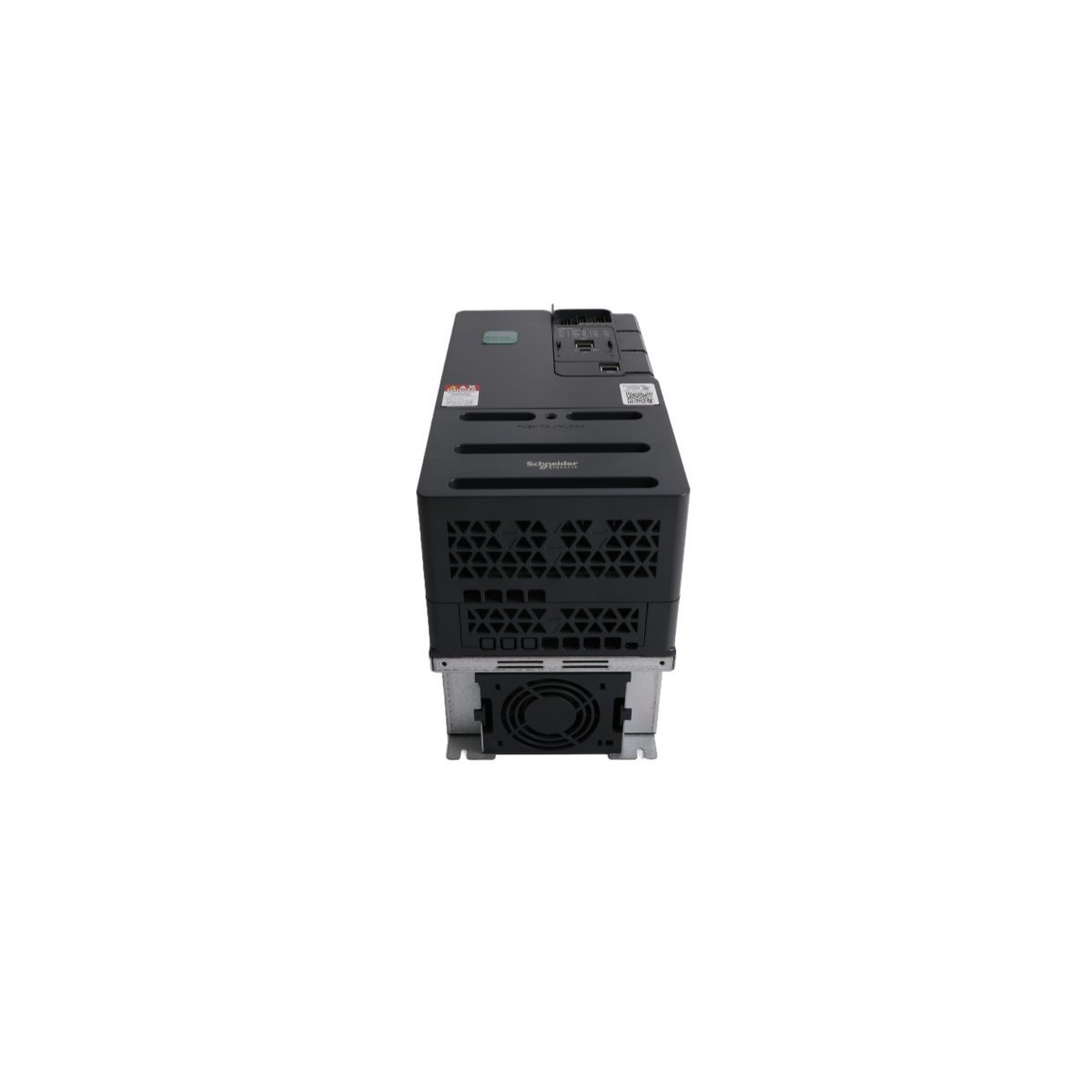

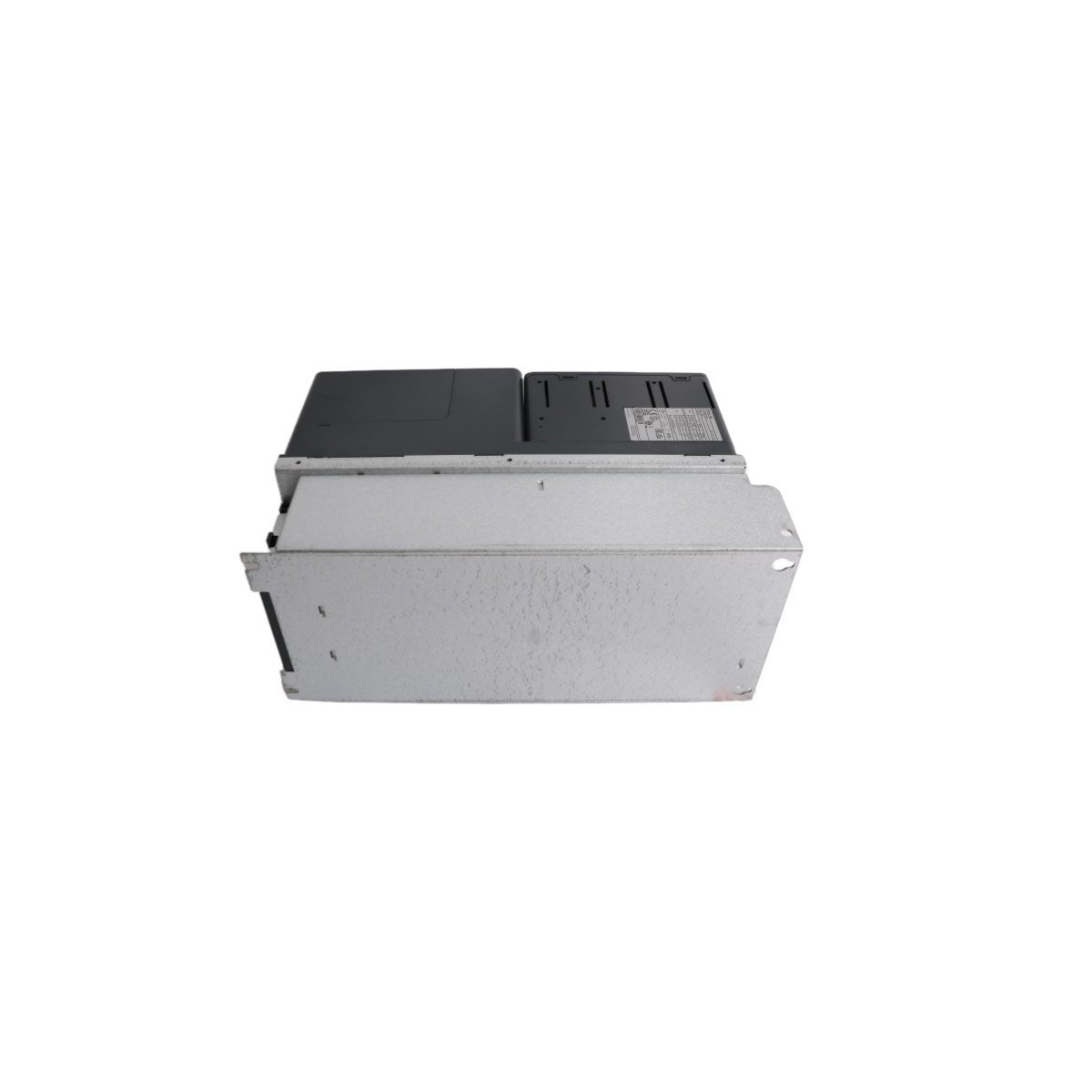

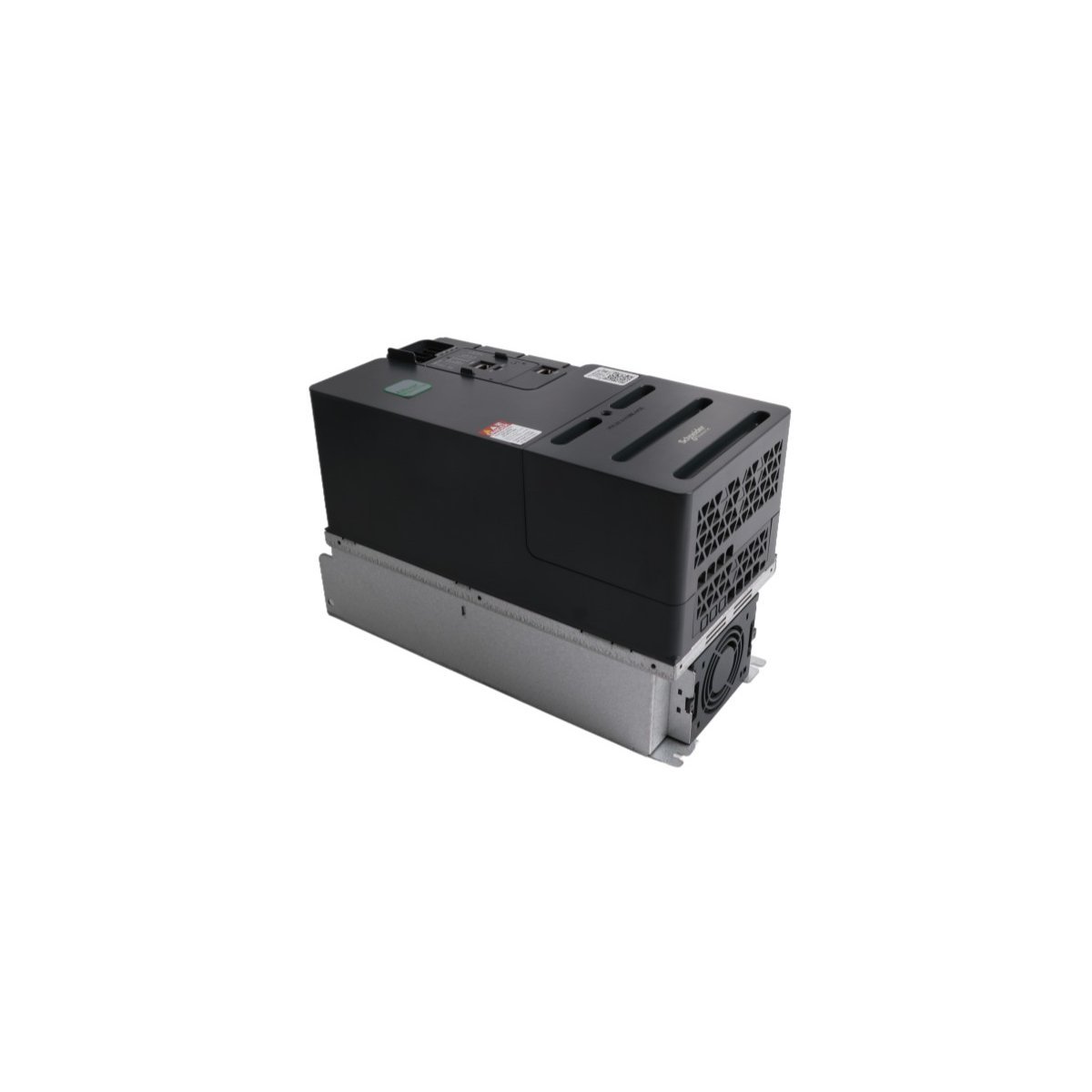

The Schneider Electric ATV340D45N4E provides superior dynamic performance for high-torque industrial machinery. This 45 kW (60 hp) drive belongs to the Altivar Machine ATV340 series. It targets heavy-duty applications requiring rapid response times and high reliability. Furthermore, the unit features embedded Ethernet connectivity for seamless integration into Industry 4.0 environments. This drive optimizes motor efficiency while managing complex motion sequences. Consequently, it serves as an ideal solution for packaging, material handling, and hoisting systems. The robust electrical design ensures stable operation under fluctuating load conditions.

Technical Specifications

• Brand: Schneider Electric
• Model Number: ATV340D45N4E
• Product Series: Altivar Machine ATV340
• Rated Power: 45 kW (Normal Duty) / 37 kW (Heavy Duty)
• Supply Voltage: 380V to 480V AC (Three-Phase)
• Continuous Output Current: 88A at 4 kHz (Normal Duty)
• Maximum Transient Current: 106A for 60 seconds
• Communication: Integrated Dual Port EtherNet/IP and Modbus TCP
• Control Profiles: Optimized Flux Vector Control for synchronous and asynchronous motors
• Safety Functions: STO (Safe Torque Off) SIL3 embedded
• Protection Rating: IP20 (Open Type)
• Origin: France

Integrated Connectivity and Real-Time Diagnostics

This Altivar Machine module excels in digitalized factory architectures. The built-in Ethernet ports allow direct data exchange with PLC controllers and SCADA systems. Additionally, the drive supports real-time monitoring of energy consumption and motor thermal status. This transparency enables predictive maintenance strategies to reduce unplanned downtime. The firmware also includes advanced anti-sway and positioning functions for specialized equipment. Moreover, engineers can configure the drive quickly using standard Schneider Electric software tools. These capabilities ensure the system remains flexible as production requirements evolve.

Industrial Durability and Efficiency

The ATV340D45N4E features a rugged construction for harsh manufacturing environments. It handles ambient temperatures up to 50°C without derating the power output. Because the drive uses intelligent thermal management, it maintains high performance in compact enclosures. The integrated EMC filter reduces electrical interference with sensitive laboratory or control equipment. Furthermore, the drive achieves significant energy savings through precise frequency regulation. This efficiency lowers the total cost of ownership over the product lifecycle. Ultimately, the French-engineered hardware delivers the precision and safety required for modern automated production lines.
