Brief Product Description

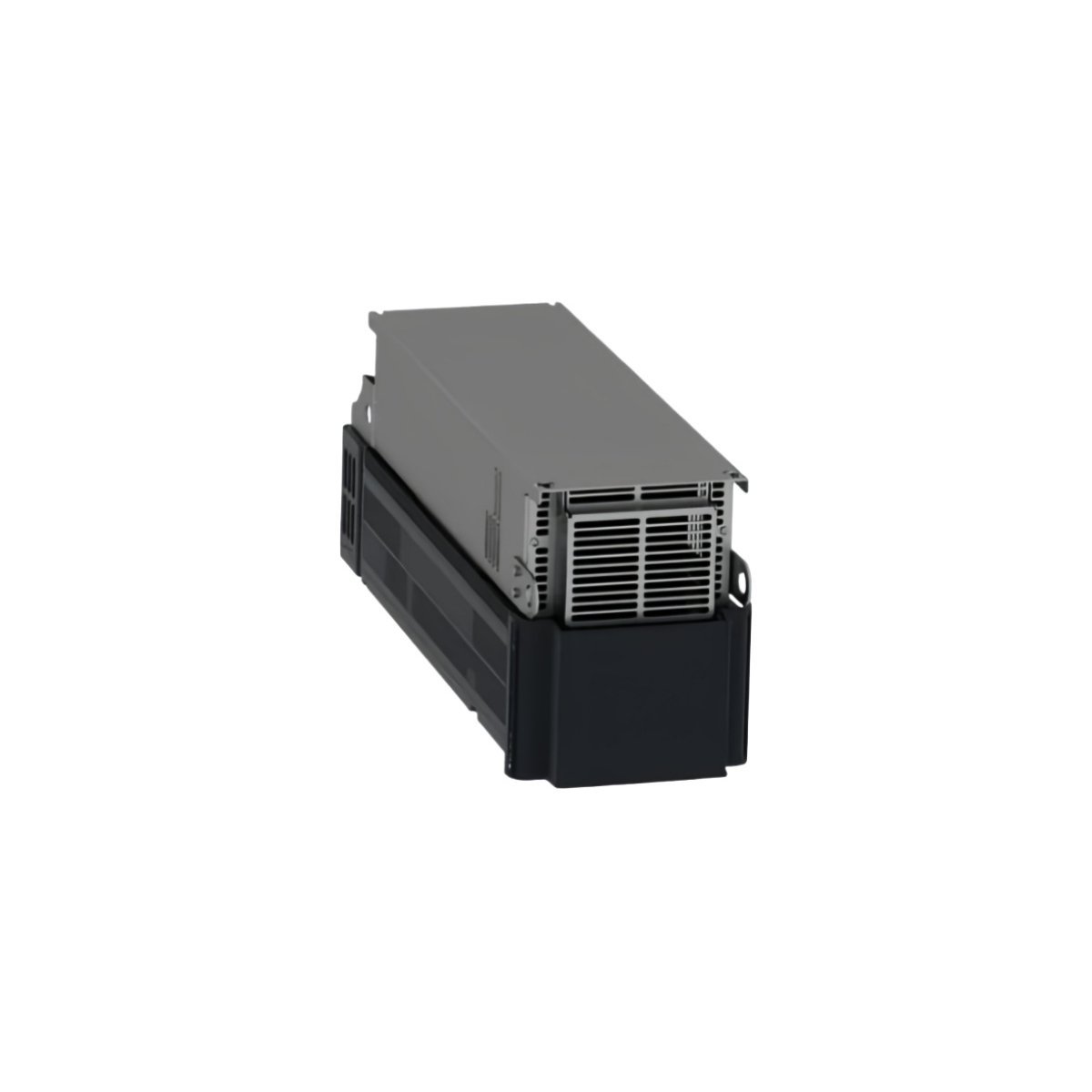

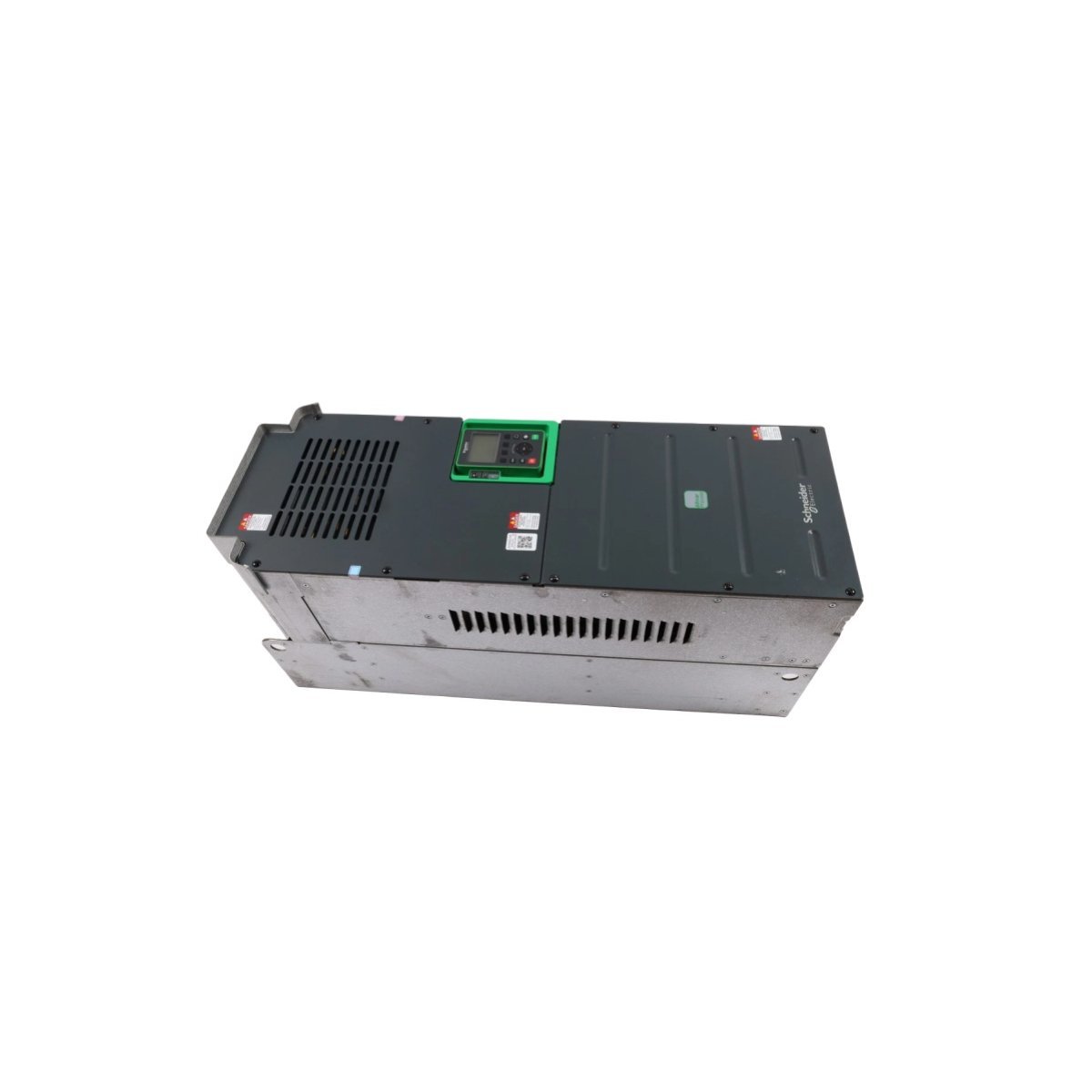

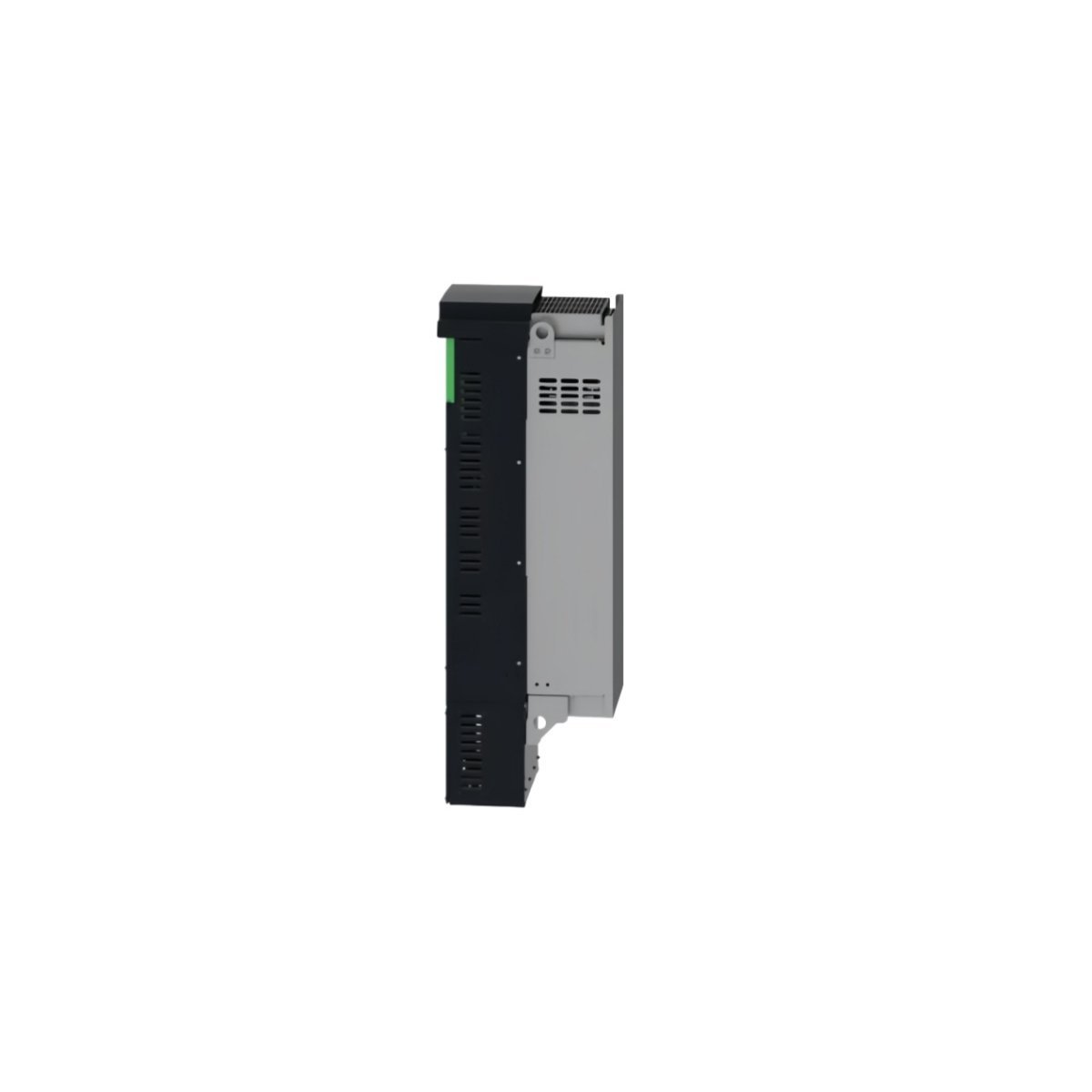

The Schneider Electric ATV630C11N4 is a high-capacity 110kW variable speed drive engineered for the Altivar Process ATV600 range.³ It optimizes motor performance and energy efficiency in complex fluid management and industrial processing applications.⁴

Advanced Industrial Motor Control and Energy Optimization

The Schneider Electric ATV630C11N4 serves as a sophisticated motor management solution within the Altivar Process ATV600 ecosystem. This variable speed drive (VSD) specifically targets industrial fluid applications, providing precise regulation for both asynchronous and synchronous motors.⁵ By utilizing innovative “Stop and Go” technology, the unit reduces power consumption by up to 30% during idle periods.⁶ Engineers implement this drive to achieve significant energy savings while maintaining rigorous control over pumps, fans, and compressors.⁷ Its high-capacity design ensures that heavy industrial loads operate with maximum efficiency and minimal mechanical stress.

Seamless Communication and System Integration

Versatile connectivity defines the ATV630C11N4, allowing it to act as a data-rich hub within an automation network.⁸ The hardware features multiple integrated ports, including dual serial interfaces and a dedicated Ethernet connection, which facilitate real-time monitoring and asset management.⁹ Because it supports open communication protocols, the drive integrates effortlessly into existing PLC environments and SCADA systems. This transparency allows operators to track energy usage and process performance directly, enabling data-driven maintenance and reducing the total cost of ownership across the equipment lifecycle.

Robust Performance for Demanding Environments

Schneider Electric engineered the ATV630C11N4 to withstand the mechanical and electrical rigors of heavy industry.¹⁰ The drive manages normal overloads up to 120% for 110kW applications and supports heavy-duty cycles up to 150% for 90kW loads.¹¹ This flexibility makes it ideal for high-torque requirements found in mining, water treatment, and oil and gas operations. Designed for vertical wall mounting, the unit can accommodate a variety of modular expansions, including additional I/O cards, EMC filters, and remote display terminals to suit specific onsite configuration needs.¹²

Key Technical Characteristics

• High Power Output: Delivers 110kW (150hp) for standard duty and 90kW (125hp) for heavy-duty industrial tasks.¹³
• Voltage Compatibility: Optimized for three-phase 380V to 480V AC power networks.¹⁴
• Integrated Intelligence: Built-in energy meters and process monitoring tools enhance asset performance.
• Dynamic Overload Capacity: Provides up to 150% torque for 60 seconds in heavy-duty configurations.
• Extensive Connectivity: Equipped with Modbus TCP, Modbus Serial, and Ethernet/IP as standard features.¹⁵
• Modular Construction: Supports various optional accessories, including fan kits and advanced display terminals.¹⁶
