Description

Brief Product Description

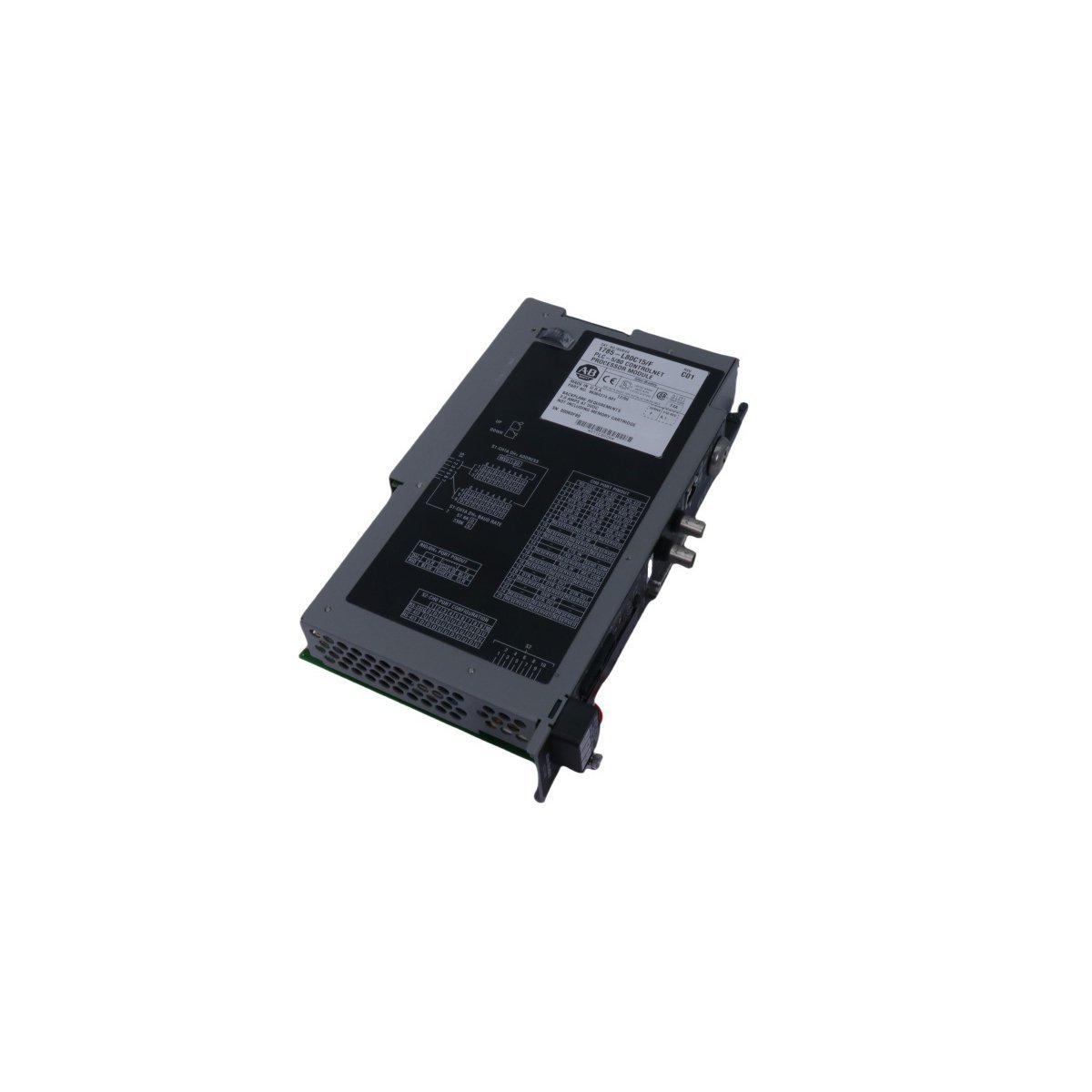

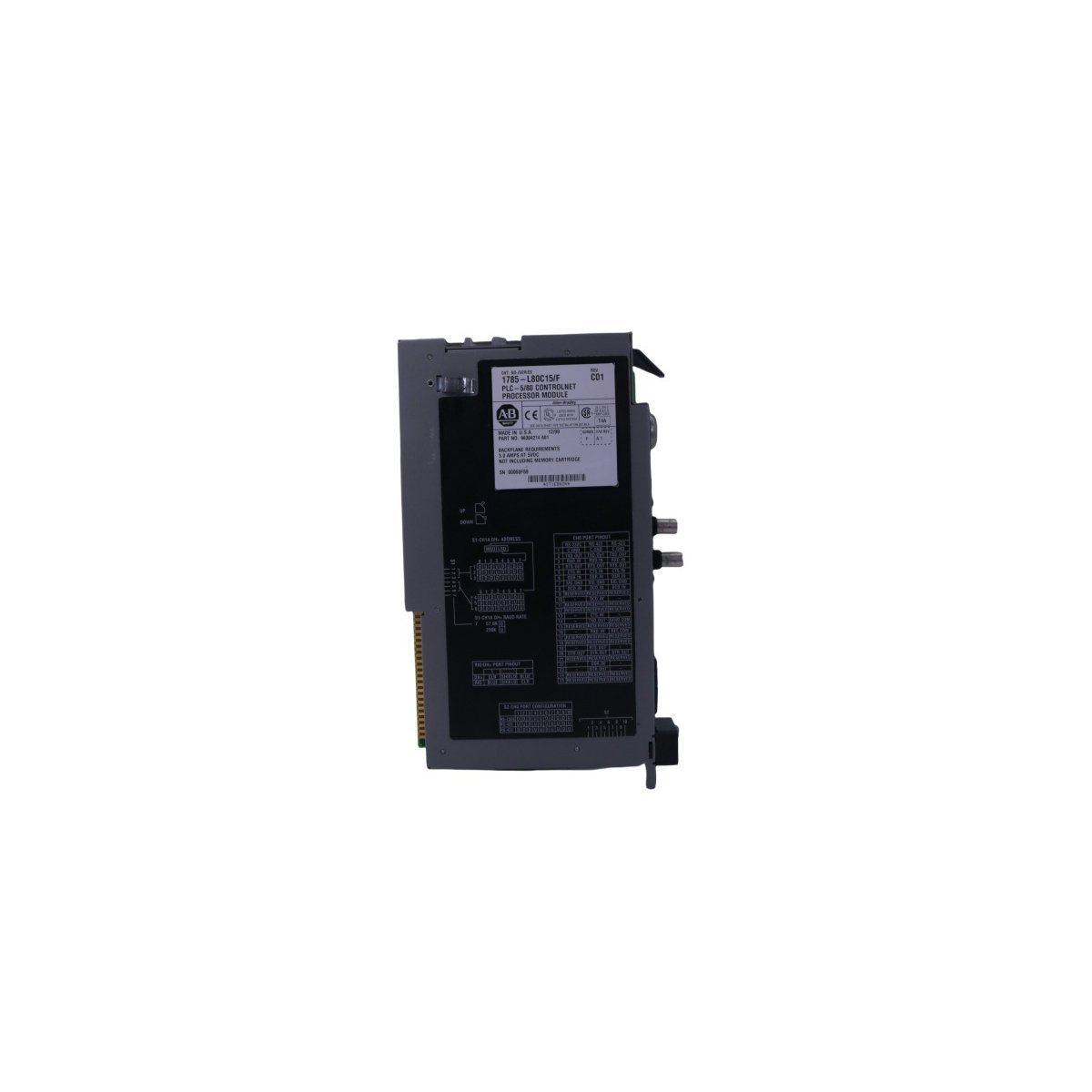

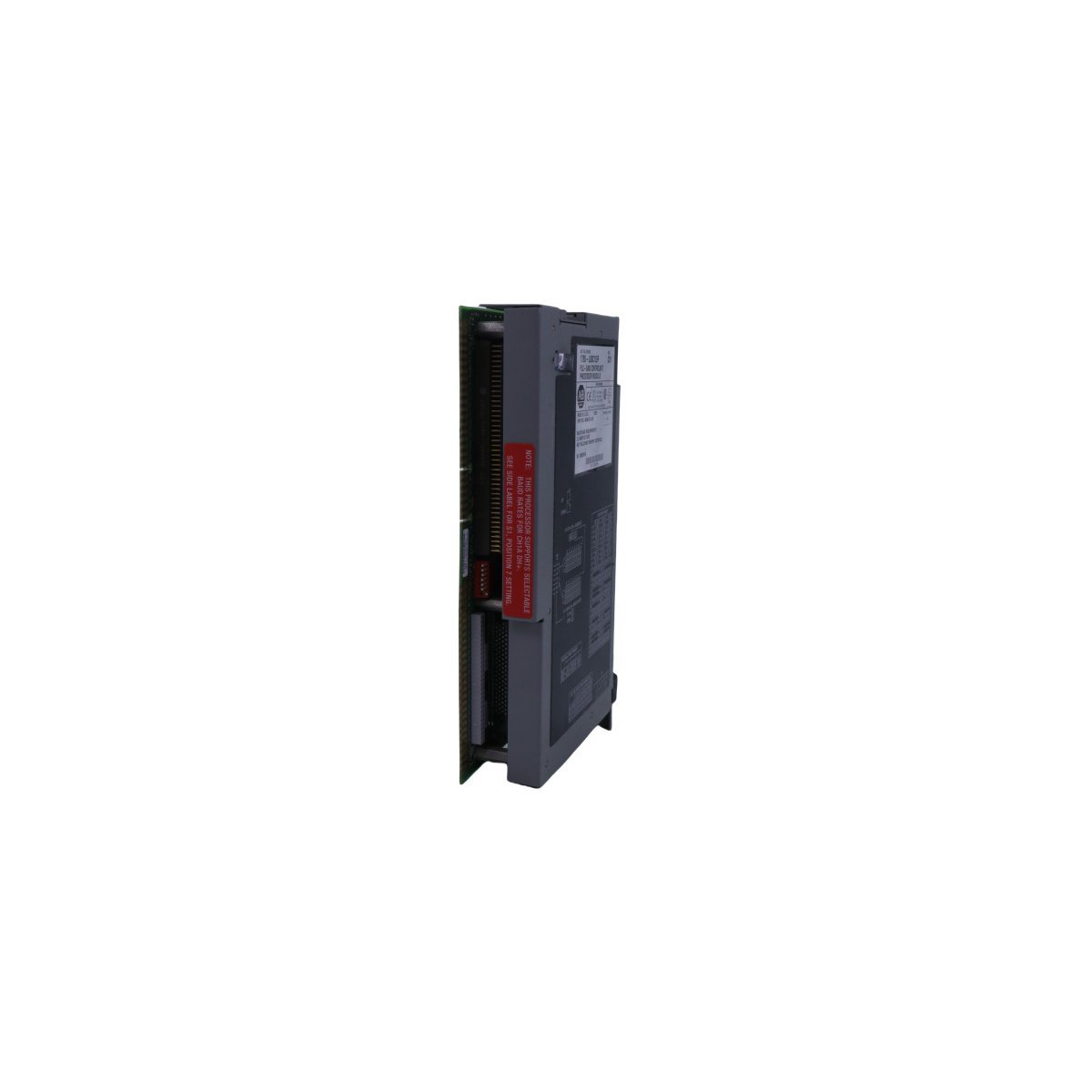

The Allen-Bradley 1785-L80C is a high-capacity PLC-5/80C processor that manages complex automation tasks through its 100K word memory and integrated ControlNet communication port. It serves as a powerful computational engine for large-scale industrial systems requiring extensive I/O handling and rapid program execution.

Product Description

Advanced Large-Scale Control Capabilities

The Allen-Bradley 1785-L80C orchestrates sophisticated automation architectures by leveraging its massive 100K word user memory. This PLC-5/80C processor handles up to 3072 total I/O points, allowing it to govern expansive factory floors and complex process control loops. By executing high-speed logic scans, the controller minimizes latency and ensures that real-time industrial processes remain synchronized. Its robust processing power effectively manages intensive data calculations and large program files, making it an essential component for legacy system upgrades and demanding new installations.

Integrated ControlNet Networking

This controller prioritizes deterministic communication through its built-in ControlNet port. The 1785-L80C module facilitates high-speed peer-to-peer data exchange and remote I/O management over a unified network. This integration eliminates the need for excessive bridge modules, thereby simplifying the system architecture and reducing potential failure points. Furthermore, the processor supports diverse backup options and peripheral connections via its additional serial ports, ensuring that operators maintain full visibility into the automated process at all times.

Industrial Durability and System Longevity

Rockwell Automation engineered the AB 1785-L80C to survive the thermal and electrical stresses common in heavy industrial environments. The hardware features a rugged modular design that slots securely into 1771 universal I/O chassis, facilitating straightforward hardware maintenance. Although the original manufacturer transitioned this model to a discontinued status in 2017, it remains a critical asset for facilities maintaining PLC-5 infrastructure. The unit’s time-tested reliability and extensive diagnostic LEDs empower technicians to resolve system faults quickly, preserving operational uptime in mission-critical applications.

Technical Specifications
