Product Overview

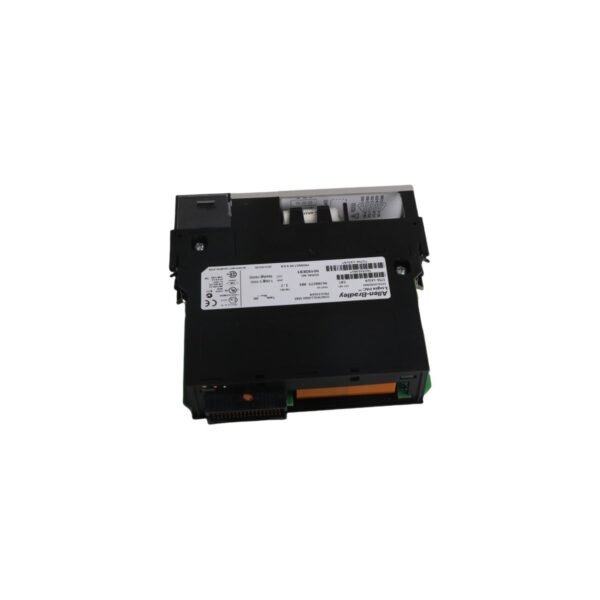

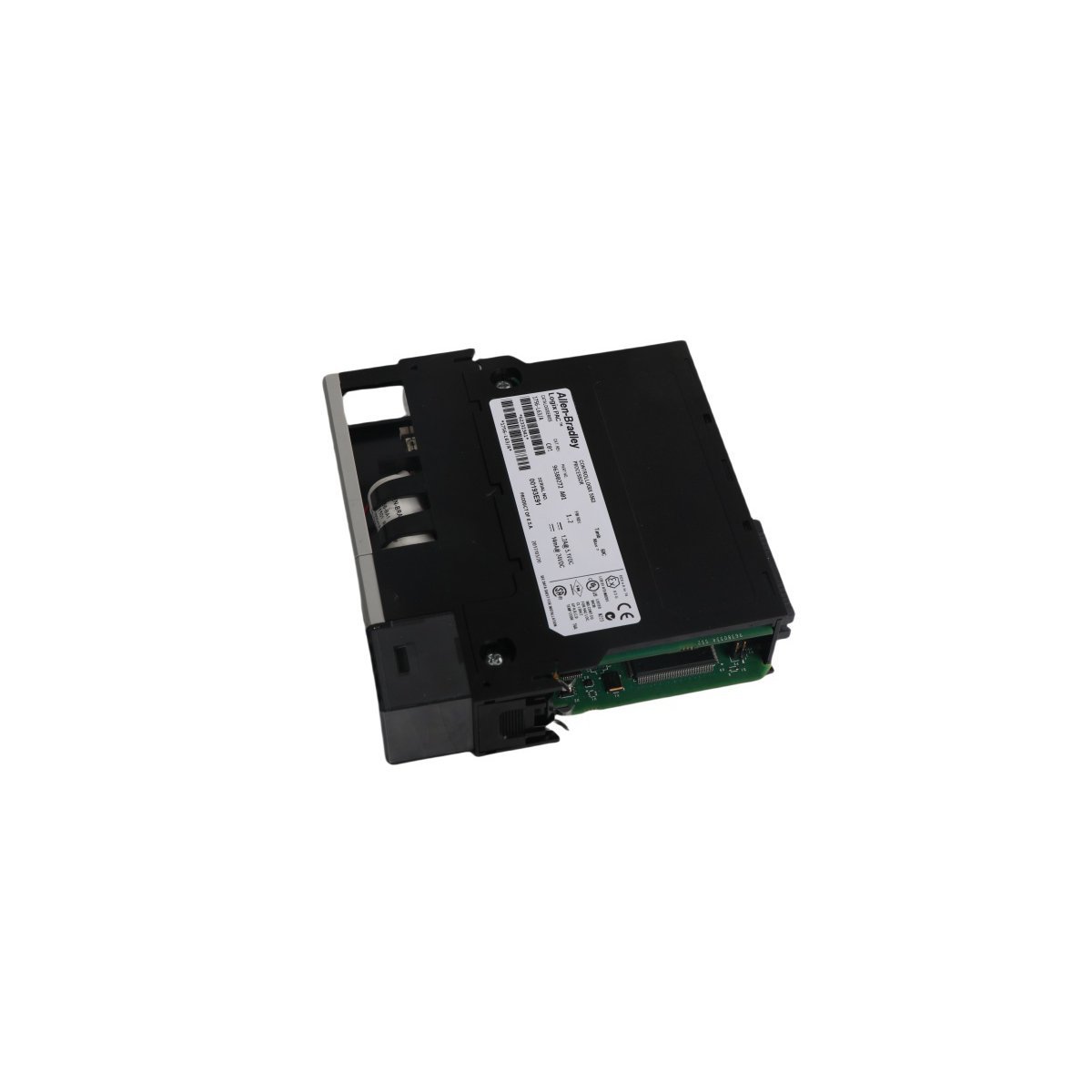

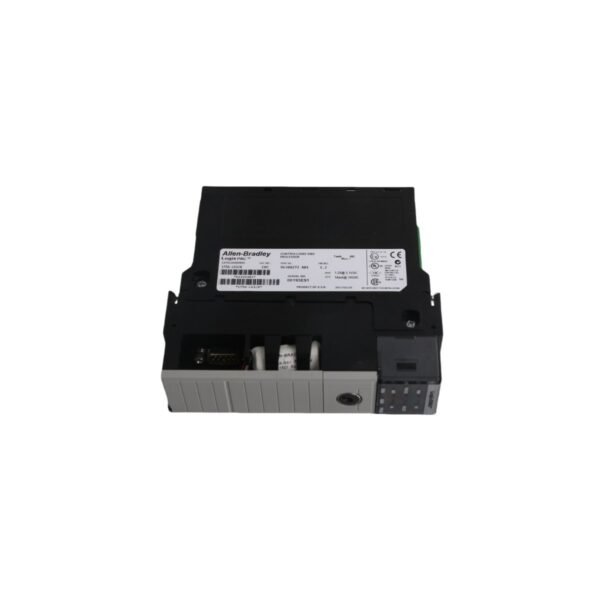

The Allen-Bradley 1756-L63 is a high-performance ControlLogix 5563 processor designed for complex automation tasks requiring extensive memory and rapid data processing. This controller acts as the central intelligence for industrial systems, managing large-scale I/O and integrated motion control within a Logix5000 environment.

Advanced Computational Capacity and Memory

The 1756-L63 delivers substantial processing power, featuring 8 MB of dedicated user memory alongside 478 KB of I/O memory. This capacity allows engineers to execute sophisticated control algorithms and store large data arrays without compromising system speed. To safeguard critical application data against power loss, the unit employs battery-backed RAM, utilizing 1756-BA1 or 1756-BATA assemblies. Furthermore, users can enhance data security by installing 1784-CF128 CompactFlash cards to provide non-volatile storage for firmware and project backups.

Multidisciplinary Control and Motion

This controller excels in diverse applications, ranging from high-speed discrete manufacturing to complex process control. It manages up to 128,000 discrete I/O points and 4,000 analog signals, ensuring scalability for facility-wide automation. In addition to standard logic, the 1756-L63 supports integrated motion control over SERCOS and EtherNet/IP interfaces. This capability enables precise synchronization for axes using SSI, LDT, or encoder feedback, making it a versatile choice for robotics and high-precision machinery.

Networking and Communication Versatility

While the module includes a native RS-232 serial port for local programming and DF1/Modbus communication, its chassis-based design allows for extensive networking via separate bridge modules. The 1756-L63 seamlessly coordinates data exchange across EtherNet/IP, ControlNet, and DeviceNet architectures. It also supports legacy integration with Data Highway Plus (DH+) and Remote I/O (RIO) networks. This broad connectivity ensures that the processor can serve as a bridge between modern enterprise software and existing field-level equipment.
