Description

Brief Product Description

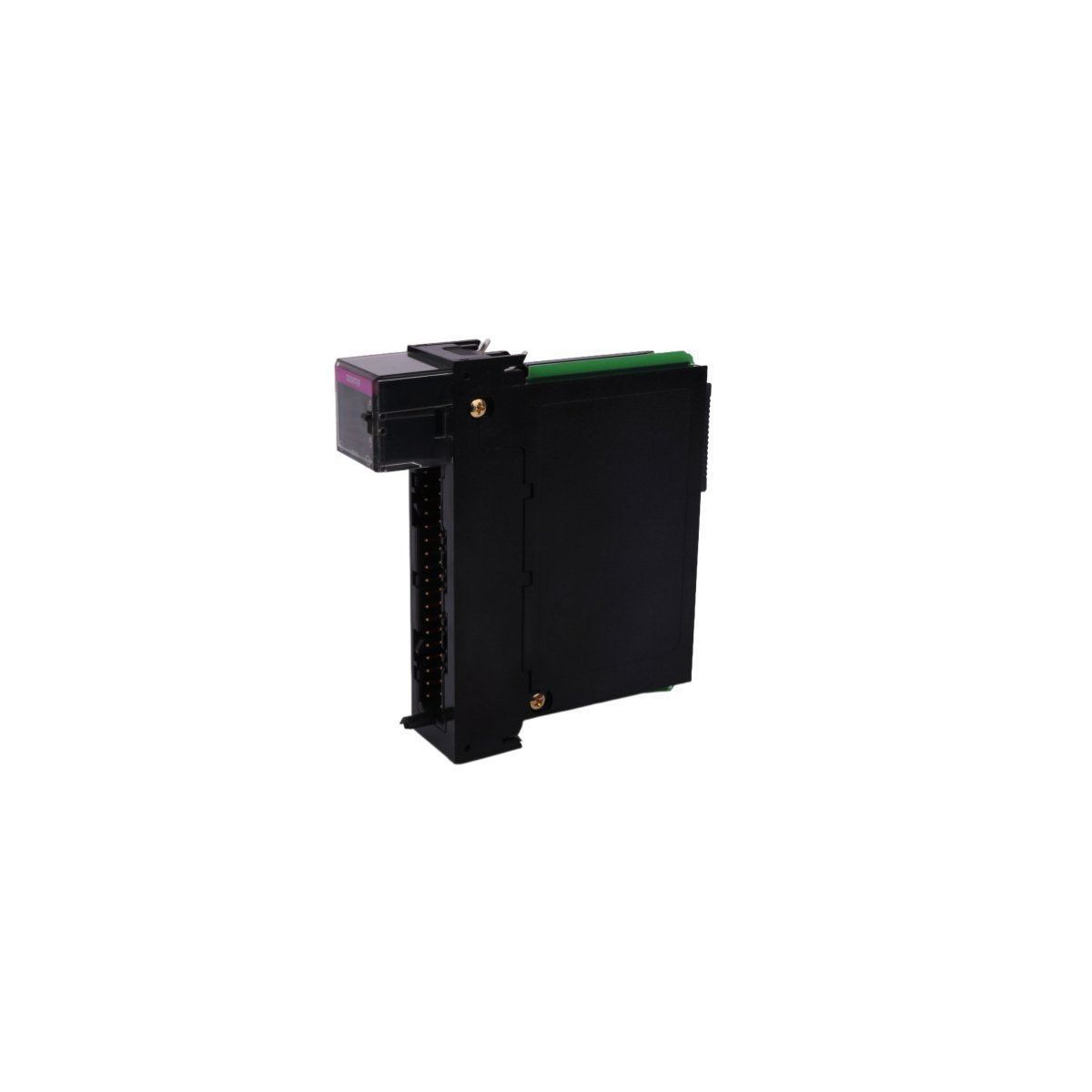

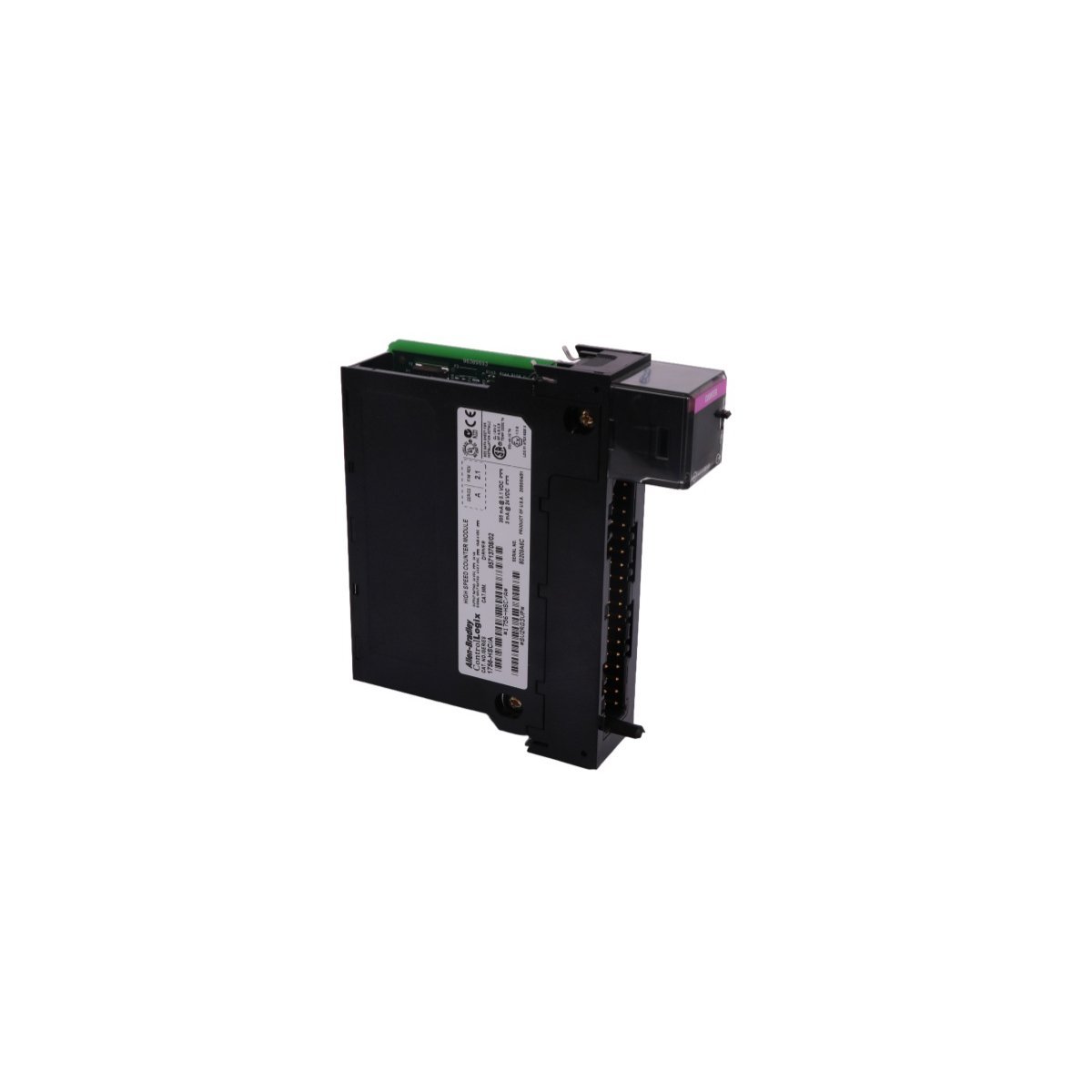

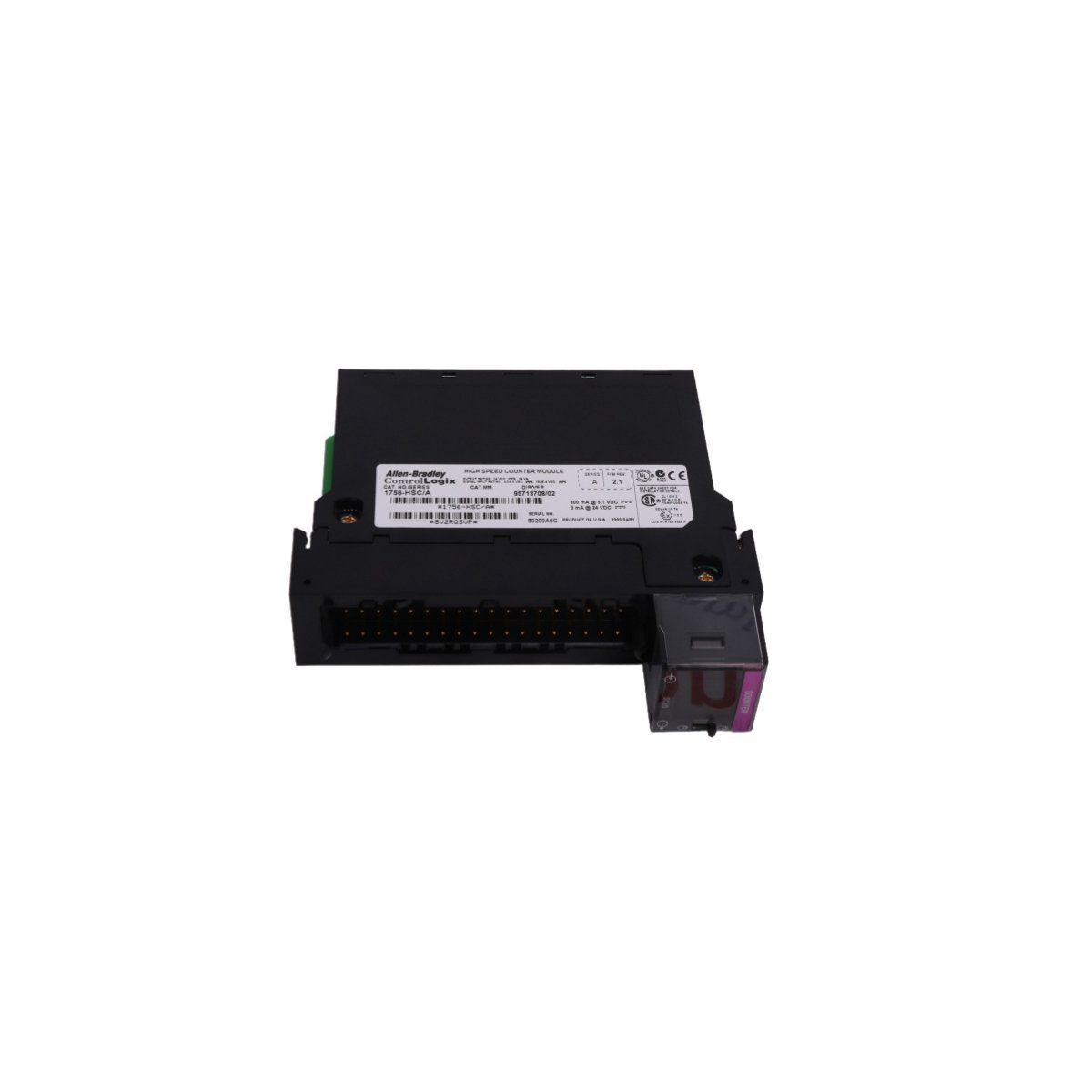

The Allen-Bradley 1756-HSC/B is a high-performance, two-channel counter module designed for the ControlLogix platform to handle rapid pulse trains from encoders and sensors. This module provides localized signal processing with a 1MHz frequency capability to ensure precise motion and position tracking without taxing the main CPU.

Product Description

High-Speed Pulse Processing and Motion Tracking

The Allen-Bradley 1756-HSC/B delivers specialized high-speed counting capabilities for the ControlLogix 1756 chassis. This module excels at capturing rapid pulses from incremental encoders and high-frequency sensors that standard digital input modules might miss. By utilizing two independent counting channels, the module accurately calculates frequency, rate, and totalized counts. This real-time data acquisition proves essential for applications requiring microsecond precision, such as high-speed bottling lines, precision cutting machinery, and complex material handling systems.

Localized Logic for Improved Response Times

A significant technical advantage of the 1756-HSC Series B involves its ability to process data locally at the module level. Instead of waiting for a controller scan cycle, the module can trigger its four onboard digital outputs based on user-defined presets in as little as 0.05 milliseconds. This hardware-level execution minimizes latency, which is critical for safety-stop triggers and precise part-sorting maneuvers. Furthermore, the module supports A, B, and Z gate inputs for full quadrature encoder support, allowing for bidirectional counting and home-position referencing.

Industrial Integration and Versatility

Rockwell Automation engineered the 1756-HSC/B to integrate seamlessly into existing Studio 5000 Logix Designer environments. The module accommodates a wide range of input voltages and is fully compatible with Allen-Bradley 845 incremental encoders. With a massive counting range reaching up to 16,777,215 counts, it provides the flexibility needed for long-distance travel monitoring and high-volume throughput. Additionally, the rugged chassis-mount design supports operation in standard industrial temperature ranges, ensuring that high-speed counting remains stable even in electronically noisy environments.

Technical Specifications
