Description

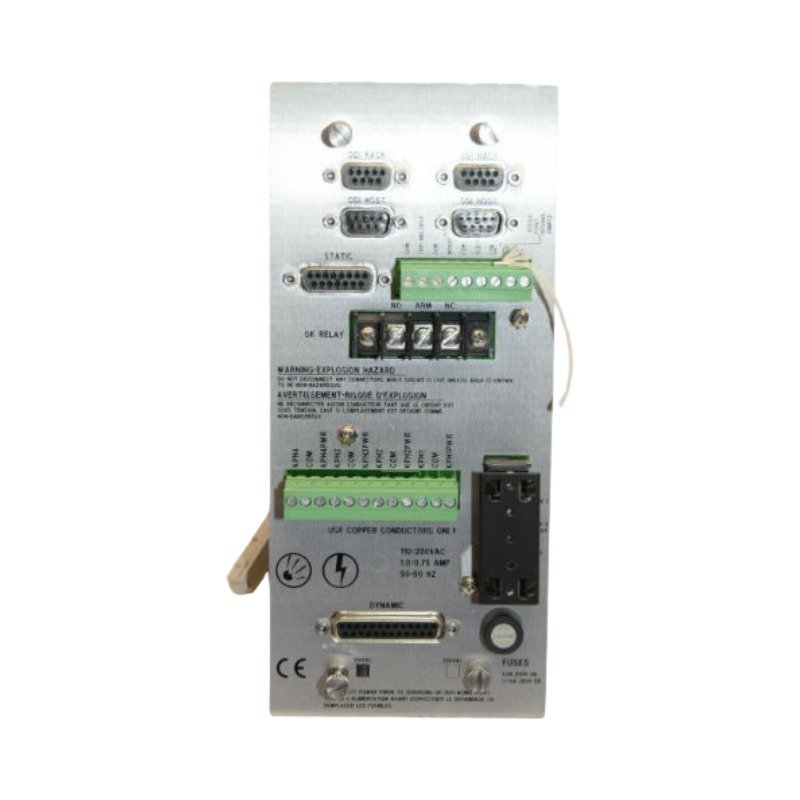

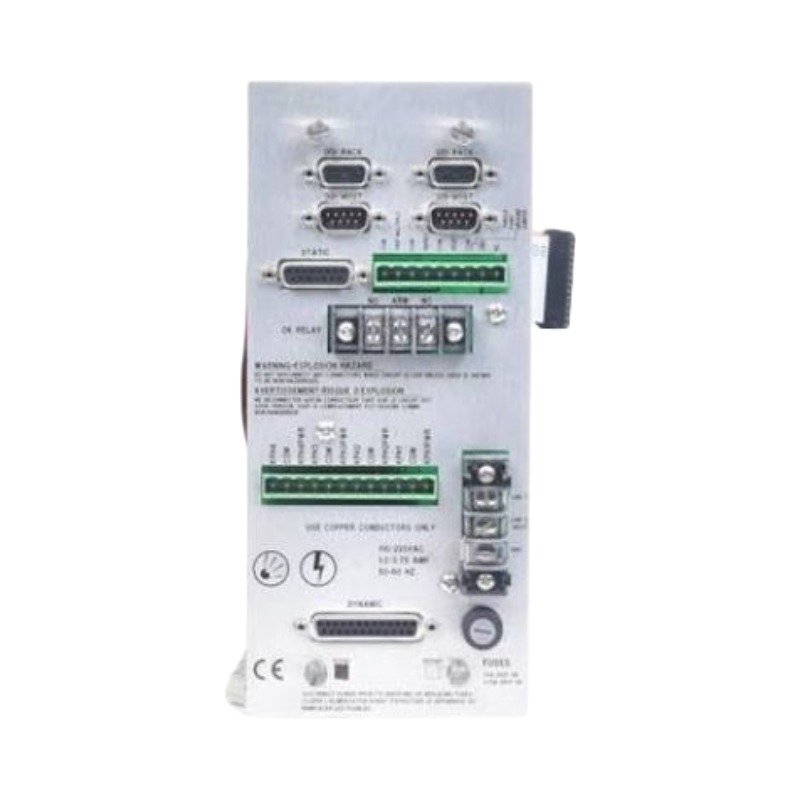

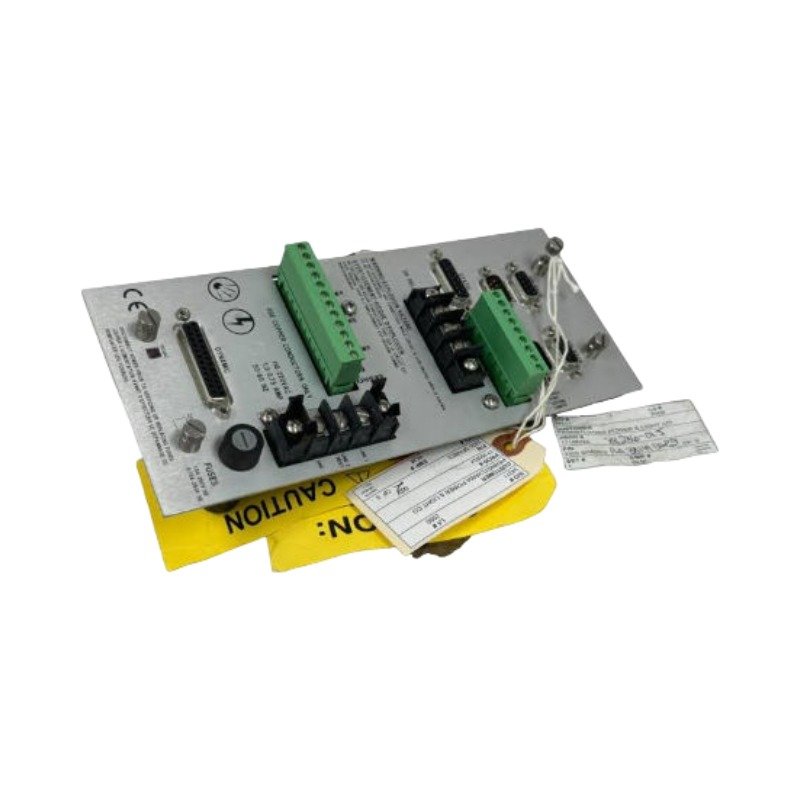

The Bently Nevada PWA88199-01 serves as the primary PWA88199 Temperature Control Board utilized to execute thermal monitoring and signal interface tasks across Bently Nevada 3300 System platforms.

Hardware Specifications

Machinery Monitoring and Gap Voltage Validation

The assembly interfaces directly with the 3300 backplane network to manage temperature-based variables that correlate with complex rotor dynamics. In integrated proximity and thermal layouts, verifying correct sensor calibration curves ensures accurate thermal growth correction. While eddy-current probe scaling targets a specific linear displacement range, this module processes critical temperature thresholds to prevent thermal distortion from destabilizing the gap voltage validation (-10 VDC targets) of neighboring vibration loops. Internal circuit routing delivers high-level cross-talk suppression across adjacent instrument rack channels.

Frequently Asked Questions

Q: How does this temperature control board handle dual-voltage inputs during deployment?

A: The onboard power circuitry auto-configures or responds to jumper selections to accept either 110 VAC or 220 VAC operating power at a line frequency of 50/60 Hz.

Q: Can this specific circuit board module be hot-swapped while the 3300 rack is powered?

A: No, power to the specific slot or the complete backplane enclosure must be isolated before insertion or removal of the module to prevent electrical arcing and component degradation.

Field Installation Guidelines

Slide the circuit board assembly into the designated slot of the 3300 instrument rack along the chassis card guides. Ensure the rear multi-pin connector aligns exactly with the backplane mating block before applying insertion force. Secure the integrated faceplate retaining fasteners to maintain proper physical grounding continuity. Run all field sensor cables through separate wire ducts away from three-phase motor feeds, and terminate the cable shielding foil at the system common ground lug to shield against electromotive distortions.
