Description

Brief Product Description

The ABB HIET404828R0001 (PPB624 A01) is a specialized control circuit board for the UNITROL excitation series, providing advanced signal processing and RS-485 communication for power regulation. It ensures high-precision monitoring and stable data exchange within complex industrial DCS environments.

​Product Description

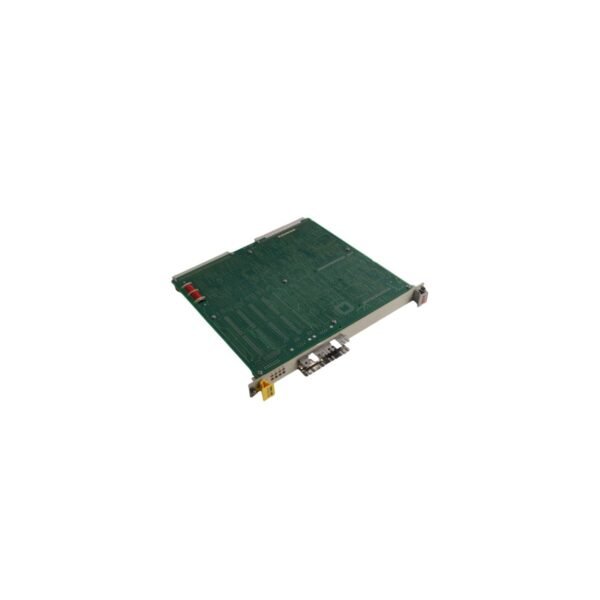

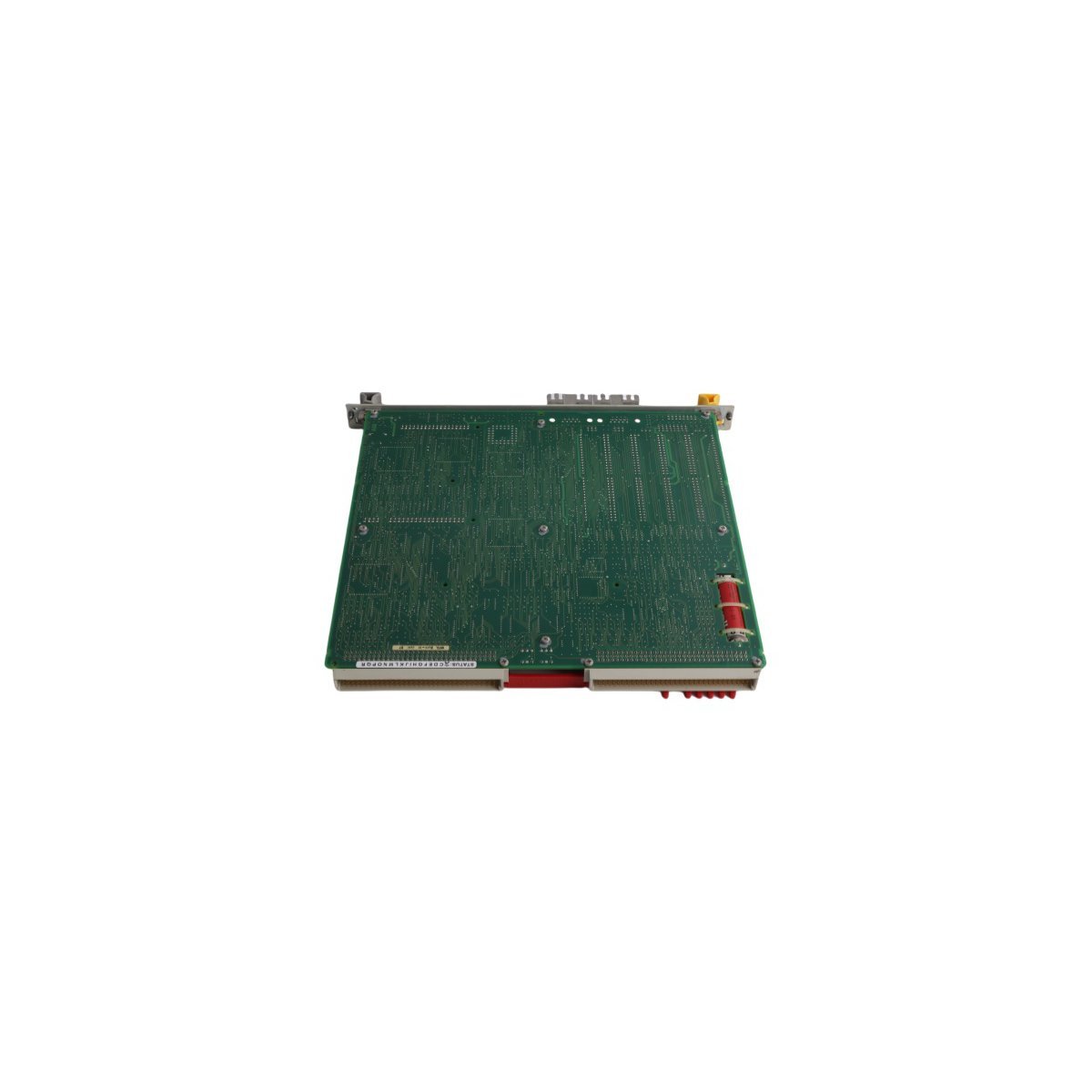

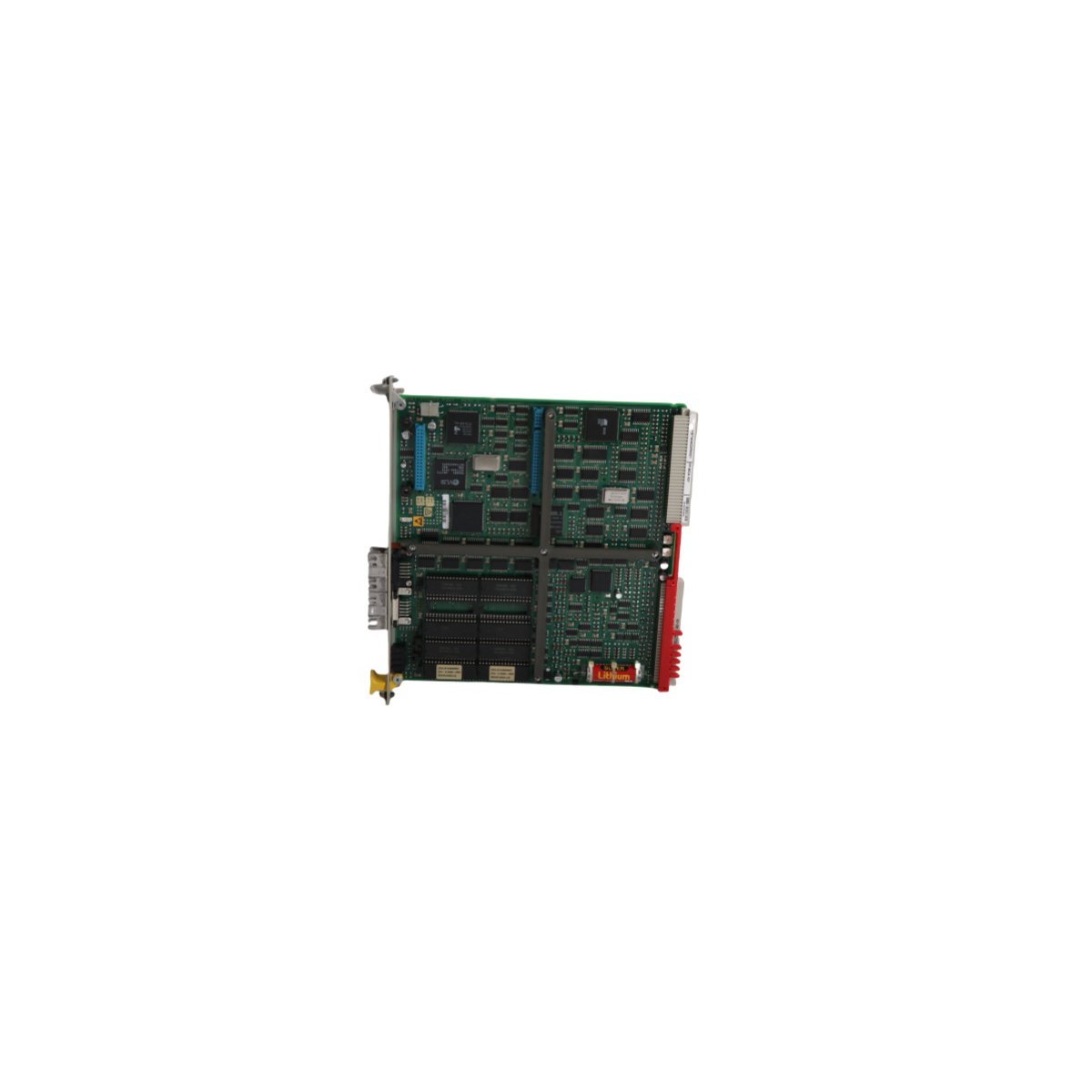

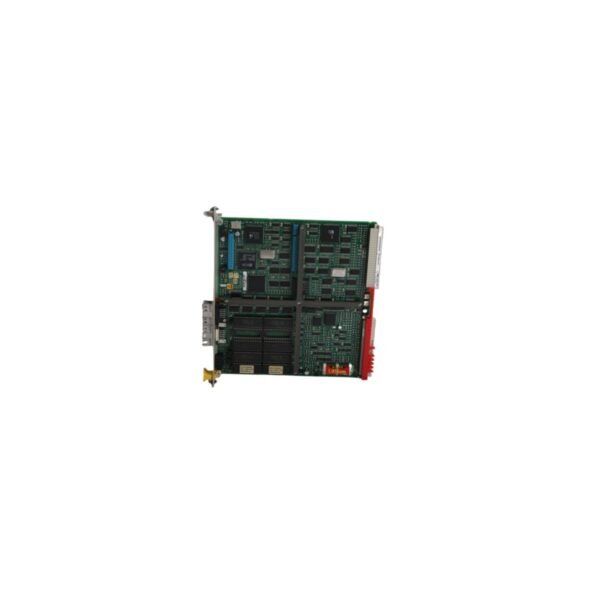

The HIET404828R0001, also identified as the PPB624 A01, is a high-tier printed circuit board engineered for the ABB UNITROL excitation system family. This module serves as a critical interface for signal regulation, processing complex analog and digital inputs to maintain generator stability. By leveraging high-speed logic, the board facilitates real-time monitoring of electrical parameters, which allows the excitation system to respond instantaneously to grid fluctuations.

Communication and Network Integration

To support modern industrial connectivity, the PPB624 A01 features an integrated RS-485 serial interface. This protocol enables the board to maintain robust, interference-resistant data exchanges with other controllers and supervisory systems. Furthermore, its compatibility with Ethernet-based routing services ensures that the HIET404828R0001 integrates smoothly into broader Distributed Control System (DCS) architectures. These communication capabilities optimize the transparency of the automation network, allowing for faster diagnostics and streamlined system wide synchronization.

Industrial Durability and Engineering

ABB manufactured the HIET404828R0001 using premium-grade substrates designed to withstand the thermal and mechanical stresses of power generation environments. The board operates reliably in high-vibration settings, ensuring a long service life with minimal maintenance requirements. Its standardized 24.6 x 26.1 cm footprint allows for straightforward slide-in installation into existing UNITROL subracks. This “plug-and-play” compatibility significantly reduces downtime during hardware upgrades or emergency replacements, making it a dependable choice for mission-critical infrastructure.

Technical Specification Table
