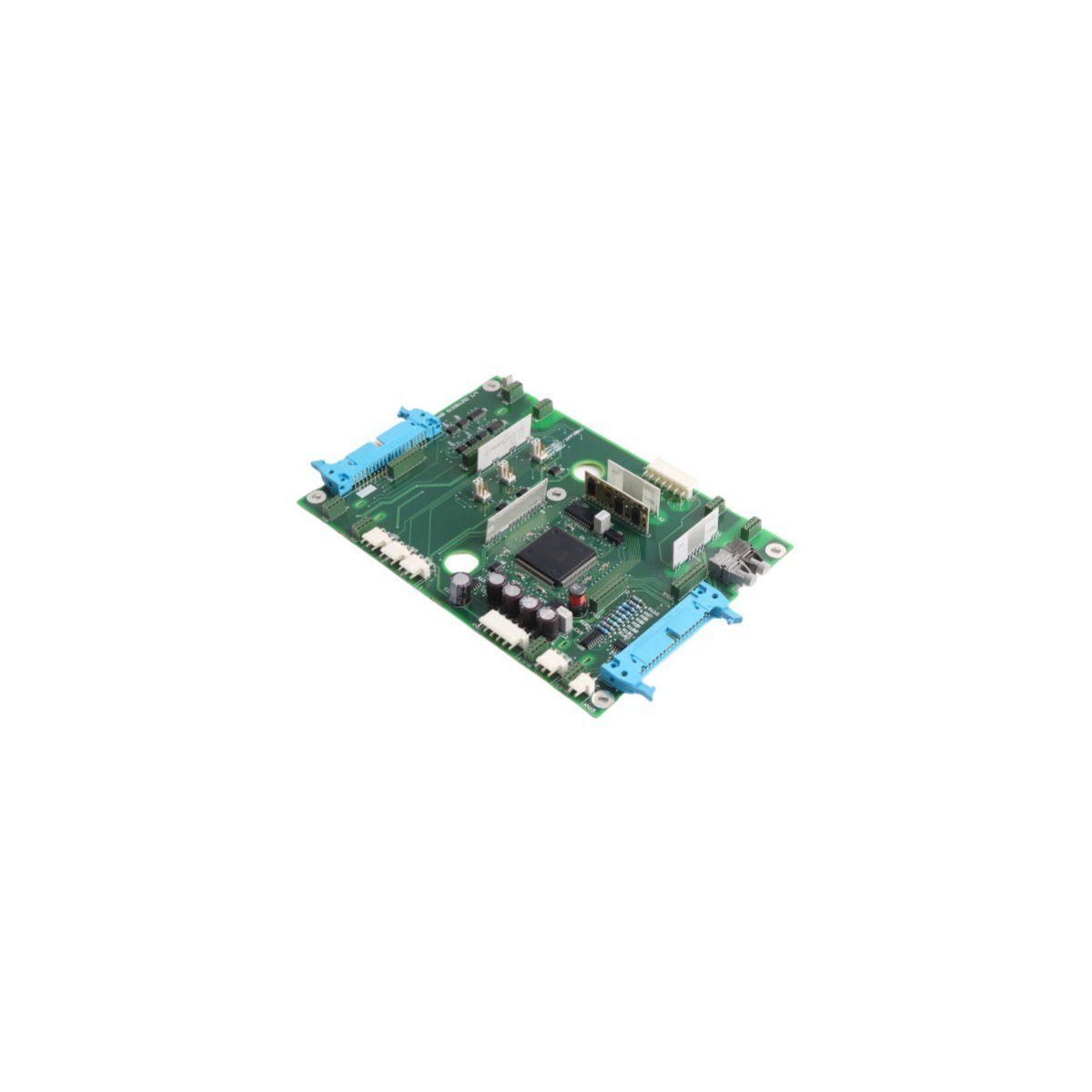

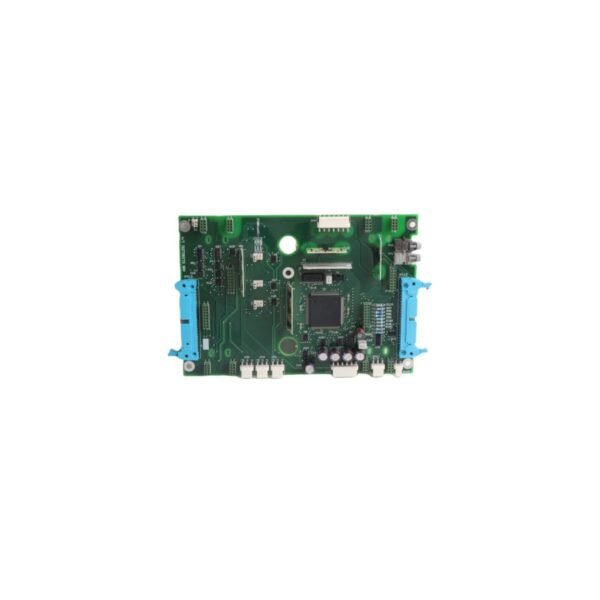

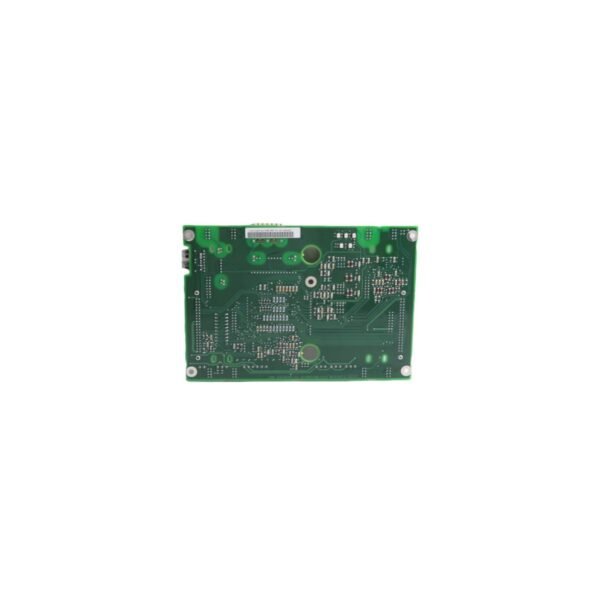

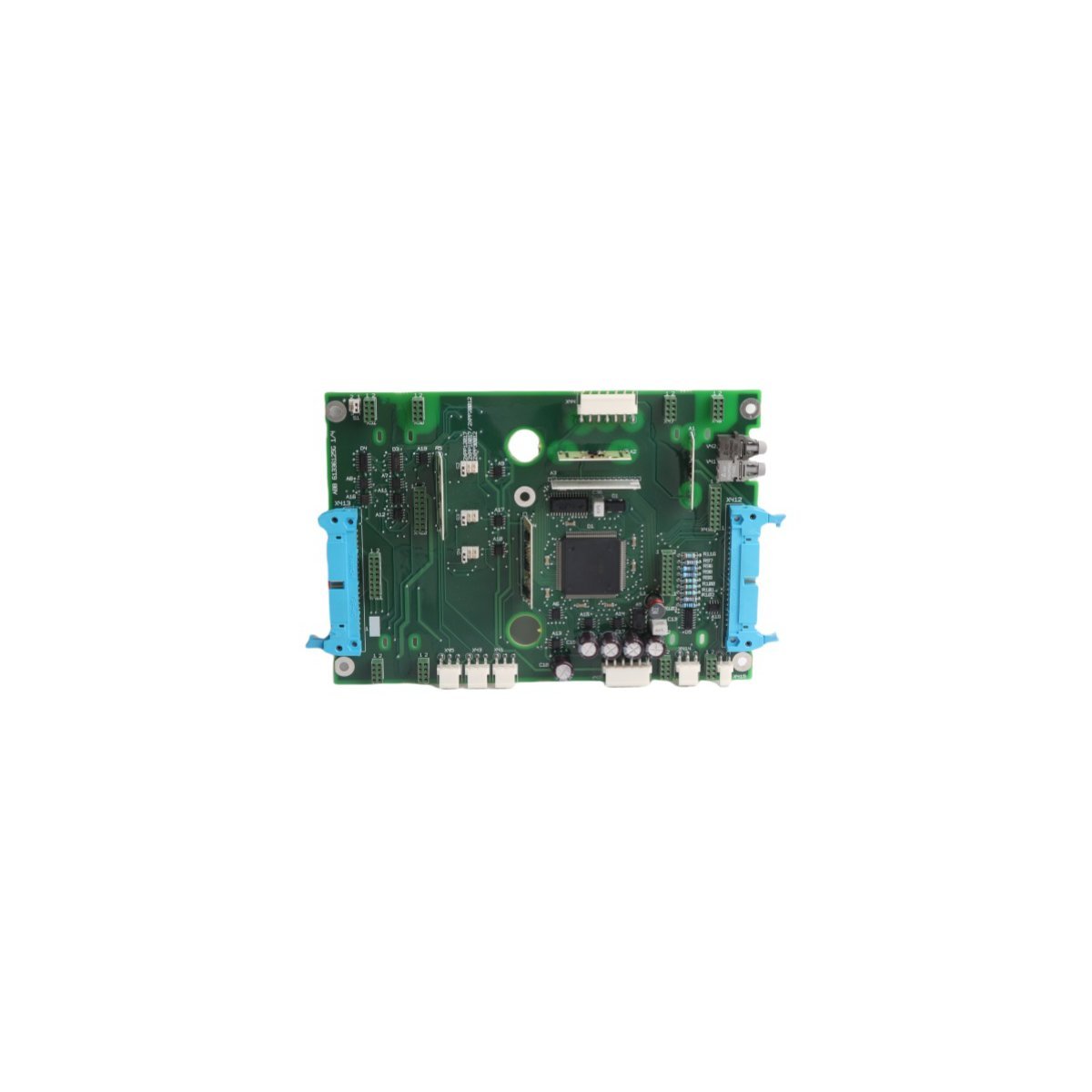

• ABB NINT-44 Communication Card for ACS600 Drive Systems
• NINT44 ABB NINT 44 Digital I/O and Communication Interface Board
• ABB ACS600 NINT-44 Interface Module with 8 Digital Inputs

Brief Product Description

The ABB NINT-44 is a specialized communication interface board designed for the ACS600 drive series, facilitating high-speed data exchange and signal processing. It features a versatile array of 8 digital inputs and 4 relay outputs to provide reliable process control in demanding industrial environments.

Reliable Data Exchange for ACS600 Drives

The ABB NINT-44 serves as a critical communication bridge within the ACS600 drive family, enabling seamless data flow between the drive’s control unit and external automation hardware. This interface card manages complex signal processing tasks, ensuring that the drive responds accurately to system commands. By utilizing advanced circuitry, the NINT-44 maintains high signal integrity even in areas with significant electromagnetic interference. This capability allows operators to integrate ACS600 drives into broader Distributed Control Systems (DCS) with total confidence in the accuracy of the transmitted data.

Robust I/O Configuration and Process Control

To enhance the versatility of the drive system, the NINT-44 board incorporates a robust I/O suite consisting of eight digital inputs and four relay outputs. These connection points allow the card to manage peripheral devices and monitor real-time process statuses directly through the drive interface. The relay outputs provide reliable physical switching for alarms or status indicators, while the digital inputs handle high-speed logic signals from sensors or controllers. Because ABB builds this card to withstand the thermal and mechanical stresses of industrial cabinets, it ensures long-term operational uptime and reduces the frequency of maintenance interventions.

Advanced Diagnostics and Global Compliance

The NINT-44 includes built-in error detection mechanisms that proactively monitor the health of the communication link. When the system detects a fault, the card facilitates rapid identification of the issue, which significantly shortens troubleshooting timelines for maintenance engineers. Furthermore, the product adheres to strict international standards, holding both ISO 9001 and CE certifications. This compliance guarantees that the module meets the highest safety and quality benchmarks for global industrial deployment. The compact 22.6 x 14.2 cm form factor allows for a straightforward installation process within existing drive housing.

Key Technical Characteristics

• Integrated I/O Suite: Features 8 digital inputs and 4 relay outputs for comprehensive device management.
• High Environmental Tolerance: Engineered specifically to function within the high-heat and vibration-prone environments of drive cabinets.
• Fast Signal Processing: Facilitates low-latency communication between the drive controller and peripheral automation layers.
• Smart Diagnostics: Provides onboard error detection to ensure uninterrupted data transmission and quick fault resolution.
• Global Standards: Certified with CE and ISO 9001 marks to ensure compliance with international industrial regulations.
• Plug-and-Play Design: Includes a user-friendly interface and comprehensive technical documentation for efficient commissioning.
