Brief Product Description

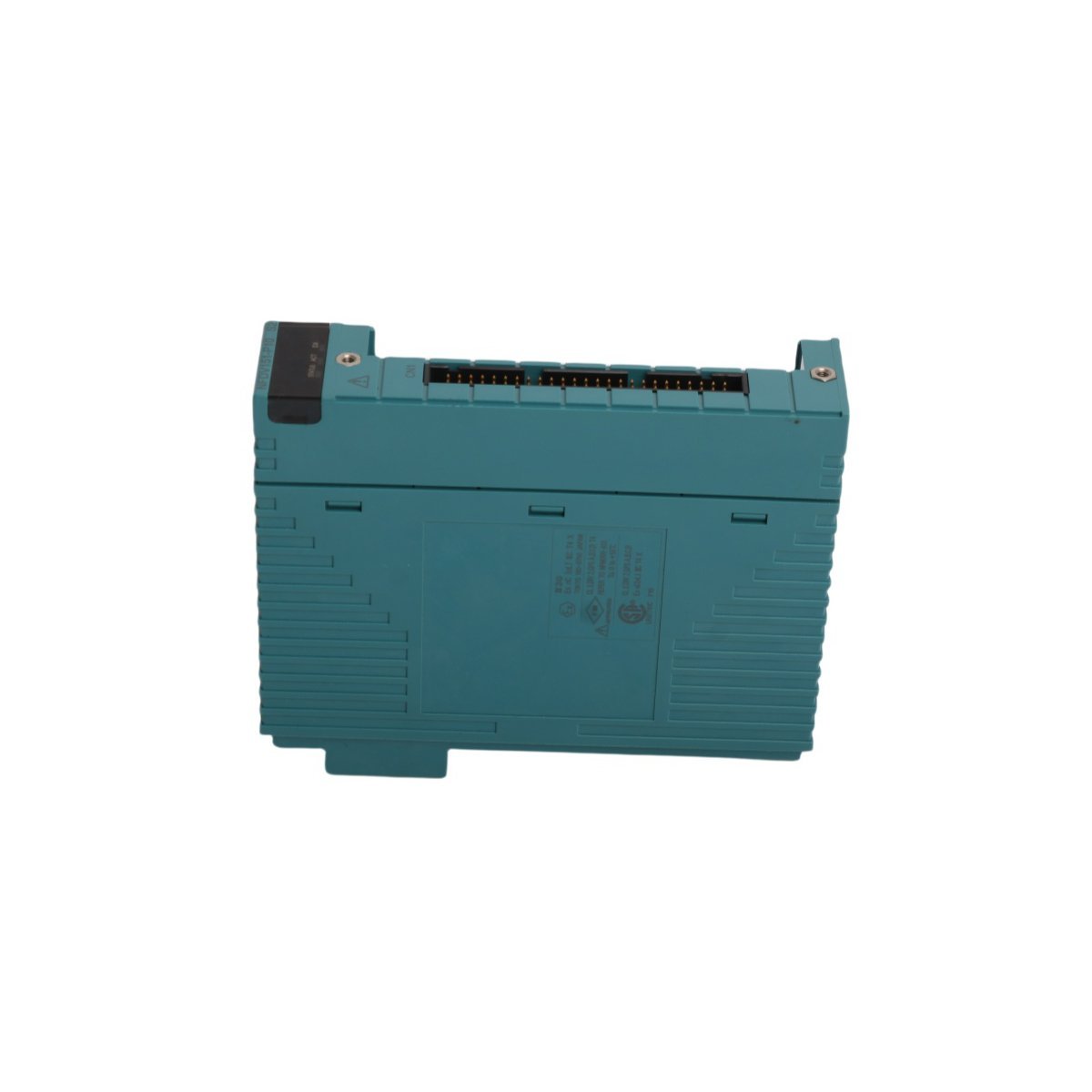

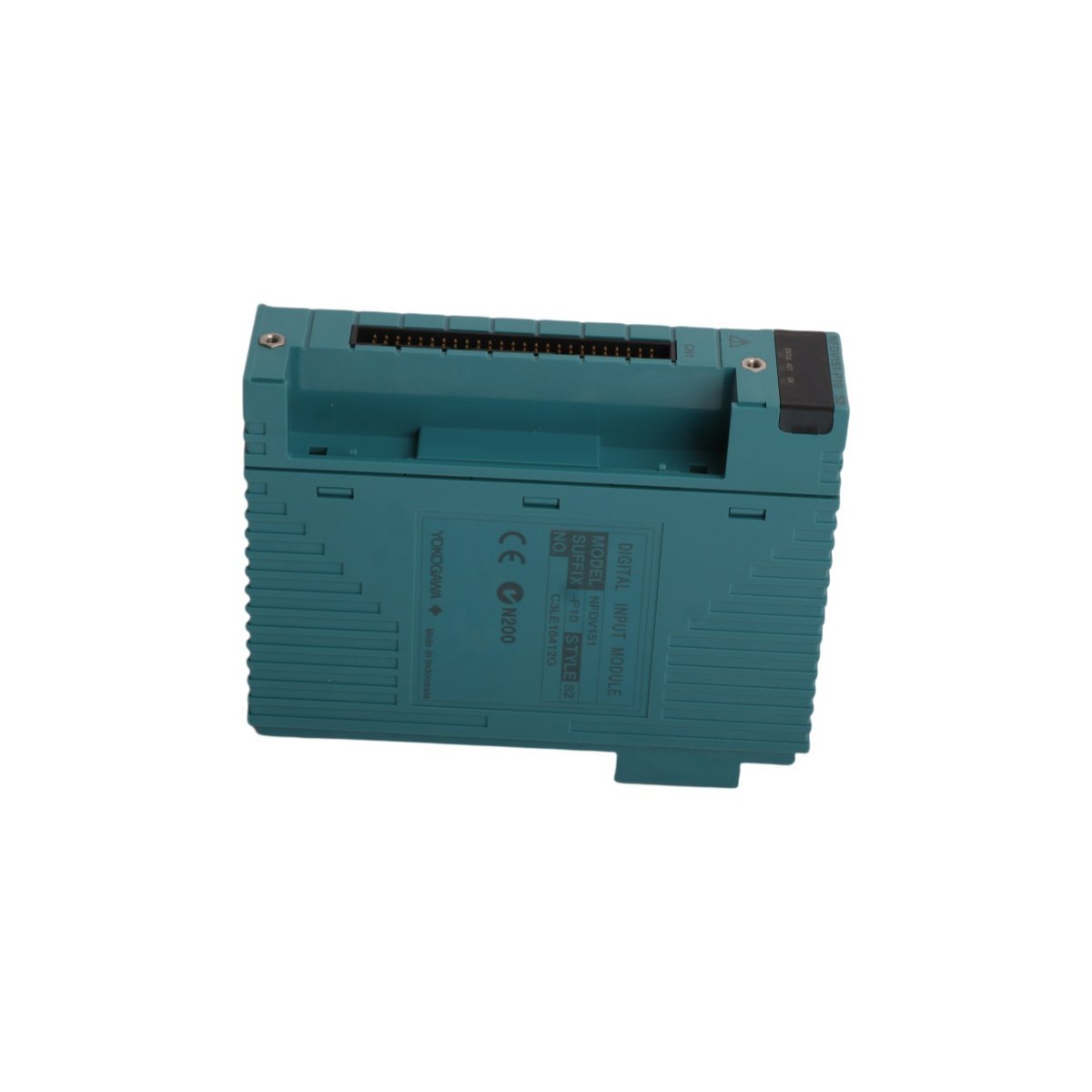

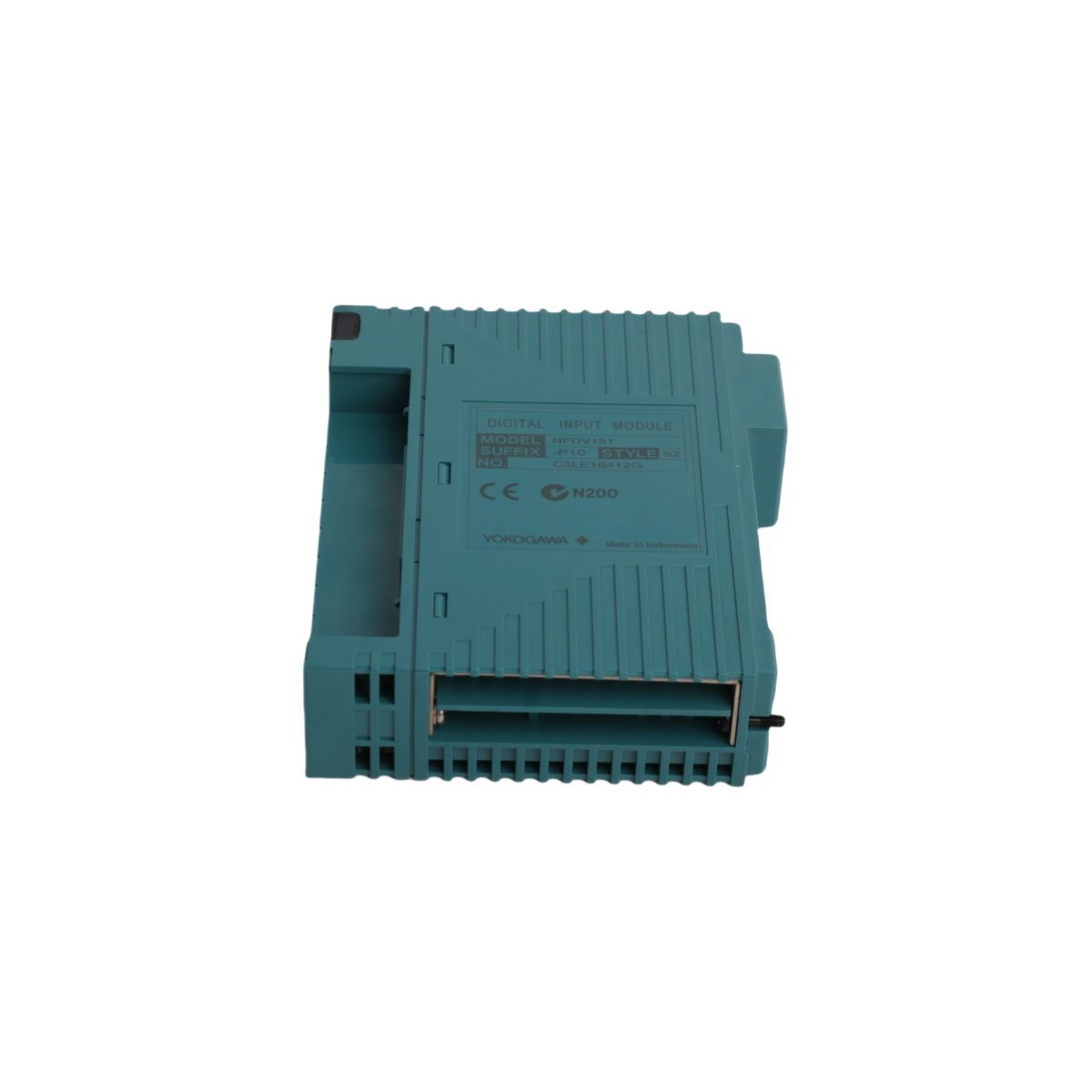

The Yokogawa NFDV151-P10 S2 is a high-reliability 32-channel digital input module engineered for the ProSafe-RS safety instrumented system. It accurately detects discrete signals from field devices like sensors and limit switches, providing the essential data needed for safety-critical logic and process control.

High-Density Discrete Data Acquisition

The Yokogawa NFDV151-P10 S2 acts as a high-performance interface within safety-instrumented and distributed control environments. By housing 32 independent input channels in a single compact unit, this module streamlines the collection of binary data from a vast array of field instruments. It interfaces seamlessly with equipment such as pressure switches, emergency stop buttons, and valve position sensors. This high channel density effectively reduces the required footprint within control cabinets, allowing for more efficient system architectures in large-scale industrial plants.

Advanced Signal Processing and Electrical Integrity

Precision and electrical resilience define the operational capabilities of the NFDV151-P10 S2. The module operates on a standard 24 V DC rated input voltage, utilizing a sophisticated threshold logic that identifies an “ON” state between 18 and 26.4 V DC while maintaining a strict “OFF” limit at 5.0 V DC. This wide margin prevents signal ambiguity caused by industrial noise or long cable runs. Additionally, the module incorporates robust signal filtering to ensure rapid response times of 8 ms or less, which is critical for safety-related functions. Each channel is designed with specific current regulation (4.1 mA) to balance sensitivity with low power consumption across the backplane.

Reliability for Mission-Critical Applications

Yokogawa prioritizes system uptime and safety through the ruggedized design of the NFDV151-P10 S2. This module is built to withstand the harsh conditions typical of petrochemical, power generation, and chemical processing facilities. It features high galvanic isolation to protect the internal system bus from field-side electrical surges and ground loops. Furthermore, the S2 revision level ensures modern component compatibility and long-term lifecycle support. Because it supports the ProSafe-RS safety architecture, it plays a vital role in preventing hazardous incidents through continuous, accurate monitoring of field-level discrete variables.

Key Technical Characteristics

• 32-Channel High Density: Provides extensive I/O capacity while minimizing hardware volume.
• Fast Response Logic: Ensures input detection in under 8 ms for time-sensitive safety loops.
• Stable Voltage Thresholds: Features a 24 V DC nominal rating with clear ON/OFF differentiation.
• Robust Signal Filtering: Eliminates chatter and noise interference for high-integrity data acquisition.
• Low Power Footprint: Limits current consumption to 500 mA at 5 V DC to reduce system heat.
• Integrated Diagnostics: Supports system-level health monitoring to detect wiring faults or module errors.
