Description

Brief Product Description

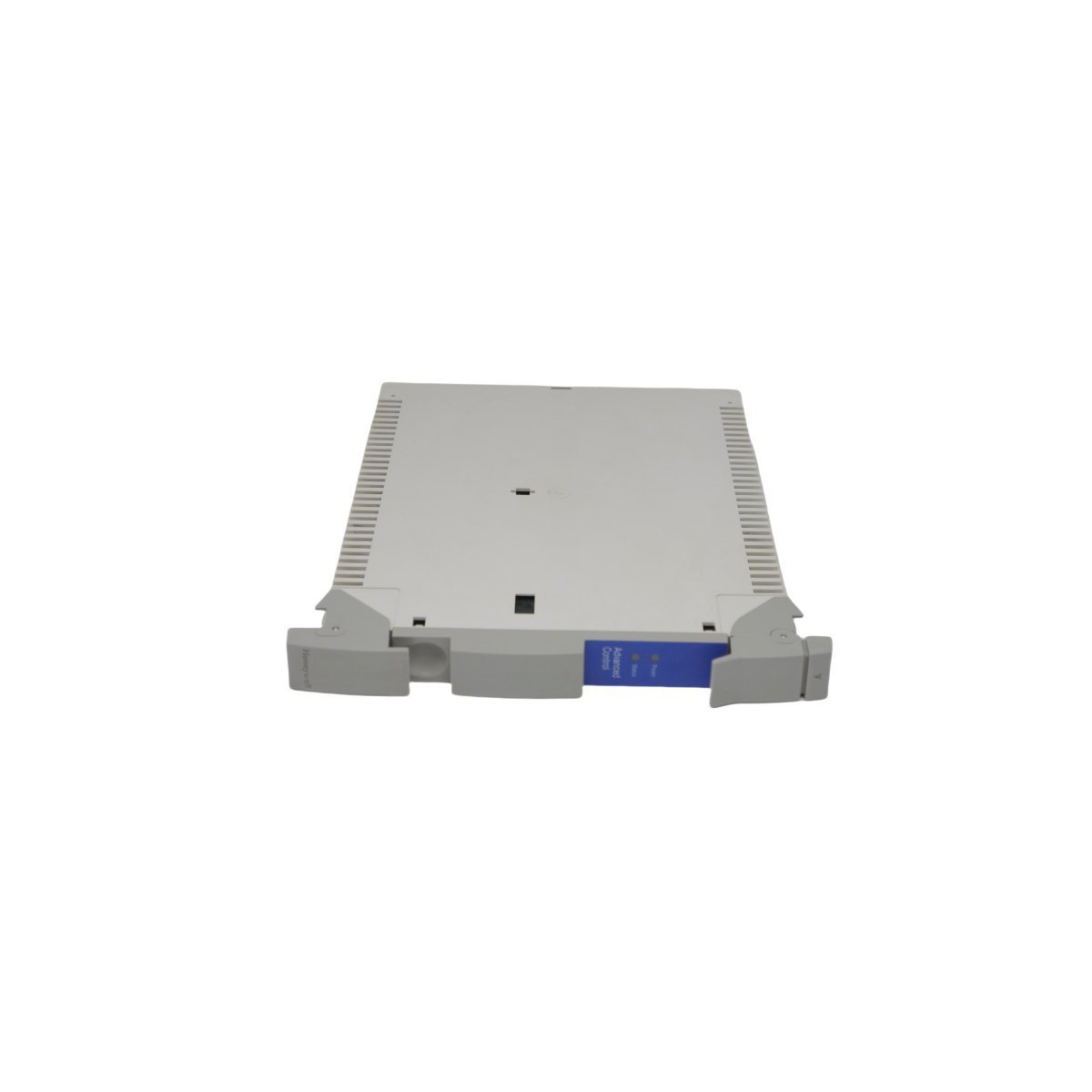

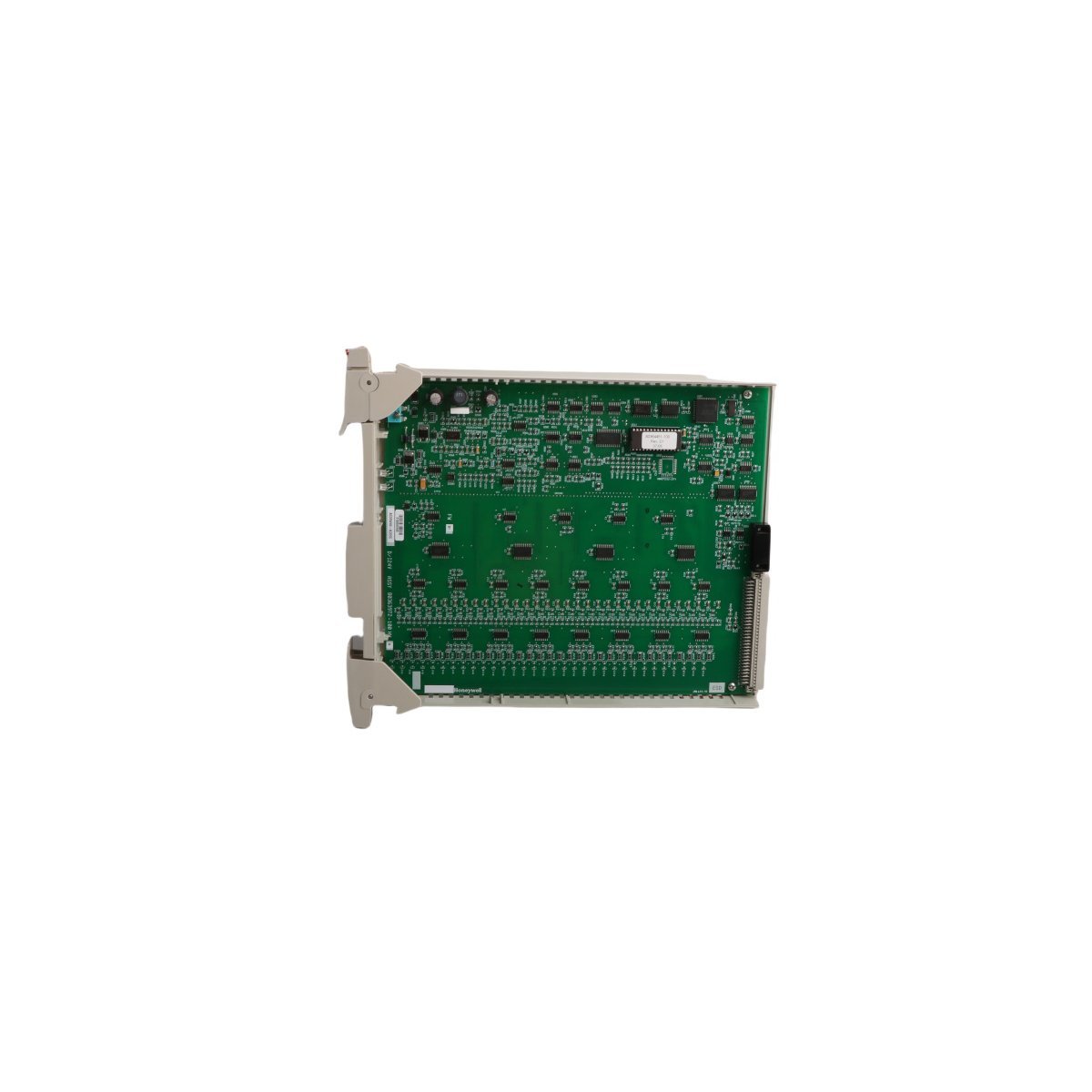

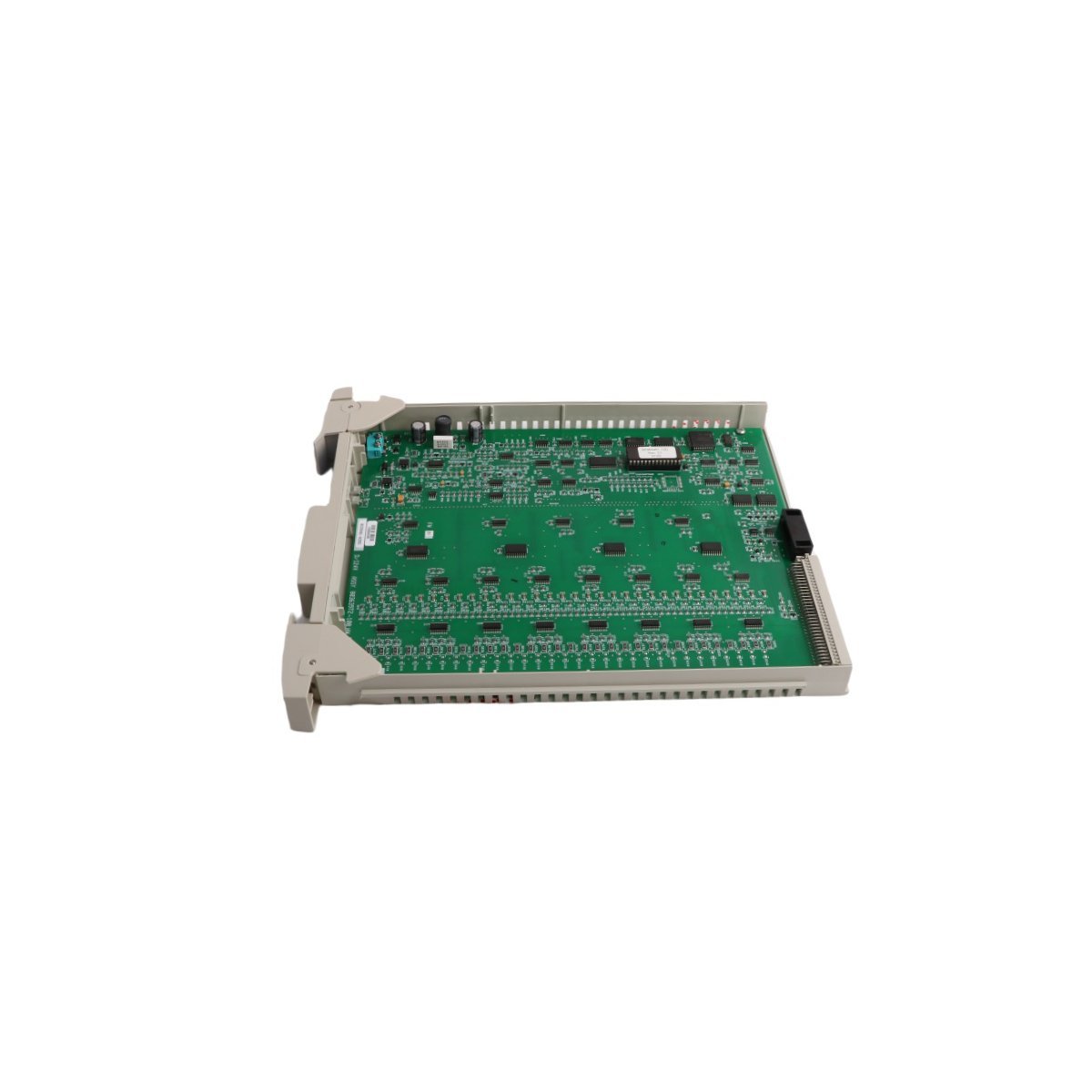

The Honeywell 80363975-100 (MU-PDOY22) is a high-density digital output processor board designed for the TDC 3000 Distributed Control System (DCS). It provides reliable discrete signal control for field-mounted actuators, relays, and indicators within industrial processing environments.

Technical Overview and Core Functionality

The Honeywell 80363975-100, designated as the MU-PDOY22 module, serves as a primary interface between the TDC 3000 control logic and external field equipment. By converting electronic control commands into discrete output signals, this processor enables the precise activation and deactivation of industrial hardware. It specifically supports high-availability process control, ensuring that critical state changes occur with minimal latency and high repeatability.

Industrial Application and System Integration

Engineered for the rigorous demands of refineries, power generation facilities, and chemical processing plants, the MU-PDOY22 integrates directly into standard Honeywell I/O card files. This seamless physical and electronic integration allows for rapid system expansion or hardware replacement without extensive re-engineering. The module supports a variety of voltage ranges and load types, making it a versatile choice for complex control architectures that require diverse signal interfacing.

Reliability and Protective Features

To maintain continuous uptime, the 80363975-100 incorporates sophisticated diagnostic routines that monitor the health of each output channel. If a fault occurs, the module reports the discrepancy to the central controller, allowing maintenance teams to address issues before they escalate into process failures. Furthermore, the board includes integrated electrical isolation and overcurrent protection, which shields the sensitive internal DCS circuitry from field-side electrical surges and wiring errors.

Key Technical Characteristics

• System Platform: Exclusively designed for Honeywell TDC 3000 Distributed Control Systems.
• Signal Type: Discrete Digital Output (DO) for two-state device management.
• High Channel Density: Optimizes cabinet space by managing multiple field devices through a single processor slot.
• Diagnostic Capability: Real-time monitoring of output states and hardware integrity.
• Enhanced Protection: Built-in galvanic isolation and circuit protection for increased safety and longevity.

Technical Specifications
