Description

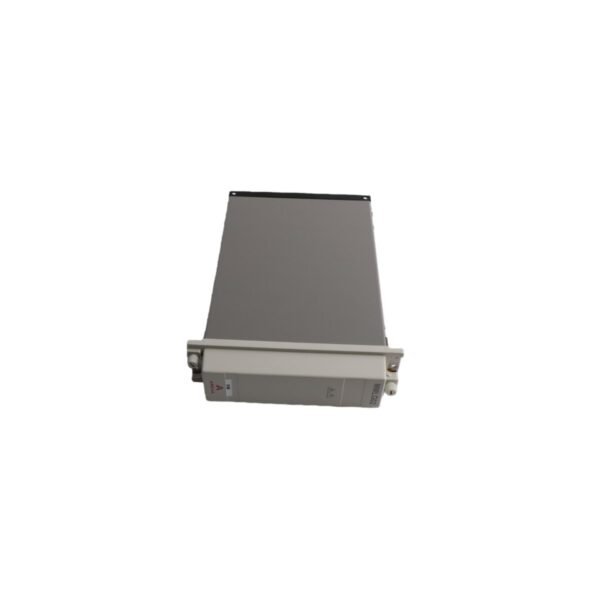

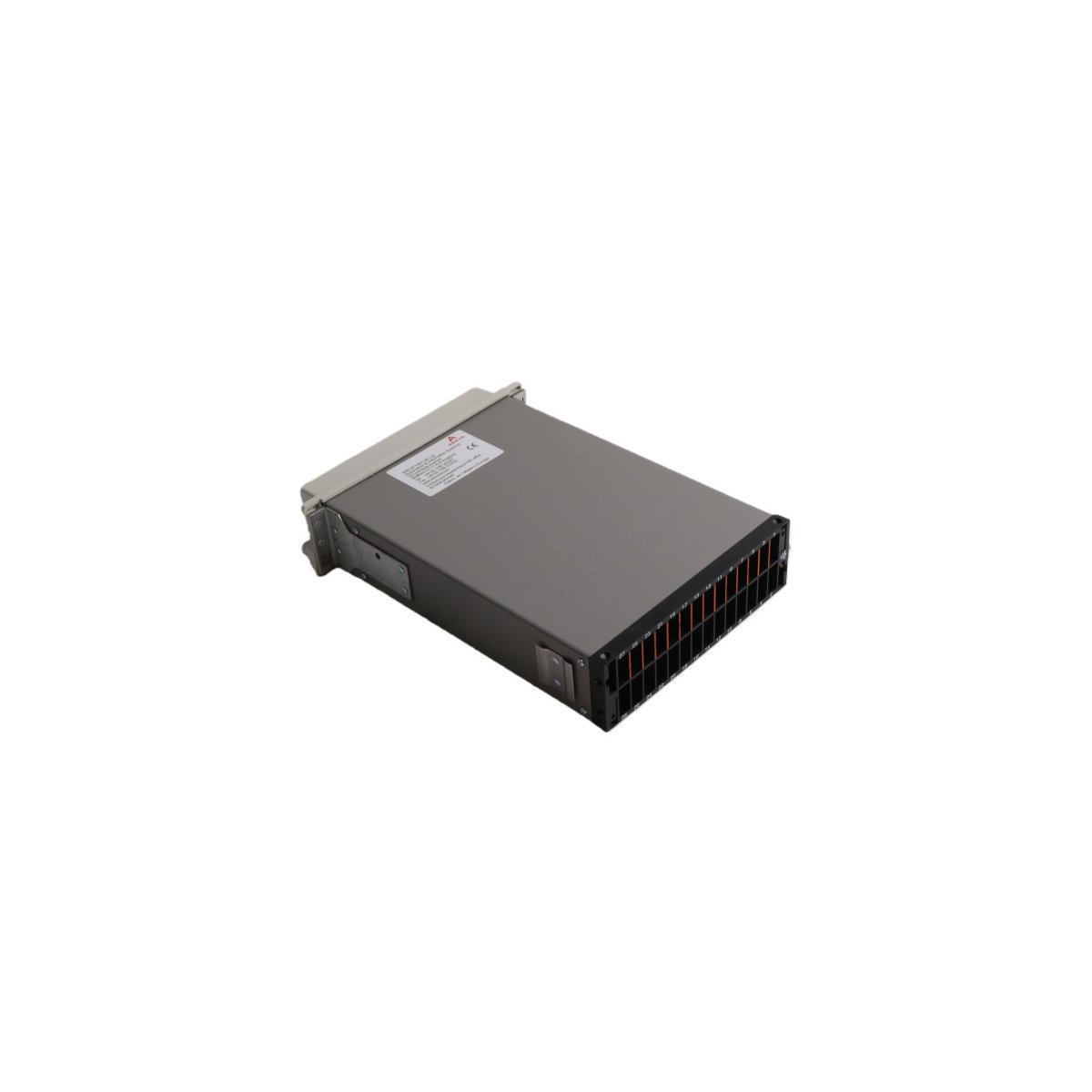

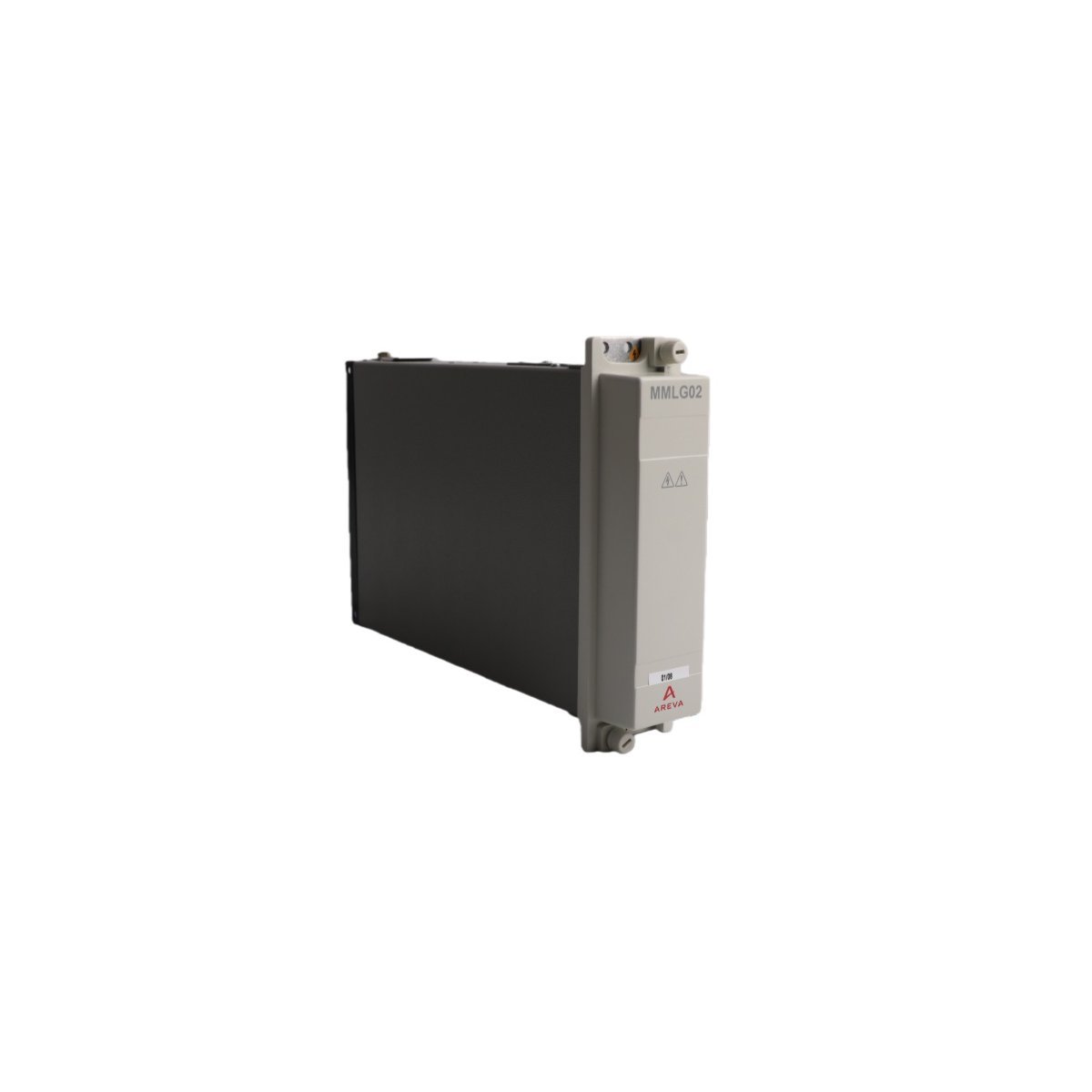

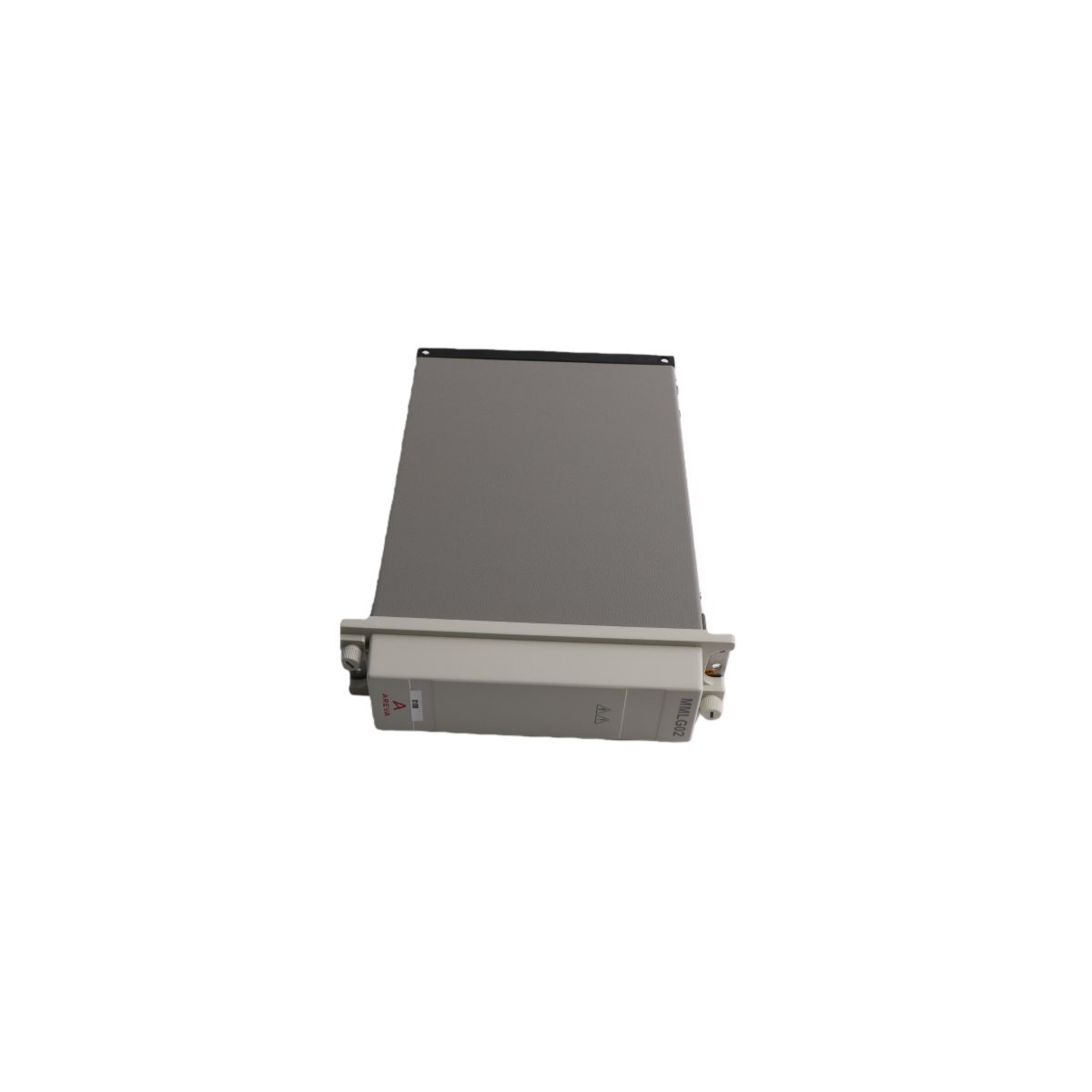

Alstom MMLG02R1AA0001E Vertical Protective Test Block

The MMLG02R1AA0001E is a high-reliability protective test module engineered to facilitate secondary injection testing and circuit isolation without disconnecting permanent system wiring.

Technical Operational Overview

The MMLG02R1AA0001E serves as a vital interface for the maintenance and diagnostic testing of power system protection schemes. By integrating this module into a control panel, technicians can perform essential monitoring, isolation, and secondary injection tests on protective relays without disturbing the existing terminal wiring. This specialized “Size 2” case module employs a vertical mounting orientation, making it particularly suitable for high-density busbar protection cabinets where panel space is at a premium.

Operationally, the test block acts as a bridge between the primary protection equipment and external test sets. When used in conjunction with a compatible multi-finger test plug, the MMLG02R1AA0001E automatically handles the short-circuiting of Current Transformer (CT) secondary circuits. This safety mechanism prevents dangerous open-circuit voltages during maintenance. Furthermore, the module allows for the seamless isolation of trip circuits and the monitoring of voltage transformer (VT) signals. Its compatibility with MiDOS and MiCOM Agile relay families ensures that users can maintain a standardized testing protocol across diverse protection platforms.

Key Technical Characteristics

• Zero-Disturbance Testing: Enables full secondary injection and isolation procedures without removing any permanent wire connections.
• Automatic CT Shorting: Incorporates internal safety sequences to short-circuit CT secondaries automatically when the test plug is inserted.
• Optimized Vertical Layout: Features a specialized vertical design within a standard Size 2 case to maximize vertical rack space.
• High Dielectric Strength: Built to withstand the rigorous electrical stresses associated with high-voltage substation environments.
• Universal Compatibility: Interfaces directly with a wide array of Alstom, GE, and Schneider Electric MiDOS-style protection relays.
• Rugged Mechanical Build: Utilizes high-impact materials and secure contact points to ensure long-term operational reliability in utility substations.

Product Specifications

Industrial Applications

The MMLG02R1AA0001E is an essential component for critical electrical infrastructure, specifically in:

• Transmission Substations: Providing a safe testing point for busbar and transformer protection relays.
• Power Generation Facilities: Facilitating the routine calibration of generator protection units.
• Industrial Microgrids: Managing the secondary circuit isolation for large-scale manufacturing power distribution systems.
