Description

Brief Product Description

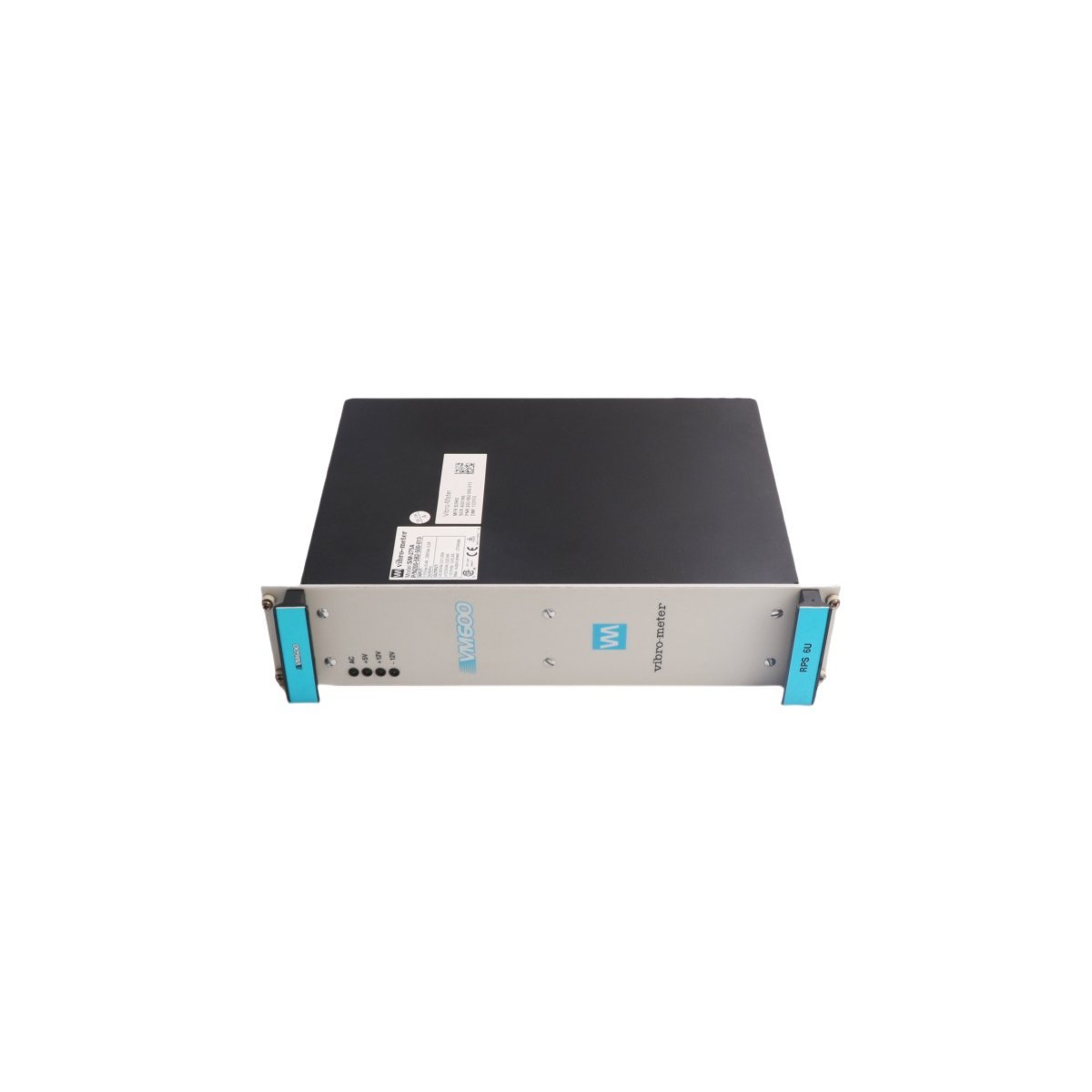

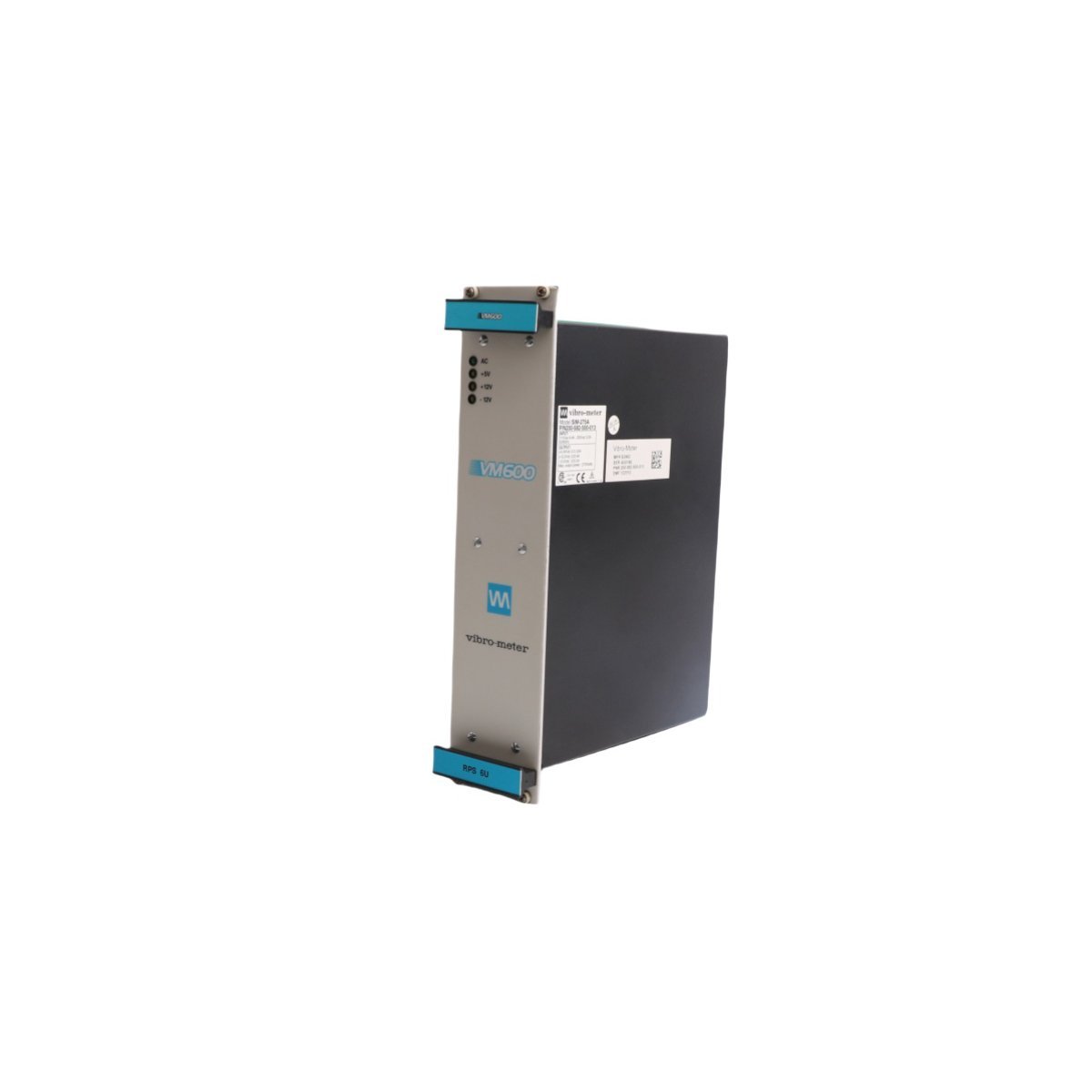

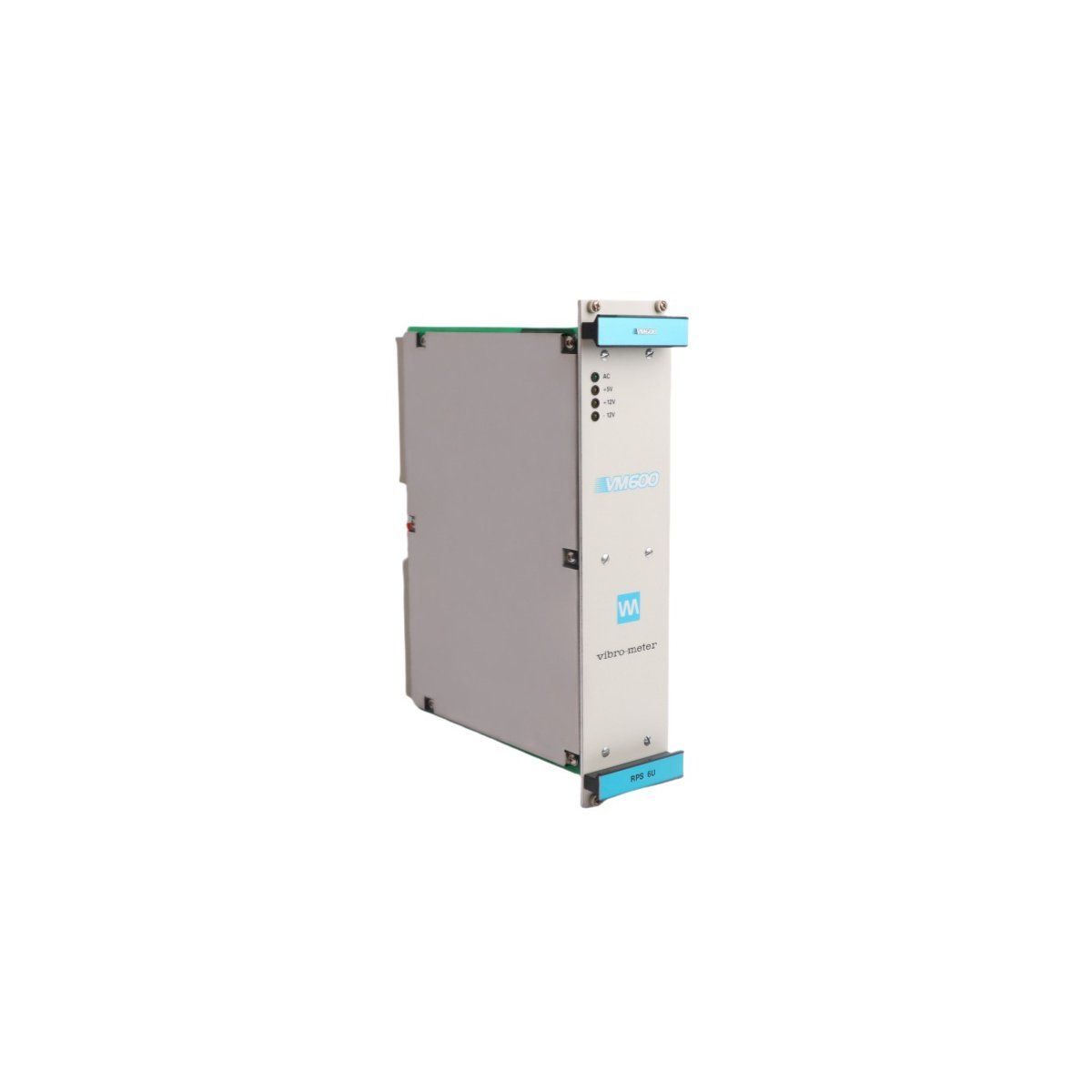

The Vibro-Meter VM600 RPS6U SIM-275A (200-582-500-013) is a high-capacity rack-mounted power supply designed to provide stable DC voltages for VM600 machinery protection systems. It supports both single and redundant configurations to ensure uninterrupted monitoring of critical industrial assets.

High-Availability Rack Power Management

The Vibro-Meter VM600 RPS6U SIM-275A 200-582-500-013 serves as the primary energy source for the VM600 series monitoring racks. This 6U-height module converts AC or DC mains input into highly regulated +5 VDC and ±12 VDC outputs, which power the various measurement and protection cards via the VME bus backplane. By utilizing high-current connectors, the module minimizes voltage drops and ensures that every card in a fully loaded 19-inch rack receives consistent, clean power. Consequently, this stability prevents signal noise and processing errors in sensitive vibration monitoring applications.

Redundancy and Fault Tolerance for Critical Uptime

To maximize system reliability, the SIM-275A 200-582-500-013 supports dual-module installation for full power redundancy. In this configuration, two modules share the load during normal operation; however, if one unit encounters a fault, the surviving module immediately assumes the total load without any interruption to the system. This automatic failover mechanism is essential for “always-on” machinery protection environments like power plants and refineries. Furthermore, the module includes an integrated check relay that provides real-time status feedback to the plant control system, allowing maintenance teams to identify and replace faulty power units before a secondary failure occurs.

Thermal Resilience and Industrial Versatility

Engineered for the rigors of heavy industry, the 200-582-500-013 module manages up to 330W of power while maintaining efficiency in high-ambient-temperature settings. While a single unit operates reliably up to 50°C, the redundant dual-supply architecture allows the system to withstand even higher thermal stresses through shared load distribution. Additionally, for installations requiring auxiliary sensor power, the RPS6U can be paired with ASPS units to provide a dedicated +24 VDC output. This flexibility makes the SIM-275A an ideal choice for complex global projects in the oil and gas sector, where equipment must operate under varying electrical standards and environmental extremes.

Key Technical Characteristics

• Advanced Backplane Integration: Connects via high-current VME bus interfaces for efficient power distribution.
• Redundant Architecture: Supports dual-unit failover to guarantee 100% system availability.
• Comprehensive Output Range: Supplies +5 VDC and ±12 VDC to power all VM600 series monitoring cards.
• Wide Voltage Input: Compatible with various AC and DC mains sources for international deployment.
• Integrated Diagnostics: Includes a power supply check relay for automated health monitoring.
• High Power Density: Delivers up to 330W from a single 6U-sized module.

Technical Specifications
